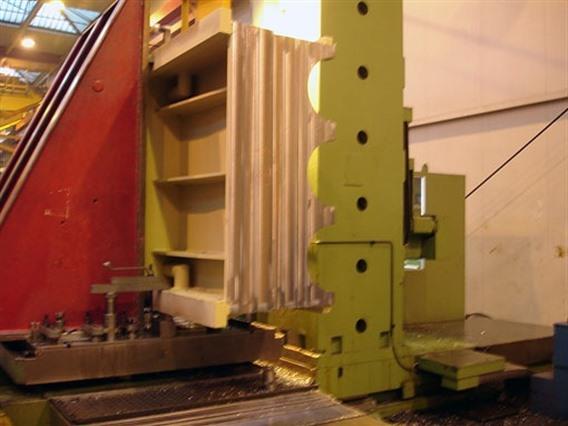

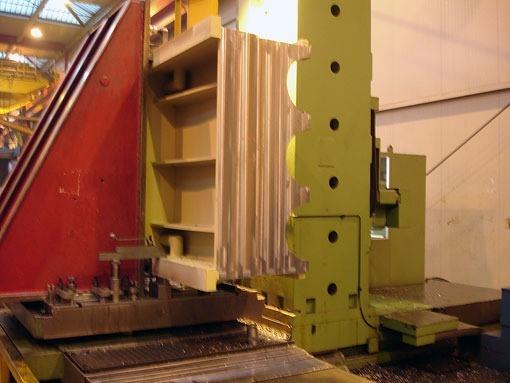

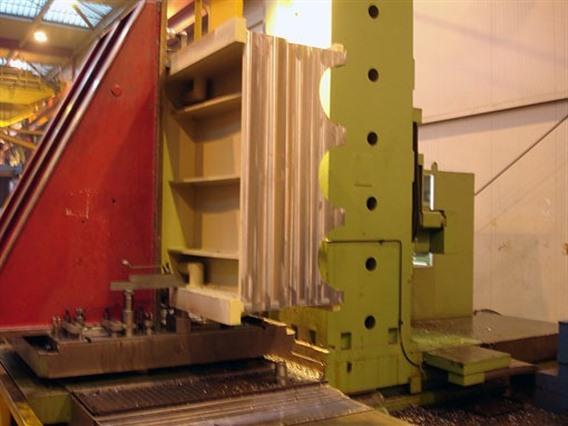

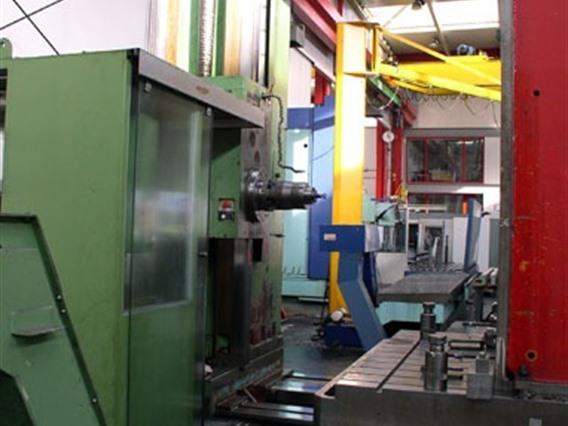

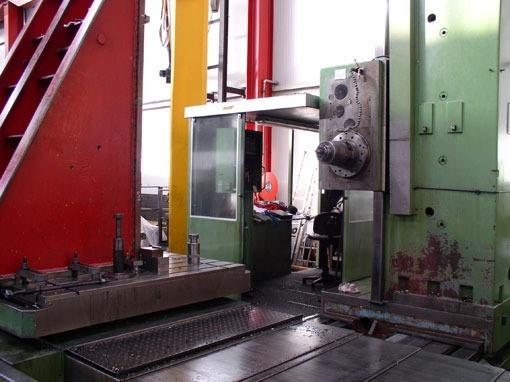

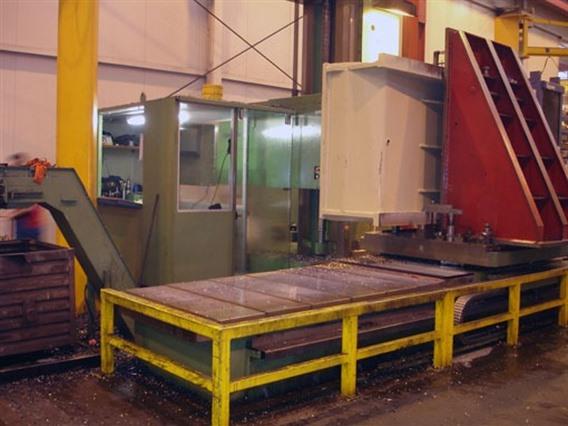

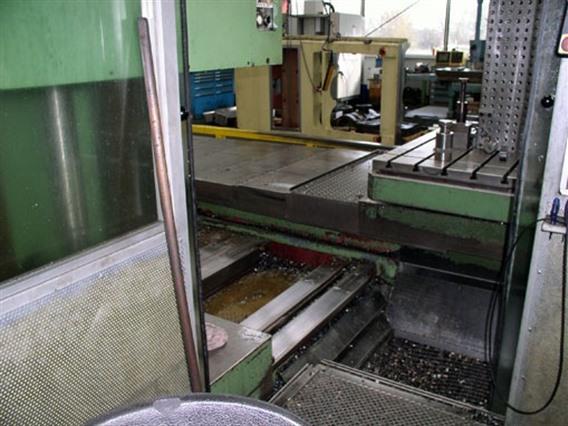

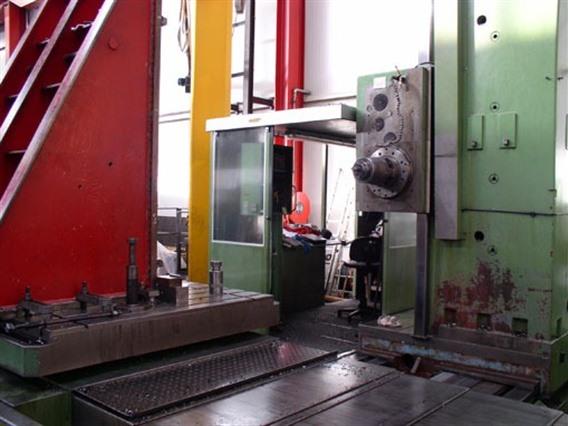

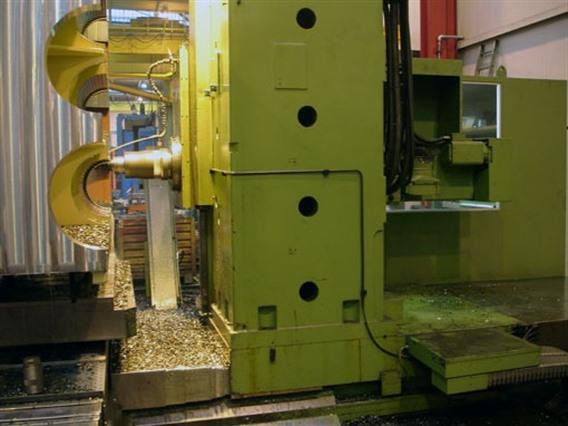

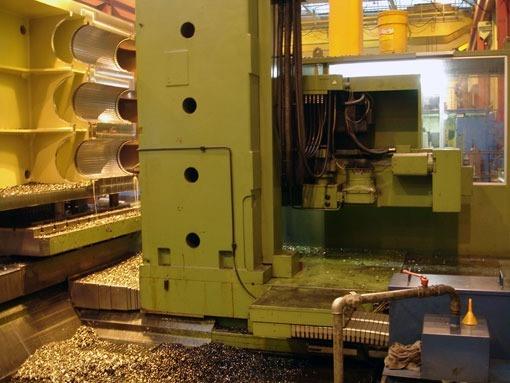

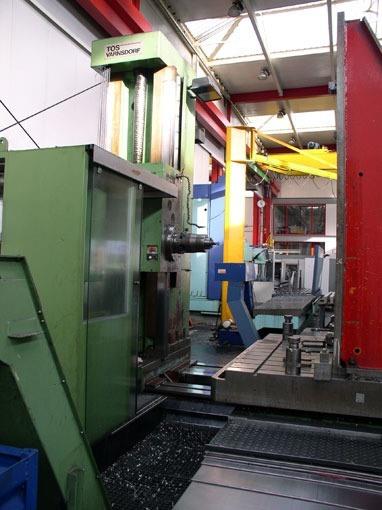

Table type borers Tos WHN 13 CNC X:3500 - Y:2000 - Z:1250mm

Technical information

  • Spindle DiaØ 130 mm
  • Spindle boreISO 50
  • Table dimensions 1600 x 1800 mm

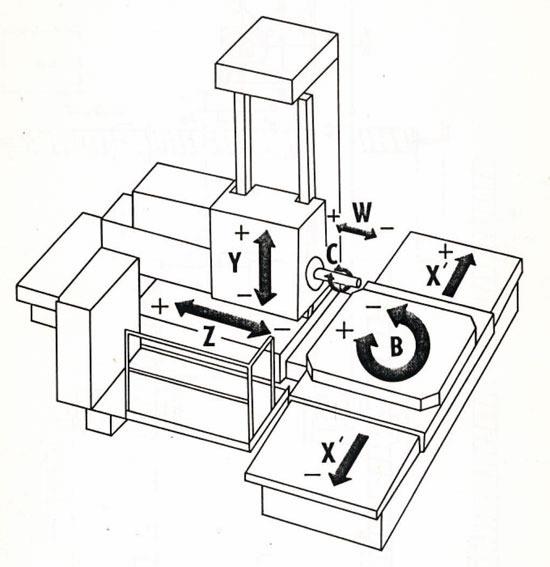

  • Table longitudinal travel (X-axis)3500 mm (longitudinal movement)
  • Cross travel Table/colom (Y-axis)2000 mm (height movement)
  • Height travel head (Z-axis)1250 mm (transversal movement)
  • Max travel spindle800 mm (spindle movement)
  • Power on spindle37 kW

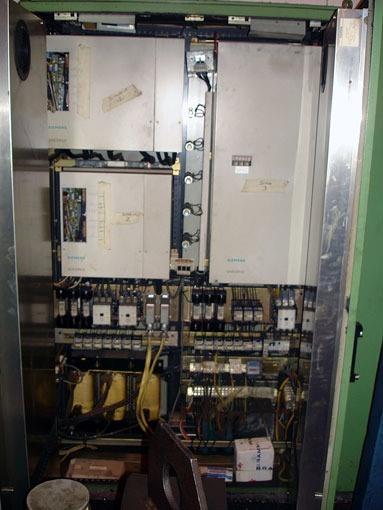

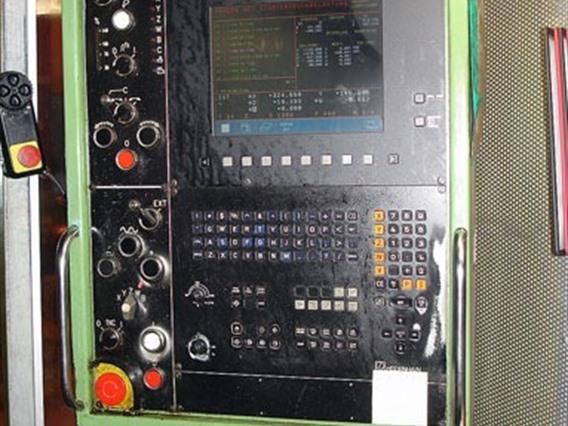

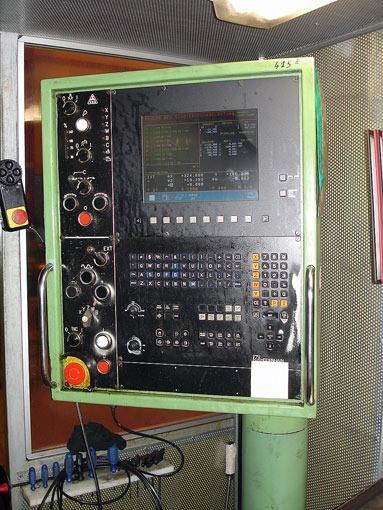

  • Control(2) CNC Heidenhain 415
  • Courant needed85 kVA
  • Length 6960 mm
  • Depth 6340 mm
  • Height4495 mm
  • Weight34500 kg

Additional info

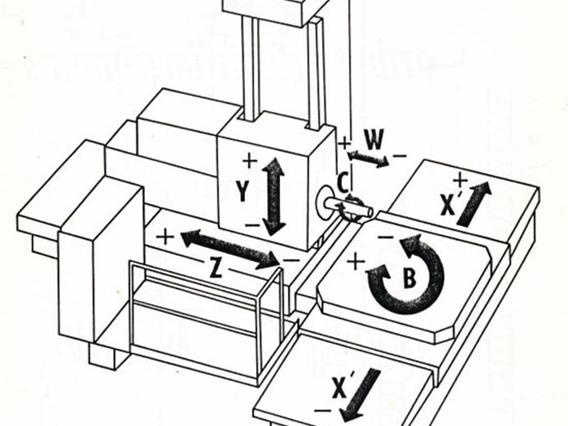

  • 5 axes simultaneous CNC Heidenhain 415
    Turning Table: 360000 positions
    Weight on Table: 12000 kg
    This machine can be fully retrofitted into the new colours of Tos.

  • Type/Model: WHN 13 CNC X:3500 - Y:2000 - Z:1250mm
  • Stocknumber: F.01 5164
  • Main category: [F] Borers & Turningtables
  • Sub category: [F.01] Table type borers
  • Brand: Tos

Stocknumber: F.01 5164
