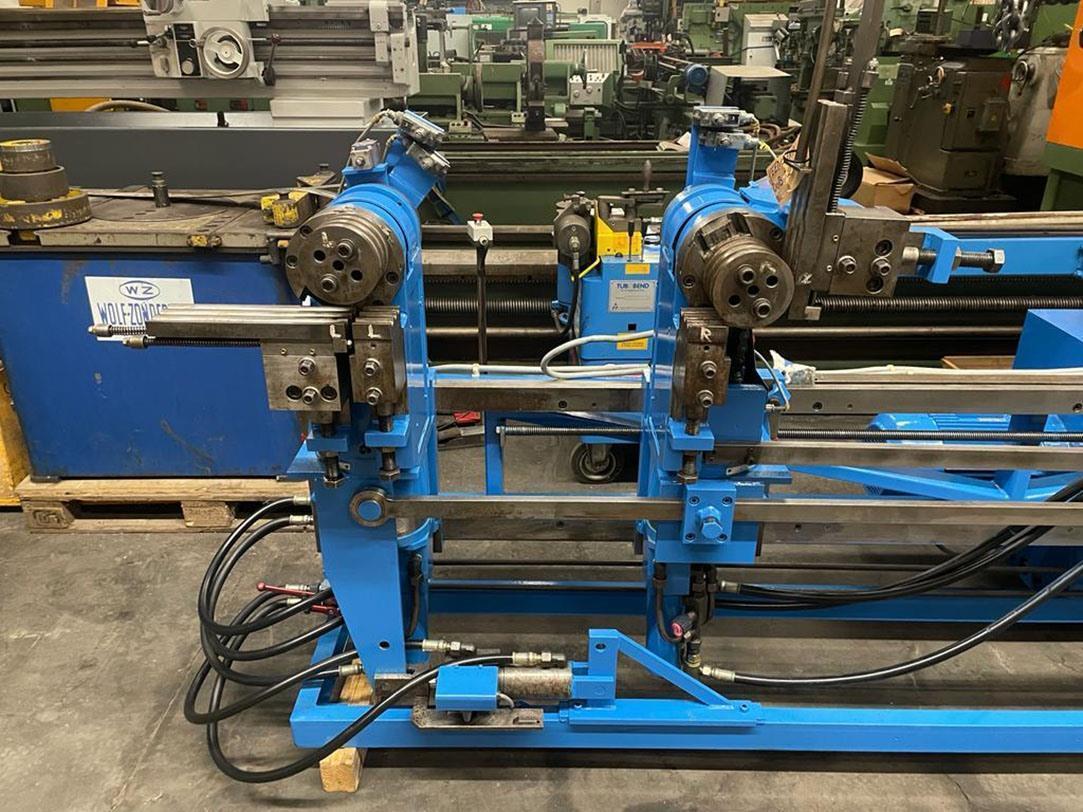

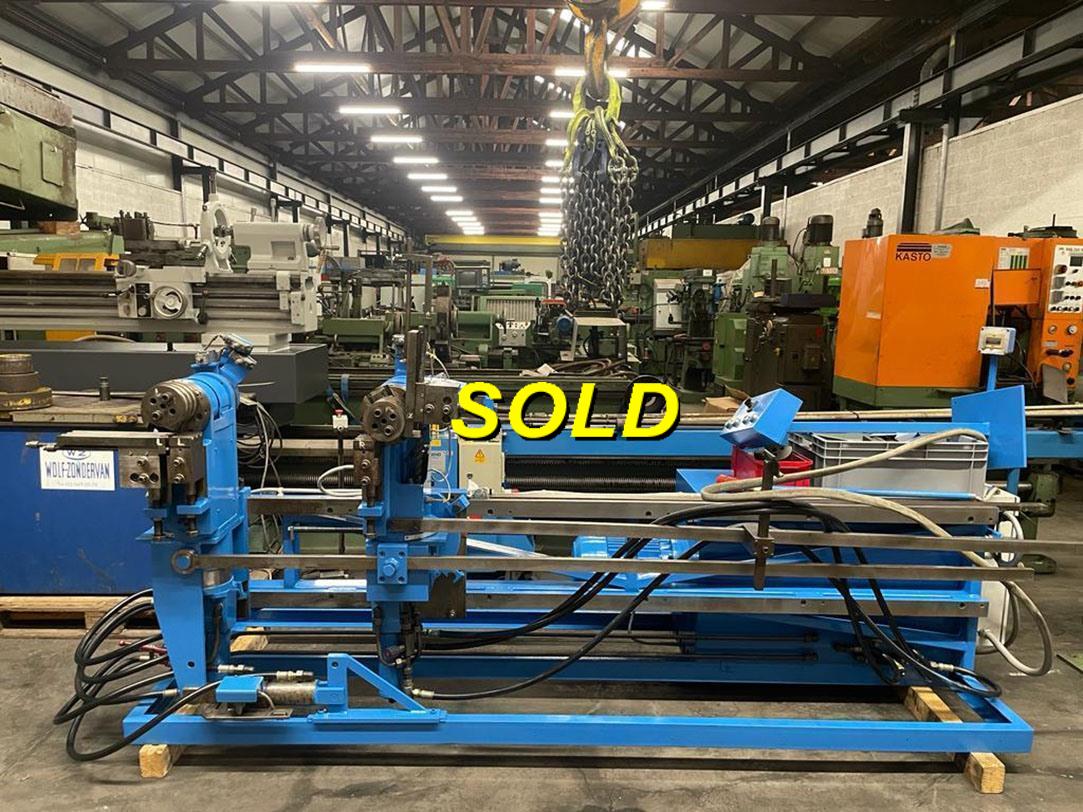

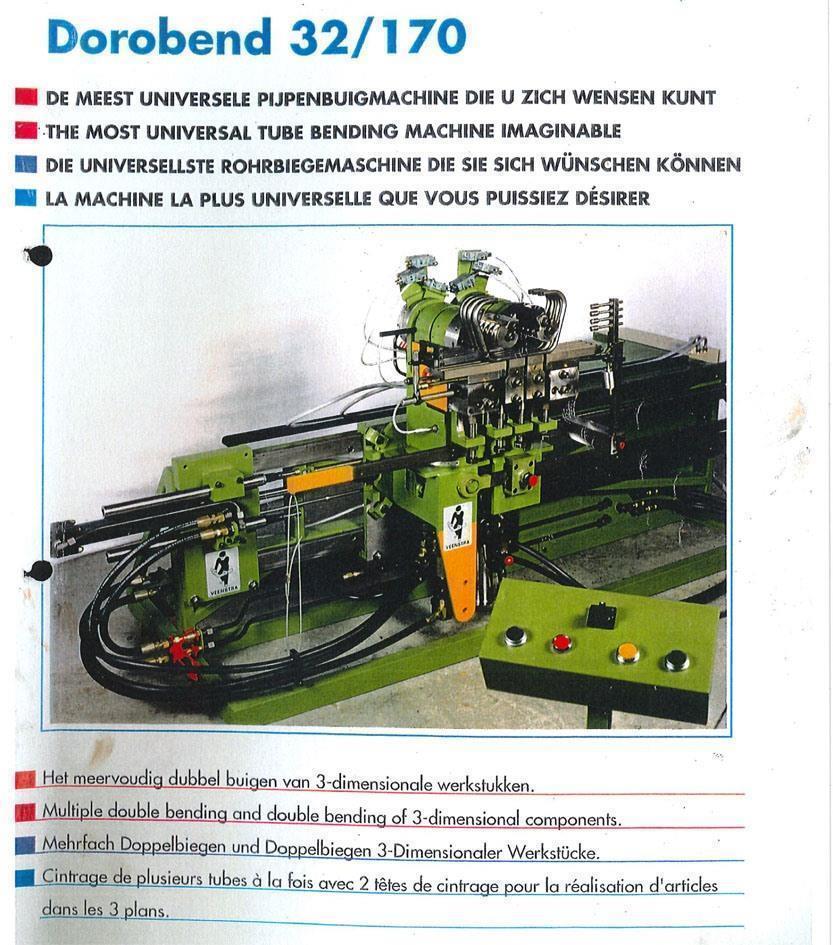

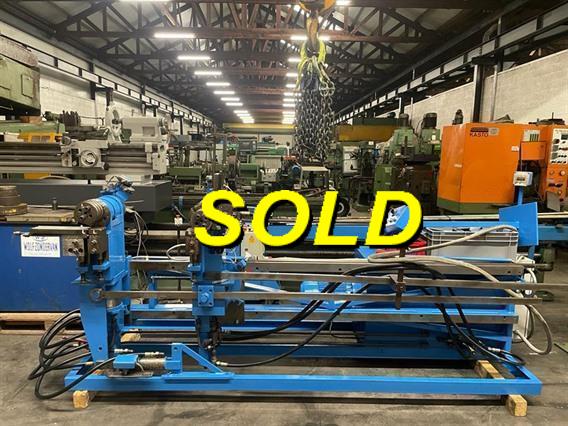

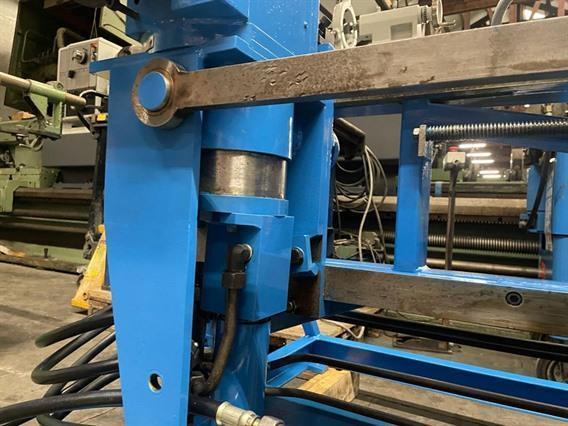

Veenstra, DOB 32/170

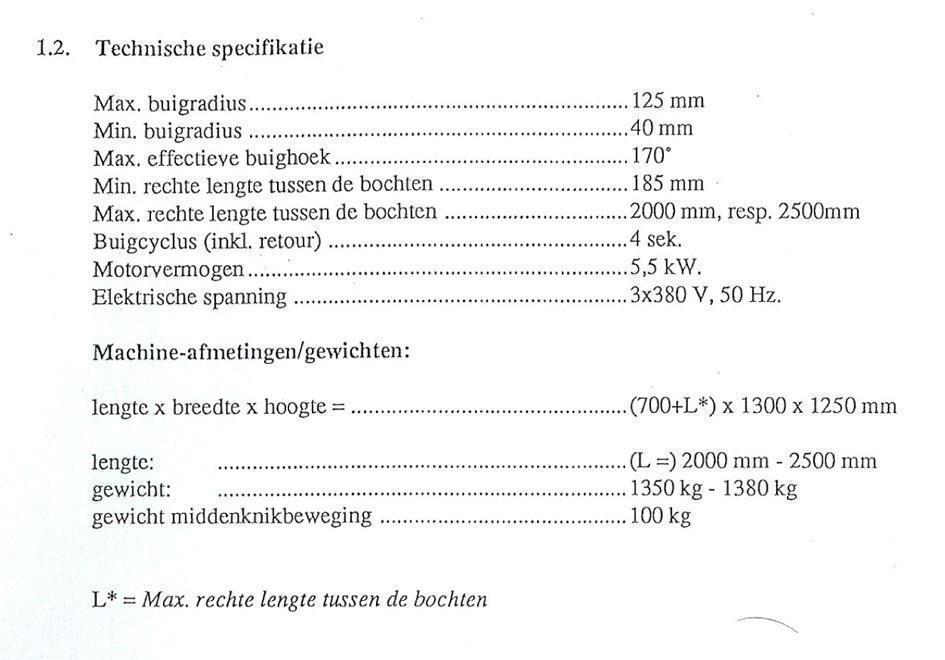

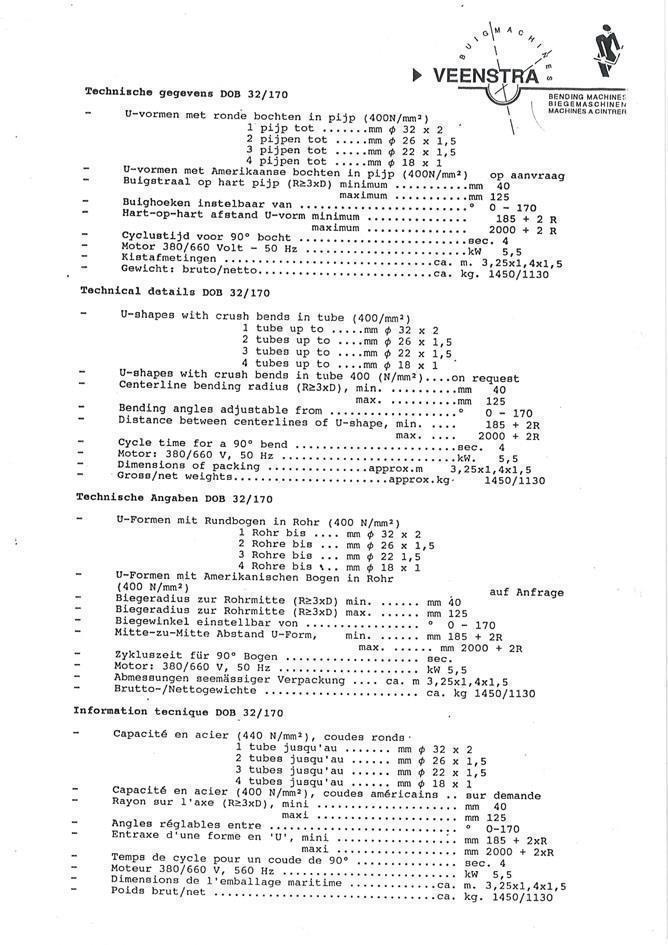

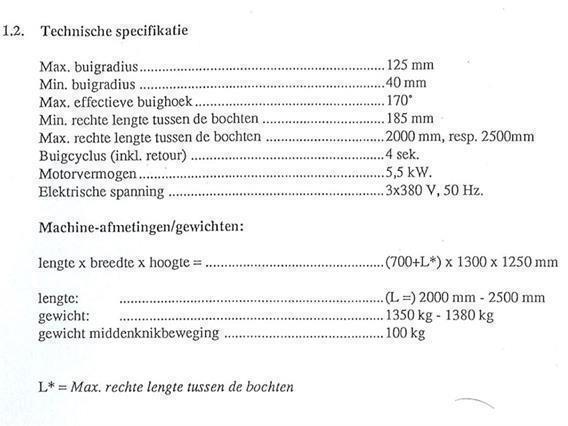

Technical information

  • Min bendingradius40 mm
  • Max bendingradius125 mm
  • Back stop max tubelengthMax 2000 mm (variable)
  • Driven axes(1) 2 axes
  • Motor power5,5 kW

Additional info

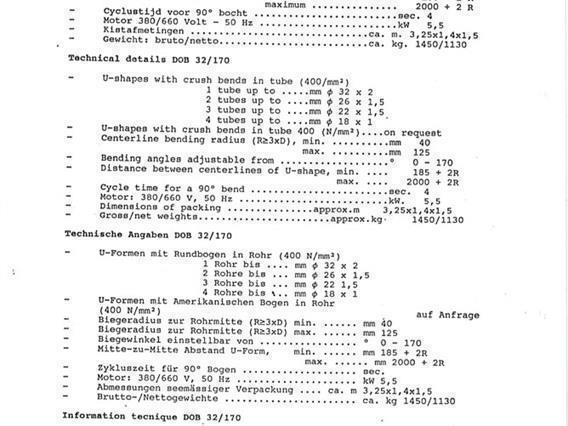

  • Min/max distance between mandrels: 200mm / 2000mm
    Min/max bending radius: 40/125 mm
    Max bending angle: 170°

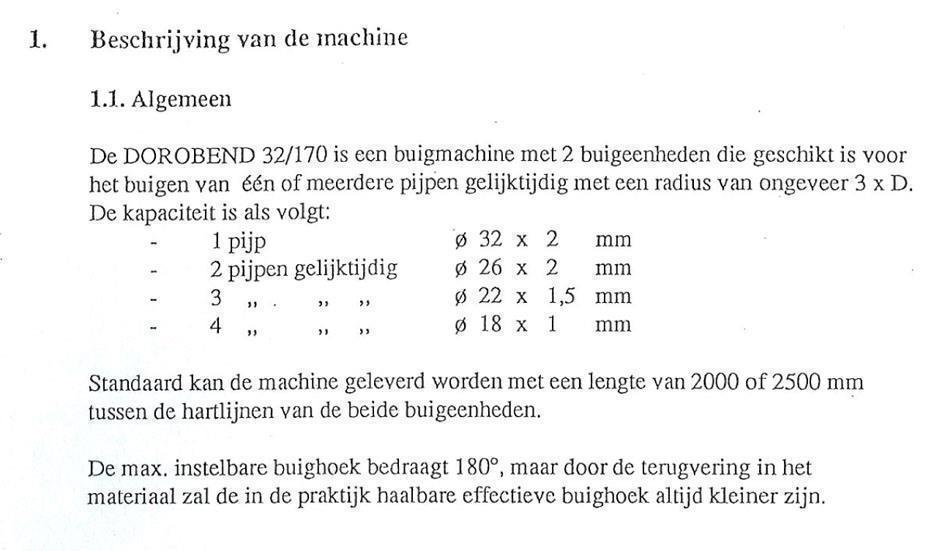

    Can bend 4 tubes in one action
    > 1 tube up to Ø 32 x 2 mm
    > 2 tubes up to  Ø 26 x 1,5 mm
    > 3 tubes up to Ø 22 x 1,5 mm
    > 4 tubes up to Ø 18 x 1 mm

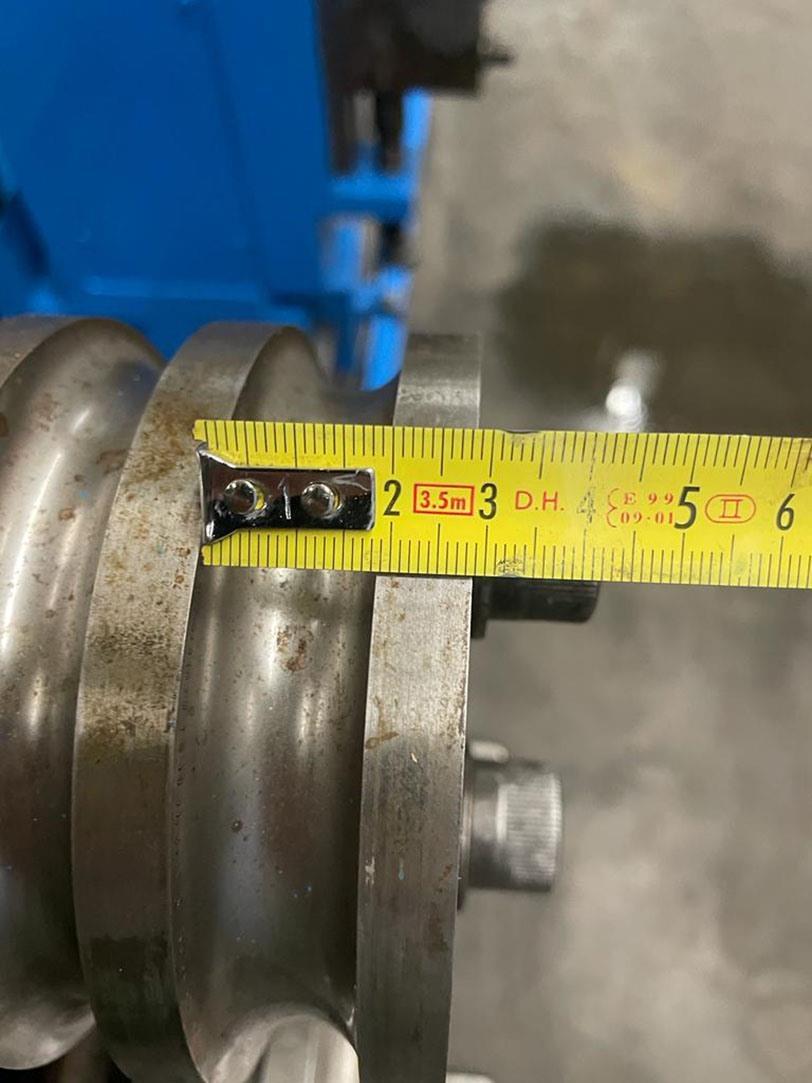

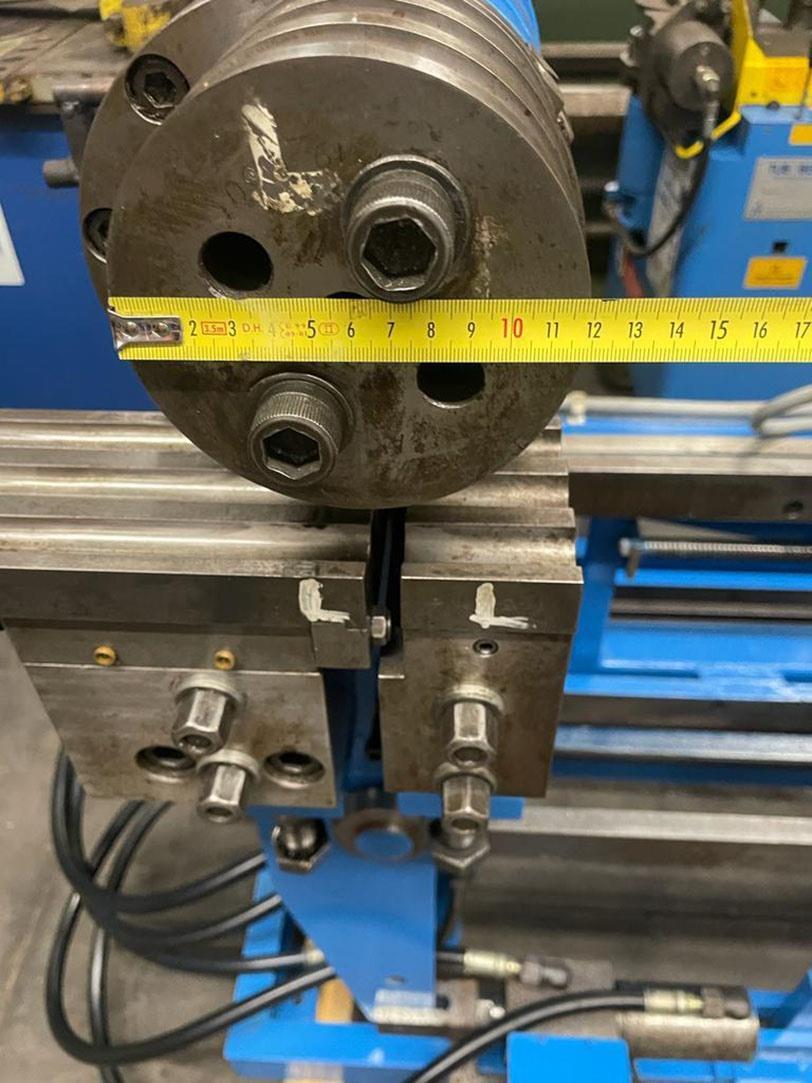

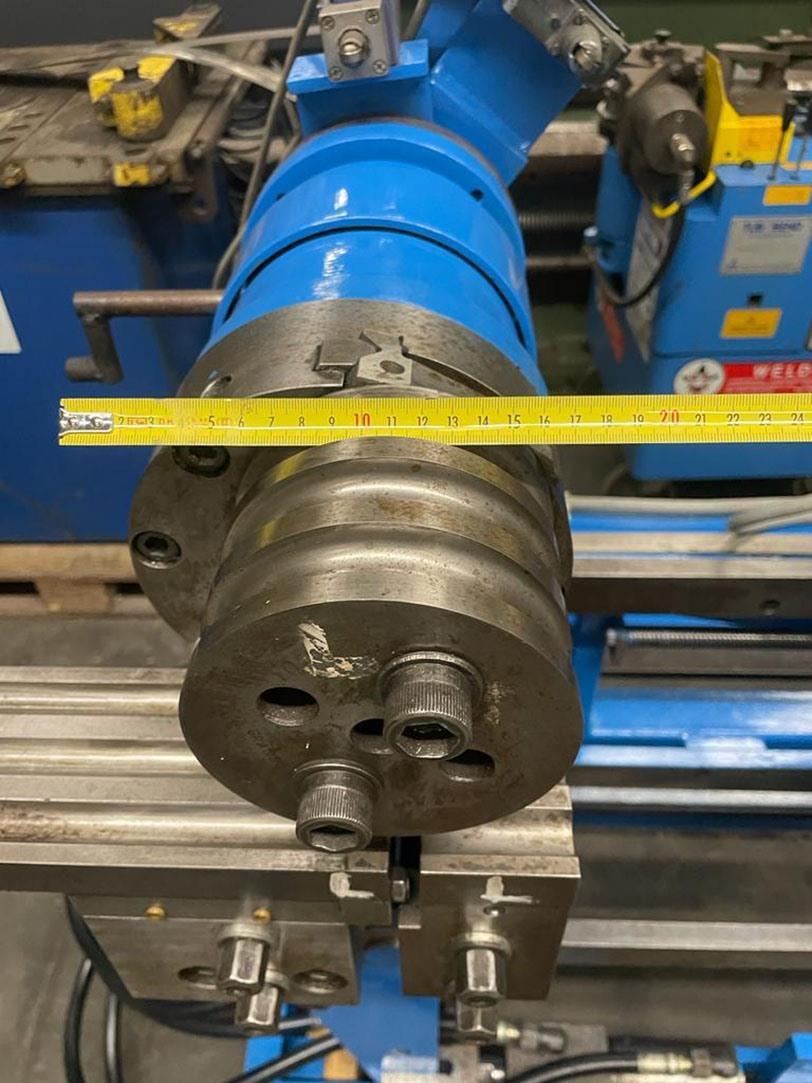

    2 x 3 adjustable bending corners + tilting mandrels + much tooling



  • Type/Model: DOB 32/170
  • Stocknumber: Q.01 10175
  • Main category: [Q] Bending machines, Straightening machines & Reducing machines
  • Sub category: [Q.01] Tube bending machines
  • Brand: Veenstra
