Silvestrini SA 2 TC EL T9 - 9 TON
Additional info

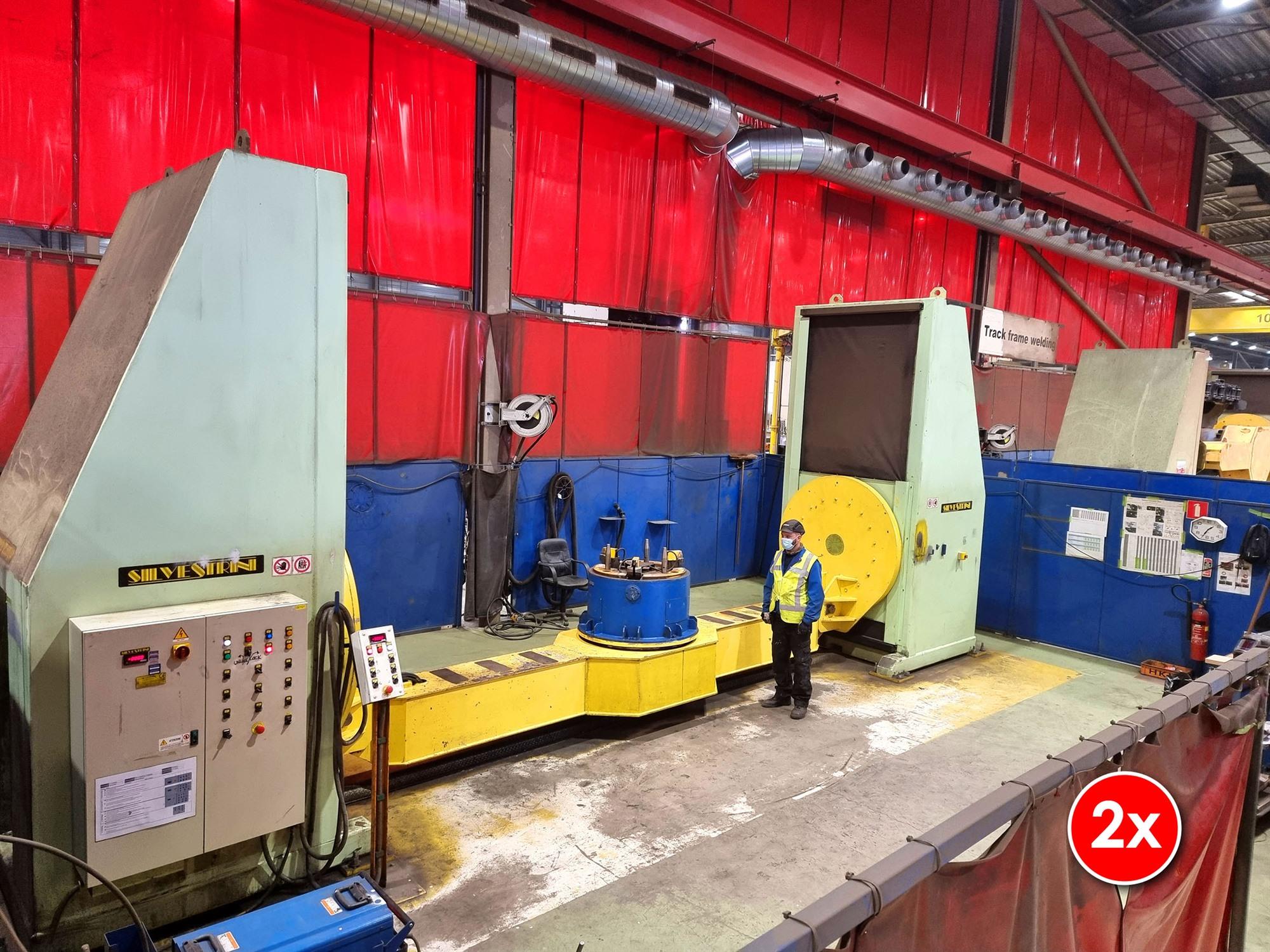

- The positioner SILVESTRINI Mod. SA 2 TC EL T9 is composed by:
The structure in rugged electro-welded steelwork, supporting lifting and motorized table.
The rotation is given by a gear motor that, by means of a pinion, meshes with a large slewing bearing, to which is fixed the table.
The structure is equipped with lateral precision guides to permit the table group lifting.
The elevation is hydraulic, by means of hydraulic piston on which are inserted special clamping safety valves, that prevent
the fall of the table, in case of accidental breakage of tubes.
A special bronze rotary earth connection (Silvestrini patent) transmits welding current.

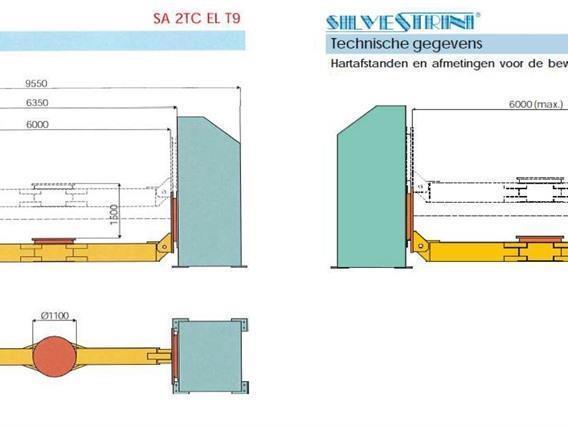

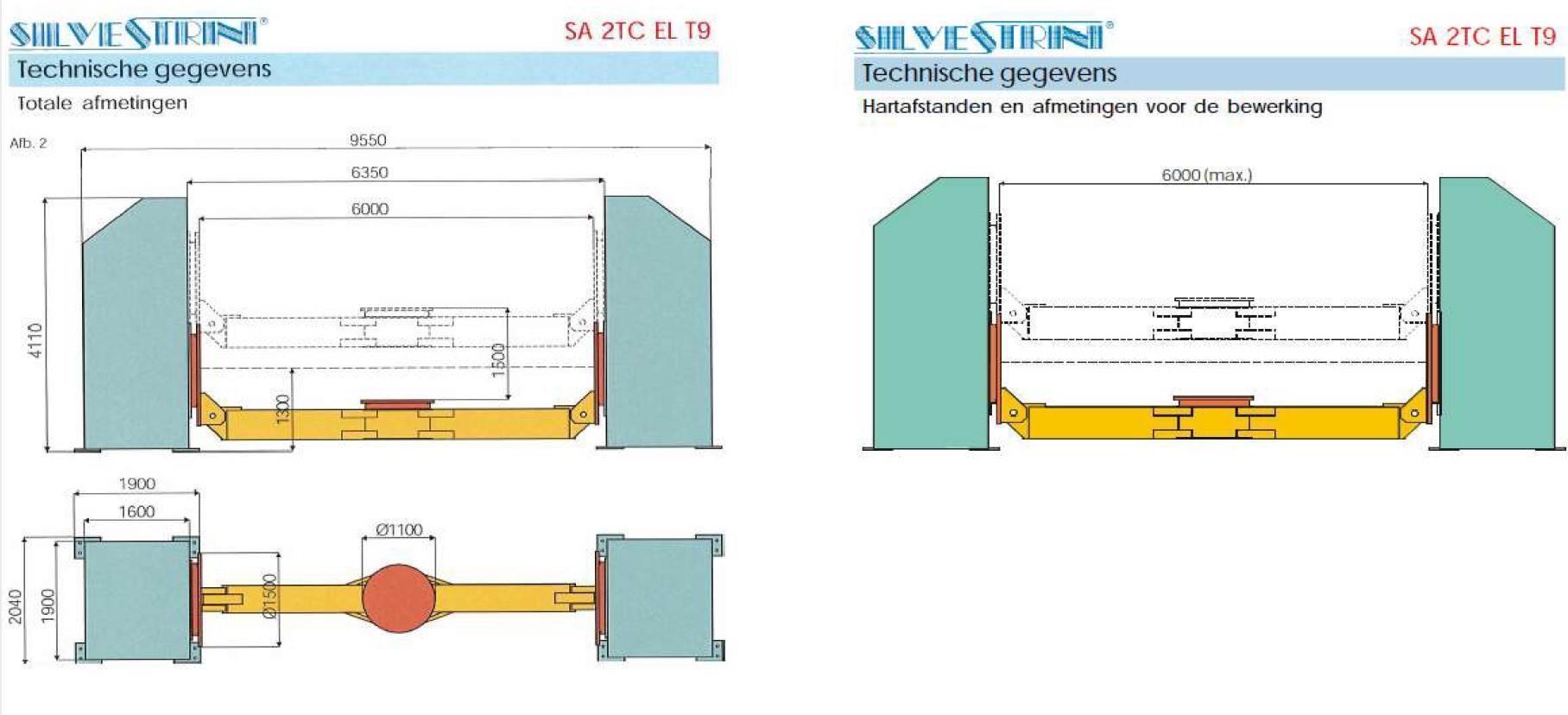

Technical specifications related to the workpieces:
Height from the ground to the spindle table: 800 mm
Max center distance between the pivot points: 5.600 mm

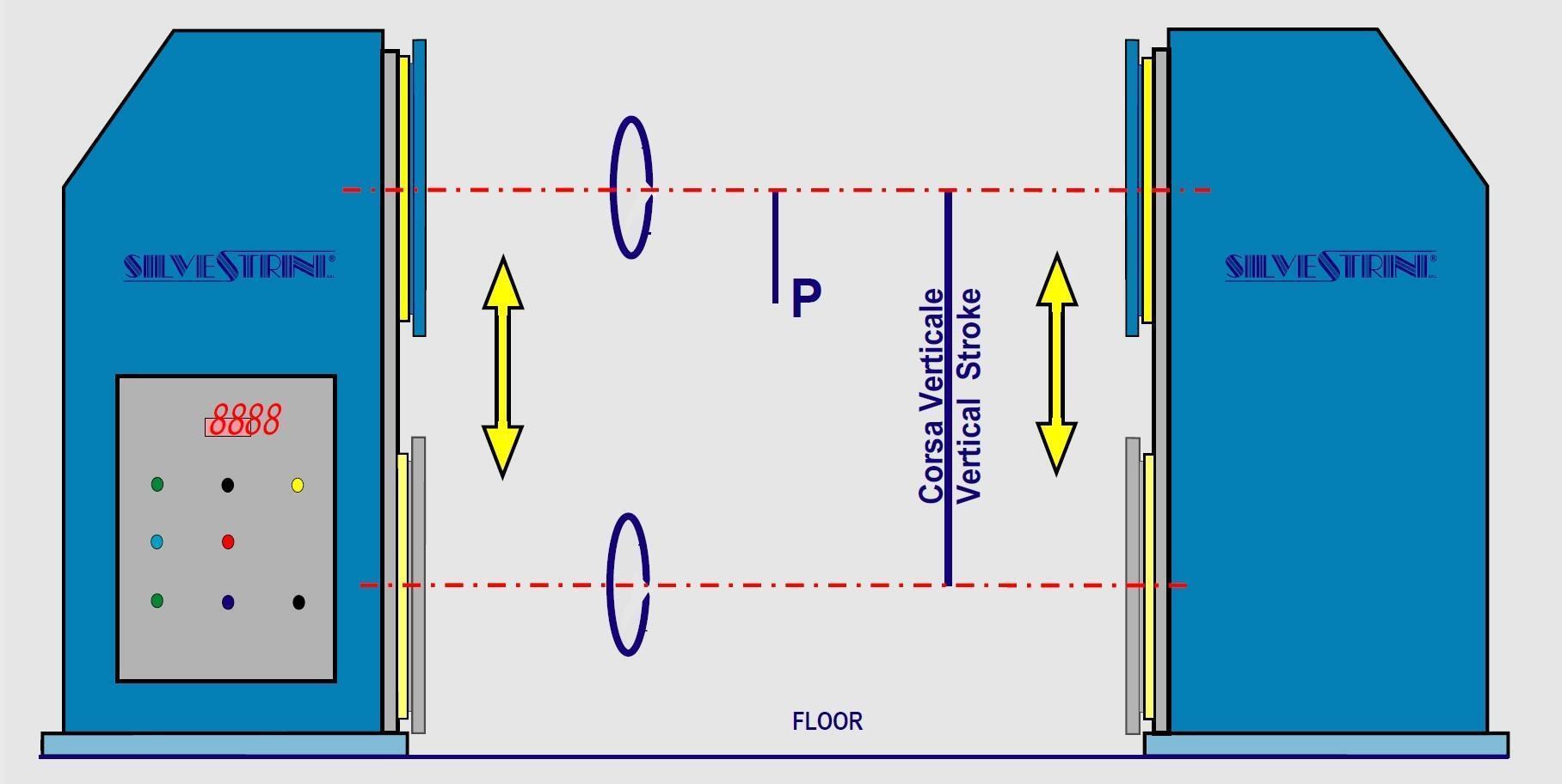

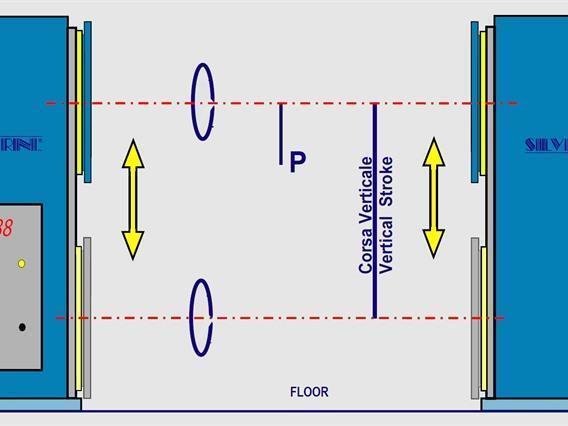

Height from the ground of the pivot axis (min - max): 1.300 - 2.800 mm
Max rotational speed of the table and spindle table: 1 rpm
Diameter of the table 1.000 mm
- Type/Model: SA 2 TC EL T9 - 9 TON
- Stocknumber: V.02 12527
- Main category: [V] Turninggears, Manipulators, Welding Robots, Weldingdericks & -pinchtables
- Sub category: [V.02] Turning gears - Positioners - Welding dericks & -pinchtables
- Brand: Silvestrini
