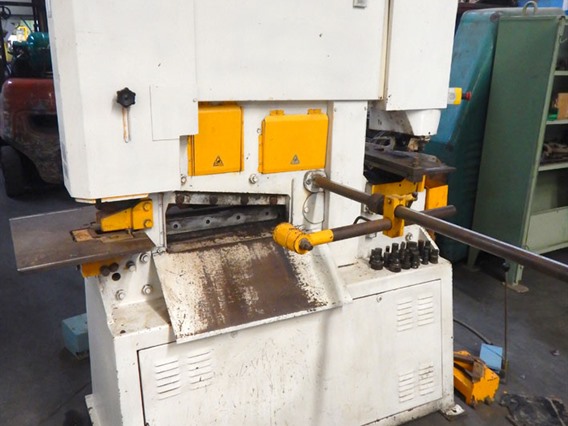

Geka Hydracrop 80/S

Product added to your favorites

Technical information

Punchingcapacity80 Ton
Dia x sheetthicknessØ 40 in 14 mm
Max course70 mm
Strokes/min40 str / min

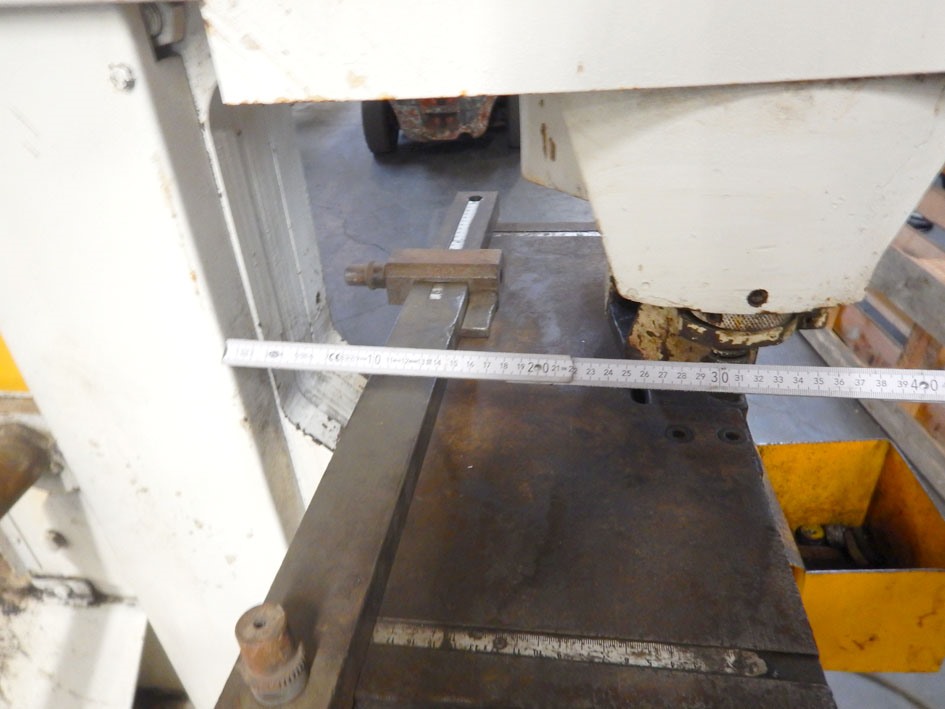

Depth of throat300 mm
Work level1095 mm
Max cutting-thickness in plate450 x 15 mm / 300 x 20 mm

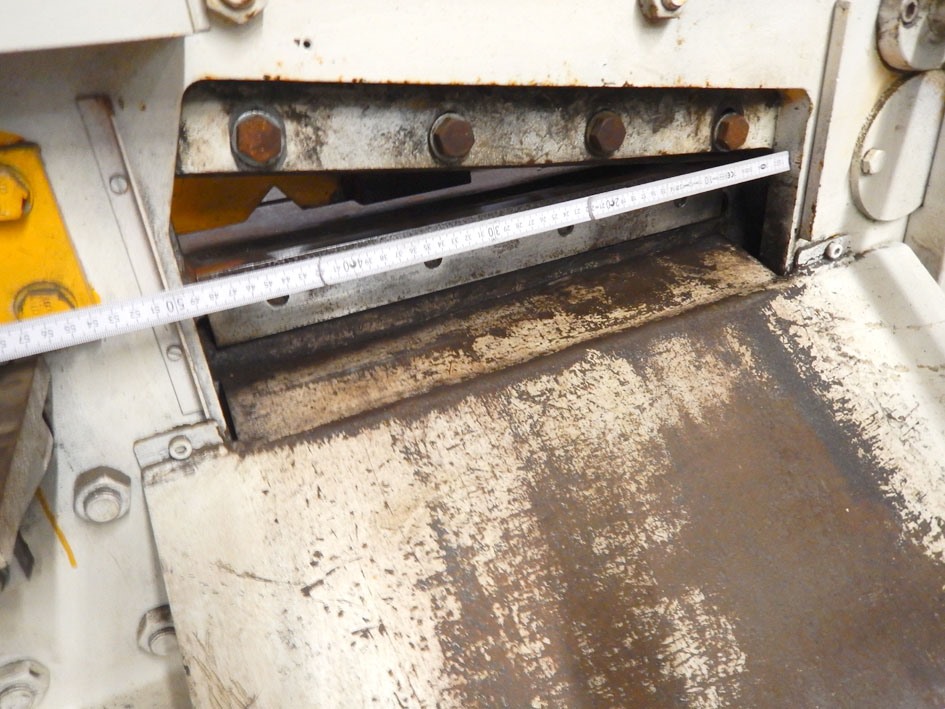

Blade length475 mm
Angle 45° in flange L-profile70 x 70 x 7 mm
Work level850 mm
90°-cut130 x 130 x 13 mm
Cut to length round/square45 mm
Cut to length UFN/IPN profiles140 mm
Max material -thickness by notching12 mm
Max wide by notching52 mm
Depth V-profile / rectangle90 mm
Electric motor (power)9 kW
Length 2130 mm
Depth 1200 mm
Height2050 mm
Weight2 ton

Additional info

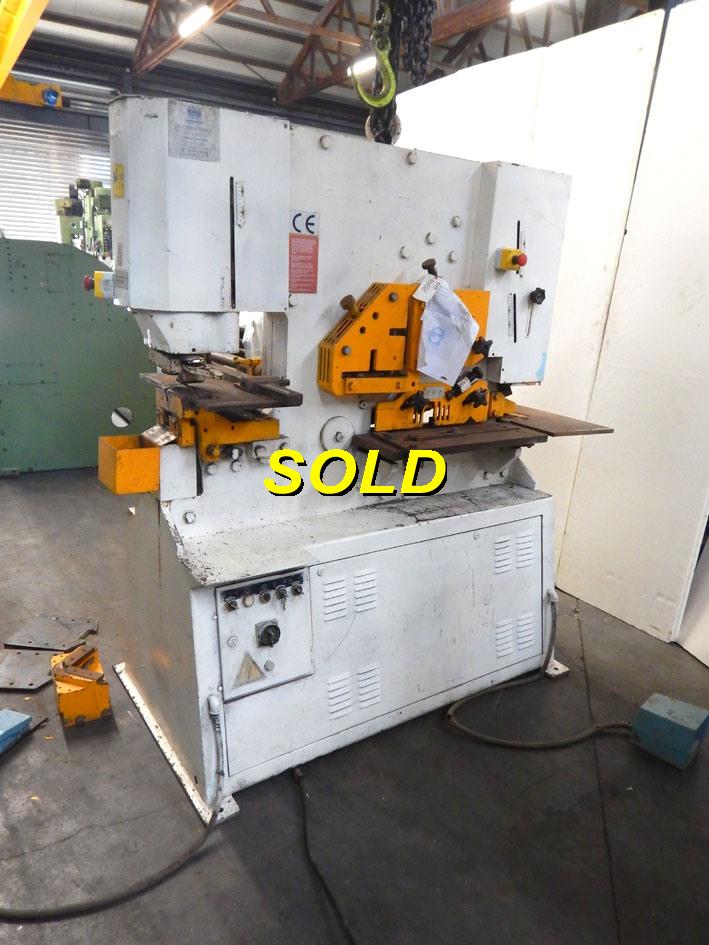

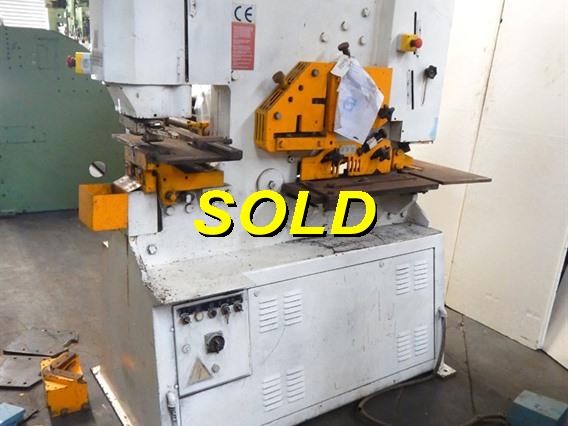

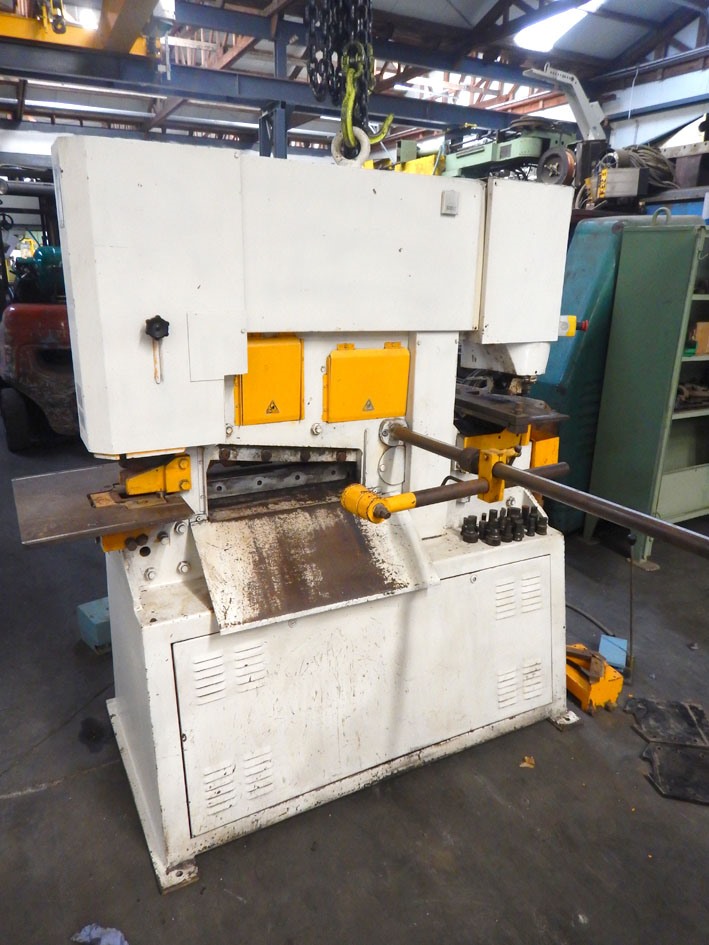

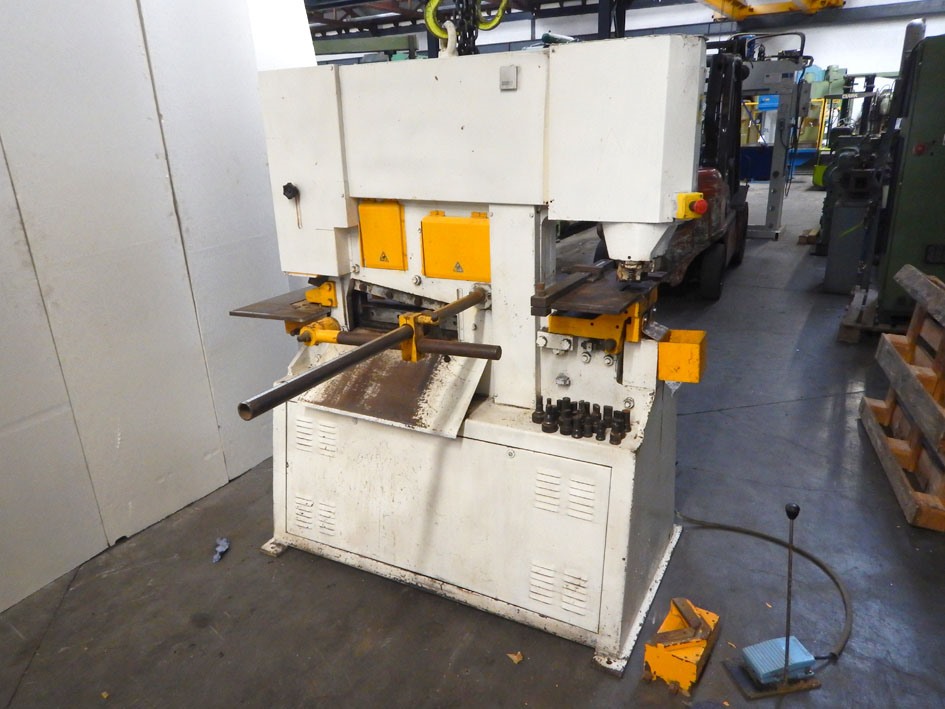

Universal punching machine

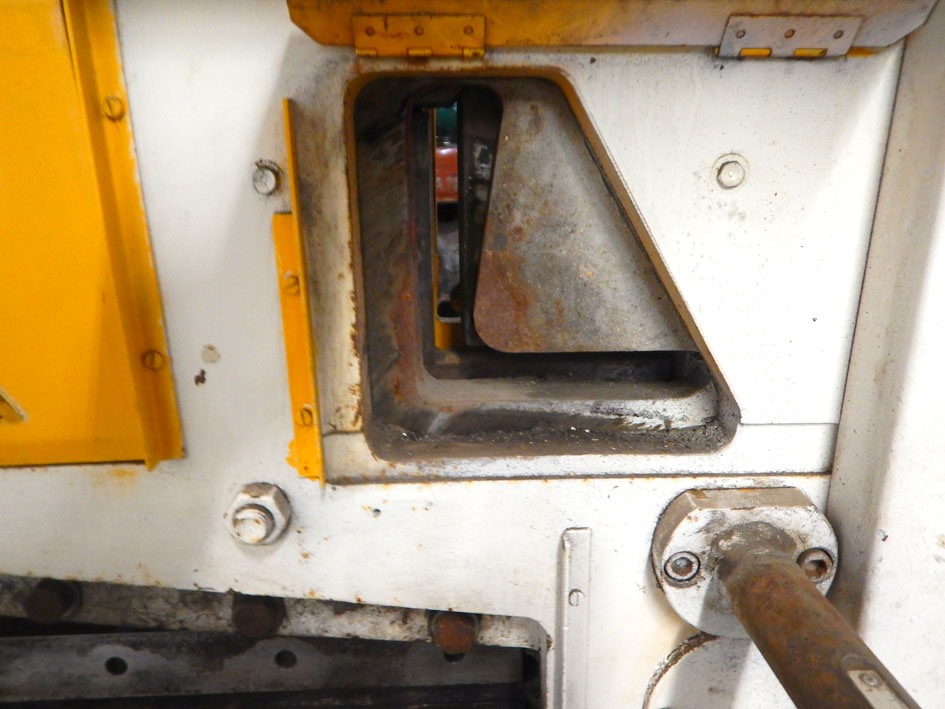

C Shear for profiles with power of 15 ton
L at 90º shear without deformation: 130x130 x13 mm
L at 45º: 70 x 70 x 7 mm

Round bar: ø 45 mm
Square bar: 45 mm

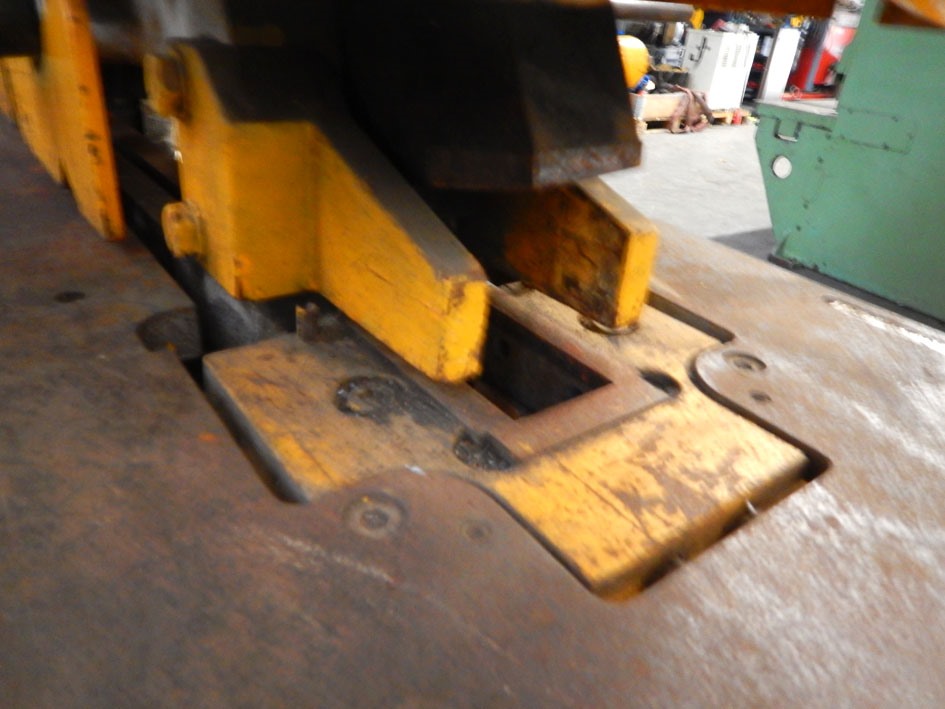

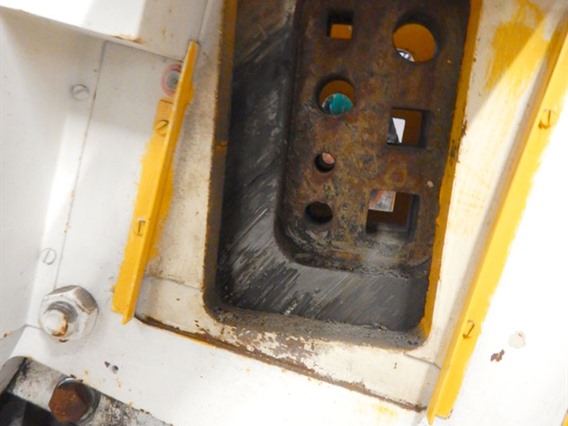

Notching:
Plate thickness: 12 mm
Plate dimensions: 100 x 90 x 52 mm

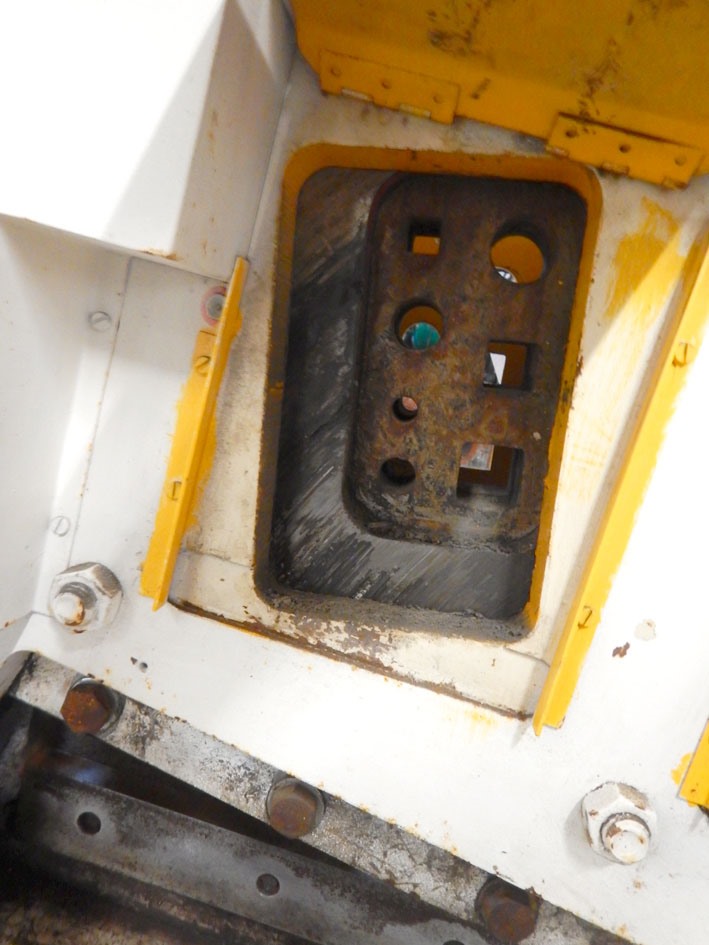

Punching:
Punching power: 80 ton
Cap: ø 40 x 14 mm / ø 24 x 24 mm
Punch stroke per minute: 40

Motor: 9 kWt

Dimensions of the machine:
2130 x 1200 x 2005 mm
Weight: 1400 kg

Many tools included!
Type/Model: 80/S
Stocknumber: P.13 10628
Main category: [P] Shears, Universal Punching machines, Cutting-to-length machines & Slitting lines, Lockformers & Metal band sawing machines
Sub category: [P.13] Universal ironworker
Brand: Geka Hydracrop

Stocknumber: P.13 10628
