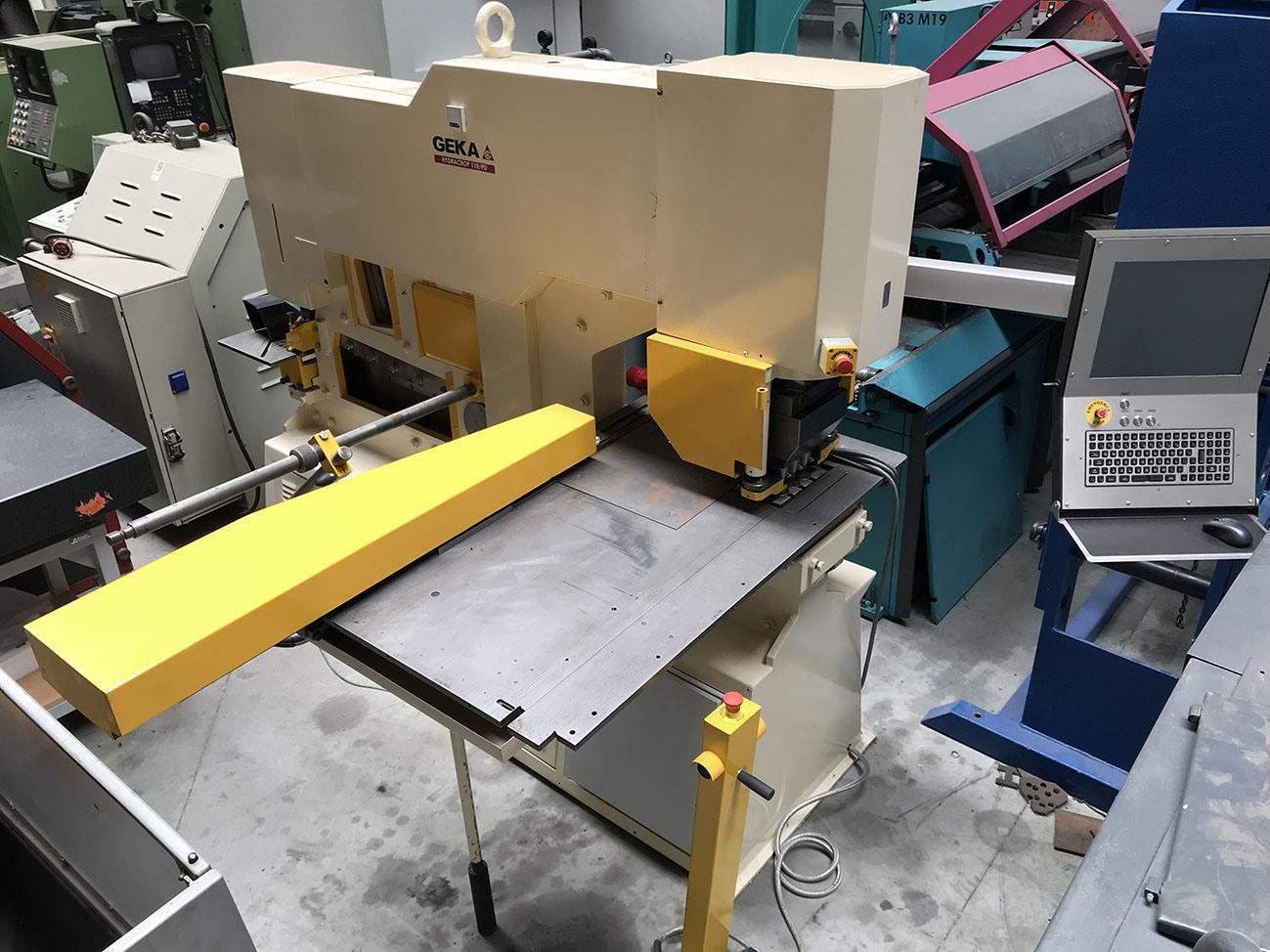

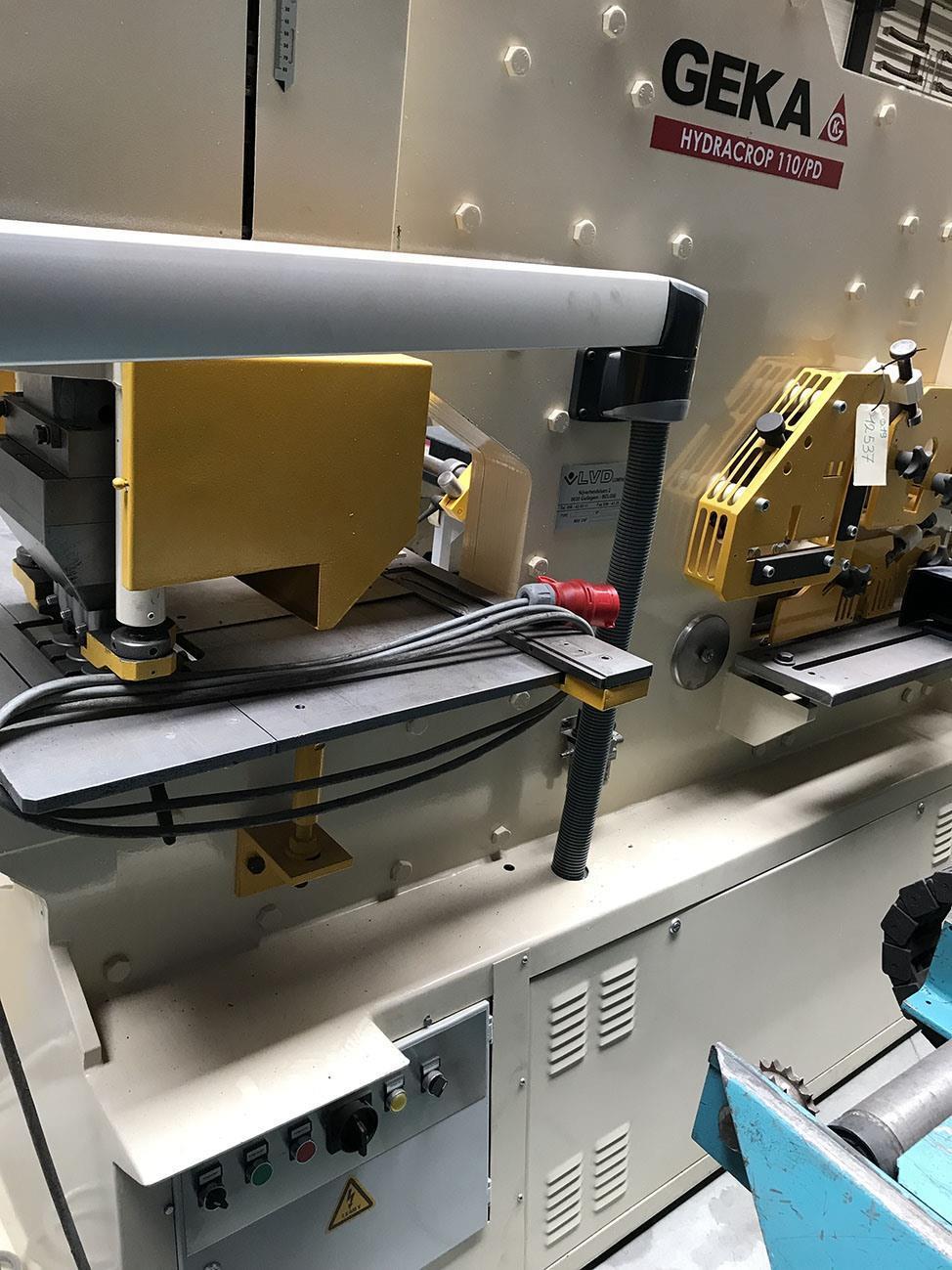

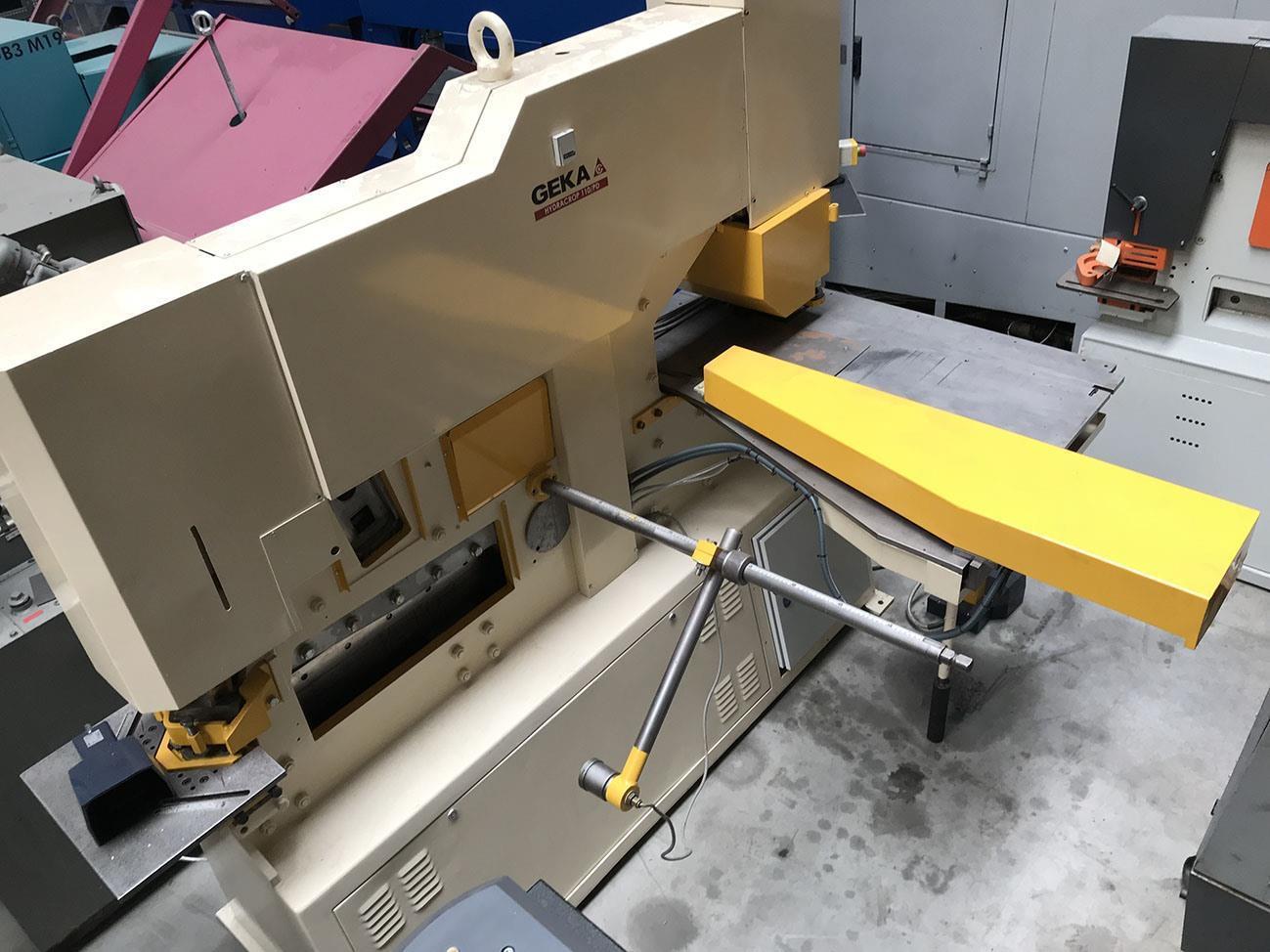

Geka Hydracrop SD 110 ton PD CNC
Technical information
- Punchingcapacity110 ton
- Dia x sheetthicknessdia 31 x 26 mm / dia 100 x 8 mm
- Depth of throat610 mm
- Max hole dia.Ø 100 mm
- Max cutting-thickness in plate600 x 15 / 400 x 20 mm
- Blade length605 mm
- 90°-cut152 x 152 x 13 mm
- 45°-cut70 x 70 x 7 mm
- Cut to length round/square50 mm

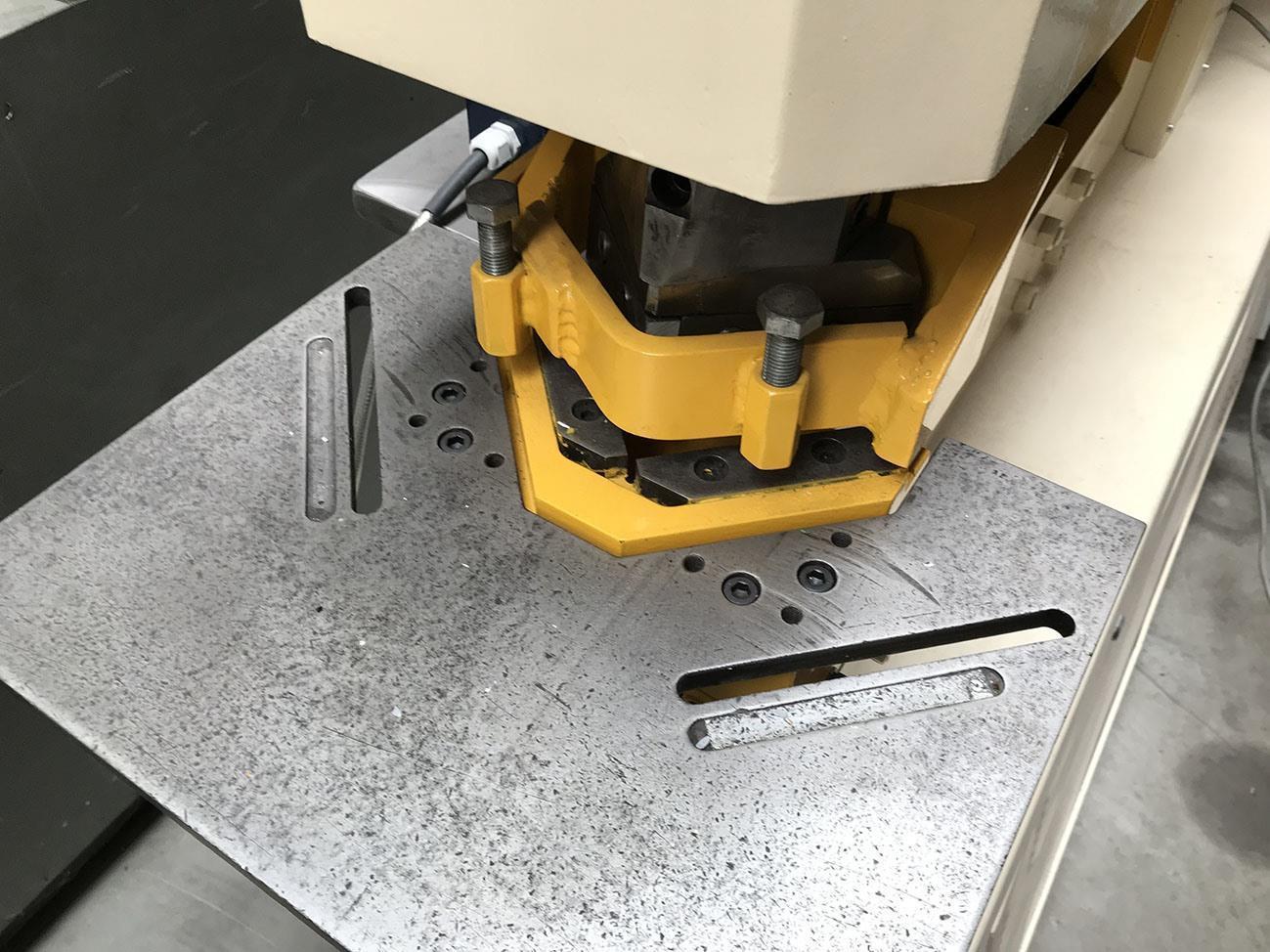

- Max material -thickness by notching90 x 52 x 13 mm
- Length 3000 mm
- Depth 2000 mm
- Height2200 mm
Additional info

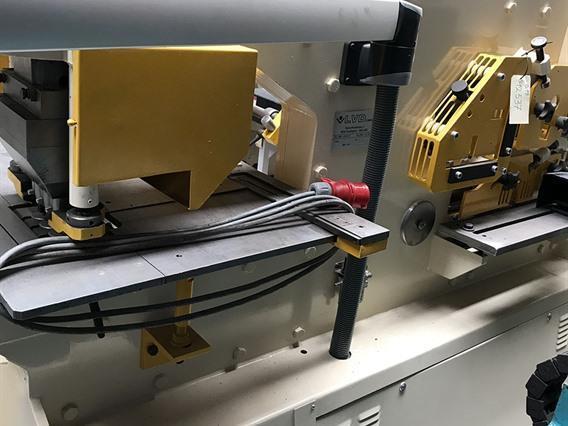

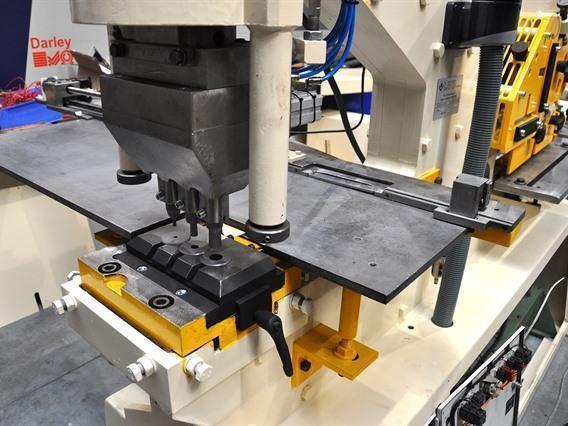

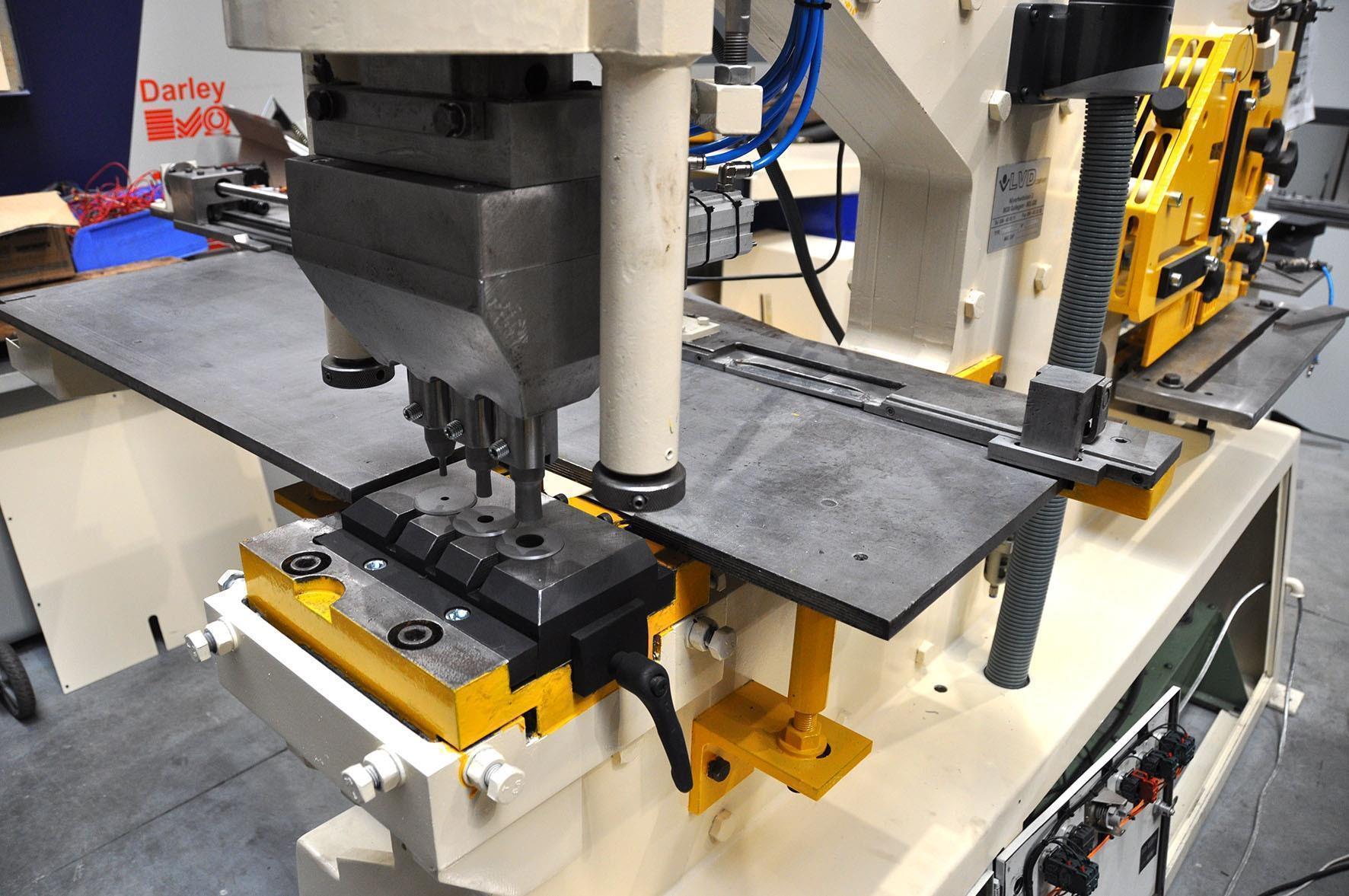

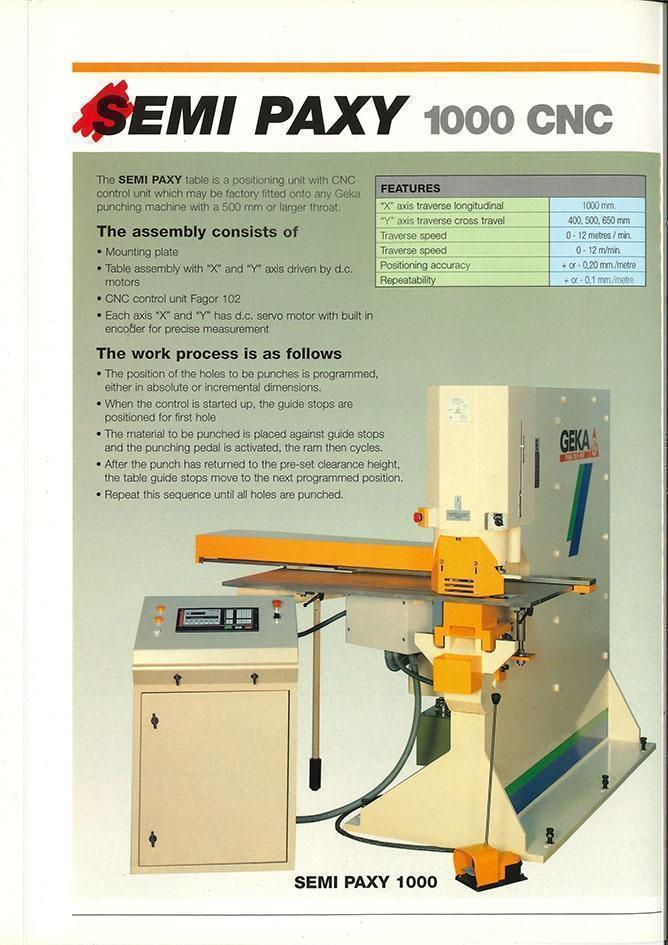

- with CNC X & Y positioning table for punchstation

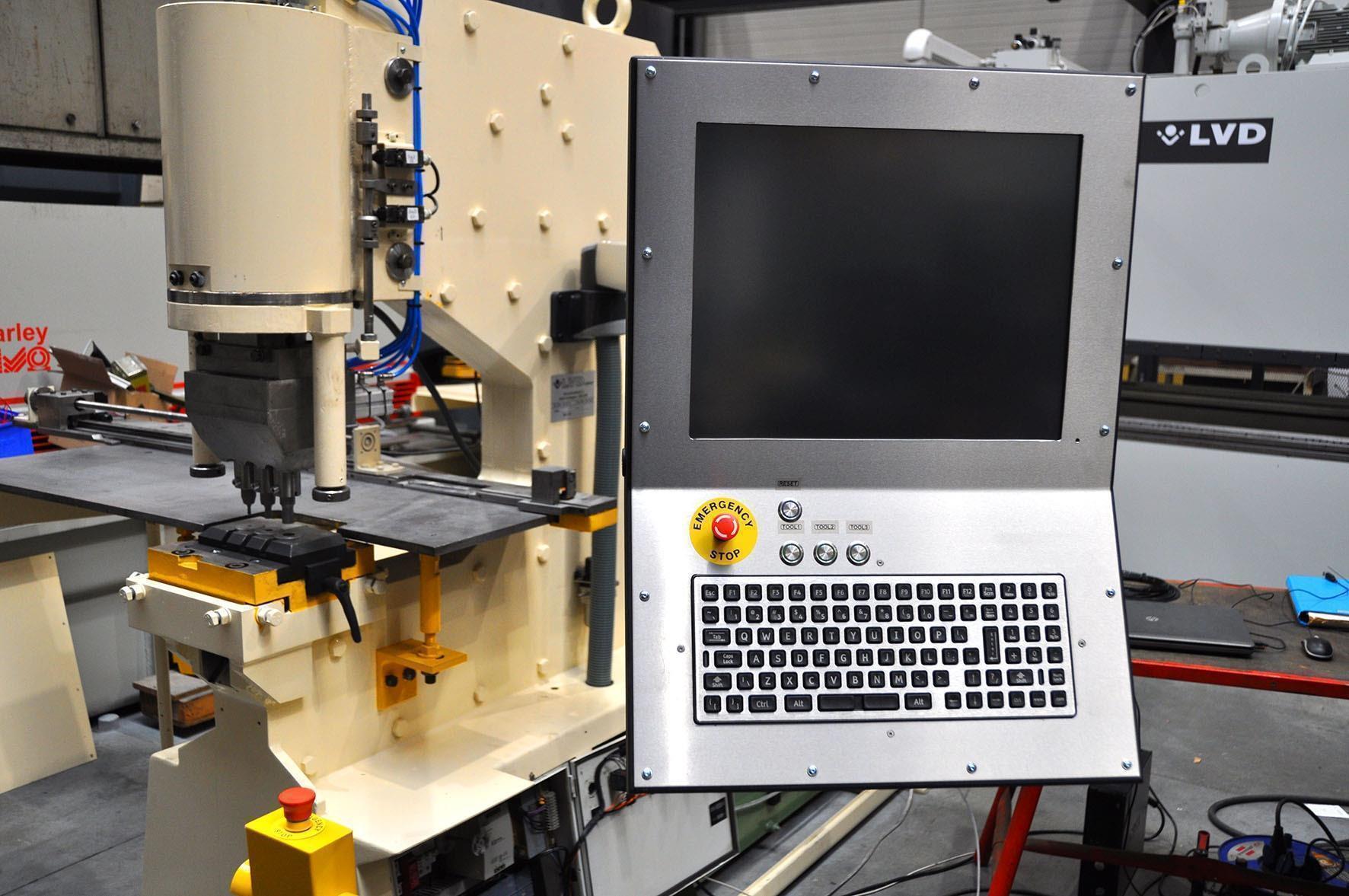

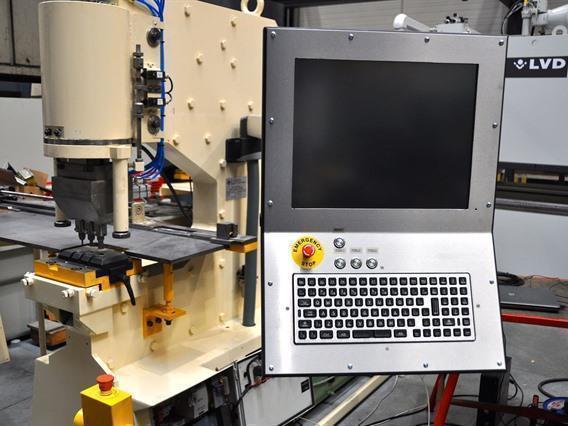

equipped with 3 punching units which can be selected with the CNC control Fagor

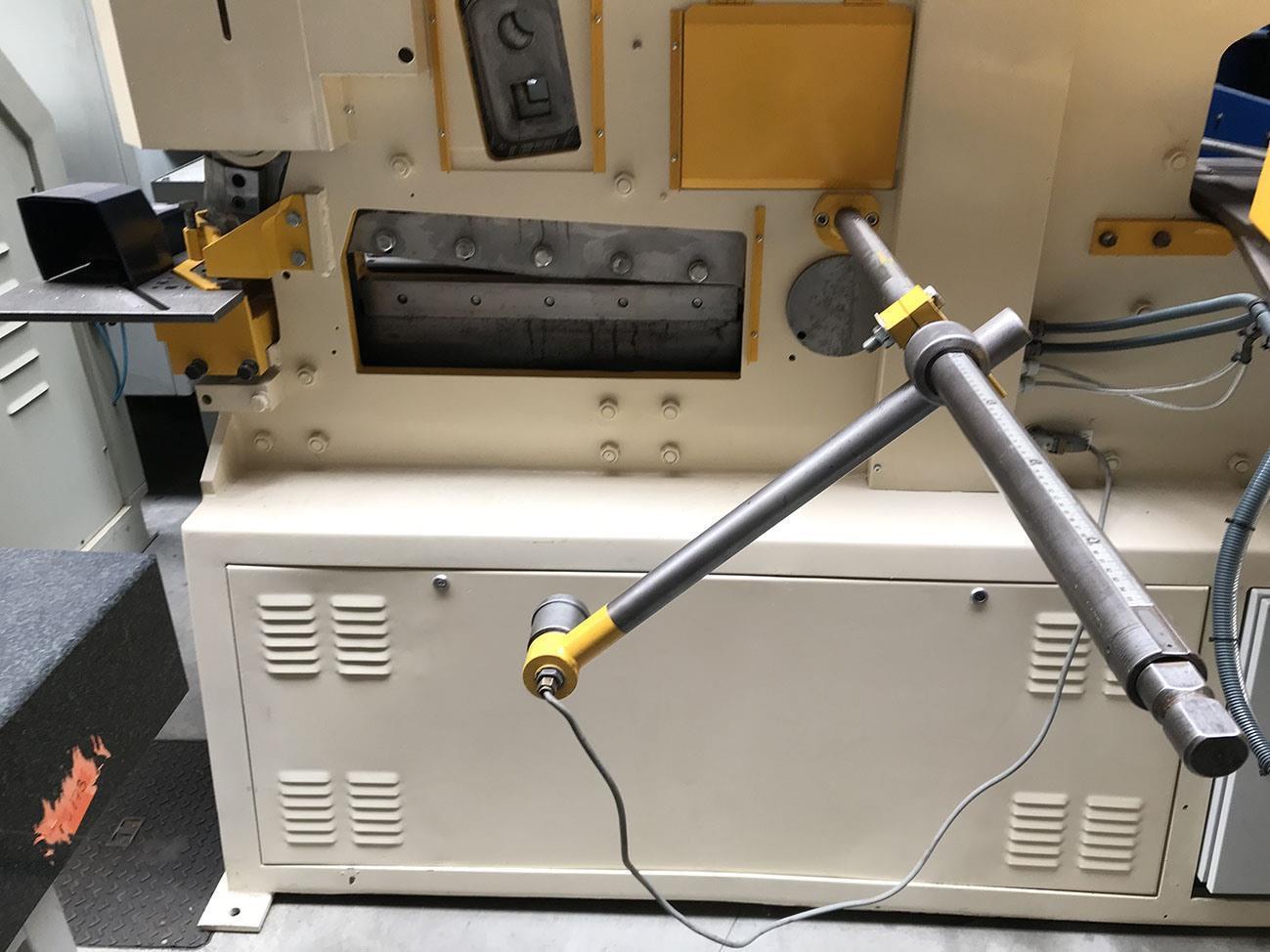

Electric backgauge for flat shear
Punching cap: 100 ton
Dia x sheet thickness: 31 x 26 mm / dia 100 x 8 mm
28 strokes/min
Depth of throat: 610 mm
Max hole dia: Ø 100 mm
Max cutting-thickness in plate: 600 x 15 mm / 400 x 20 mm
Blade length: 605 mm
90°-cut corner: 152 x 152 x 13 mm
45°-cut corner: 70 x 70 x 7 mm
Cut to length round/square: 50 mm
Max material thickness by notching: 90 x 52 x 13 mm
Power: 9 kW
Weight: 3,3 ton
- Type/Model: 110 ton PD CNC
- Stocknumber: P.13 12537
- Main category: [P] Shears, Universal Punching machines, Cutting-to-length machines & Slitting lines, Lockformers & Metal band sawing machines
- Sub category: [P.13] Universal ironworker
- Brand: Geka Hydracrop SD
