Hyundai SPT-V30T - X: 500 - Y: 300 - Z: 300 mm CNC

Hyundai SPT-V30T X: 500 - Y: 300 - Z: 300 mm CNC

Product added to your favorites

» Request a personalised quote

Technical information

X-axis500 mm
Y-axis300 mm
Z-axis300 mm
Table dimensions600 x 380 mm
Admission in spindle (ISO)BT 30
Power on the spindle5,5 / 3,7 kW
Drilling-capacitydia 20 mm
Tapping-capacityM16 x 2.0
Control Yasnac
Number of axes4
Toolchangeryes
Number of toolholders14 positions
Number of rotations10 > 8000 rpm
Length1640 mm
Depth2349 mm
Height2600 mm
Weight2,3 ton

Additional info

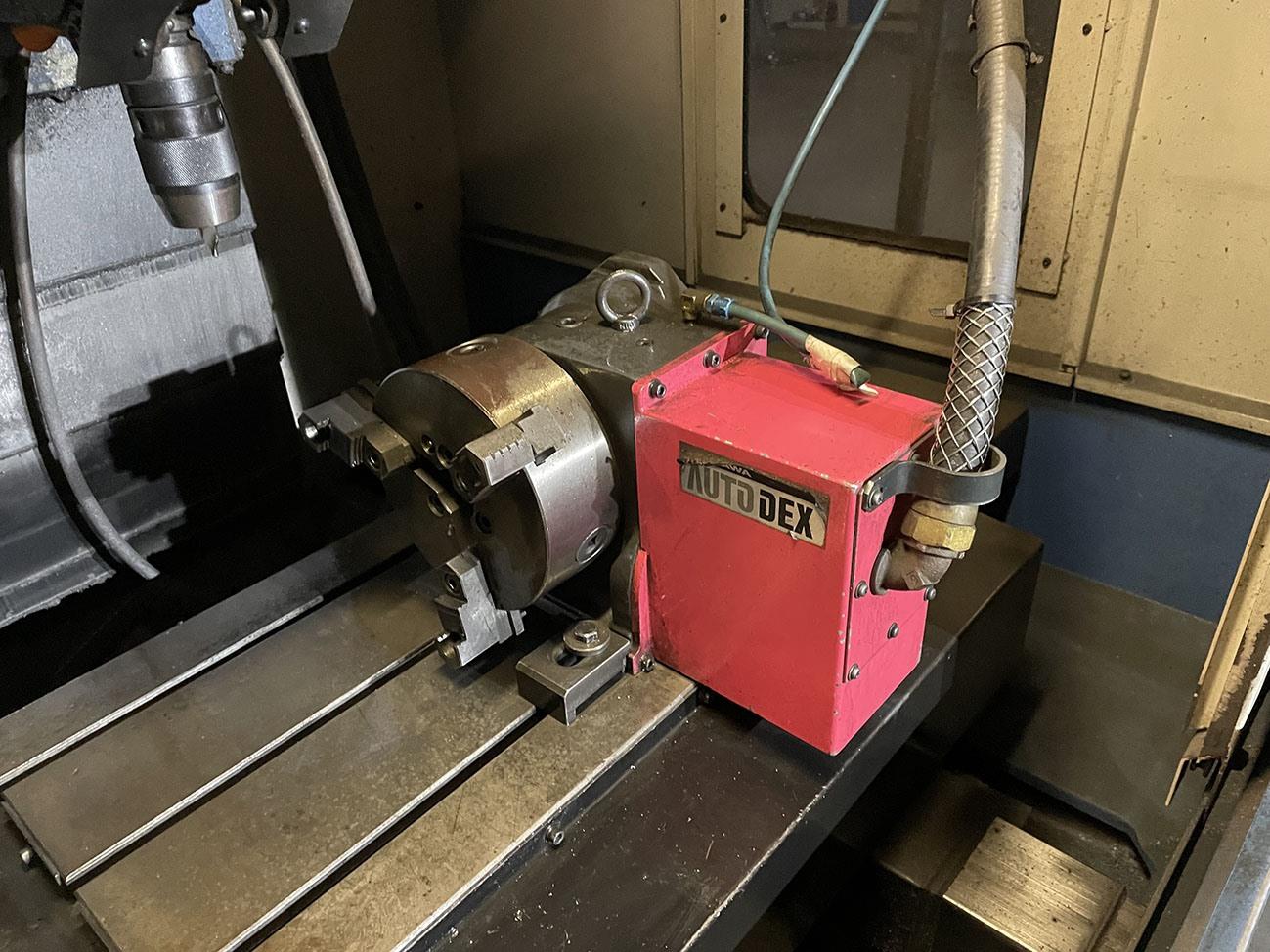

OPTIONAL: Kitagawa Autodex 4th axis on table
Type/Model: X: 500 - Y: 300 - Z: 300 mm CNC
Stocknumber: D.01 13988
Main category: [D] Machining centres
Sub category: [D.01] Vertical machining centers
Brand: Hyundai SPT-V30T

» Request a personalised quote

Stocknumber: D.01 13988

Hyundai SPT-V30T X: 500 - Y: 300 - Z: 300 mm CNC
