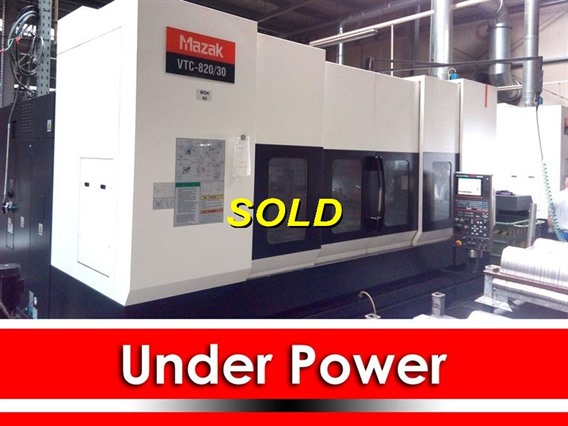

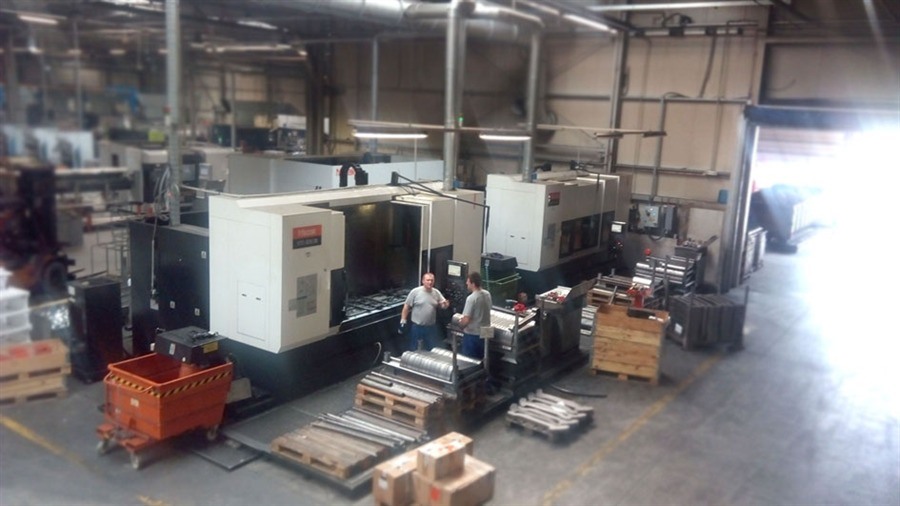

Vertical machining centers Mazak VTC 820/30 X: 3000 - Y: 820 - Z: 720mm CNC
Technical information
- X-axis3000 mm
- Y-axis820 mm
- Z-axis720 mm
- Table dimensions3500 x 820 mm
- Admission in spindle (ISO)ISO 40

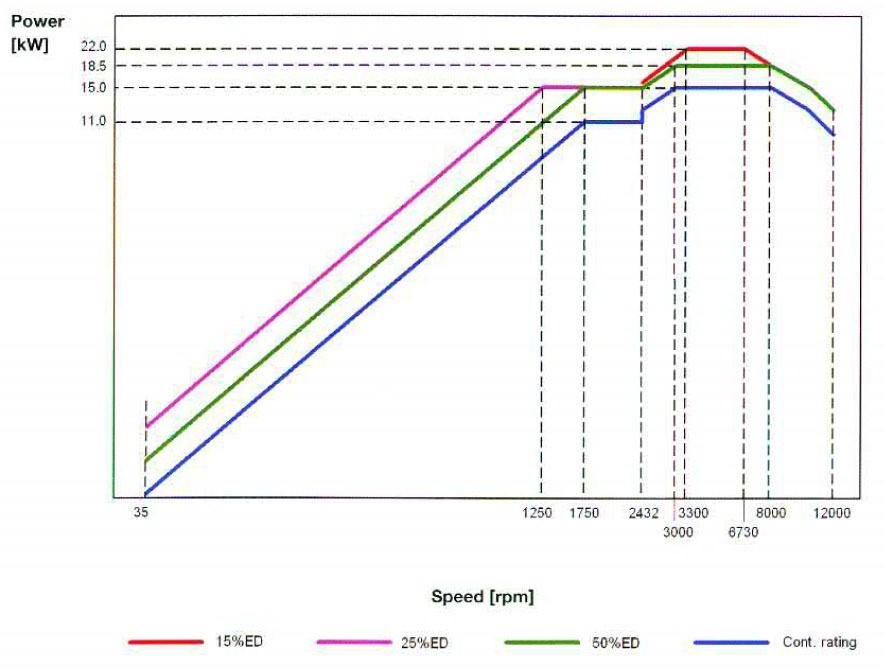

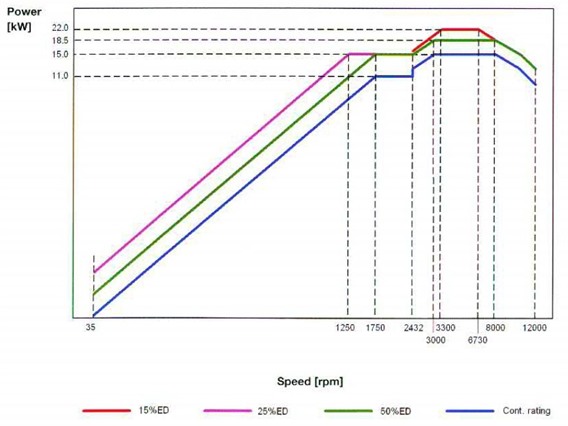

- Power on the spindle22 kW

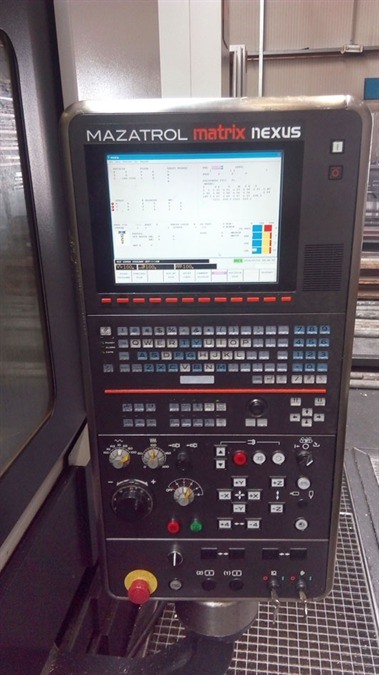

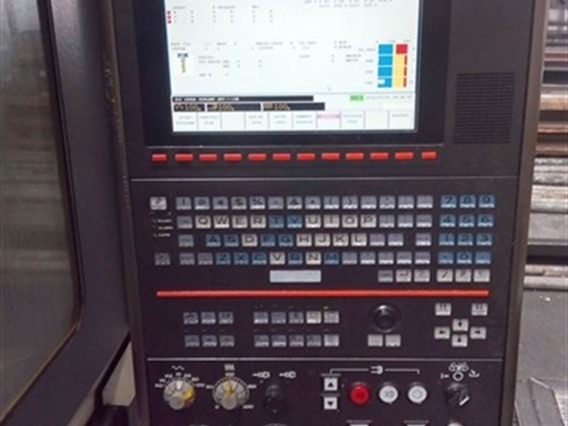

- Control Mazatrol Matrix Nexus
- Toolchangeryes
- Number of toolholders30 tools
- Number of rotations12 000 rpm
- Power principal motor 58 kVa

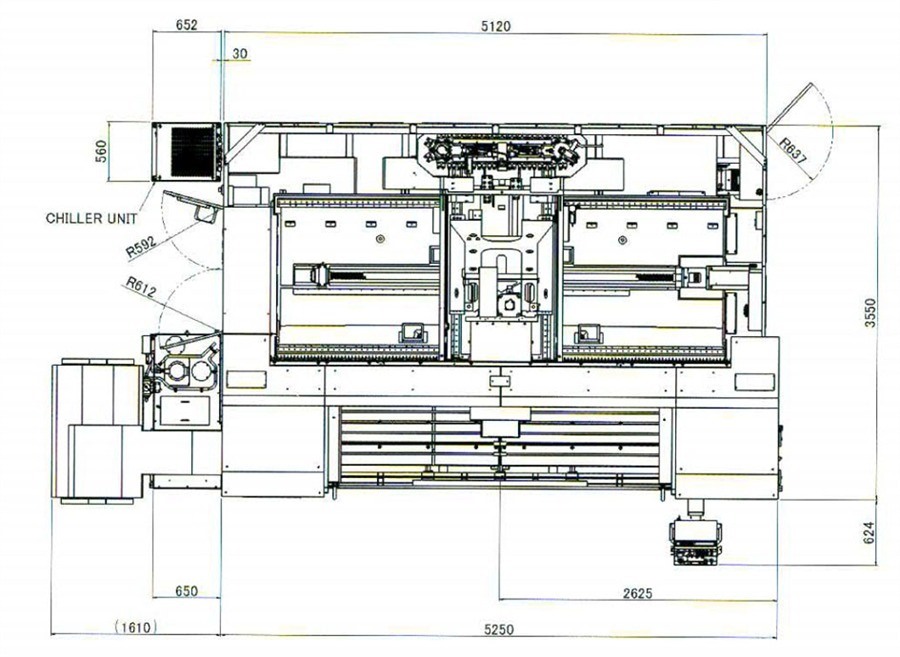

- Length5250 mm
- Depth3550 mm
- Height3314 mm
- Weight15,9 ton
- Cooling-systemyes
- Lightyes
Additional info
tool length measurement unit
spindle chiller unit
high pressure cooling through spindle (15 bar)
--------------------------------------------------
- Щуп для измерения инструмента
- Система охлождения шпинделя
- Сож высокого давления через шпиндель: 15 бар
- Type/Model: X: 3000 - Y: 820 - Z: 720mm CNC
- Stocknumber: D.01 9455
- Main category: [D] Machining centres
- Sub category: [D.01] Vertical machining centers
- Brand: Mazak VTC 820/30
