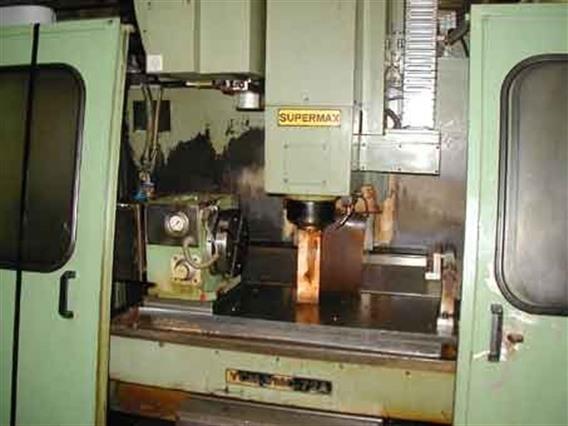

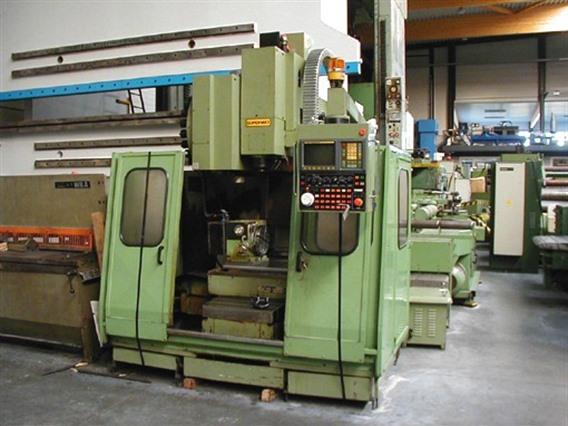

Vertical machining centers Supermax cnc YCM-VMC 72 A

Technical information

X-axis860 mm
Y-axis440 mm
Z-axis630 mm
Table dimensions950 x 400 mm
Max weight on the table500 kg
Depth of throat (uprights-spindlecenter)290 -- 730 mm
Admission in spindle (ISO)40
Power on the spindle5,5 (7,5/30 min)

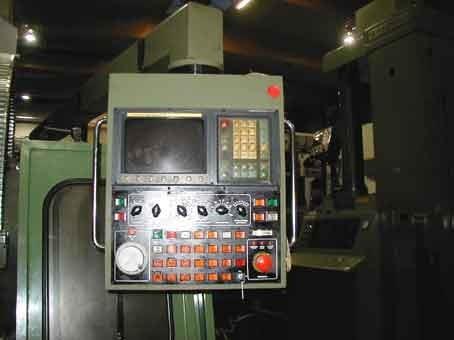

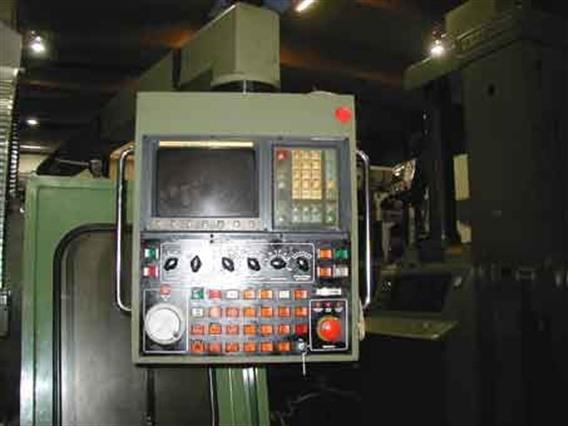

Control Fanuc O-M
Number of axes4e axis NC
Number of toolholders22
Number of rotations45 -- 6000 rpm
Power principal motor 0,9 kW/stuk AC
Length2220 mm
Depth2300 mm
Height2450 mm
Weight4600 kg
ACCESSORIES*
Cooling-system*
Light*

Additional info

sr 107512 -- CNC-VMC -- ATC -- Volledige omkapping + spanenafvoer + ronddraaitafel dia 240 mm
Type/Model: YCM-VMC 72 A
Stocknumber: D.01 1211 *03
Main category: [D] Machining centres
Sub category: [D.01] Vertical machining centers
Brand: Supermax cnc

Stocknumber: D.01 1211 *03
