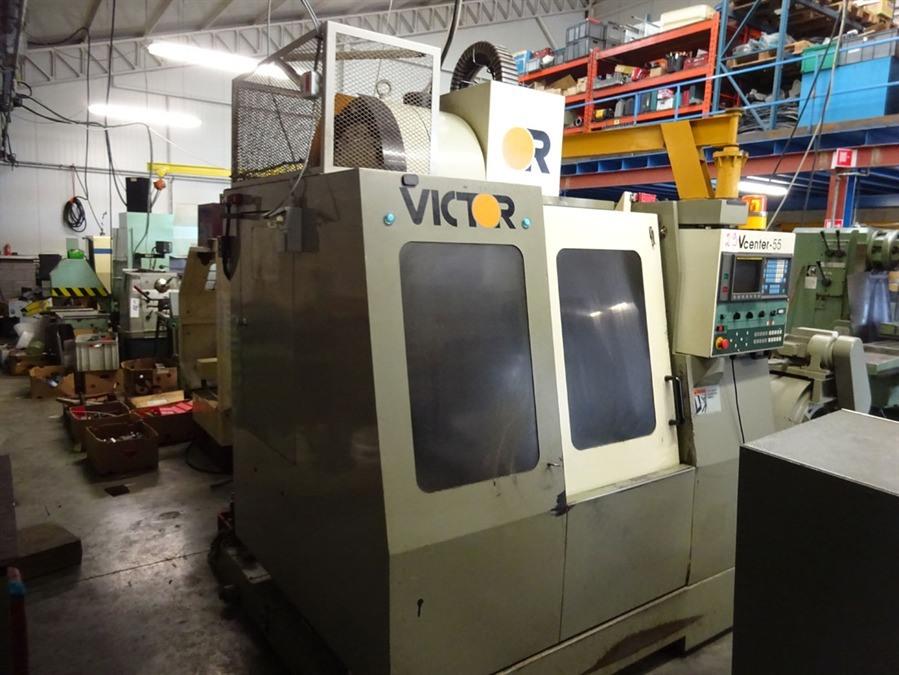

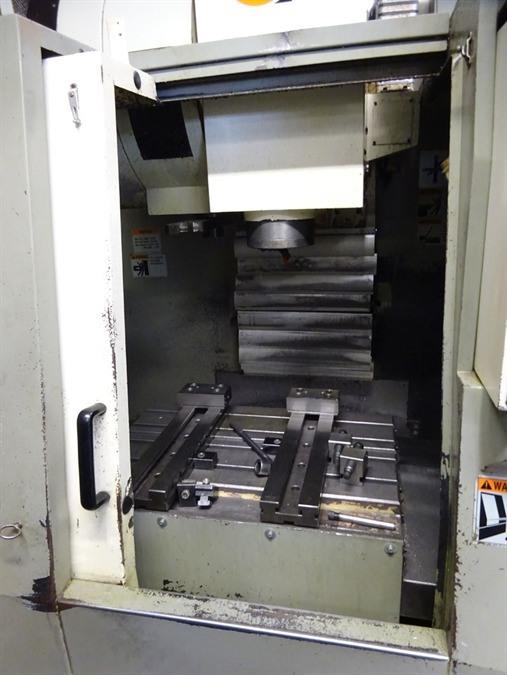

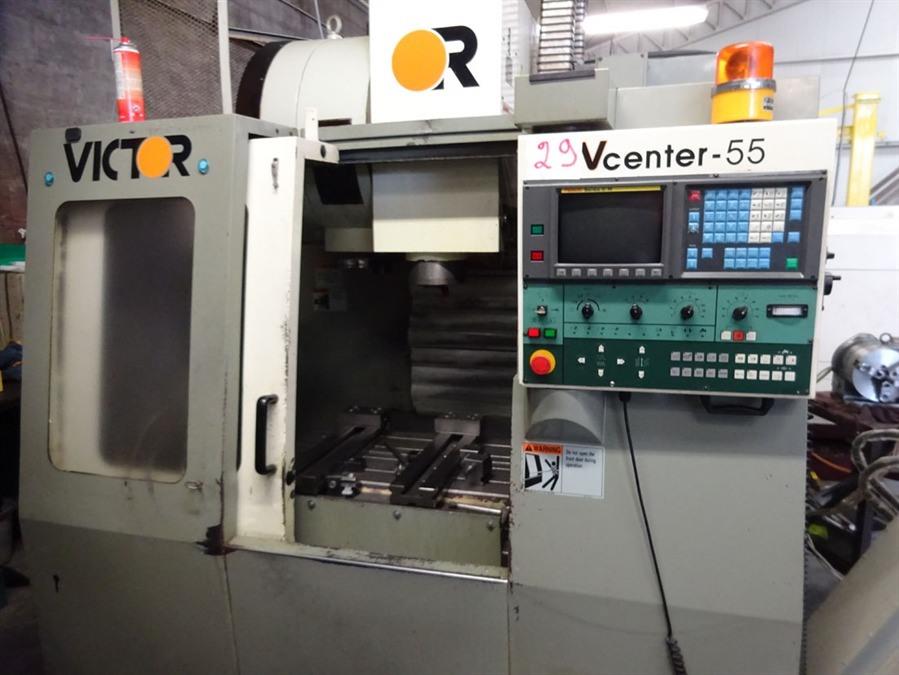

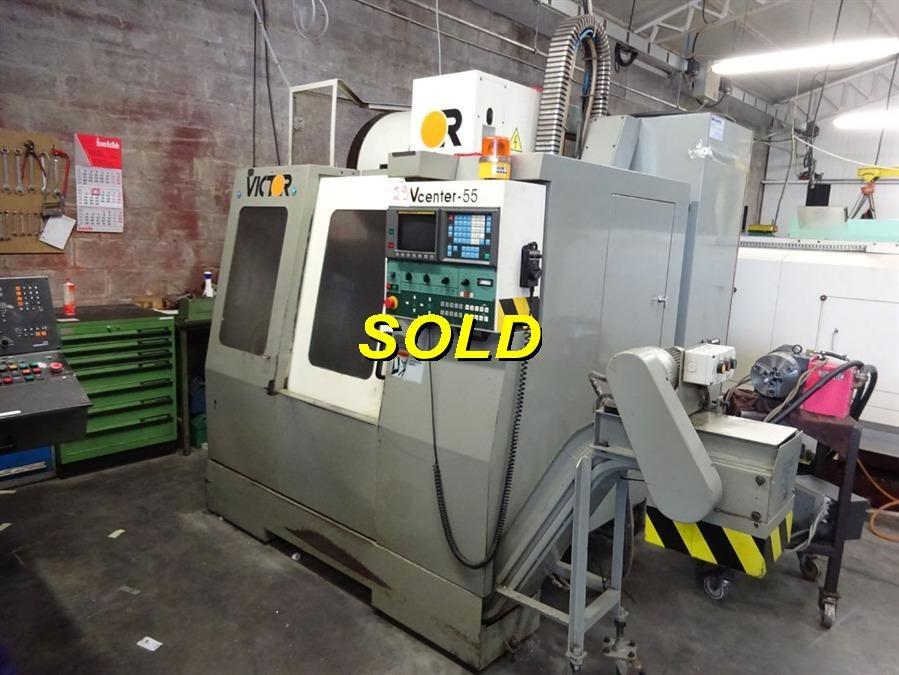

Vertical machining centers Victor Vcenter55 X: 550 - Y: 460 - Z: 460mm
Technical information

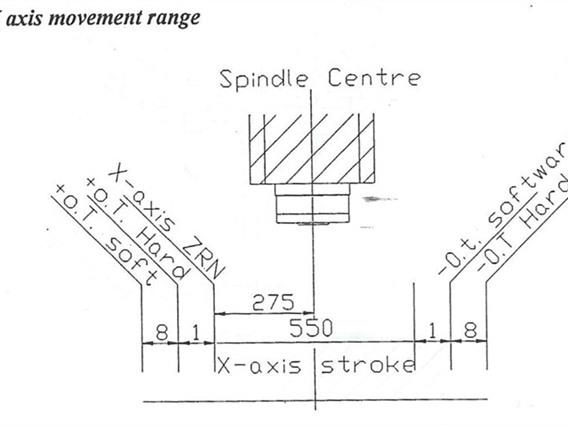

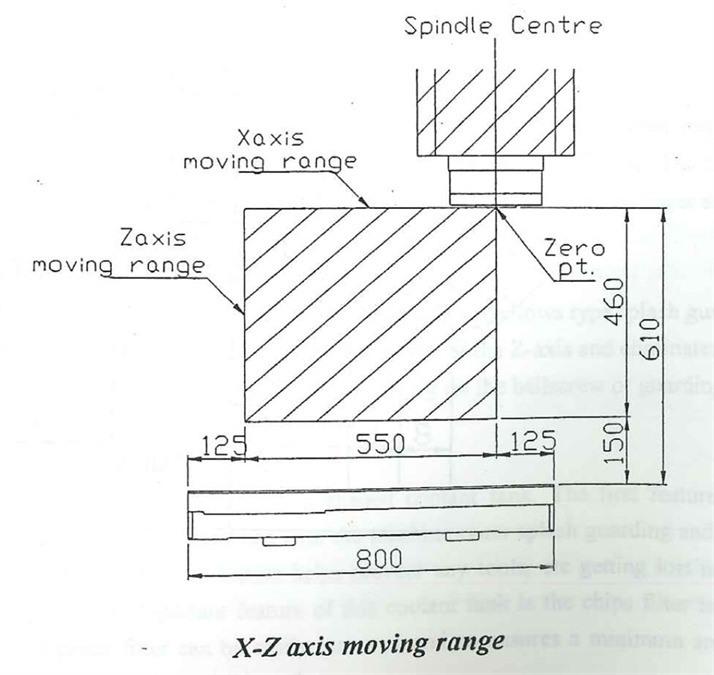

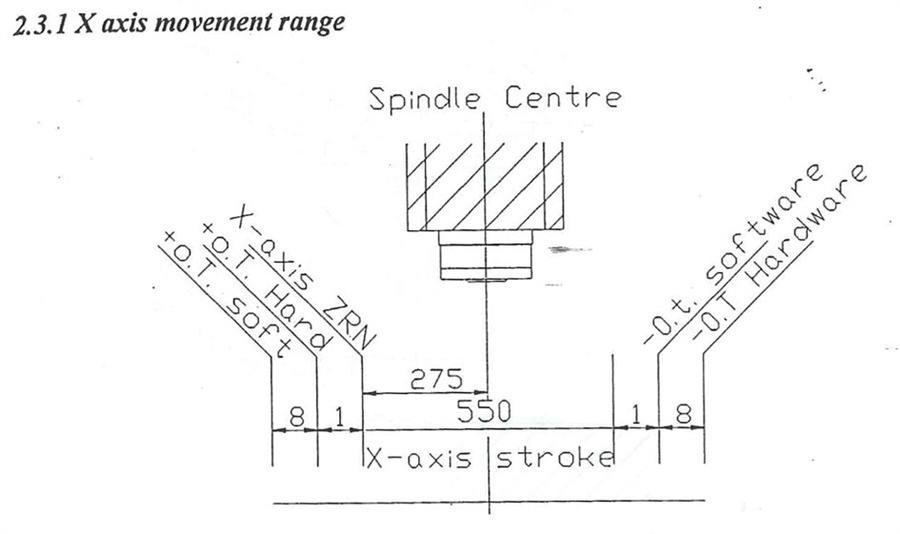

- X-axis550 mm

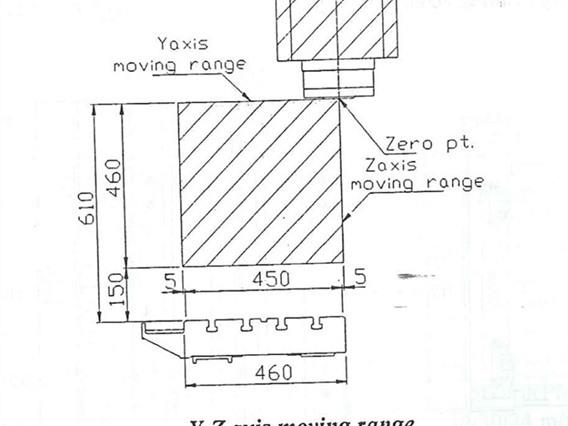

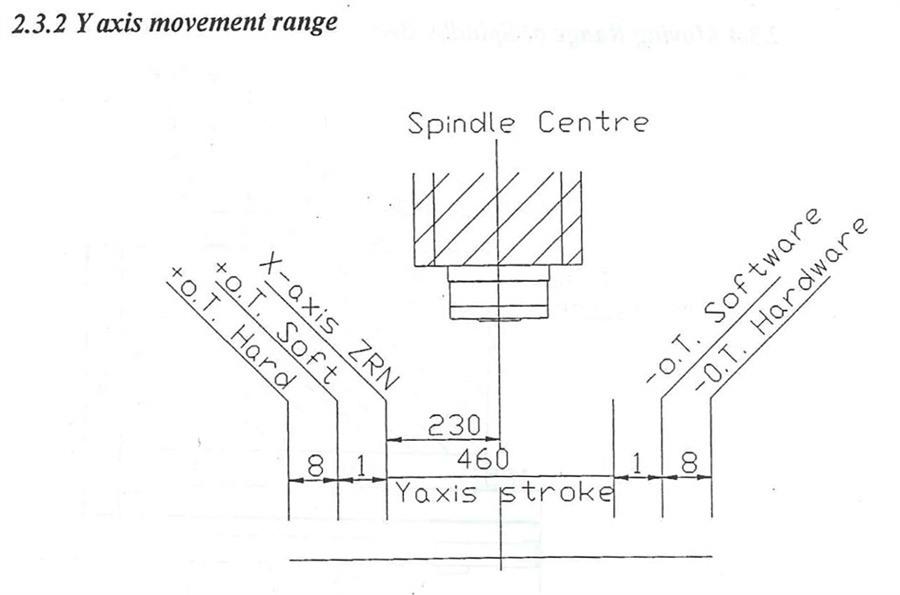

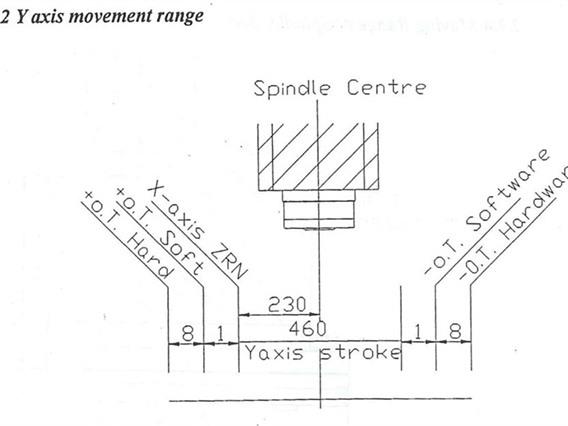

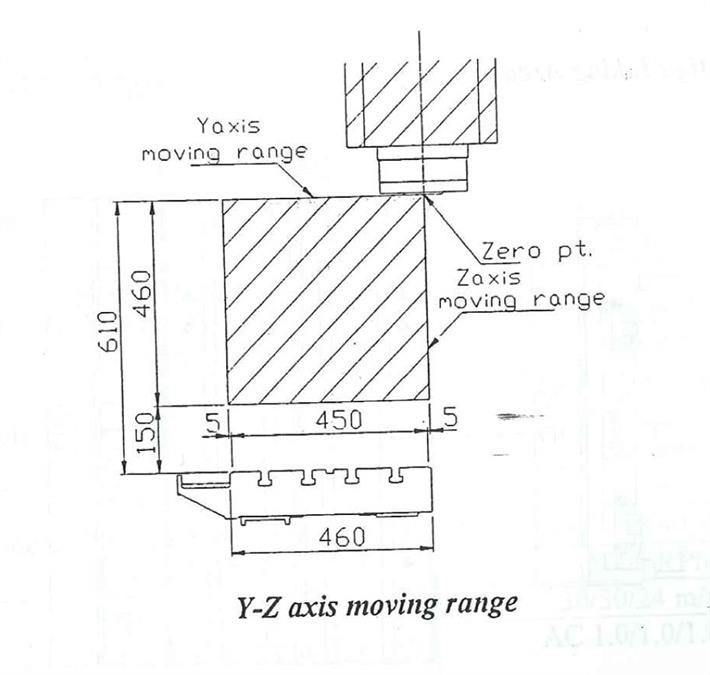

- Y-axis460 mm

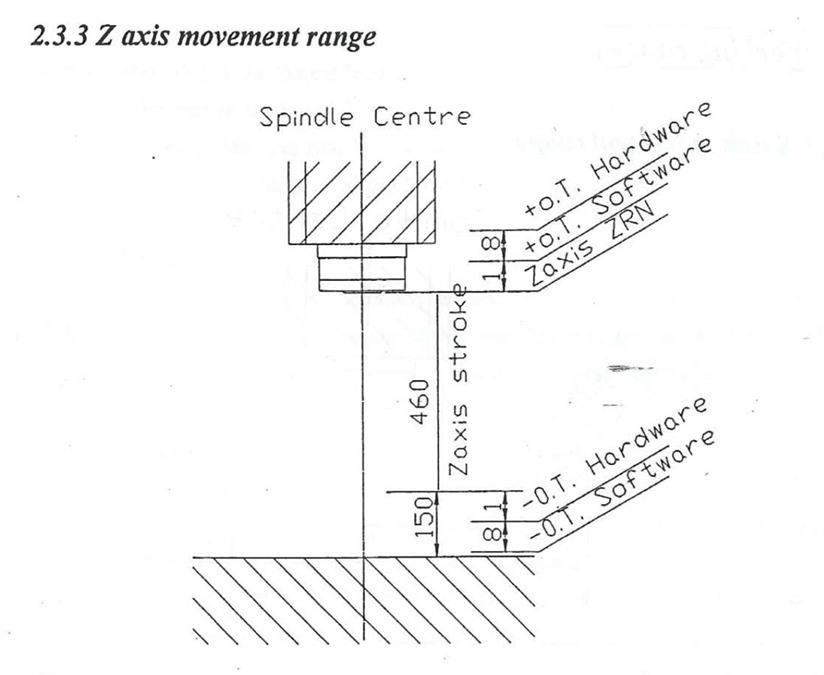

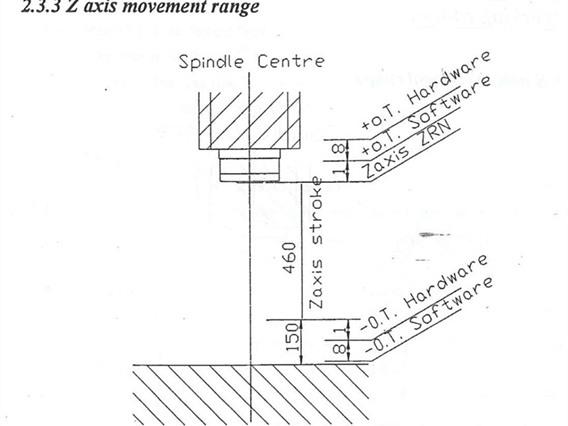

- Z-axis460 mm

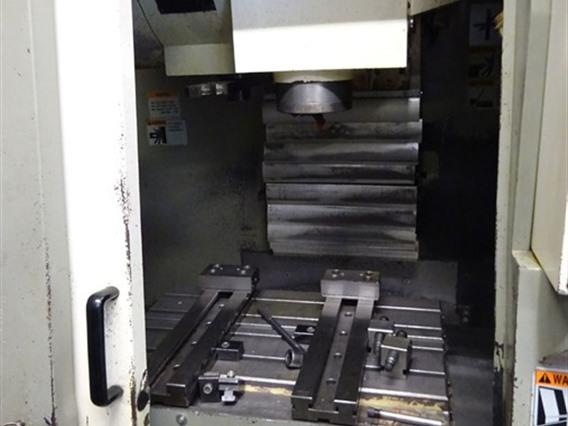

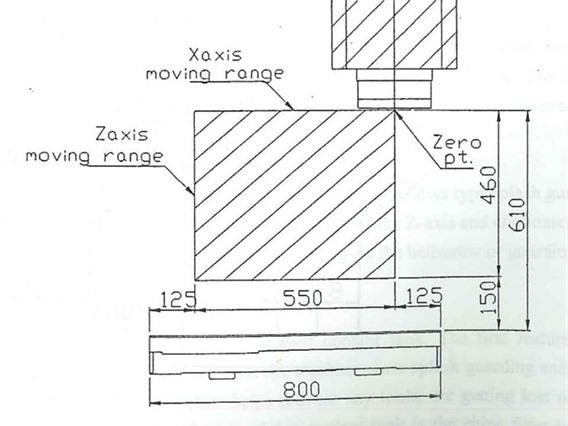

- Table dimensions800 x 460 mm
- Max weight on the table300 kg
- Depth of throat (uprights-spindlecenter)564 mm
- Admission in spindle (ISO)BT40

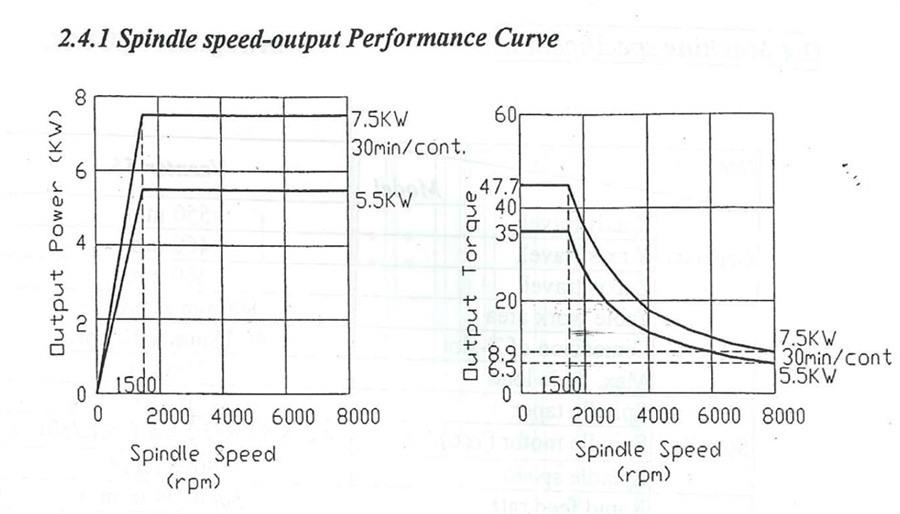

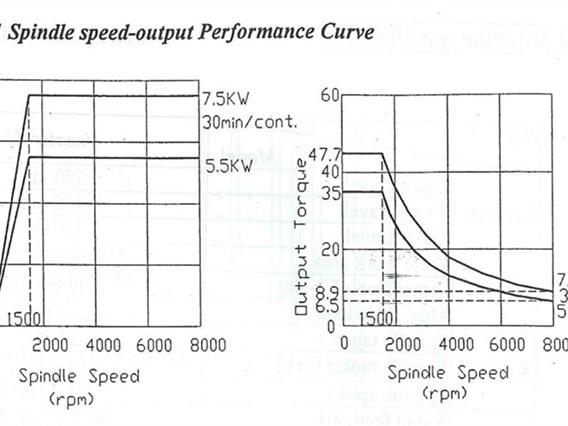

- Power on the spindle5,5/7,5 kW

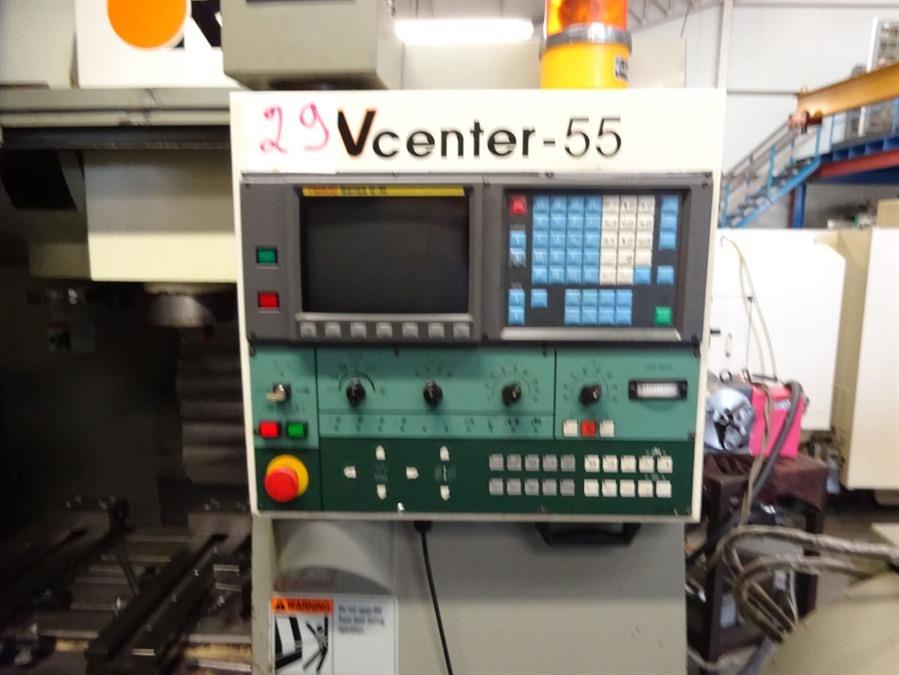

- Control Fanuc 0M/18M
- Toolchangeryes
- Number of toolholders16x
- Number of rotations8000 rpm
- Length2740 mm
- Depth2315 mm
- Height2516 mm
- Weight4 ton
Additional info

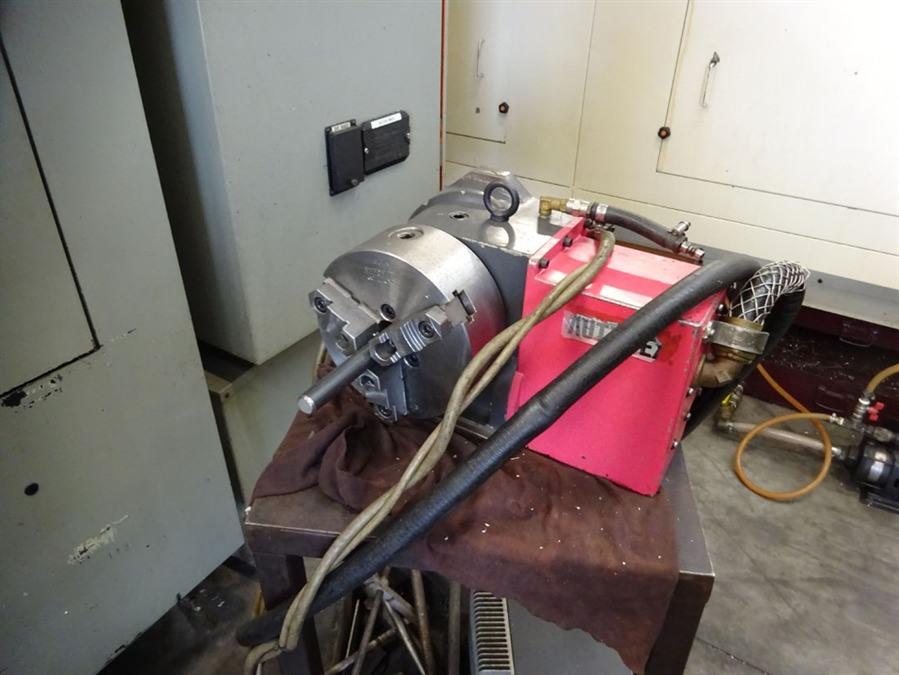

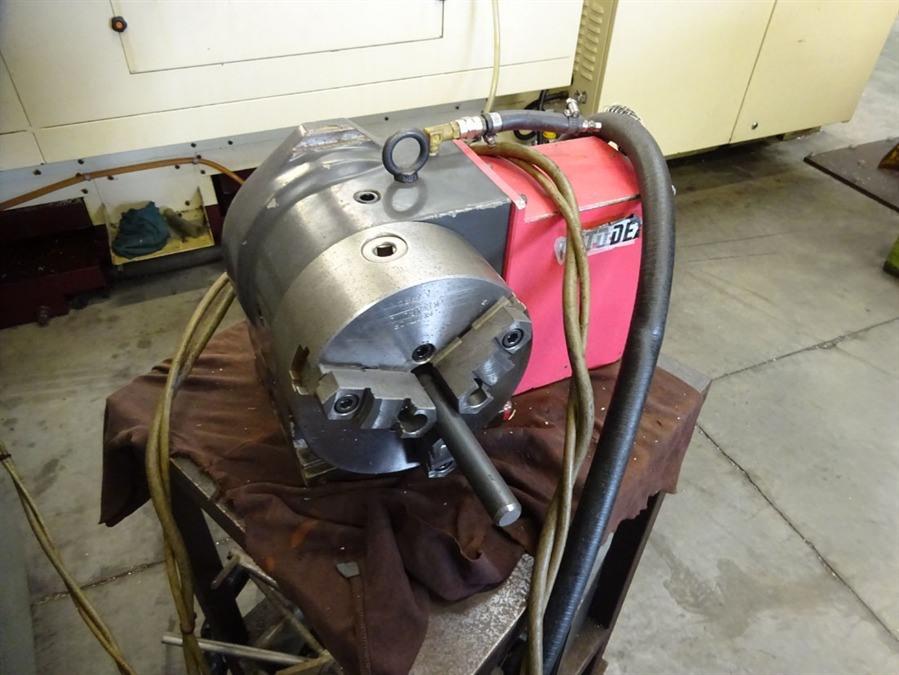

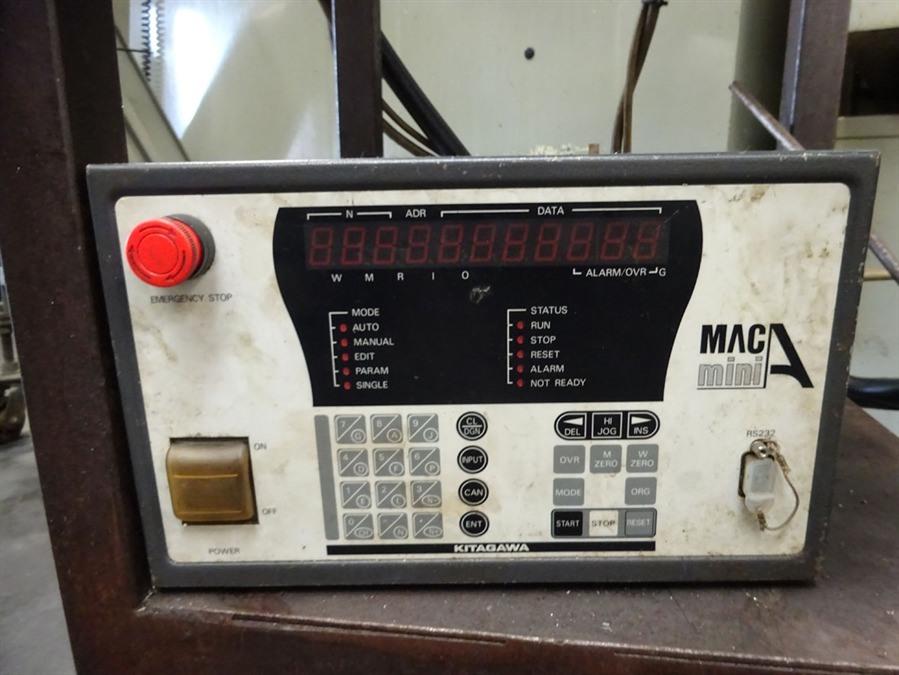

- 4th CNC axis Kitagawa Autodex
scrapconveyor

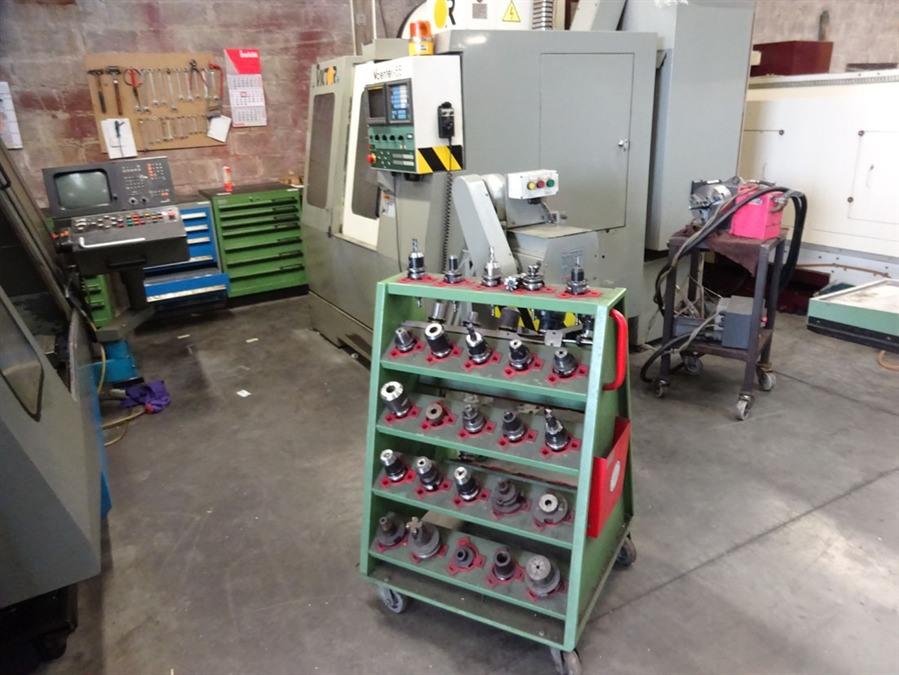

tooling
------------------------------
В комплекте:
- делительная голова (4 ось): Kitagawa Autodex
- транспортер для удаления стружки
- инструмент
- Type/Model: X: 550 - Y: 460 - Z: 460mm
- Stocknumber: D.01 8950
- Main category: [D] Machining centres
- Sub category: [D.01] Vertical machining centers
- Brand: Victor Vcenter55
