YCM Supermax V146B - X: 1400 - Y: 620 - Z: 630mm CNC

Vertical machining centers YCM Supermax V146B X: 1400 - Y: 620 - Z: 630mm CNC

Technical information

X-axis1400 mm
Y-axis620 mm
Z-axis630 mm
Table dimensions1400 x 600 mm
Admission in spindle (ISO)ISO 50
Power on the spindle25 HP

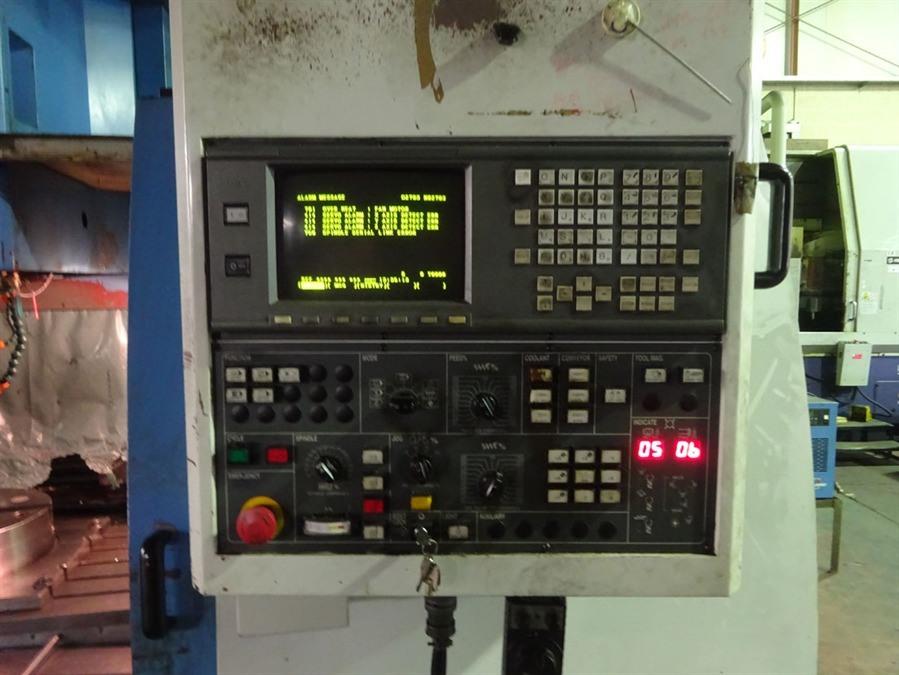

Control Fanuc
Toolchangeryes
Number of toolholders24 tools
Number of rotations6000 rpm
Power principal motor 45 kVa
Length3090 mm
Depth3870 mm
Height3050 mm
Weight11,4 ton

Additional info

toolchanger with 24 tools
with chipconveyor

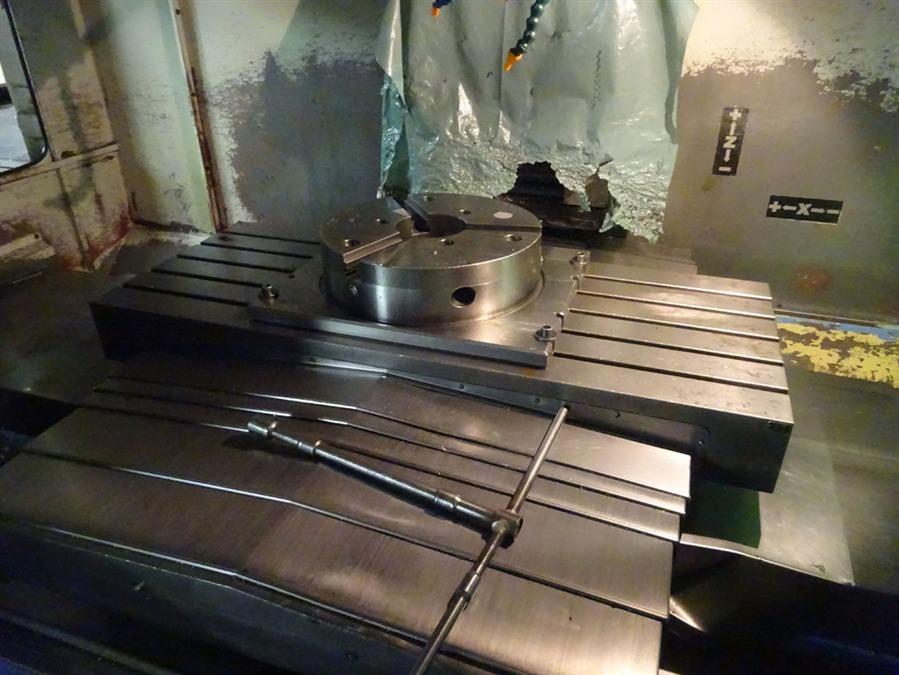

Max weight on the table: 1500 kg
Type/Model: X: 1400 - Y: 620 - Z: 630mm CNC
Stocknumber: D.01 8550
Main category: [D] Machining centres
Sub category: [D.01] Vertical machining centers
Brand: YCM Supermax V146B

Stocknumber: D.01 8550

Sold
Sold
Sold
Sold
Sold
Sold

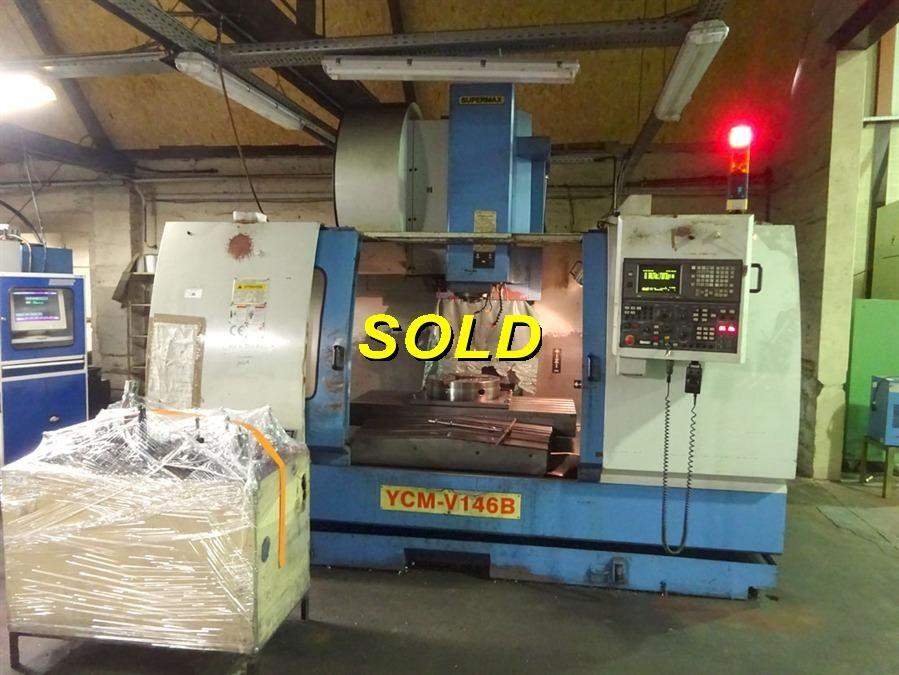

YCM Supermax V146B X: 1400 - Y: 620 - Z: 630mm CNC
