Vertical turning machines conventional & CNC Breton Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC
Technical information
- Chuck dia.700 mm
- Max turningdia -- passage1100 mm
- Power on the spindle40/30 kW

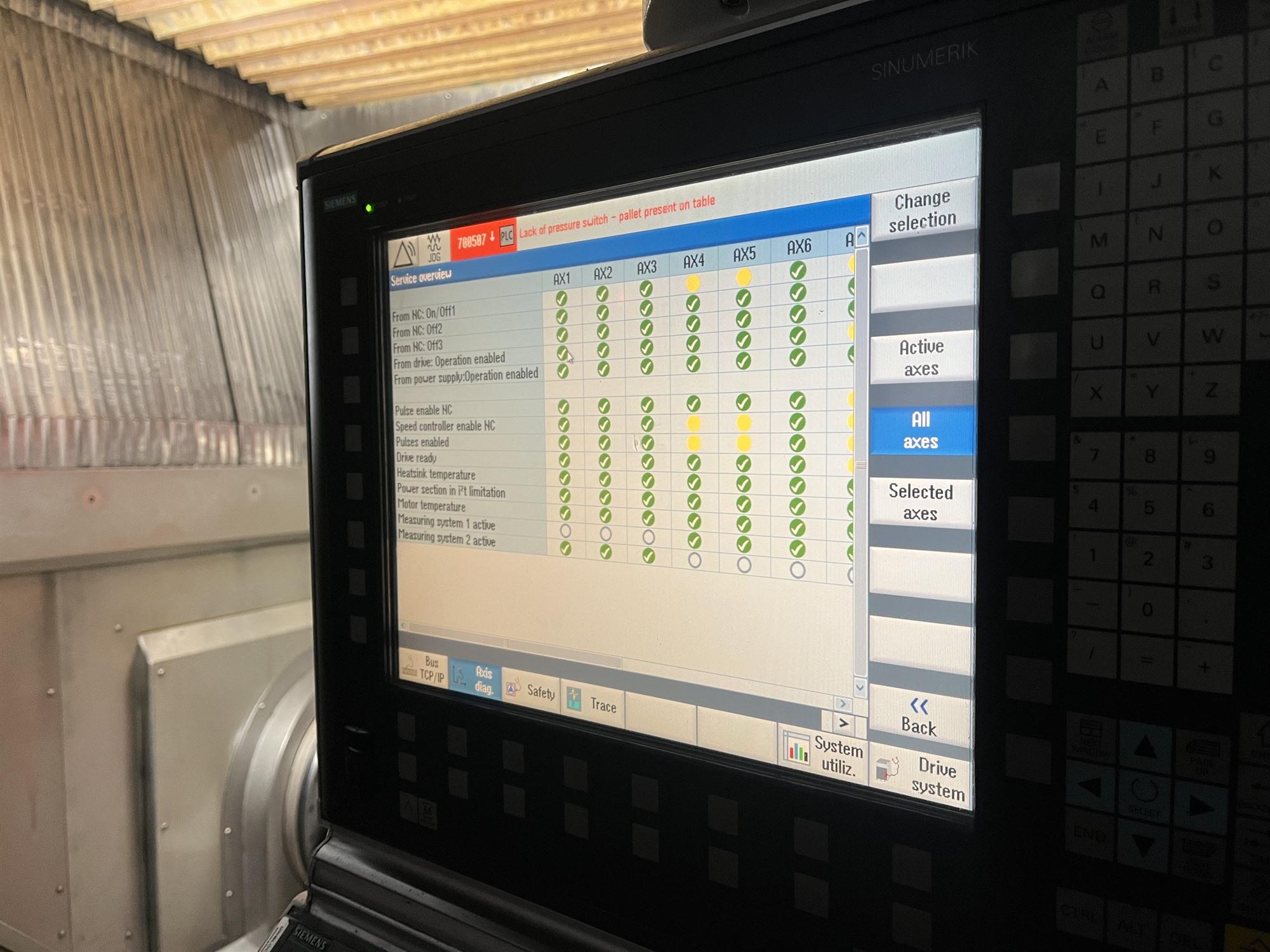

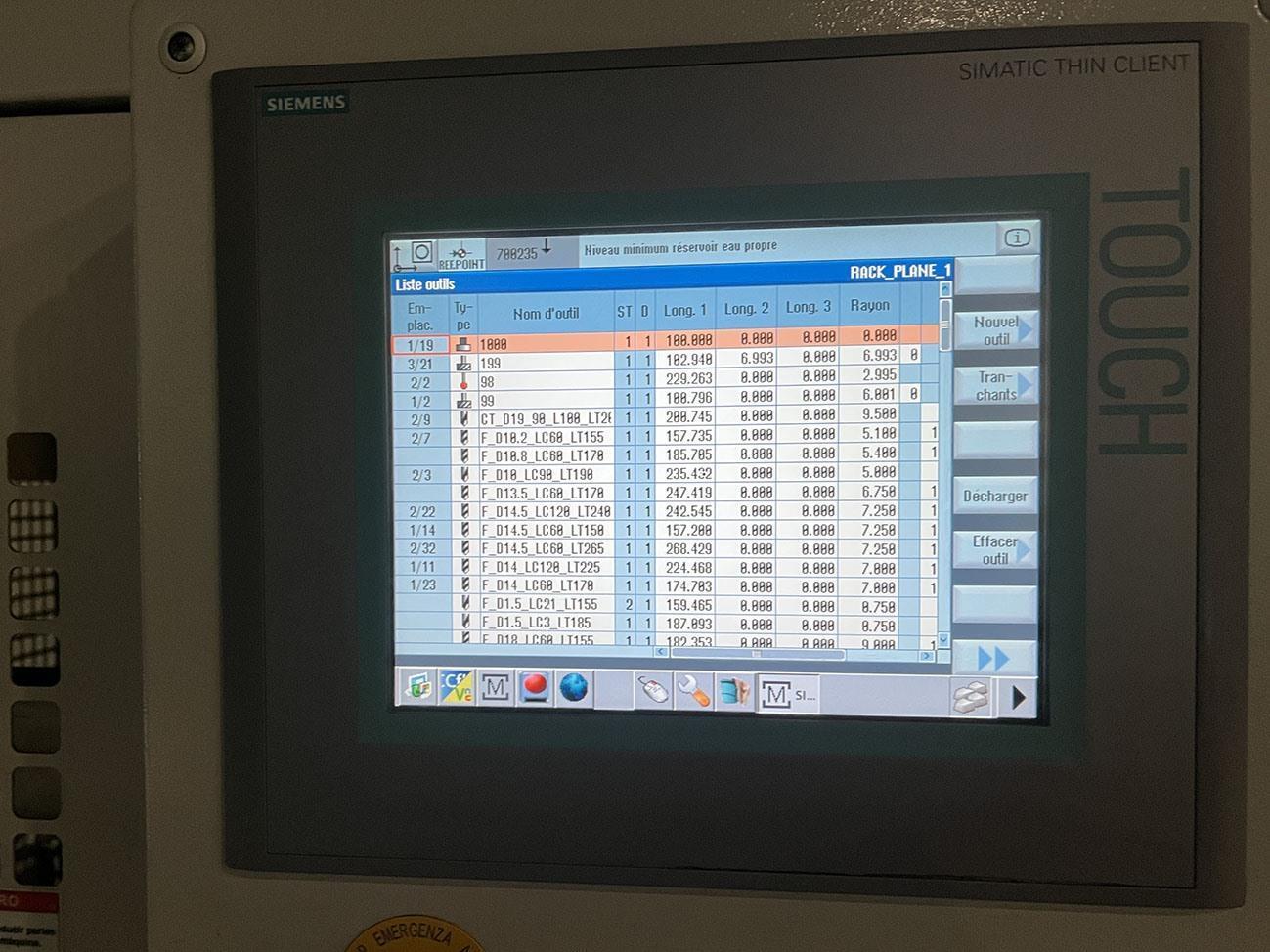

- CommandSiemens 840D Solution Line

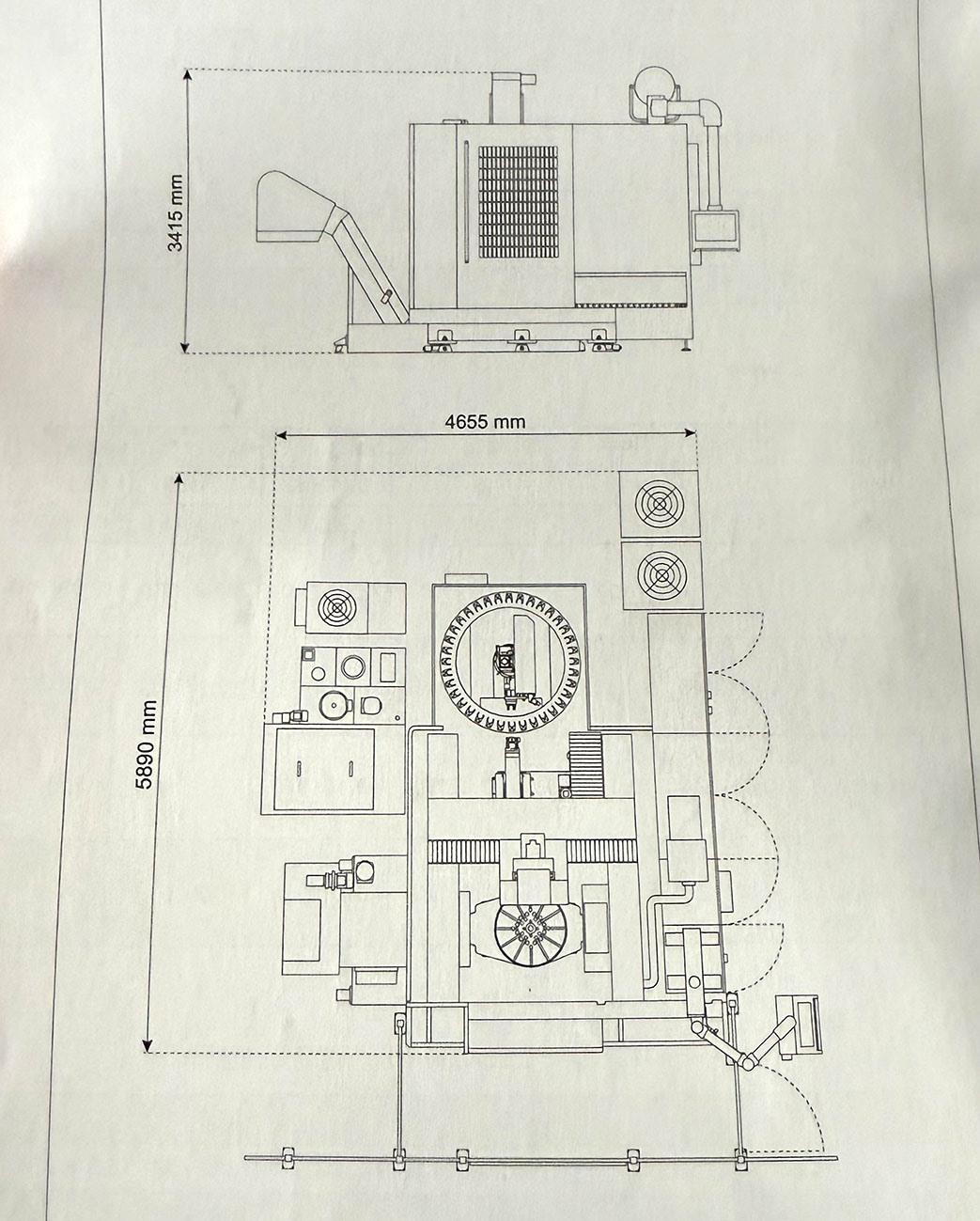

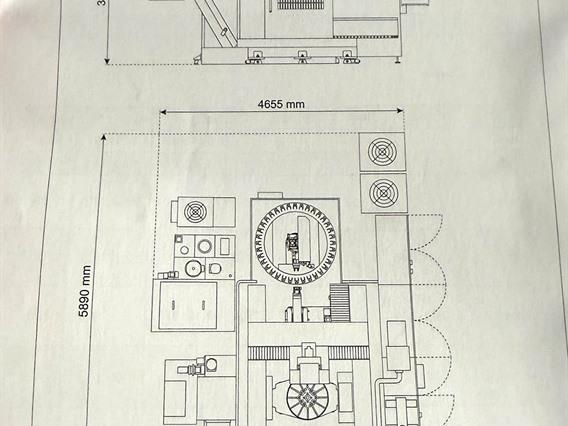

- Long 4655 mm
- Wide5890 mm
- Height3415 mm
- Weight17 ton
- Turretyes
- Qty Tools150 positions
- Coolant pumpyes
Additional info
Type: Ultrix 800 RT
The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a moving gantry for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring, and roughing of complex parts.

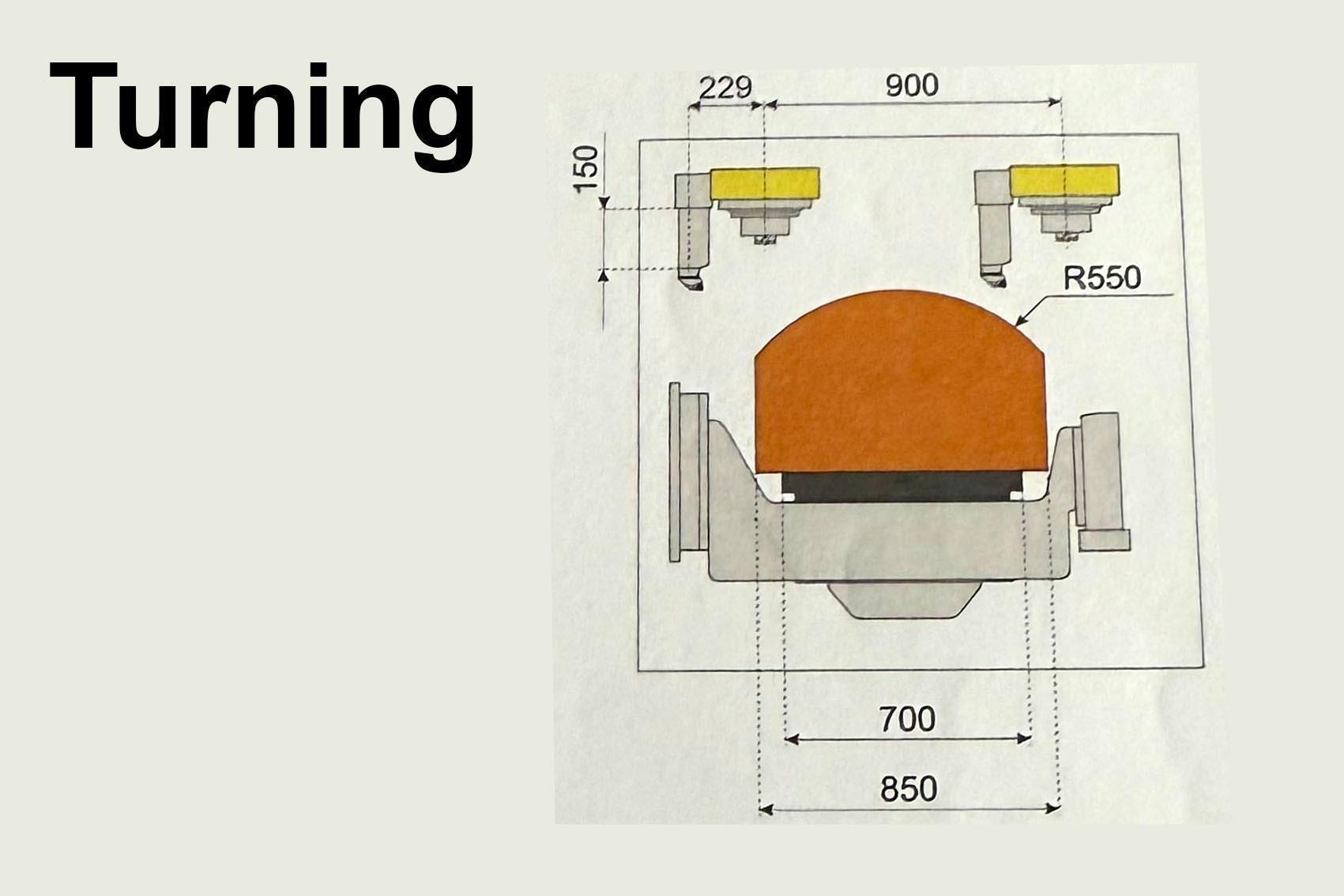

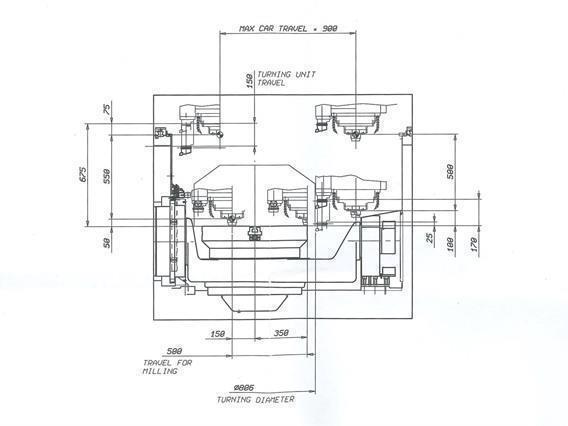

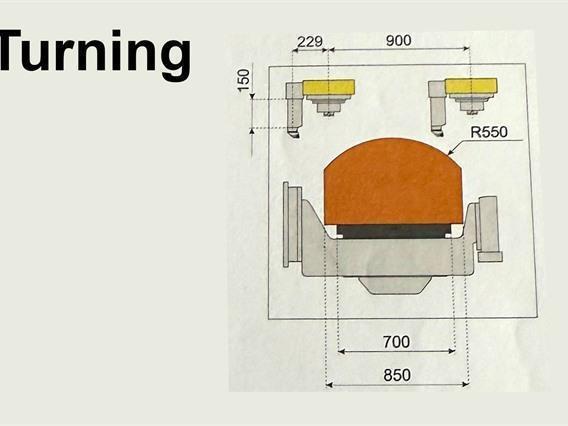

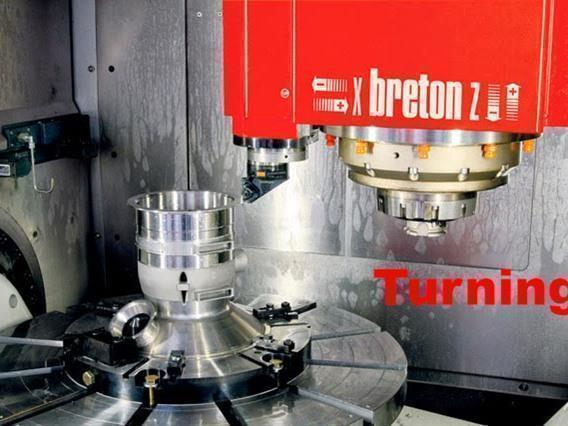

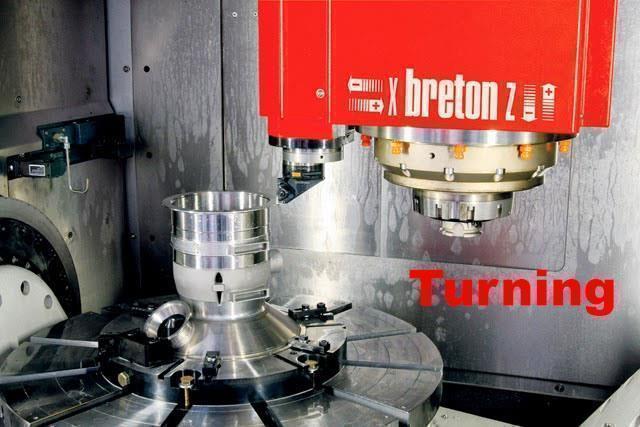

When used for turning > vertical lathe:
- swivel range: 1100 mm
- maximum weight of the workpiece: 700 kg
- 40/30 kW on the table
- max. torque on the table: 1500 Nm
- maximum speed of the table: 1000 rpm !!
- hydraulic clamping on table

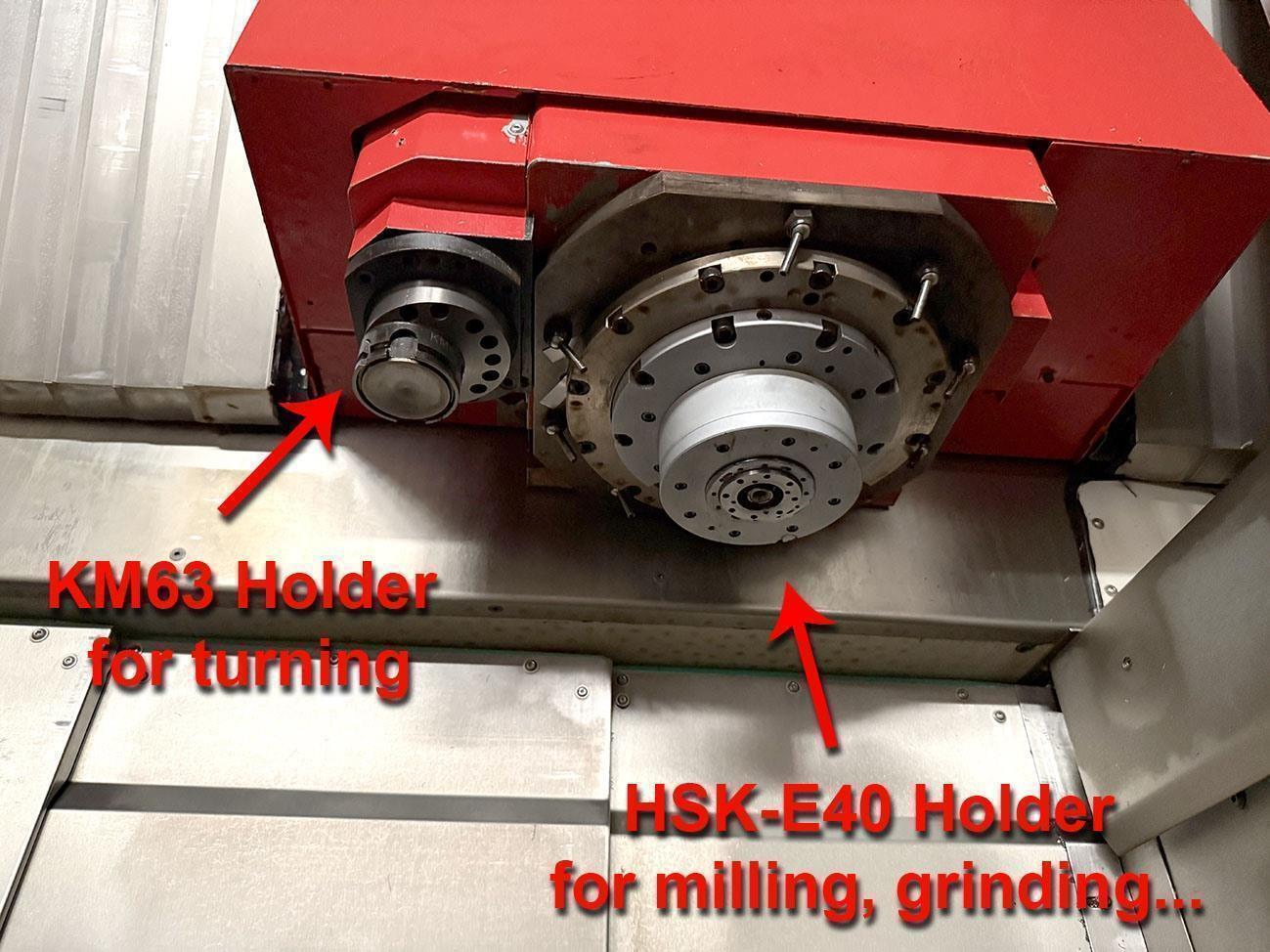

- tool taper for turning: KM63
- 150-position tool changer with 24 tool positions for turning

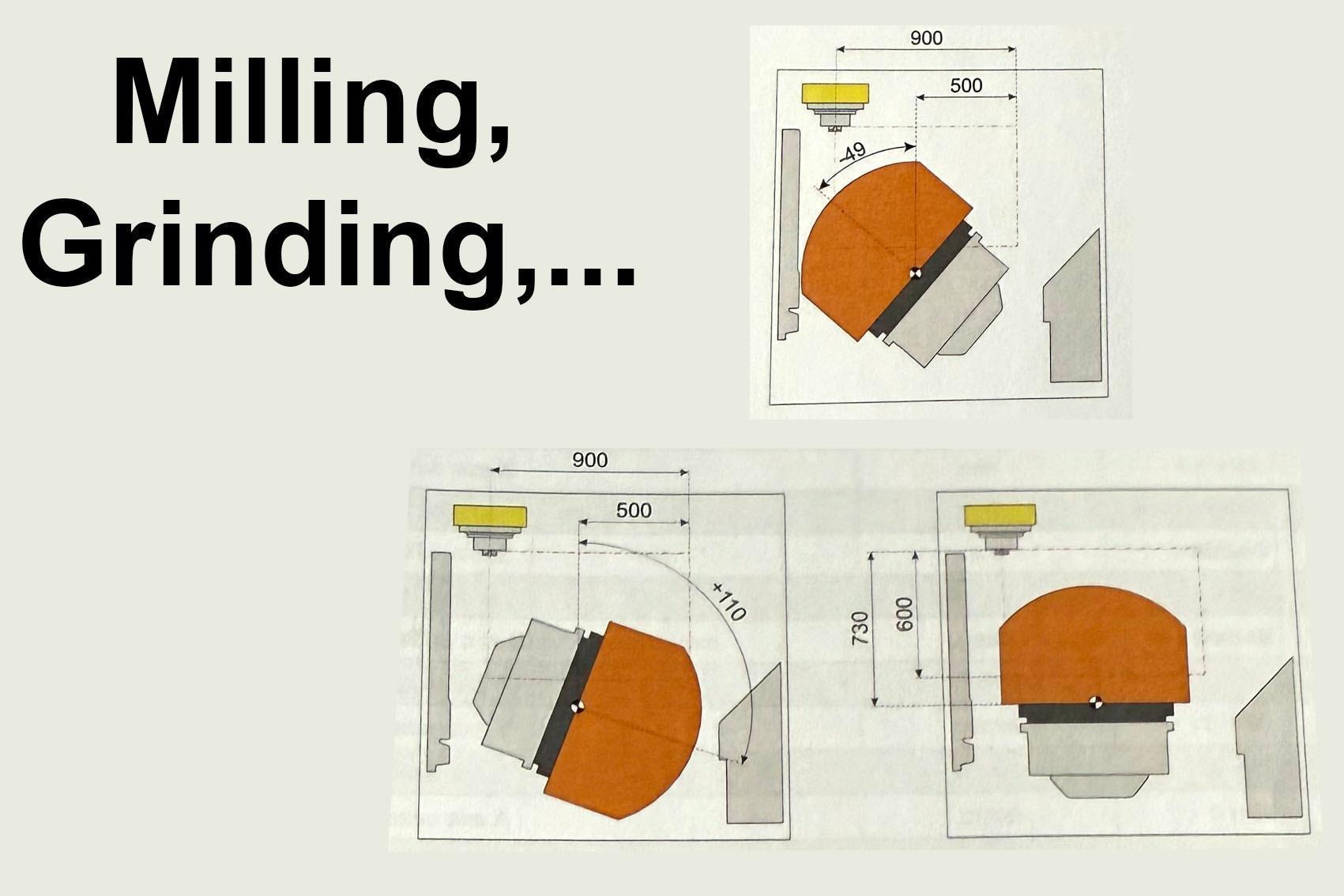

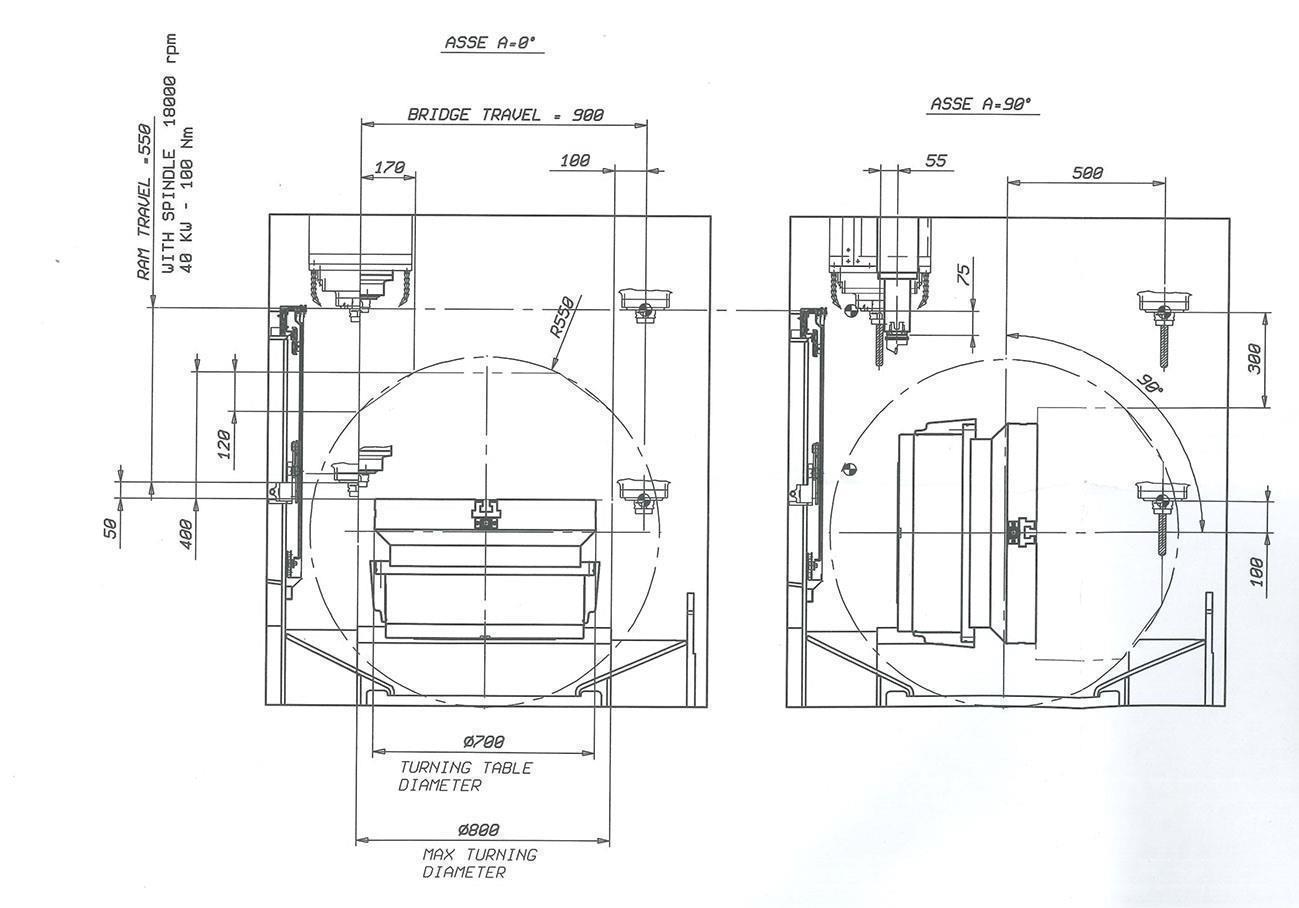

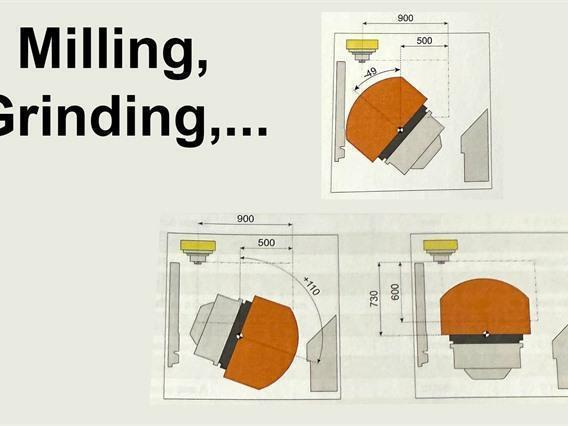

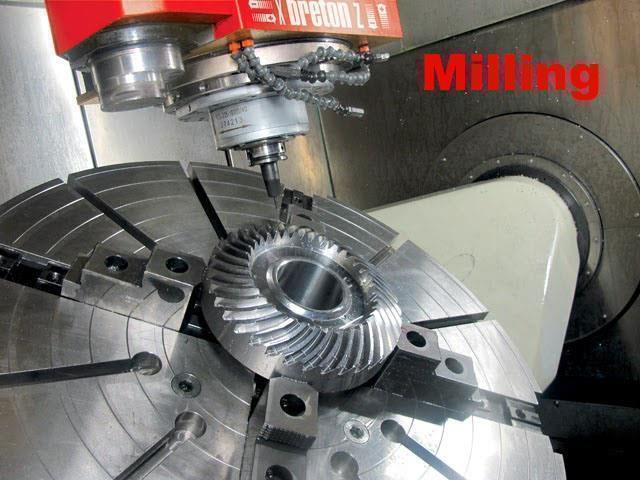

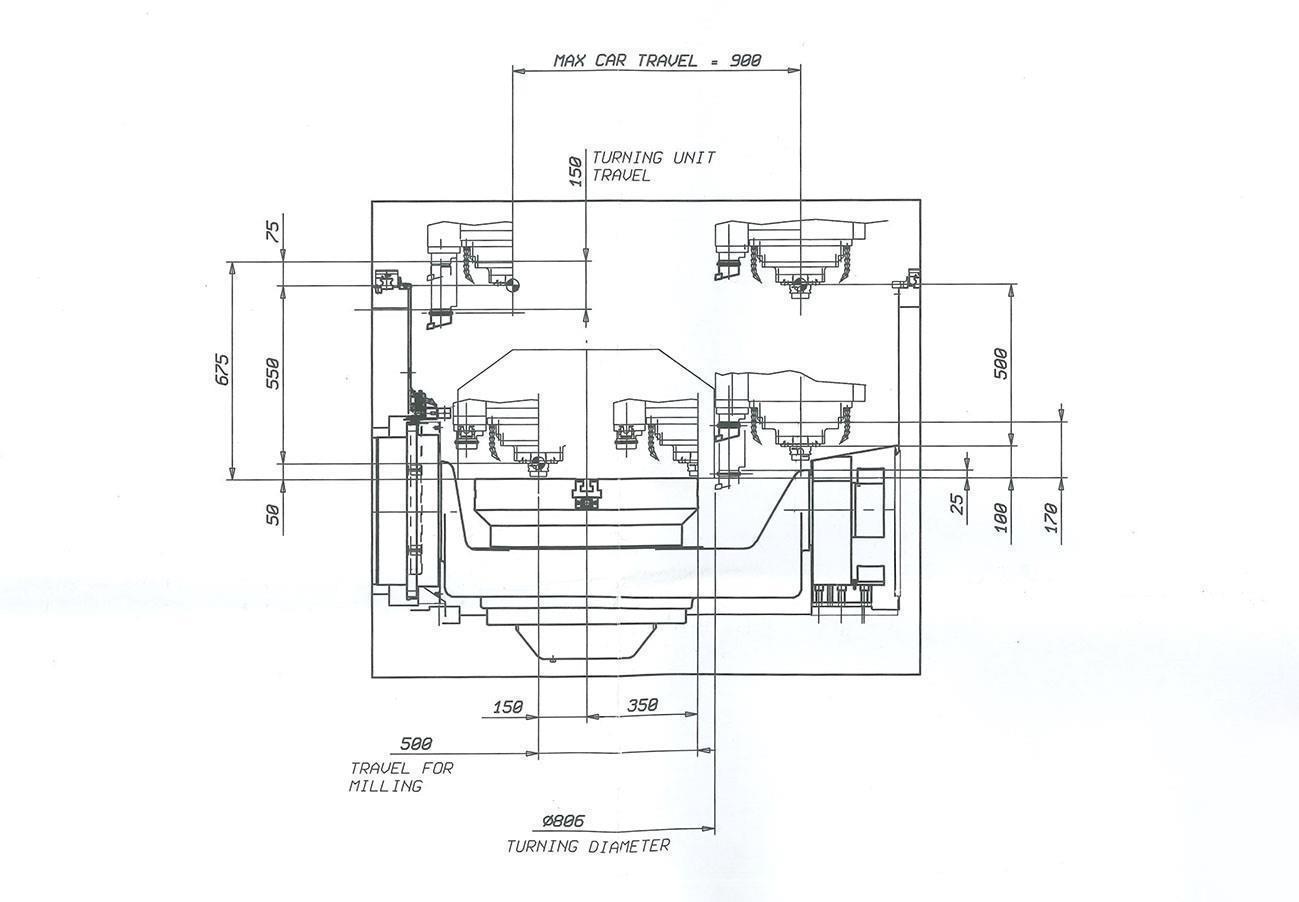

When used for milling, grinding, drilling, ... > machining center:

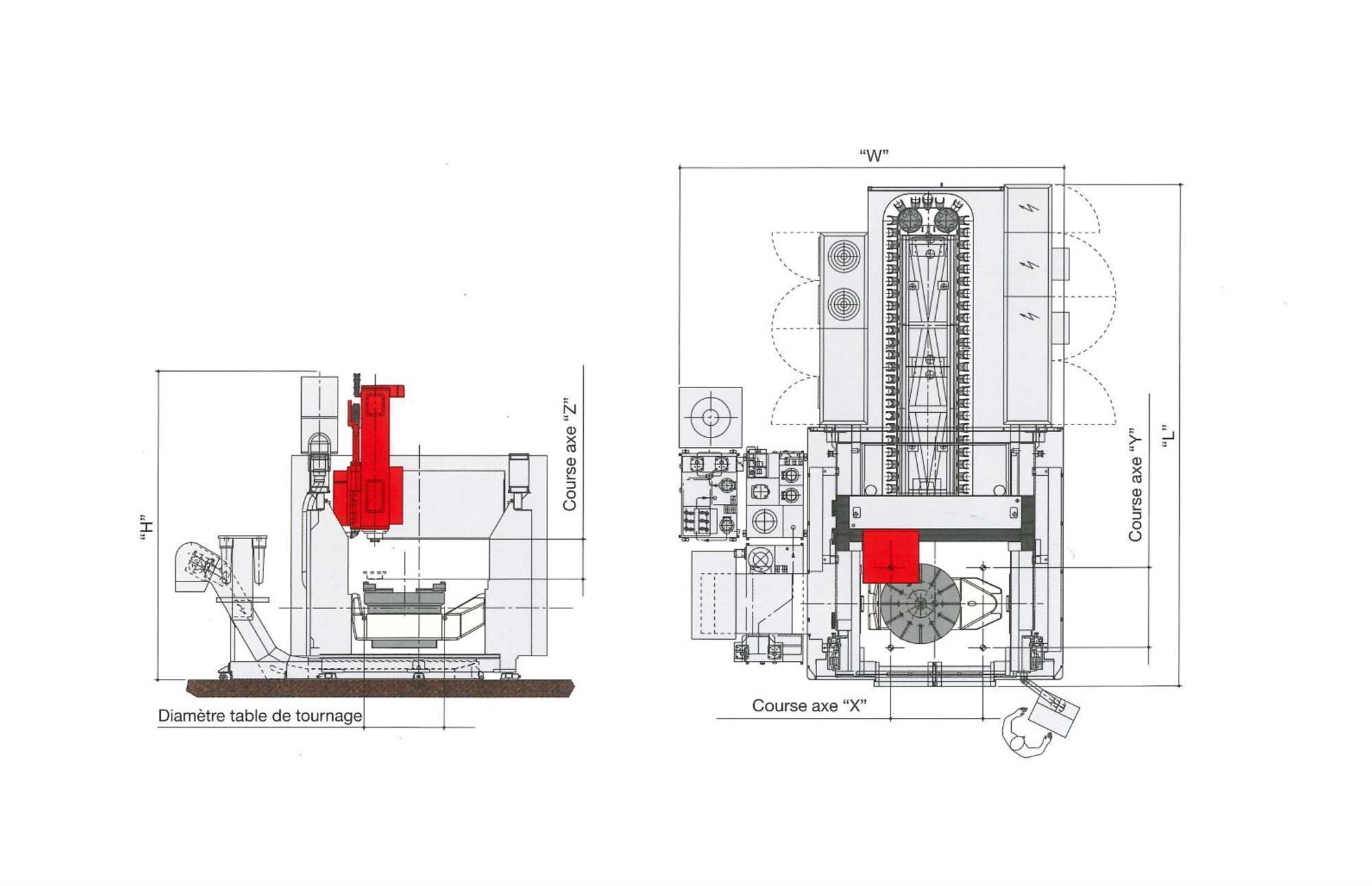

- X-axis: 800 mm
- Y-axis: 900 mm
- Z-axis: 600 mm

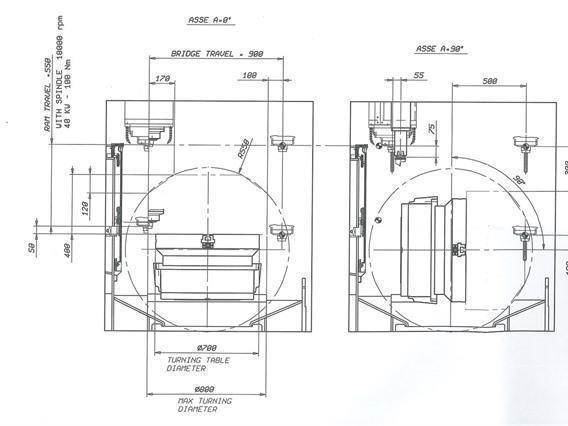

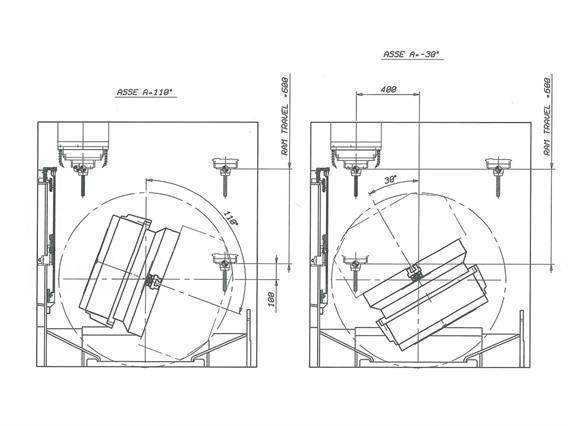

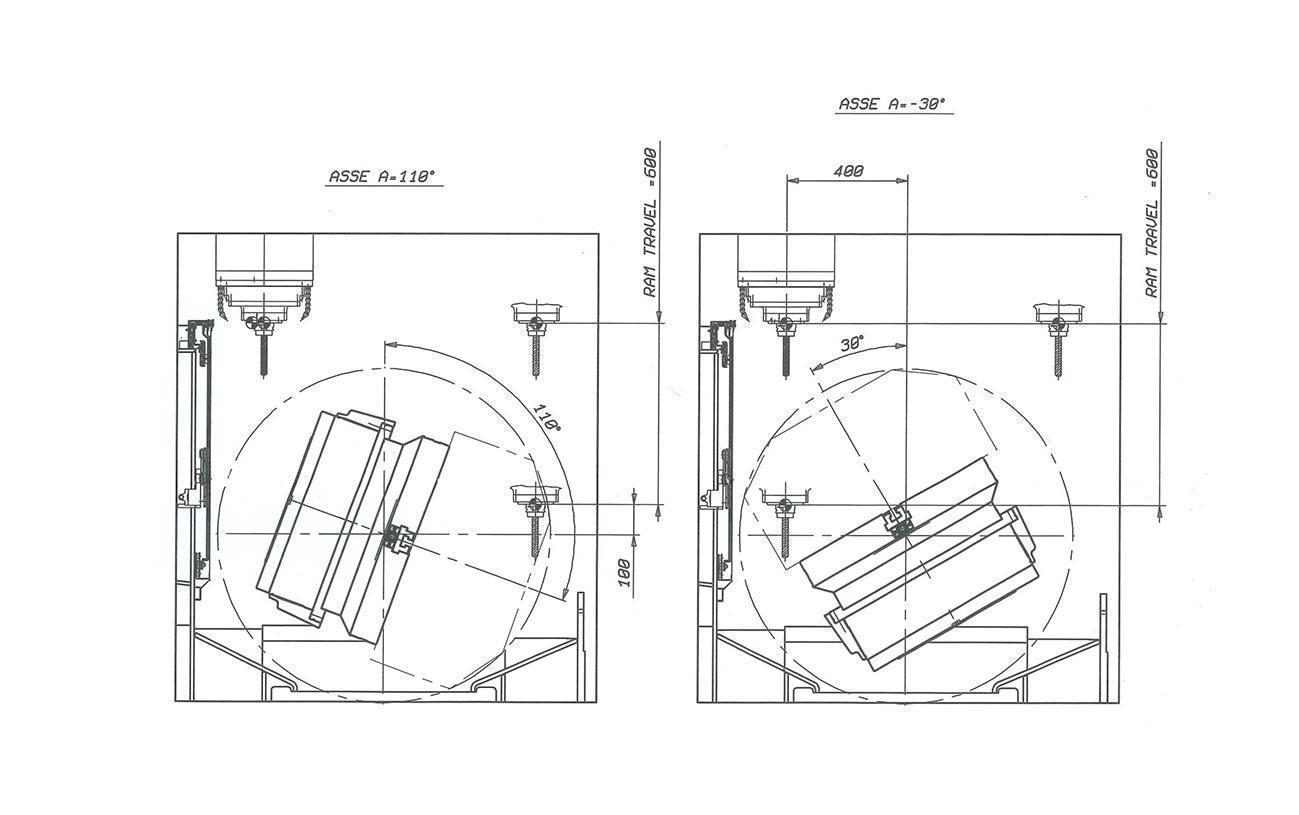

- A-axis: -30° / 110°
- C-axis: continuous
- maximum weight of the workpiece: 700 kg
- 55/40 kW on spindle
- max. torque on the spindle: 22 Nm
- max 40,000 rpm
- tool taper for milling: HSK-E40

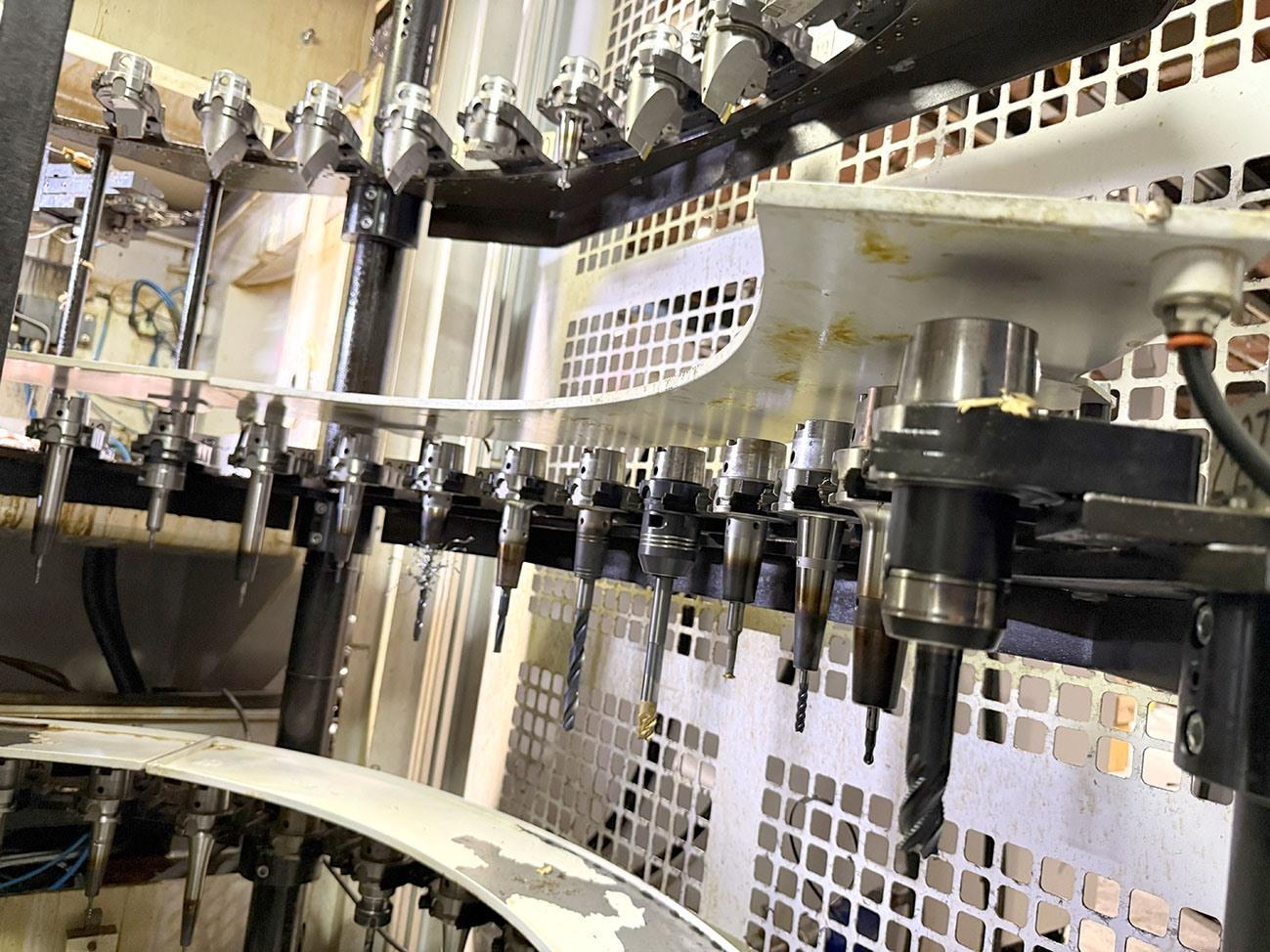

- 150-position tool changer with 126 tool positions for milling, grinding, drilling
List of options mounted on the machine:
1 - 40,000 rpm high-speed spindle

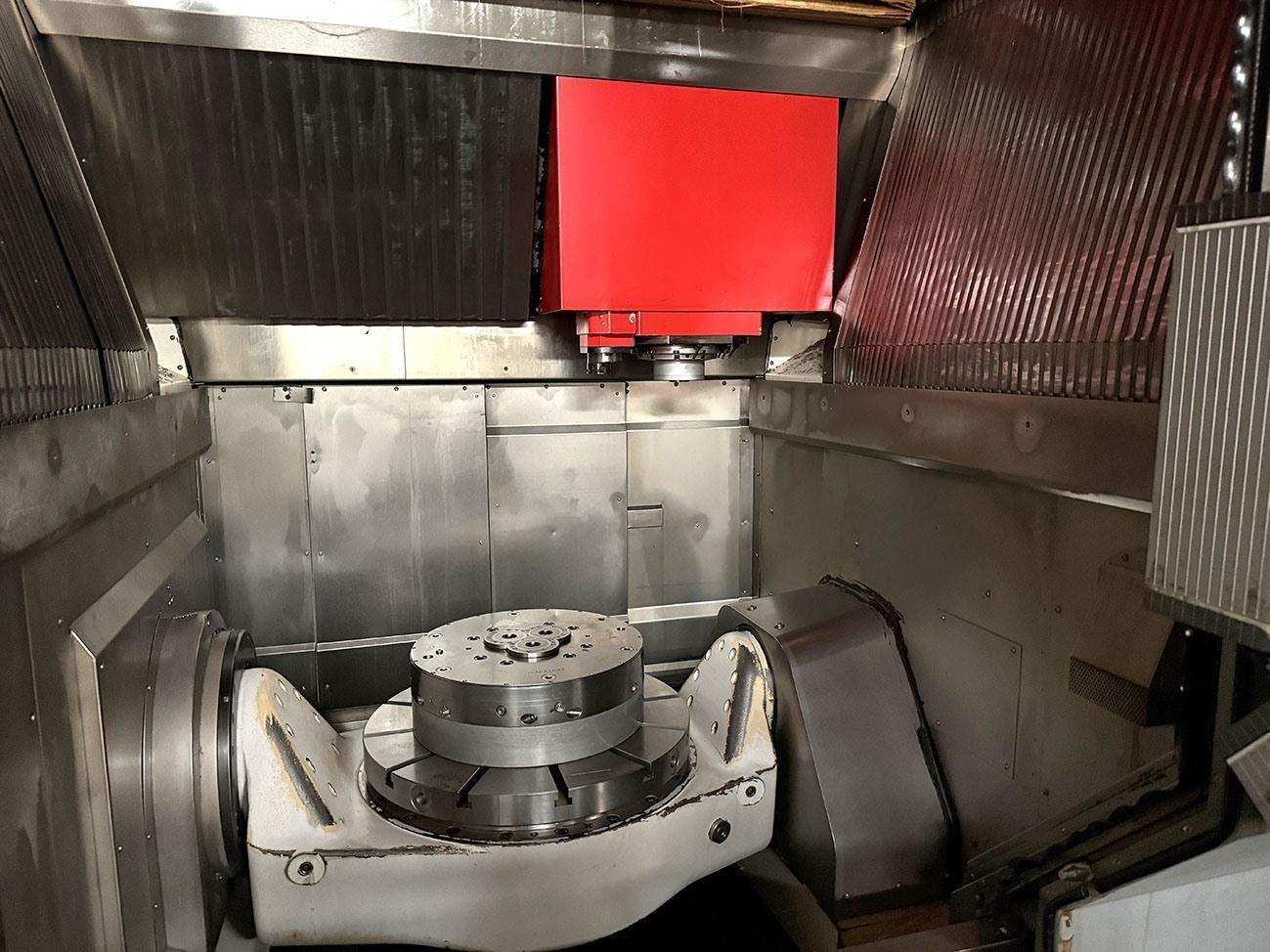

2 - table dia 700 mm with hydraulic clamping
3-150-position tool changer
4 - chip conveyor belt
5 - cooling system with recovery
6 - coolant temperature control
7 - high pressure cooling (40 to 70 bar) by spindle
8 - smoke extraction system
9 - chip collection box
10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools
11 - Renishaw probe
- Type/Model: Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC
- Stocknumber: A.12 15968
- Main category: [A] Lathes
- Sub category: [A.12] Vertical turning machines conventional & CNC
- Brand: Breton
Stocknumber: A.12 15968

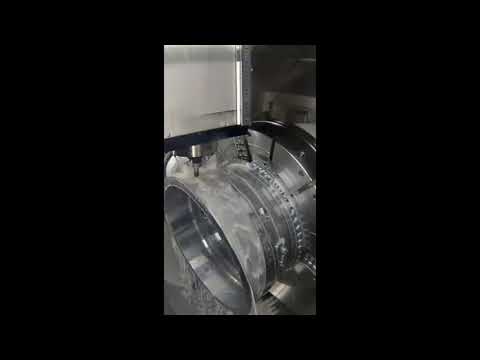

Watch video of working machinery
