Vertical turning machines conventional & CNC Breton X: 900 - Y: 900 - Z: 600 mm CNC
Additional info

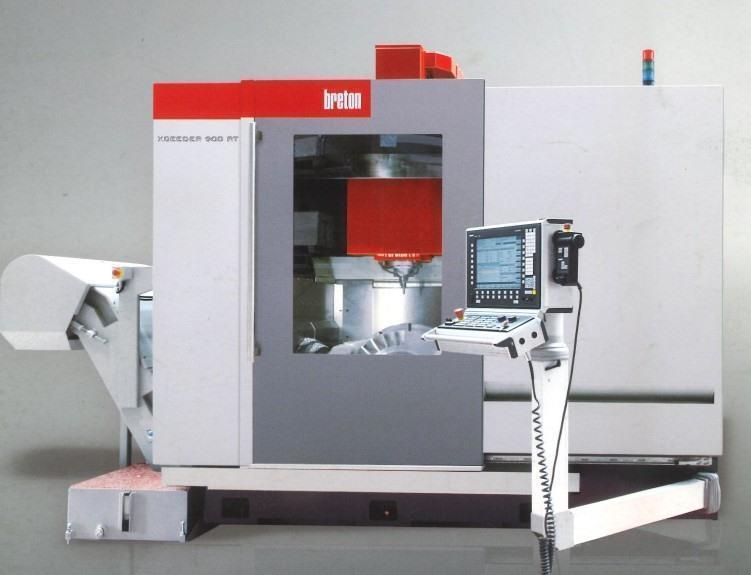

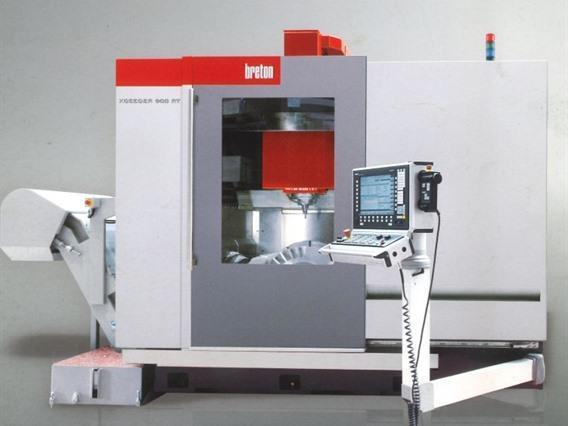

Type: XCEEDER 900/RT

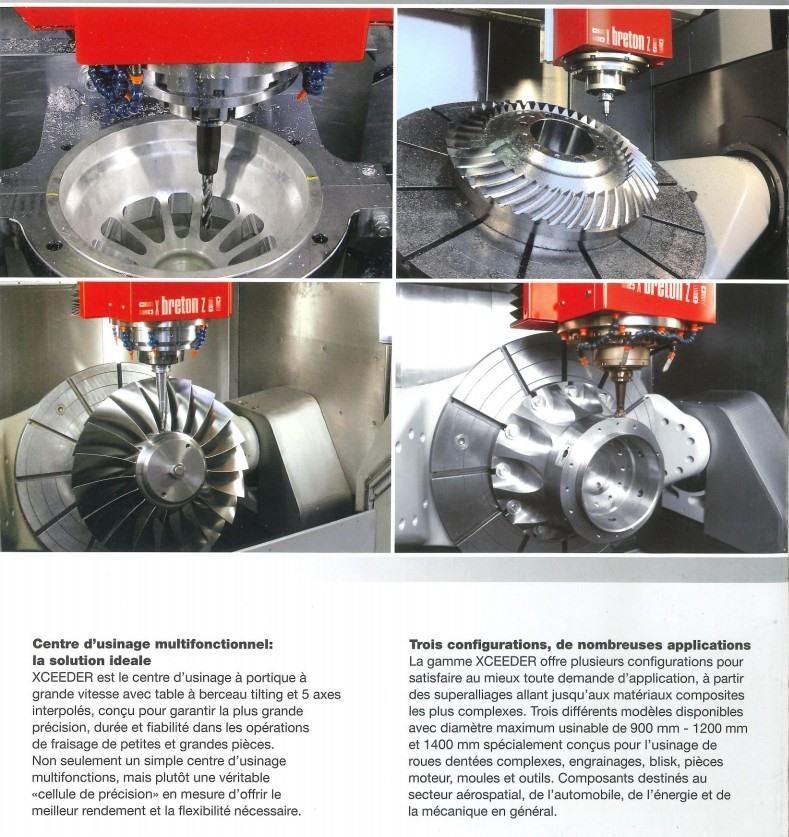

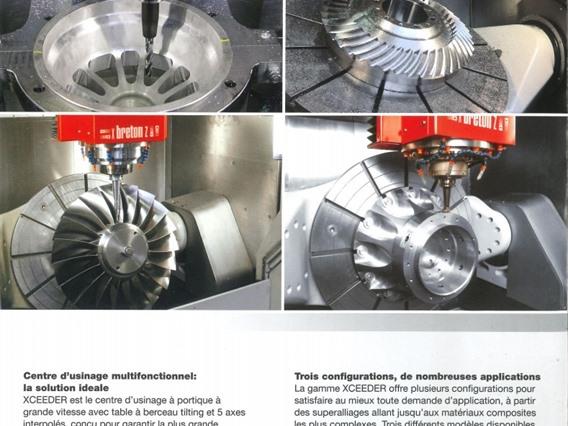

A high-end 5 interpolated axes multitasking machining center. Designed for the highest performance in machining 3D shapes that require turning, milling, drilling and grinding. Tailored to applications ranging from complex gears, impellers to molds, dies, tools,... for projects in aerospace, automotive, power generation,...
max workpiece diameter: 900 mm
A-axis: -30° / 110°
C-axis: continuous: 100 RPM
max distance between spindle and table: 700 mm
Options fitted to machine:
1 - high speed spindle of 40 000 rpm
2 - table with diameter 700 mm
3 - toolchanger with 150 positions
4 - chip conveyor
5 - cooling system with recuperation
6 - temperature regulation for coolant
7 - high pressure cooling (40 to 70 bar) through spindle
8 - smoke extraction system
9 - chip collection box
10 - presetting system and tool integrity
11 - Renishaw RMP60 measuring probe
- Type/Model: X: 900 - Y: 900 - Z: 600 mm CNC
- Stocknumber: A.12 16005
- Main category: [A] Lathes
- Sub category: [A.12] Vertical turning machines conventional & CNC
- Brand: Breton
