Centre lathes Potisje PA45 Ø 910 x 4100 mm
Technical information
- Distance between centers4100 mm
- Swing over bed910 mm
- Swing over cross-slide600 mm
- Swing in gap1240 mm
- Diametre of main spindle bore140 mm
- Digital screenSony 2 axes
- Length6100 mm
- Width 2300 mm
- Height2100 mm
Additional info
Potisje = Morandolicentie!!
1240 mm in the machine pocket
1 x 4 jaw chuck: 900 mm
1x 4-claw surface plate: 1200 mm

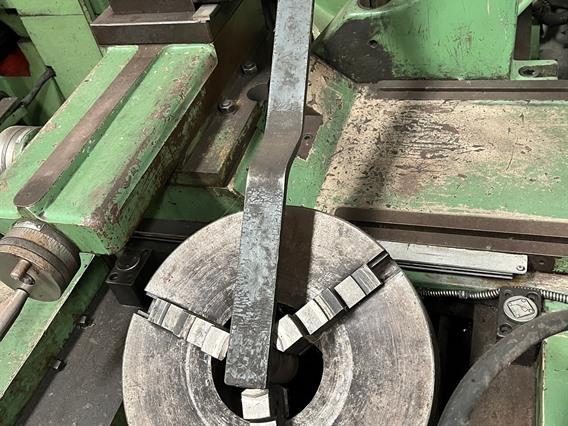

1x 3-jaw chuck: 400 mm, passage: 125 mm
Digital readout, 2 axes

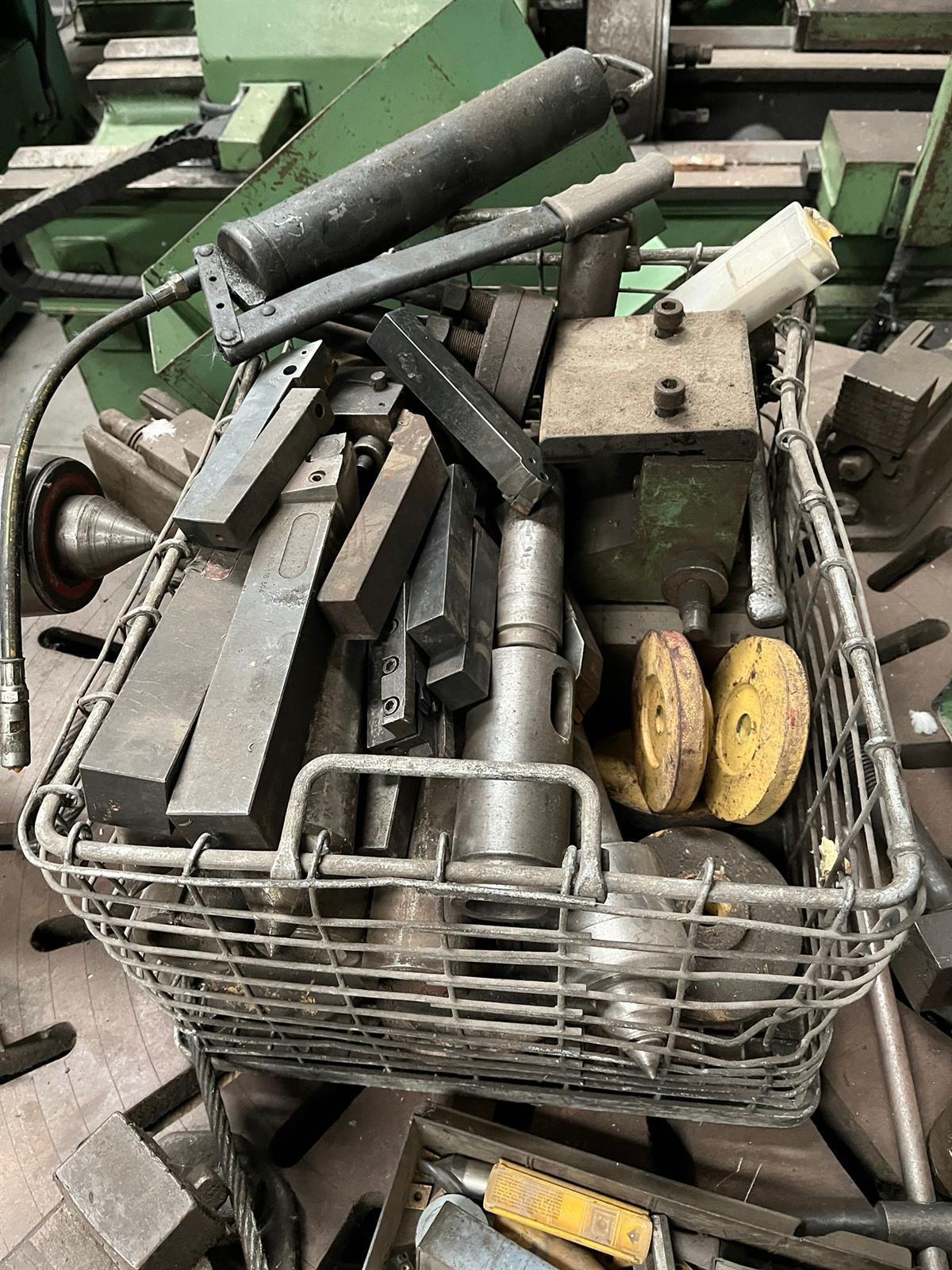

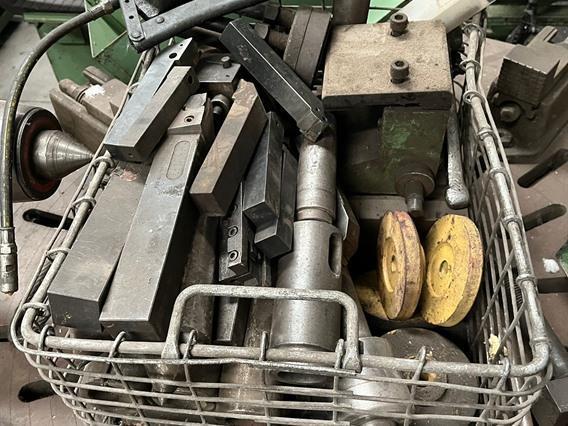

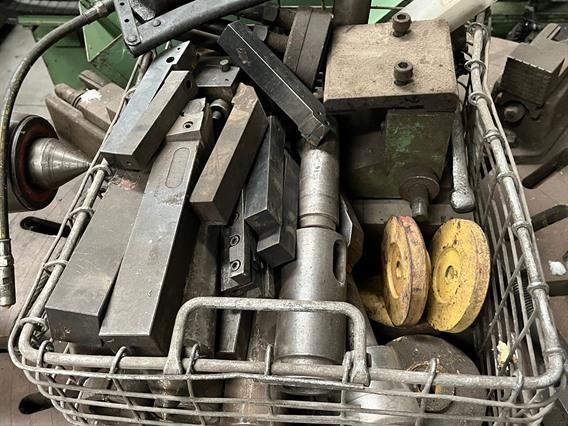

Lots of tools included: center punches, chisels, tooling, etc.
including 3 lathe rests:
- Diameter: 650 mm
- Diameter: 400 mm
- Pedestrian seat diameter: 300 mm
- Type/Model: PA45 Ø 910 x 4100 mm
- Stocknumber: A.01 10654
- Main category: [A] Lathes
- Sub category: [A.01] Centre lathes
- Brand: Potisje
