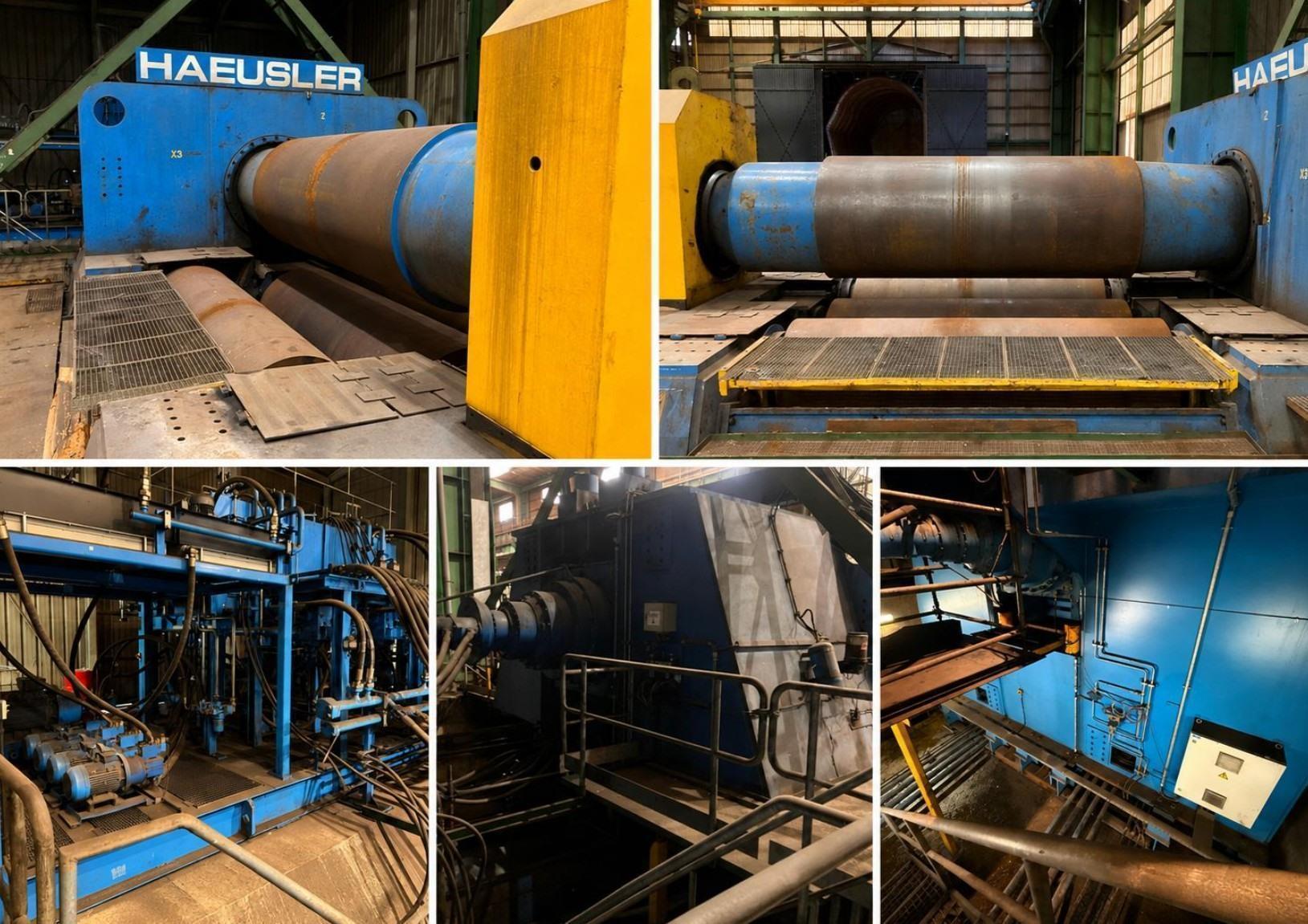

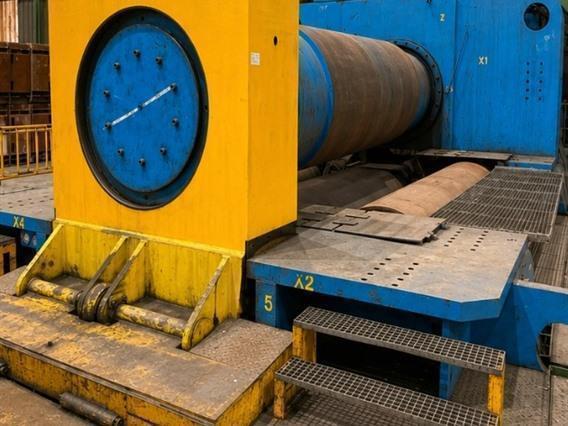

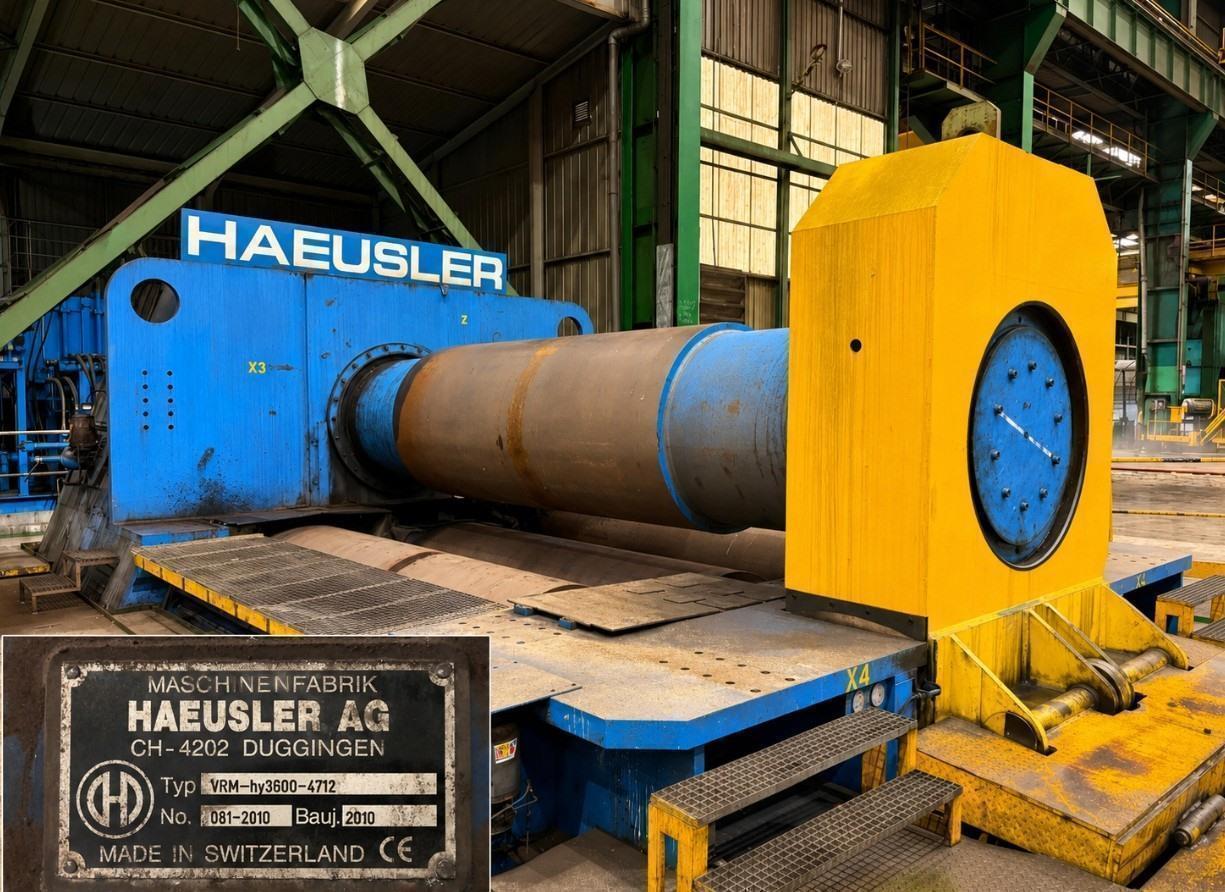

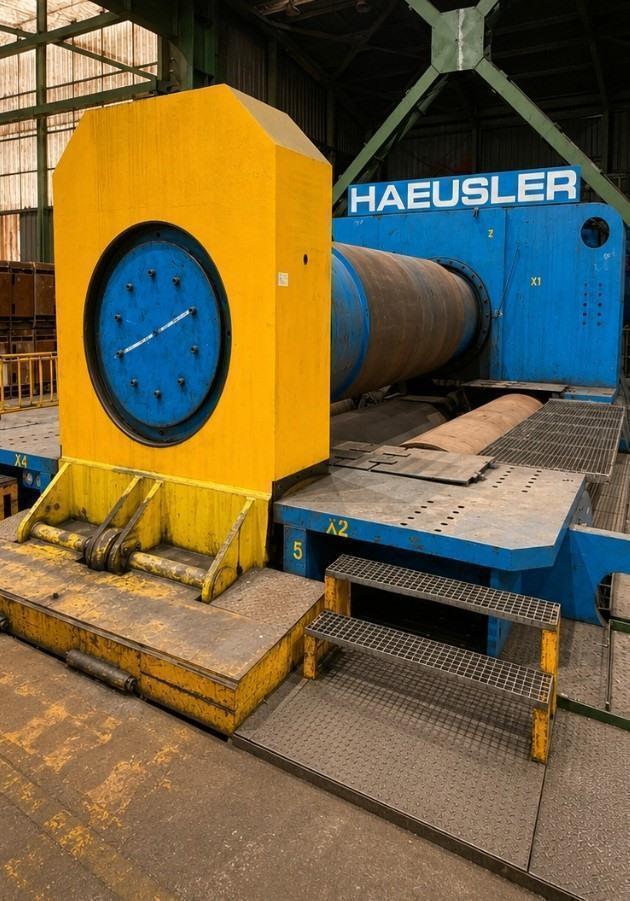

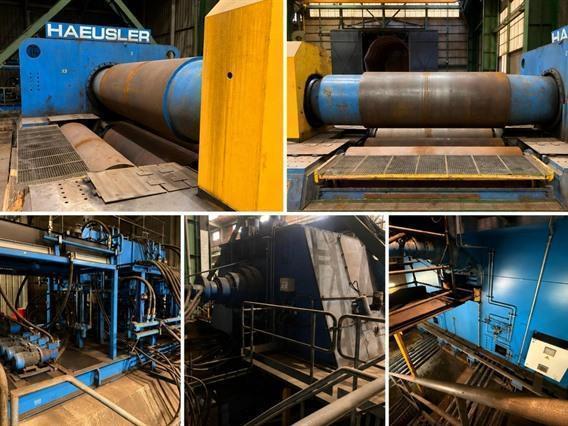

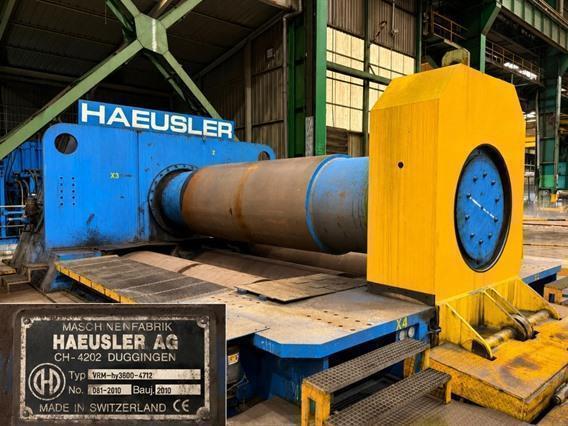

Plate rolls Haeusler Haeusler VRM Hy 36-4712 3600 x 270 mm

Name: Haeusler Haeusler VRM Hy 36-4712 3600 x 270 mm
Brand: Haeusler
SKU: O.06 16547

Product added to your favorites

» Request a personalised quote

Technical information

Number of rolls4
Roll capacity cold220 mm
Roll capacity warm270 mm
TypeVRM Hy 36-4712
Roll dia upside1500 mm
Dia under roll - side rolls1450 / 1100 mm
Driven rollsCentre top and bottom rolls driven
Power needed850 kW
Length15 000 mm
Depth7200 mm
Hight7890 mm
Weight750 ton

Additional info

Specs:

4 roll
Plate width: 3600 mm
Diameter: 4000 mm
Upper roller diameter: 1500 mm
Siderolls diameter: 1100 mm
Bottom center roll diameter: 1450 mm
7,000 tons

Max thickness: 200 / 270 mm
Max top roll pressure: 7300 tons
Roll material 60CrMoV12.5
Hydraulic rotation drive
Software: Beckhoff

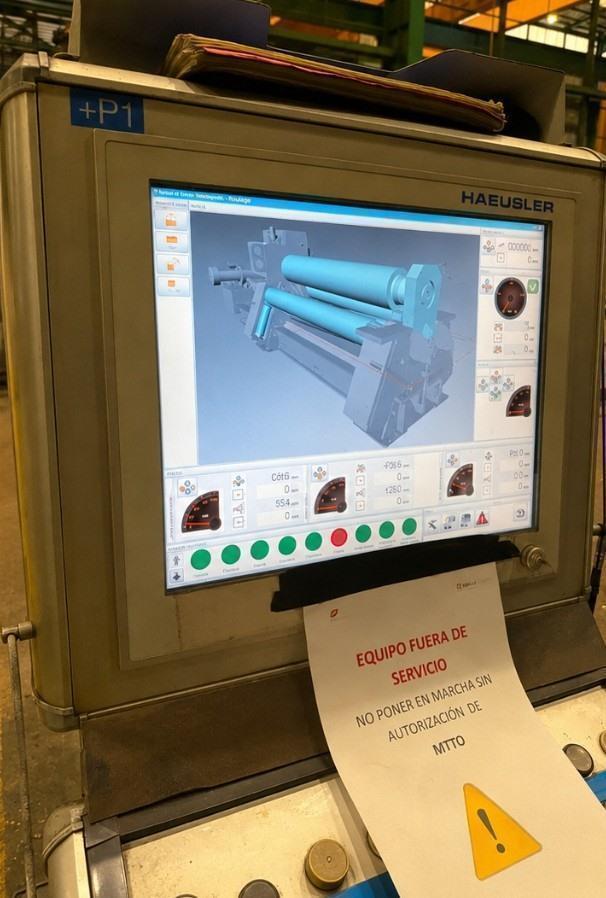

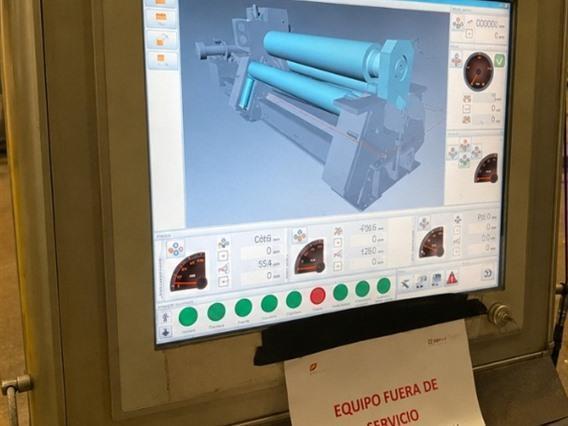

Control: Swiss Bend-IT Technology V.3.4.0
Air consumption: 4 bar / 35m3/h
Dimensions: 15000 x 7200 x 7890
Weight 750 tons
IN TOP CONDITION
Type/Model: Haeusler VRM Hy 36-4712 3600 x 270 mm
Stocknumber: O.06 16547
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.06] Plate rolls
Brand: Haeusler

» Request a personalised quote

Stocknumber: O.06 16547

Watch video of working machinery

Haeusler Haeusler VRM Hy 36-4712 3600 x 270 mm
