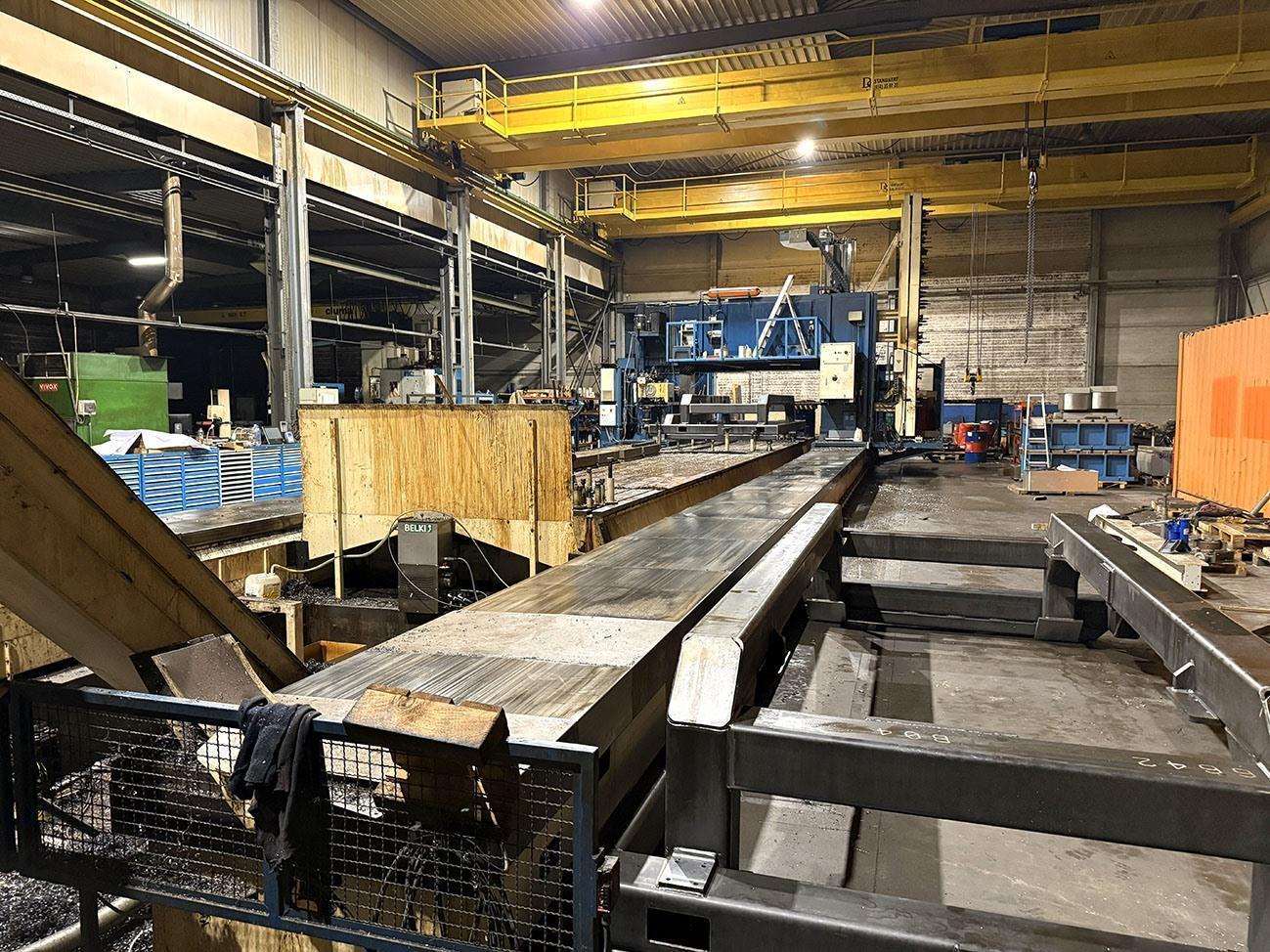

Portal & Gantry milling machine & CNC Correa FPM 50 - X: 20 000 - Y: 3800 - Z: 1250 mm

Technical information

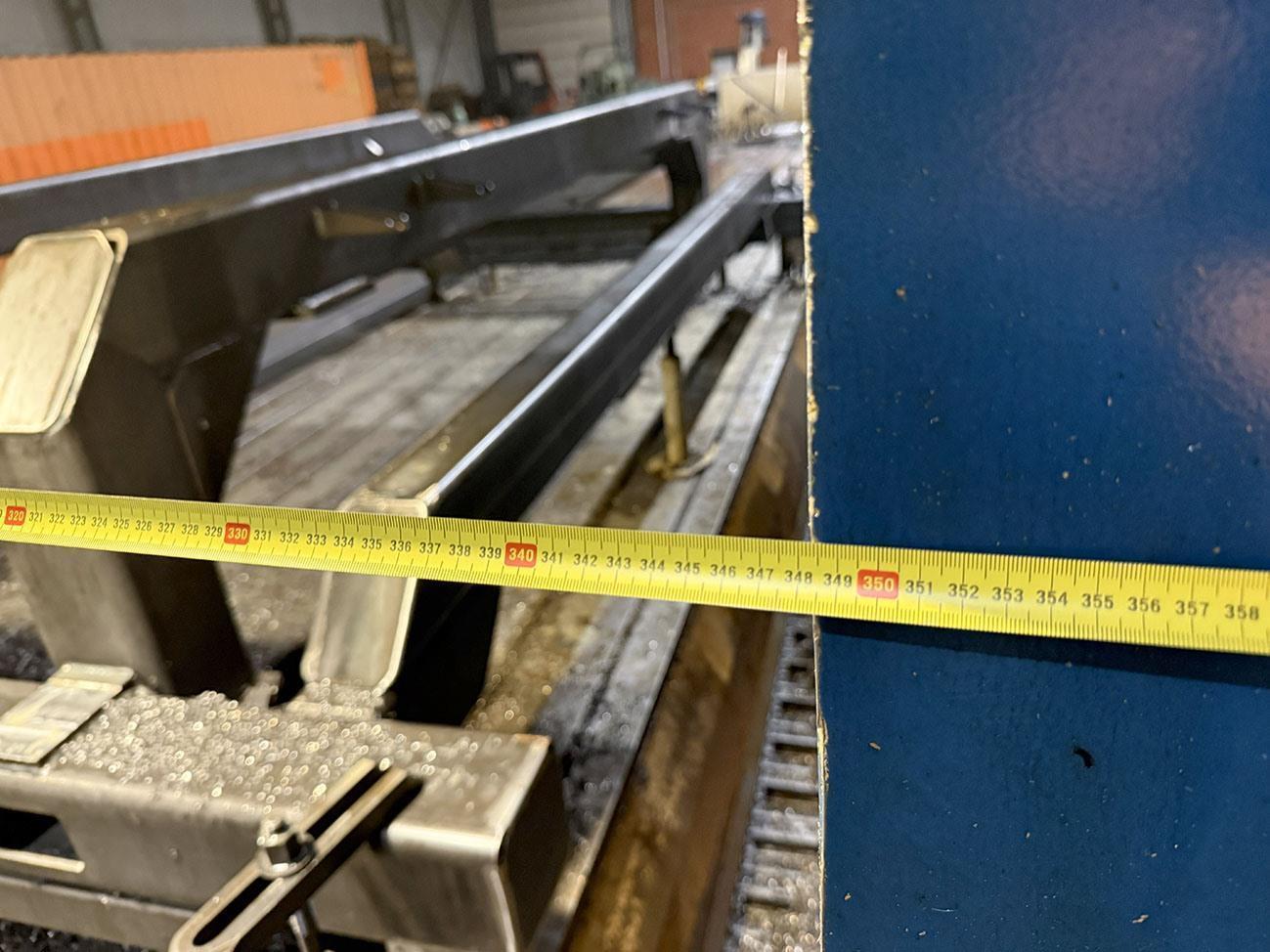

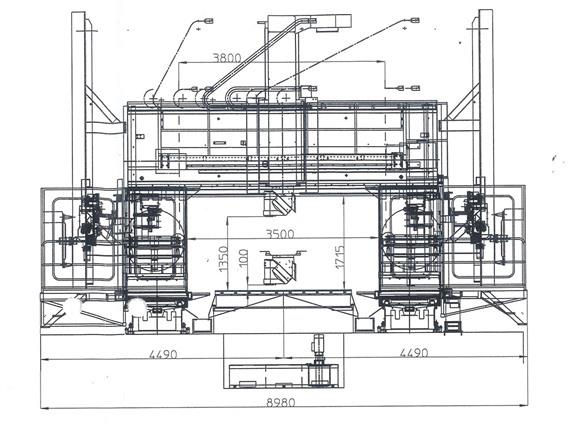

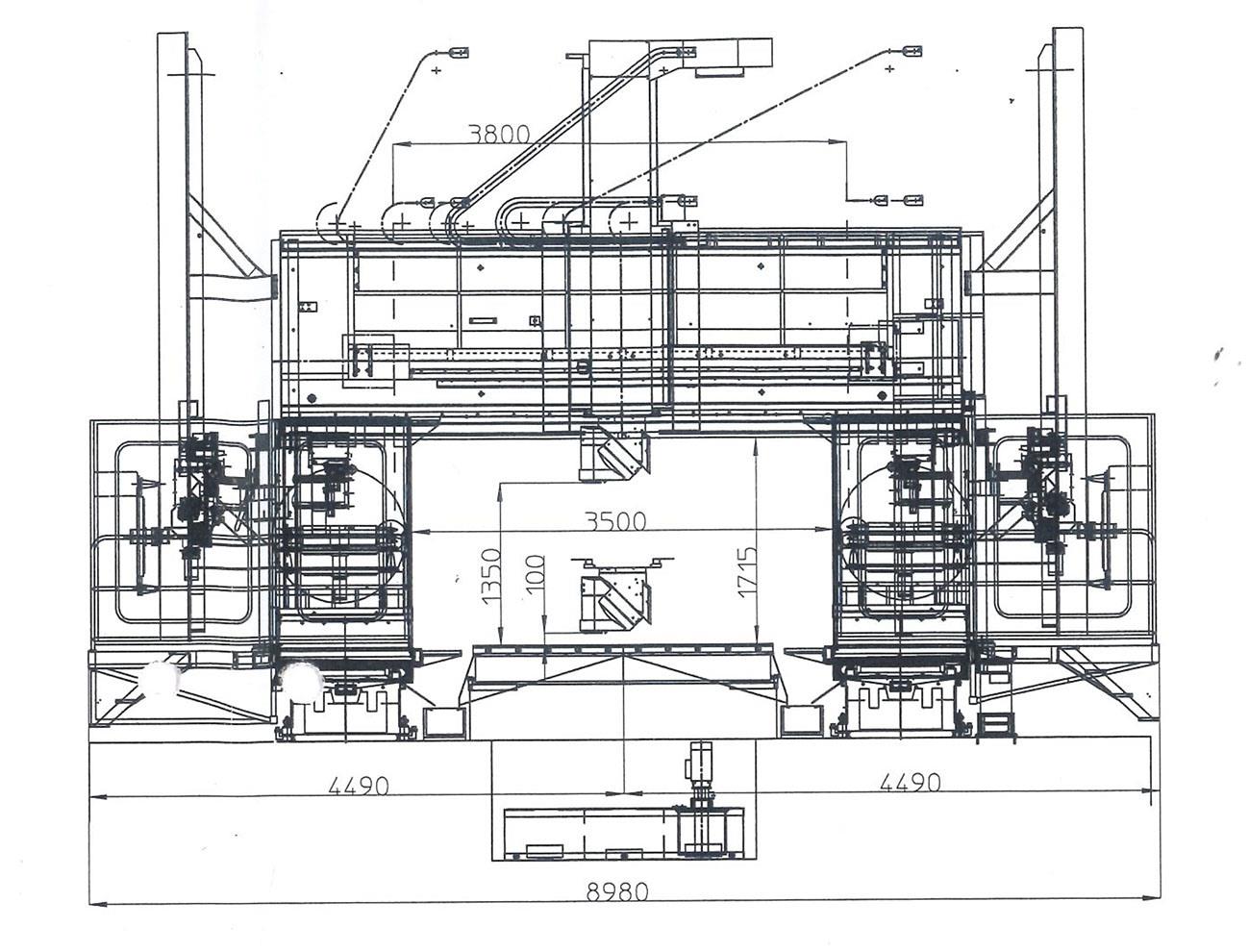

  • Passage beween uprights3480 mm
  • Longitudinal travel X-axe20 meter
  • Cross travel Y-axe3800 mm
  • Travel (height) Z-axe1250 mm

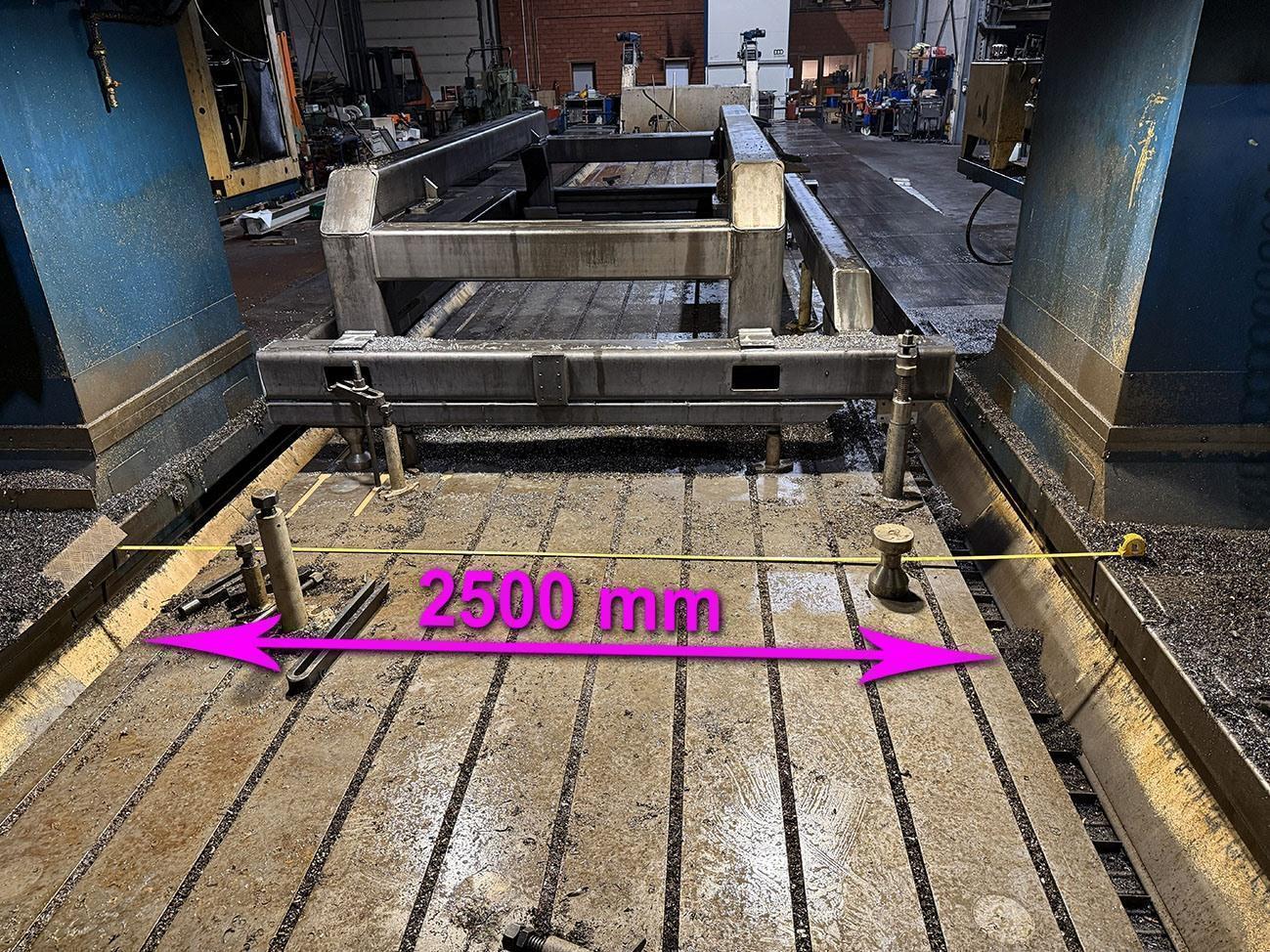

  • Dimensions Clamping space - table20 000 x 2500 mm

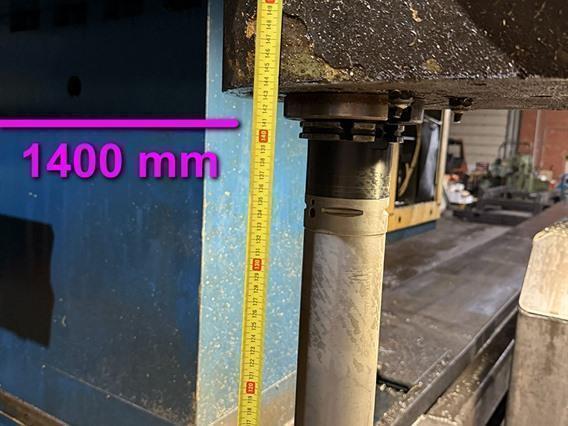

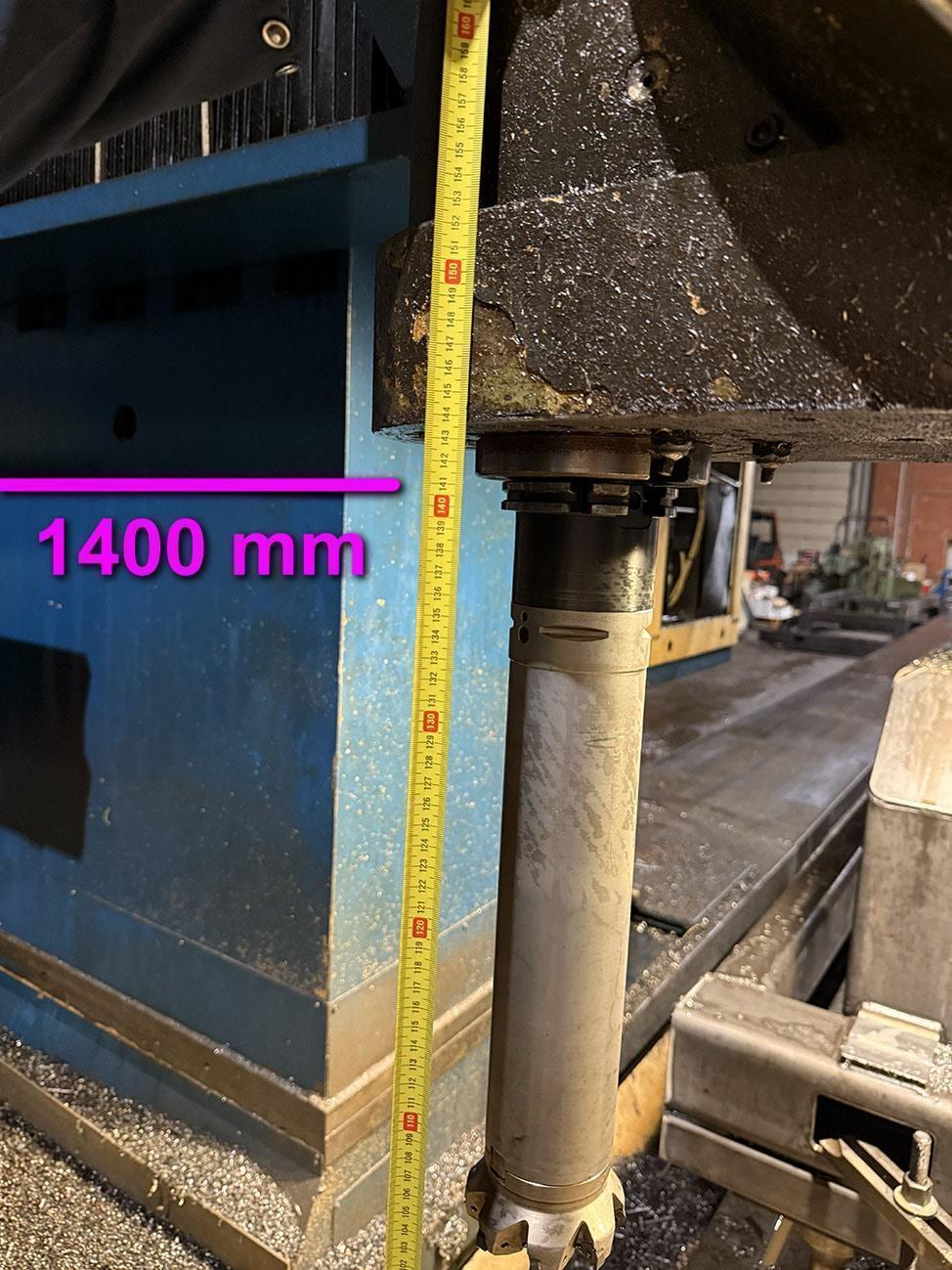

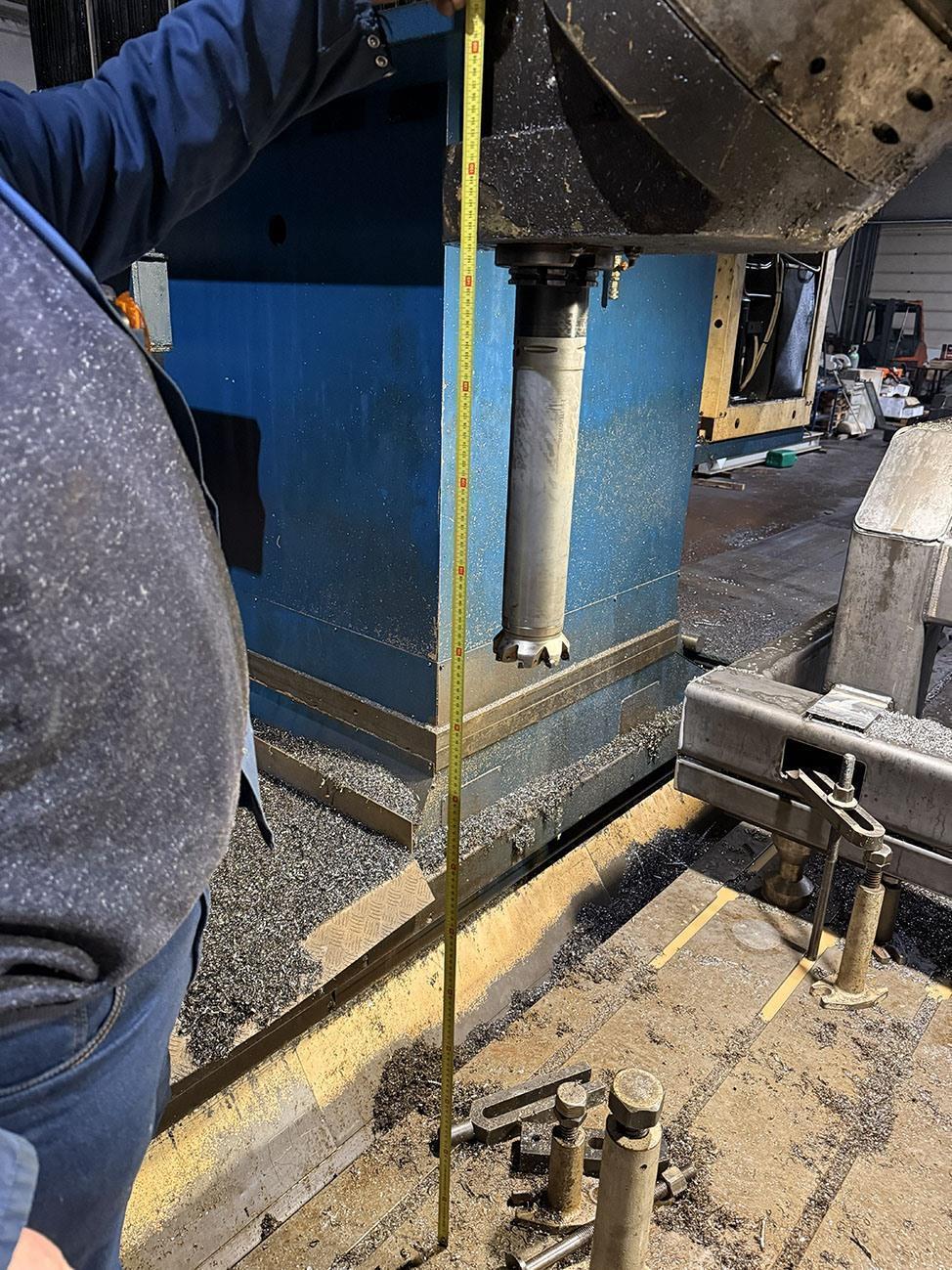

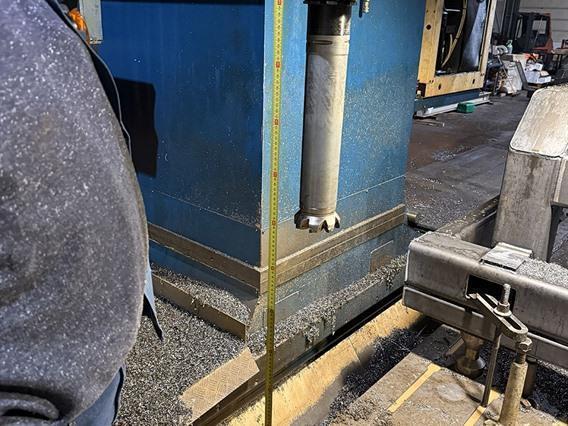

  • Max height of workpiece1750 mm
  • Power on spindle27 kW
  • Admission in millingheadspindle (ISO)ISO 50
  • Max speedrange6000 rpm - 660 Nm

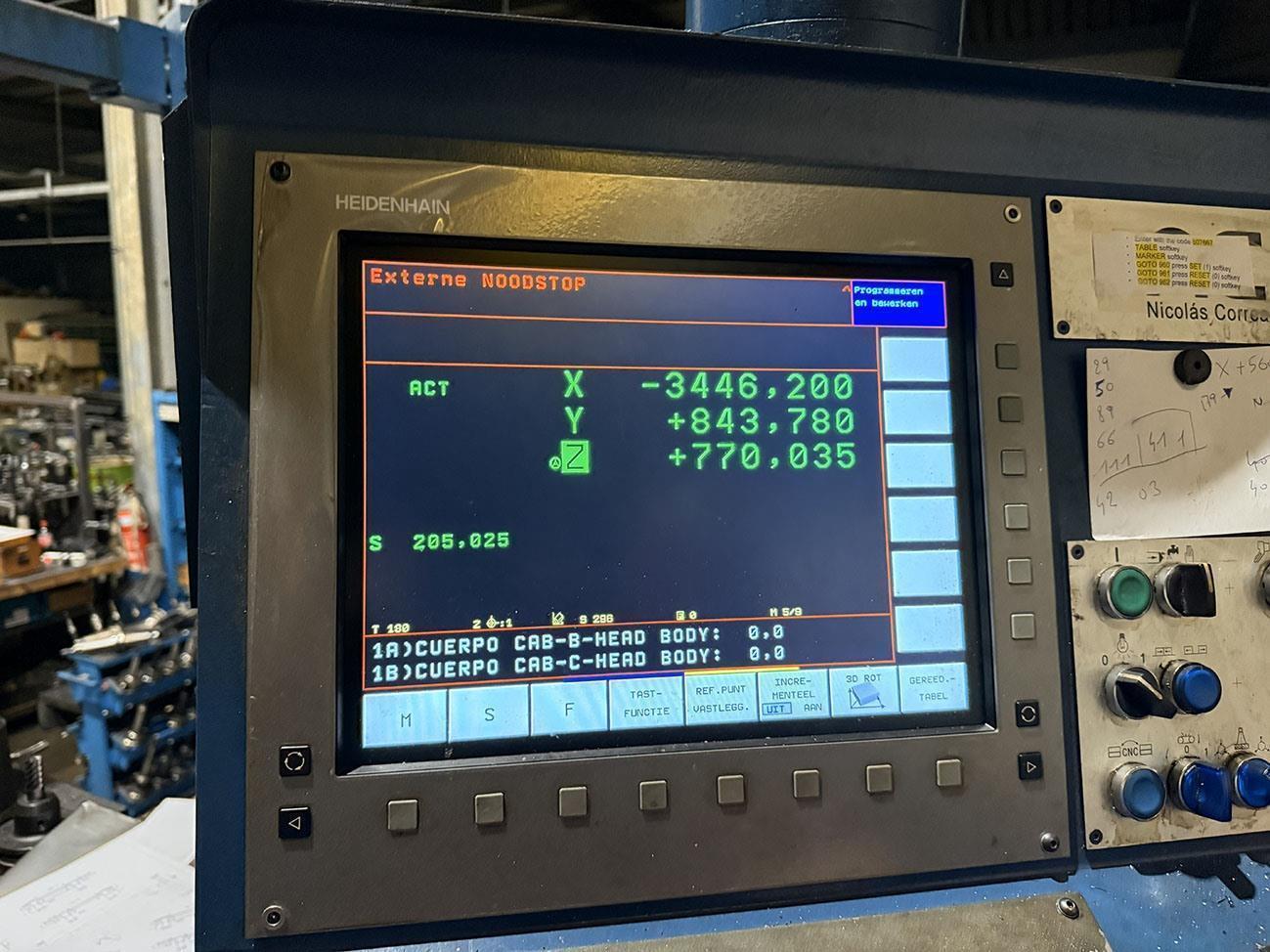

  • ControlHeidenhain iTNC530
  • Weight170 ton
  • Cooling systemyes
  • Toolchangeryes
  • Number of tools120 positions

Additional info

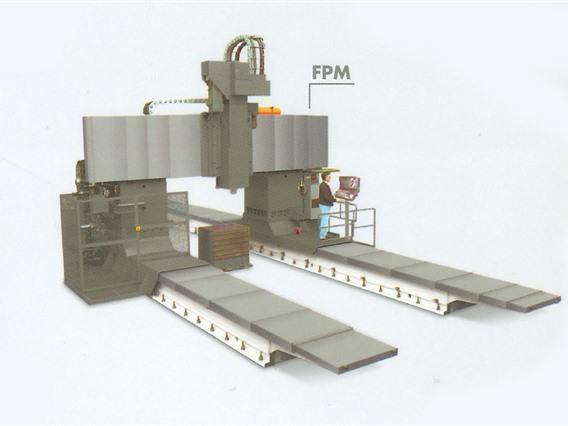

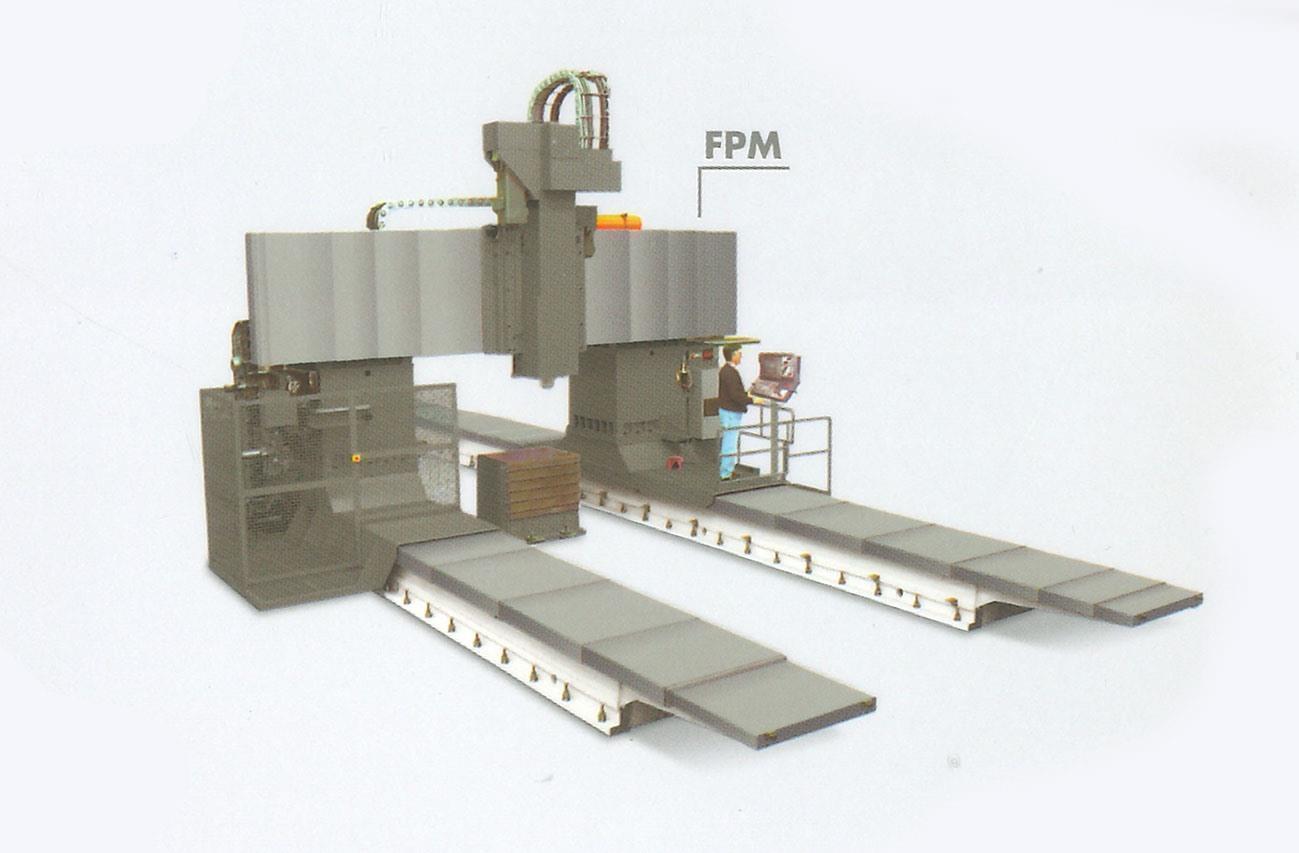

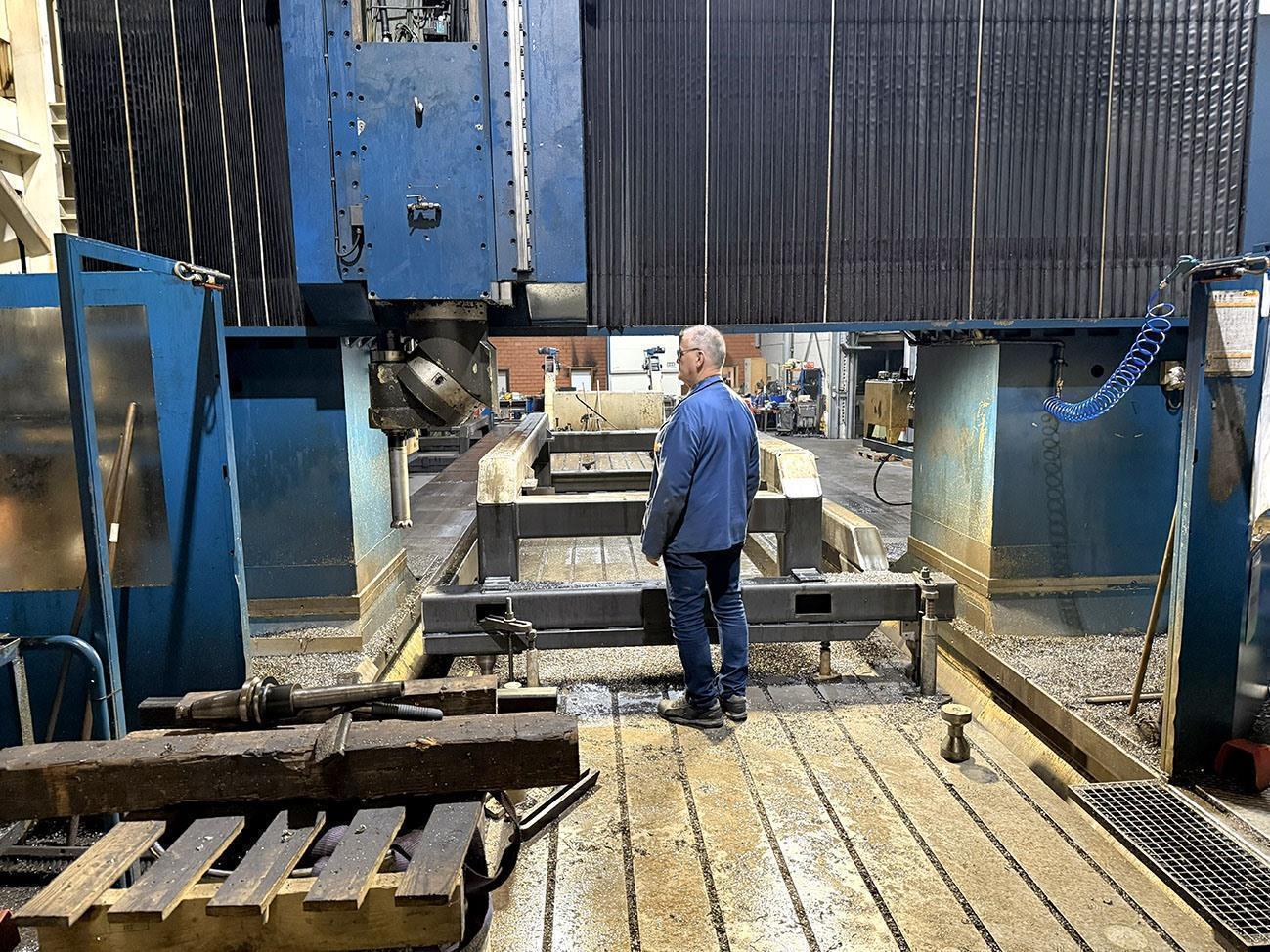

  • Heavy duty portal milling machine
    Type: FPM-50/200
    - between columns: 3480 mm
    - with auto indexing milling head (every 0.1° in both planes)

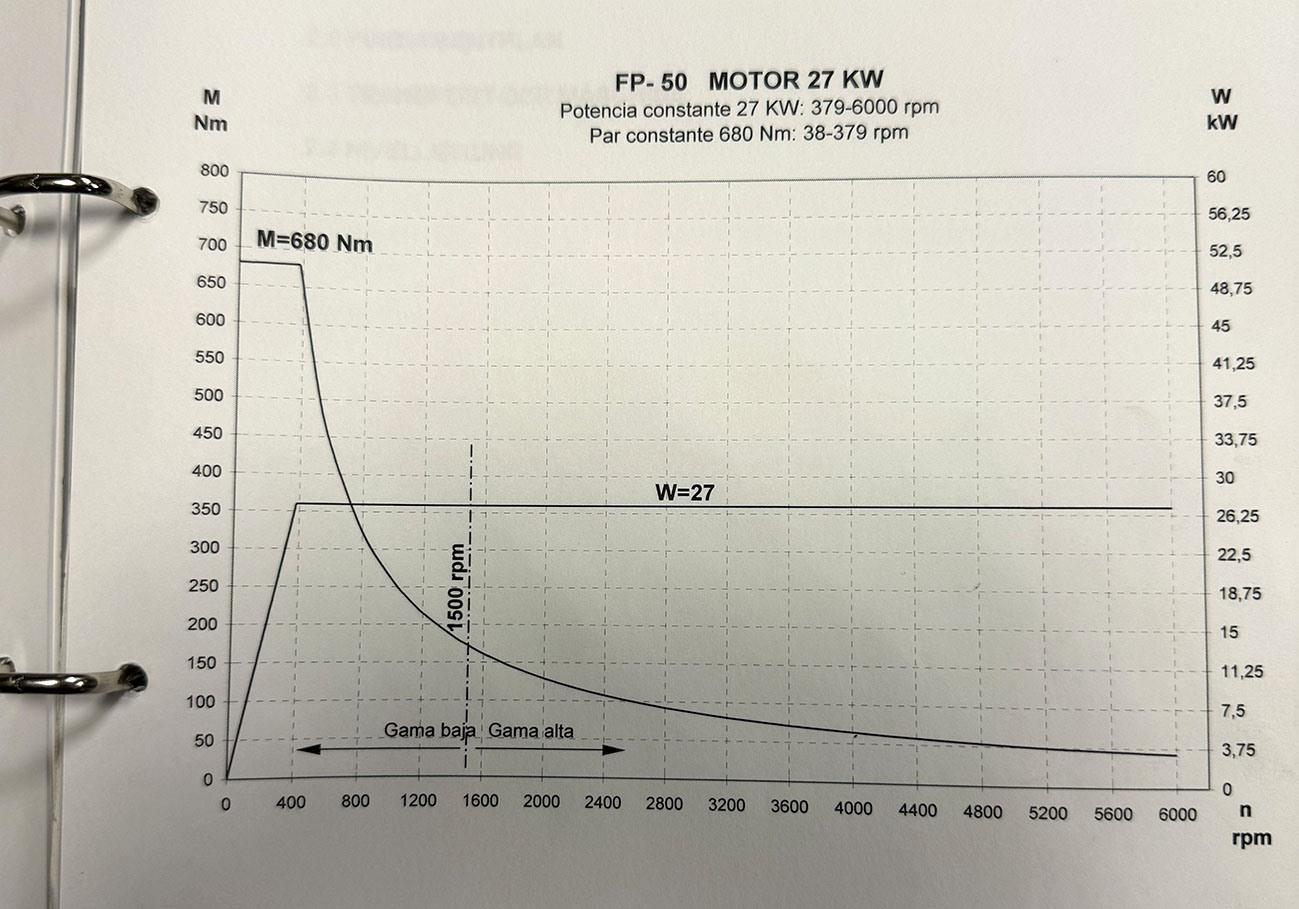

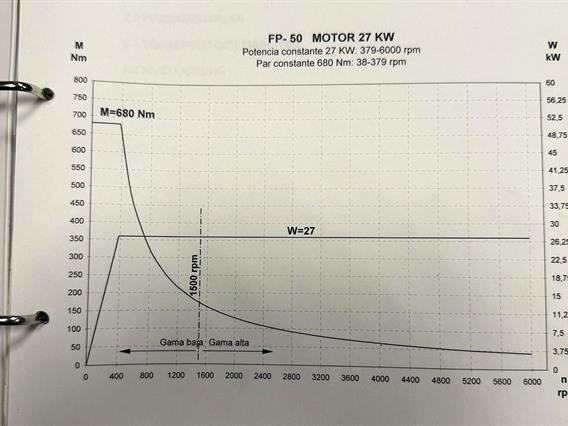

    > 27 kW / max 6000 rpm / 660 Nm
    > high pressure cooling through spindle (17 bar)

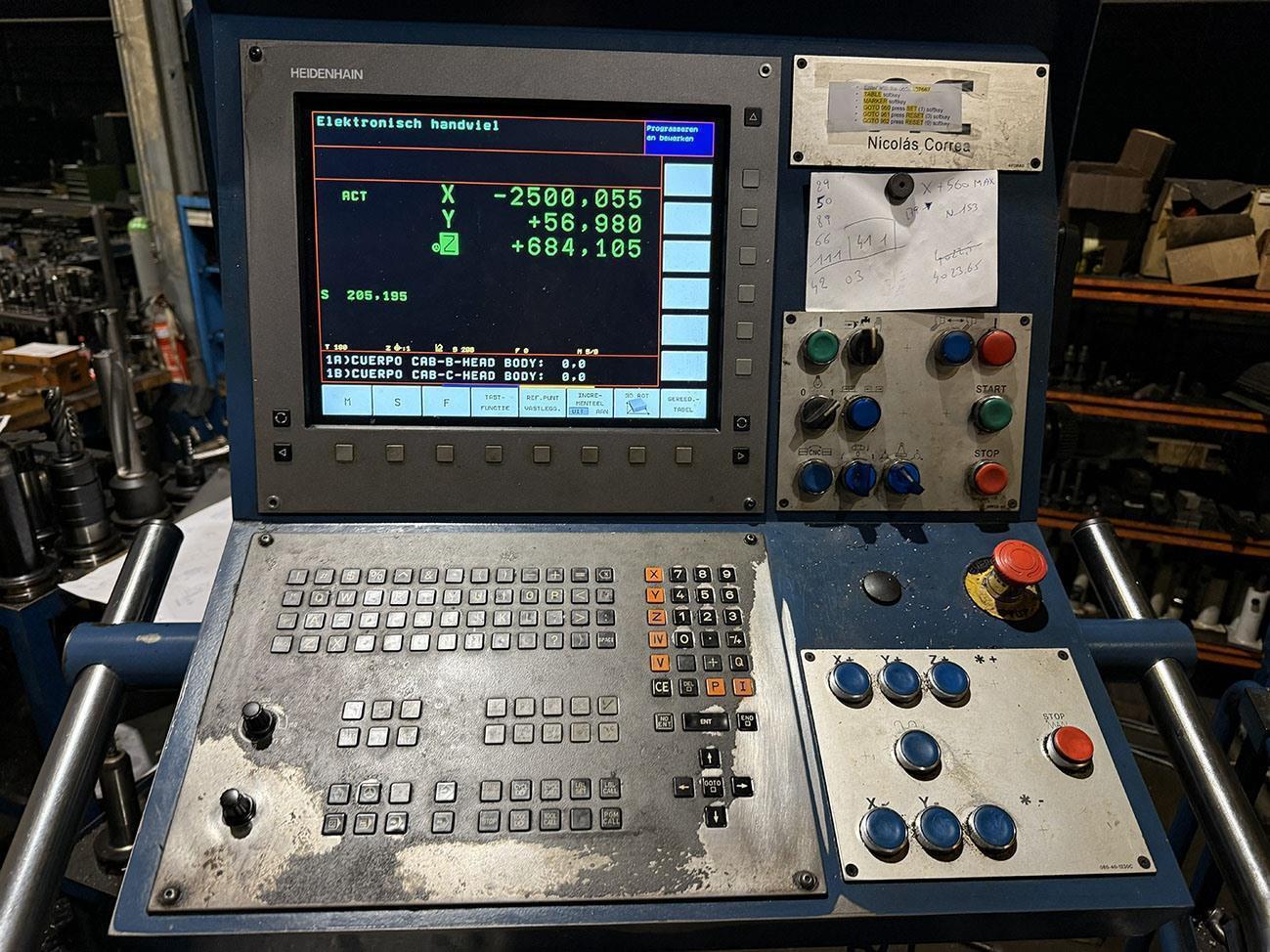

    - 2 Heidenhain operator stations

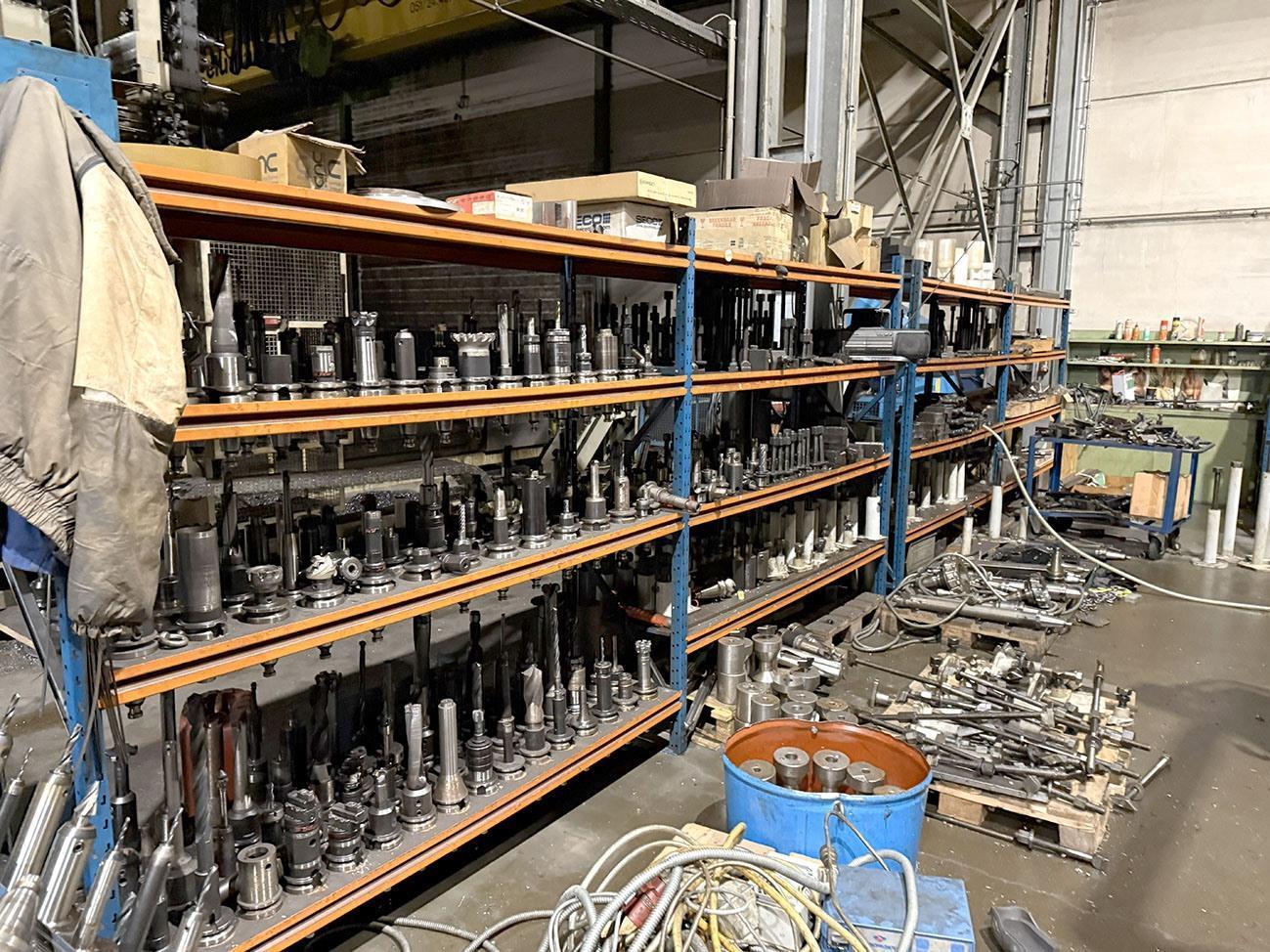

    - tool changer with 120 positions
    - 2 chip conveyors
    - with cooling and filtering unit & self cleaning system

    If you want to machine the left and right side of a workpiece, the maximum width is 3200 mm.

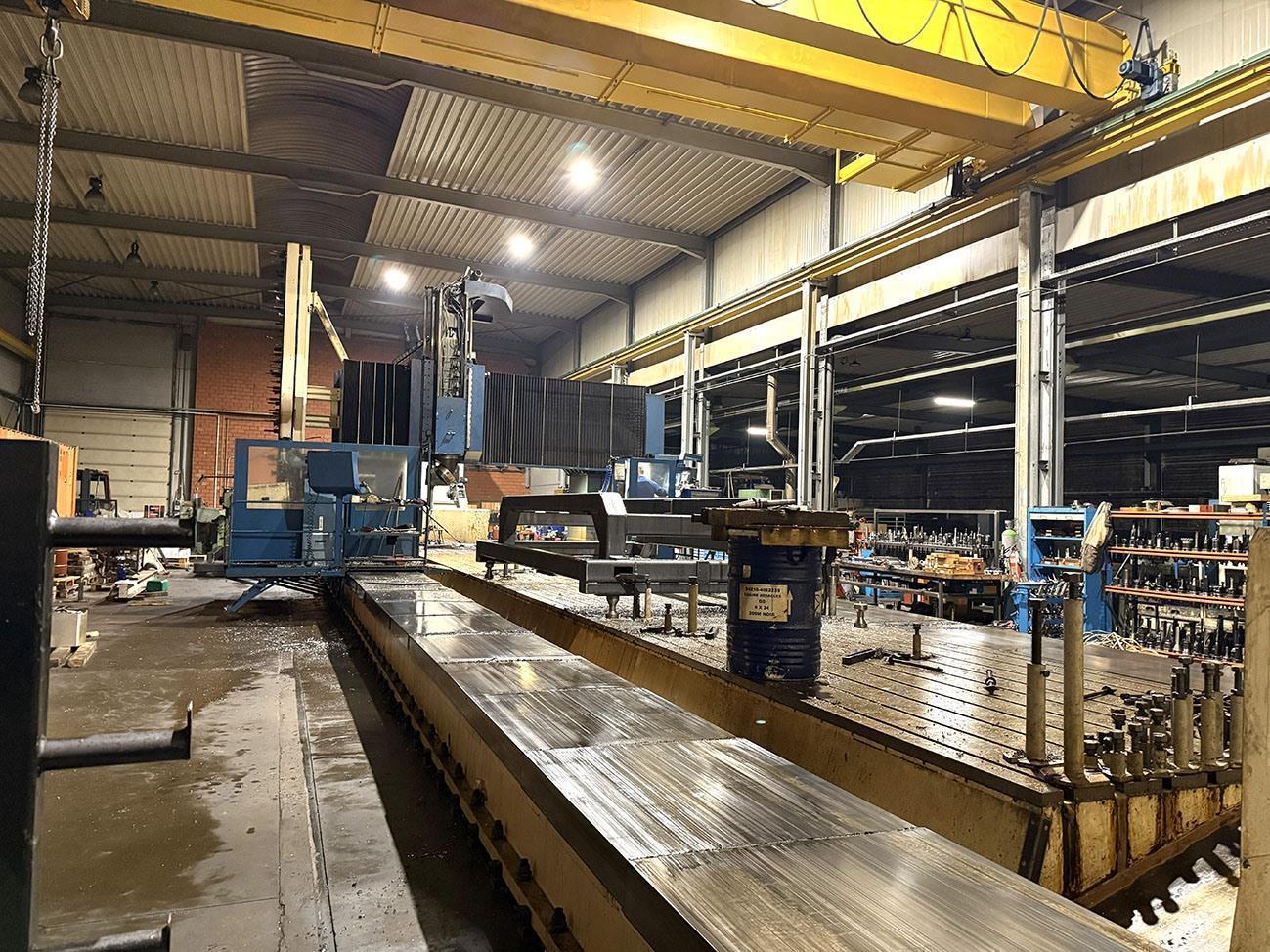

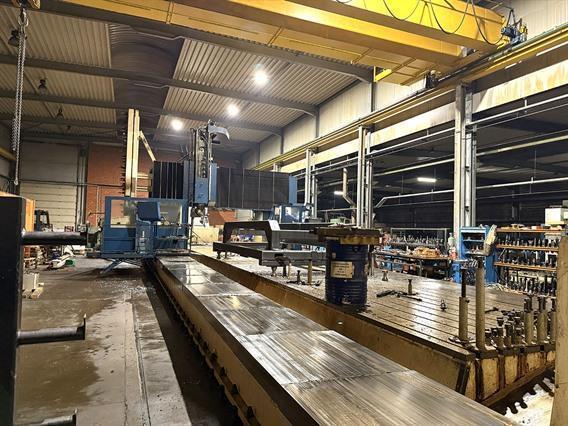

    In it's current configuration the table sits on top of the ground. But if you lower the table below floorlevel than you can fit higher workpieces onto the table.

  • Type/Model: FPM 50 - X: 20 000 - Y: 3800 - Z: 1250 mm
  • Stocknumber: B.06 16126
  • Main category: [B] Milling machines
  • Sub category: [B.06] Portal & Gantry milling machine & CNC
  • Brand: Correa

Stocknumber: B.06 16126
