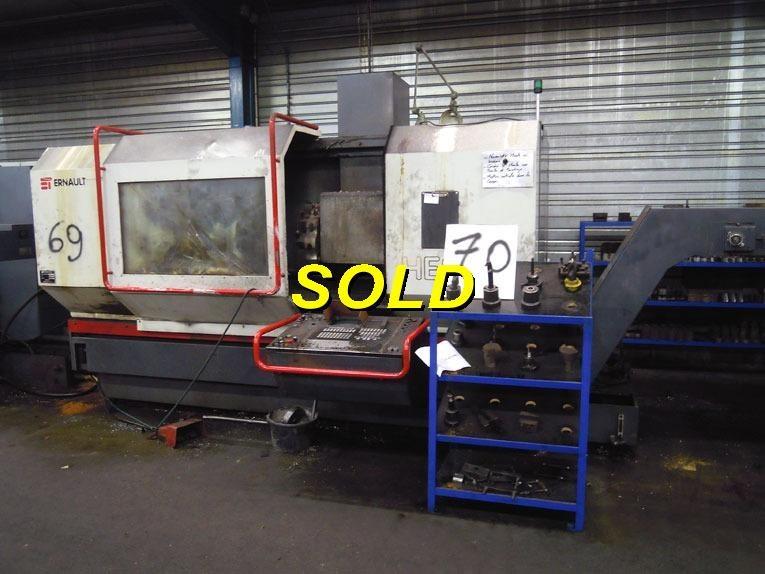

CNC lathes Ernault-Toyoda Hes 52

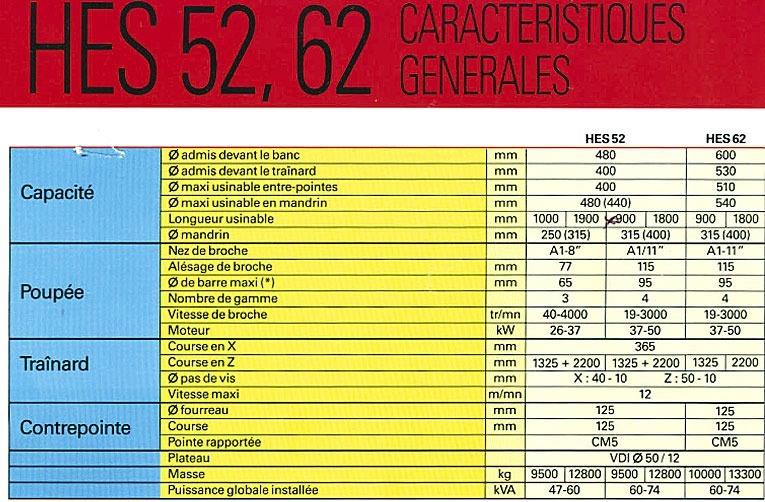

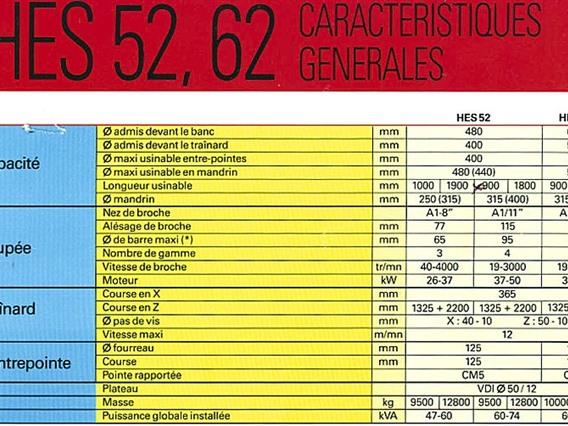

Technical information
- Swing over bed480 mm
- Swing over cross-slide400 mm
- Distance centre tot centre1000 mm
- Max longitudinal travel Z-axis1325 mm
- Max cross travel X-axis365 mm
- Spindle coneIso A1/8
- Dia of spindle bore77 mm
- Power on the spindle37 kW
- Number of speedsmax 4000 rpm

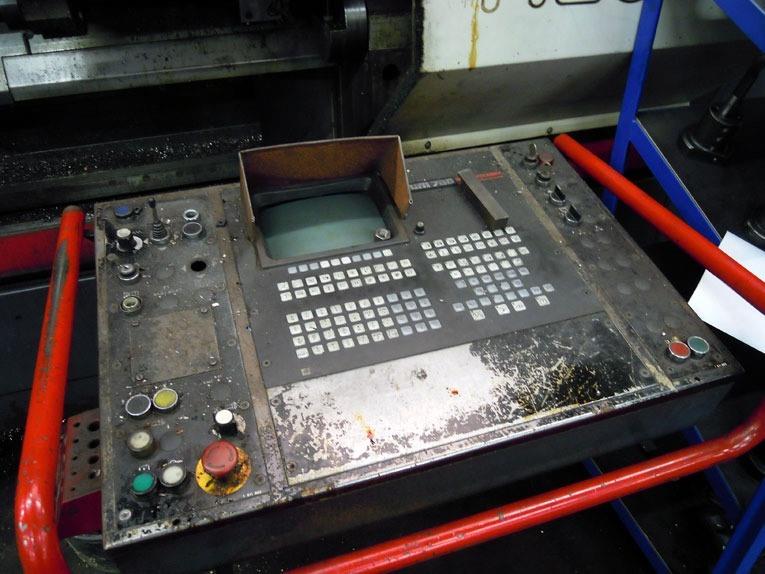

- CommandNUM

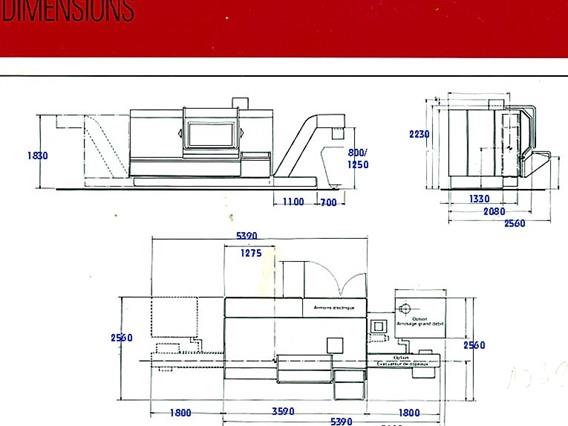

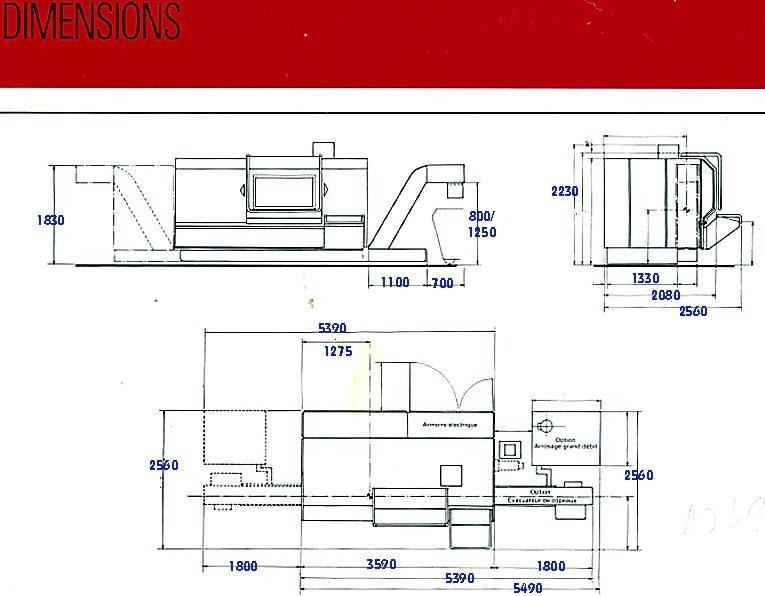

- Length3685 mm
- Width2945 mm
- Height2550 mm
- Weight9500 kg
- Toolchangeryes - VDI
- Number of tools12 positions
