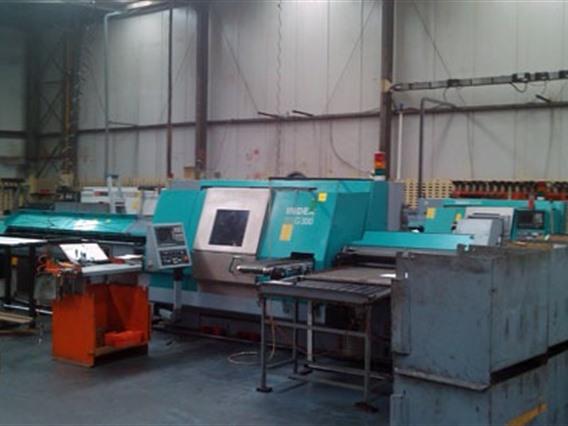

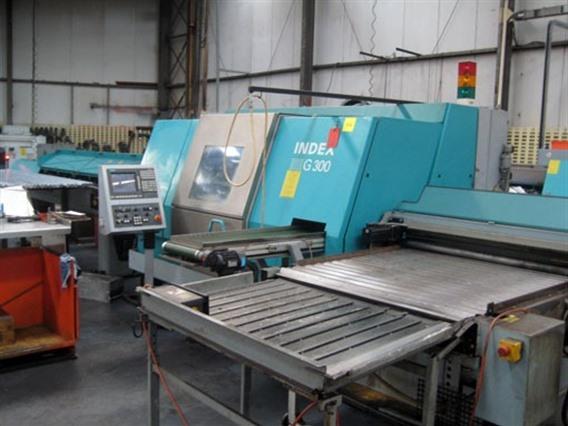

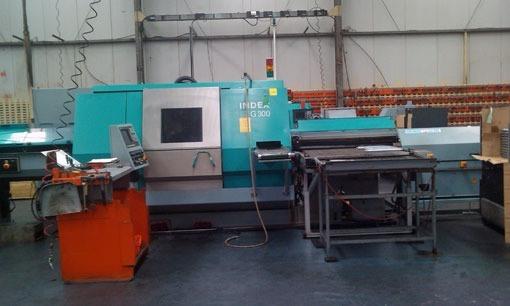

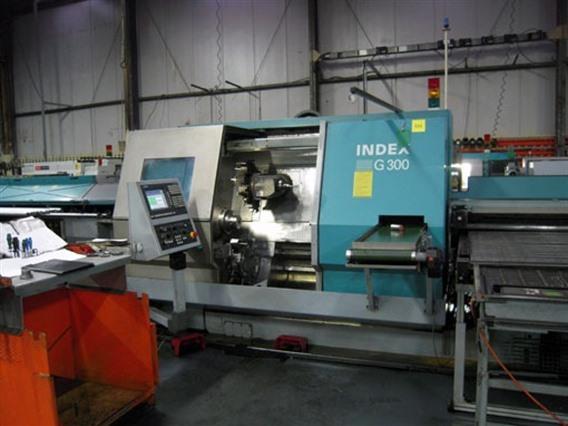

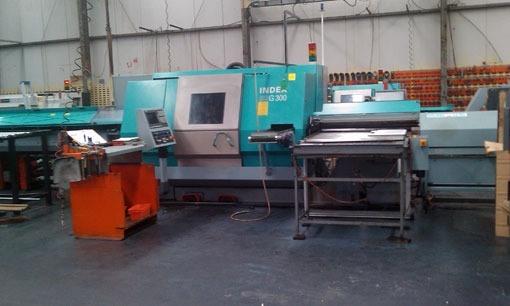

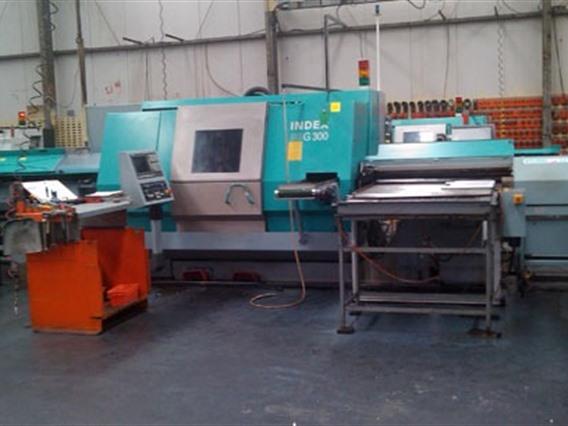

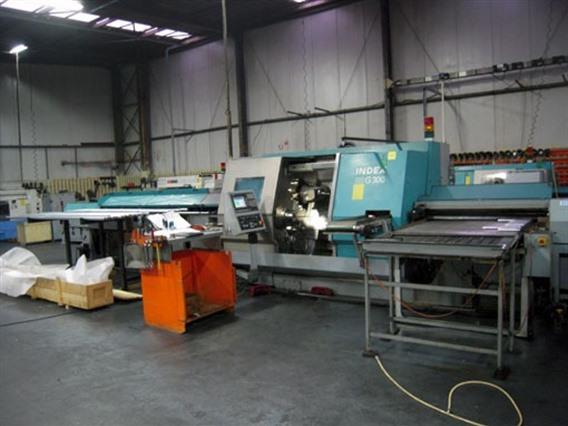

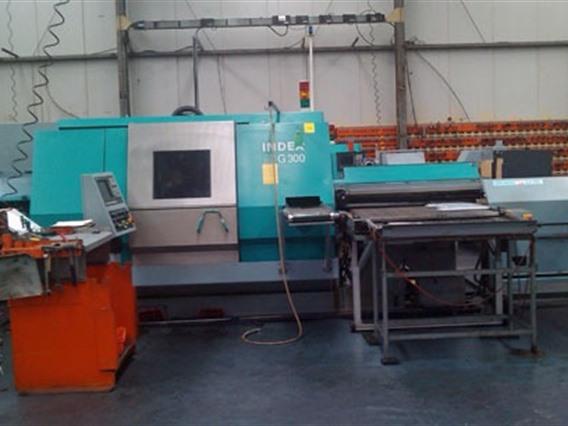

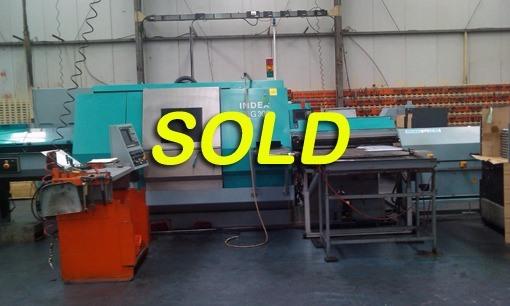

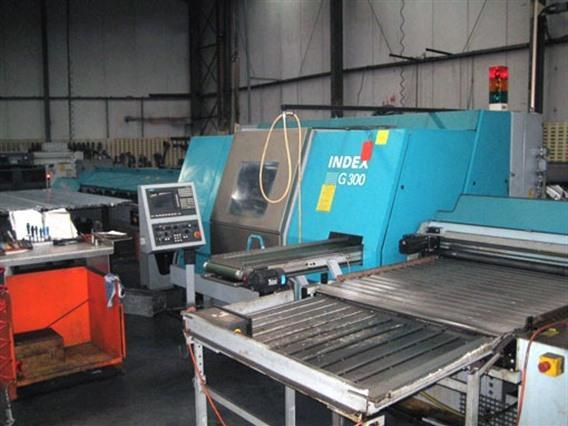

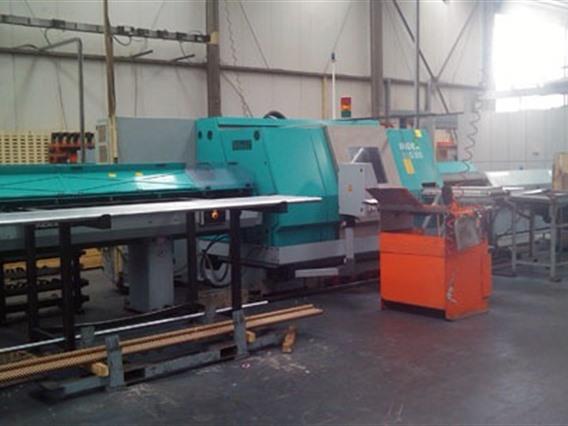

CNC lathes Index G300 Ratioline
Technical information
- Swing over bedØ 590 mm
- Distance centre tot centre710 mm
- Max longitudinal travel Z-axis710 mm
- Dia of spindle boreØ 65 mm
- Power on the spindle57 kW
- Number of speedsmax 5000 rpm

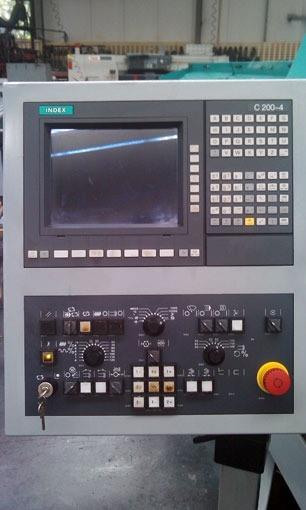

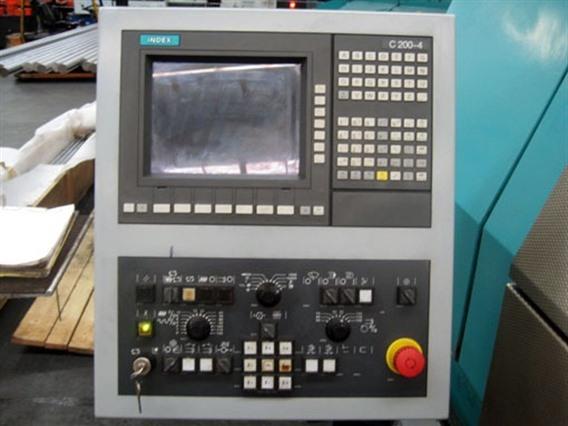

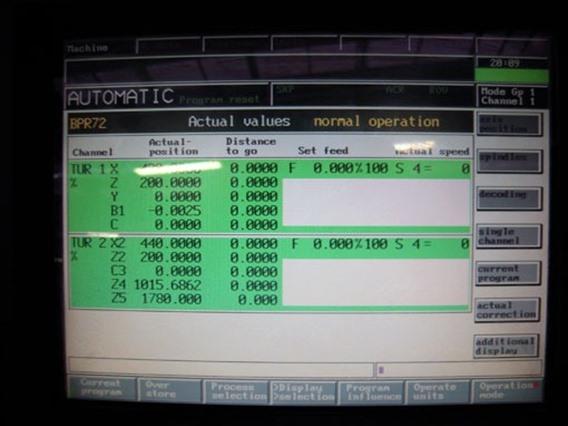

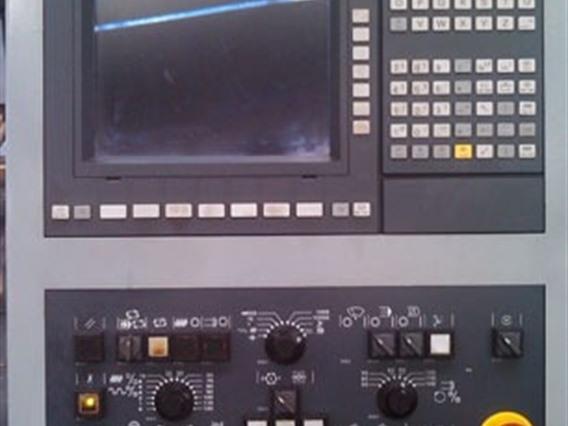

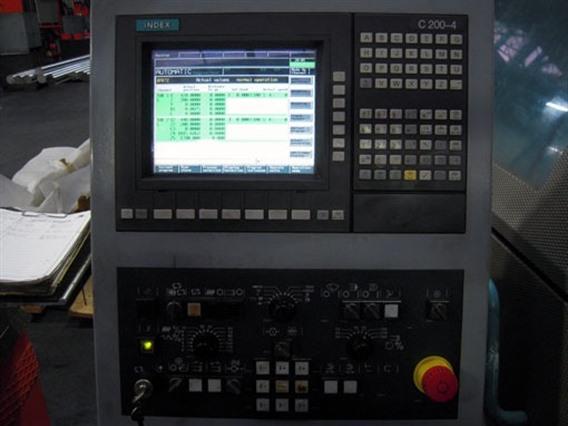

- Commandindex C 200-4
- Height2150 mm
- Weight11000 kg
- Toolchangeryes 2 x
- Number of tools2 x 12 positions
Additional info

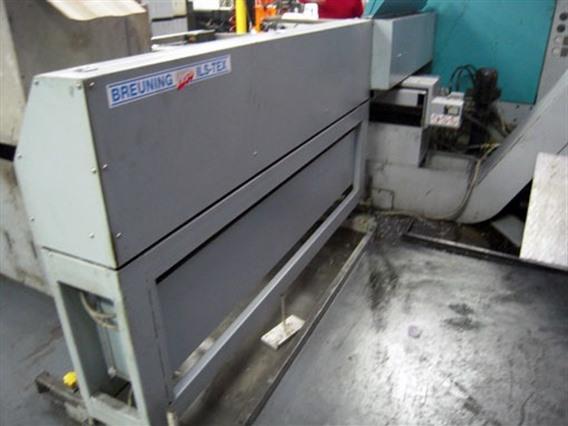

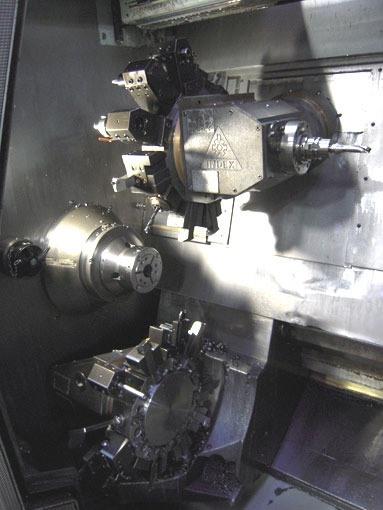

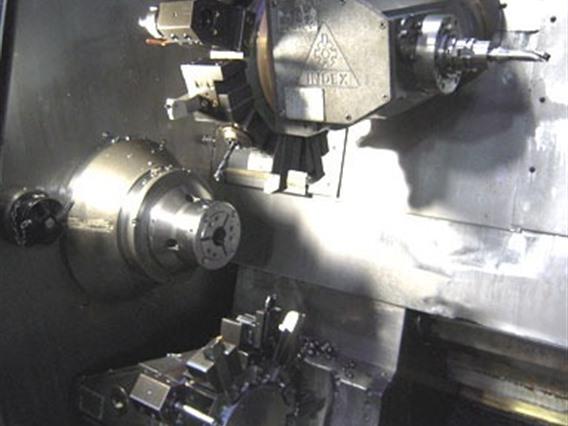

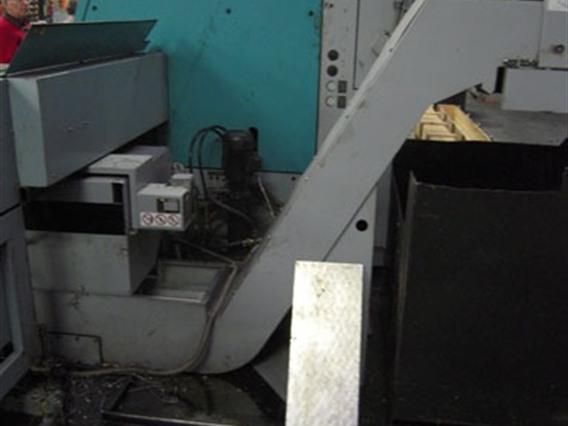

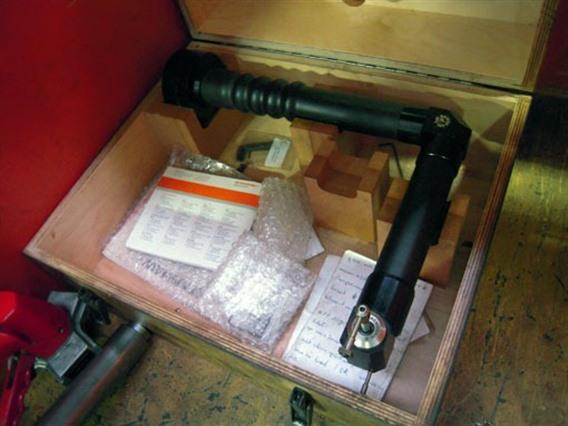

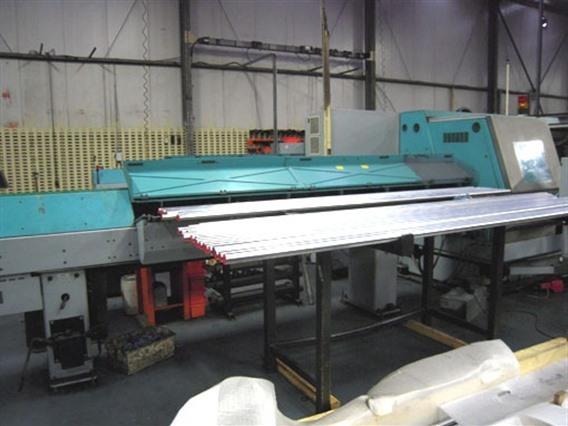

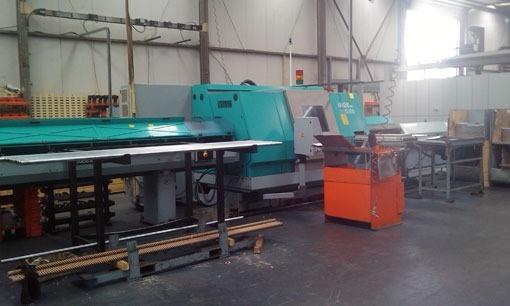

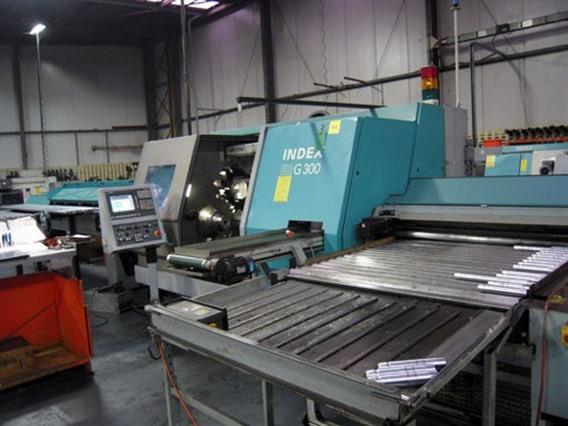

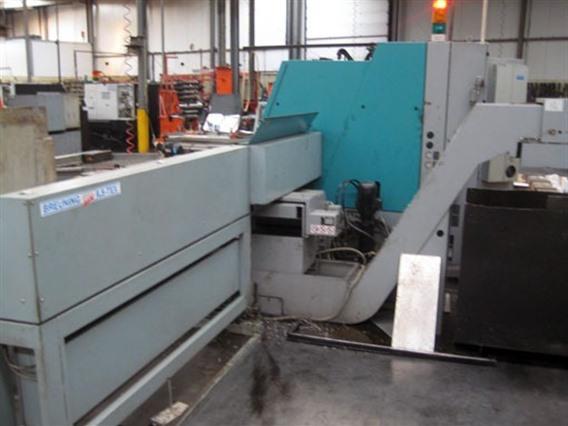

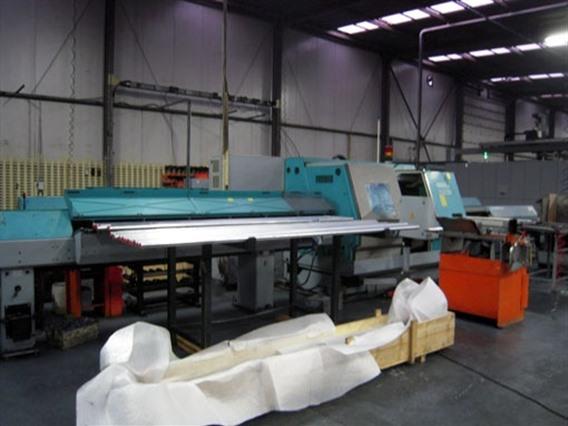

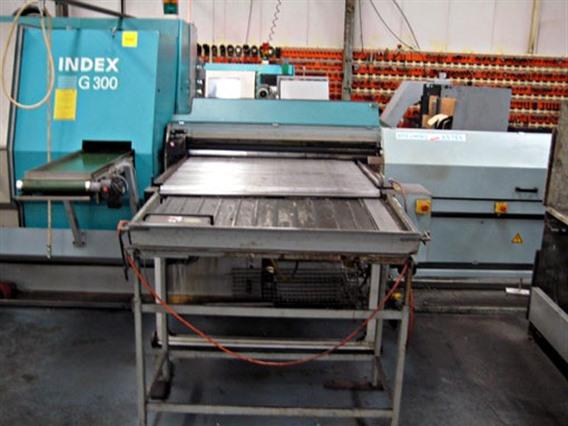

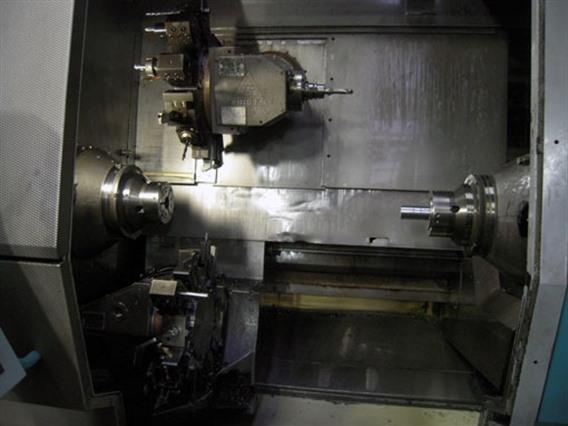

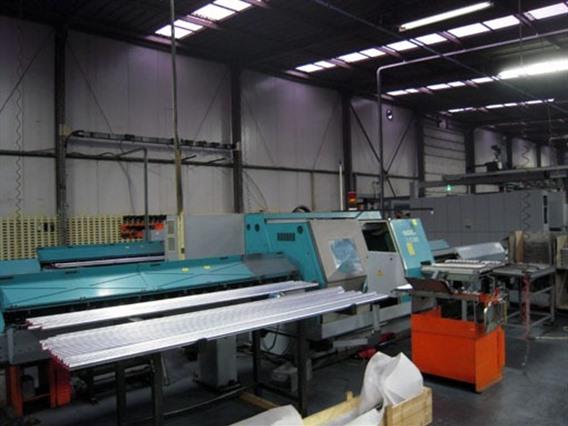

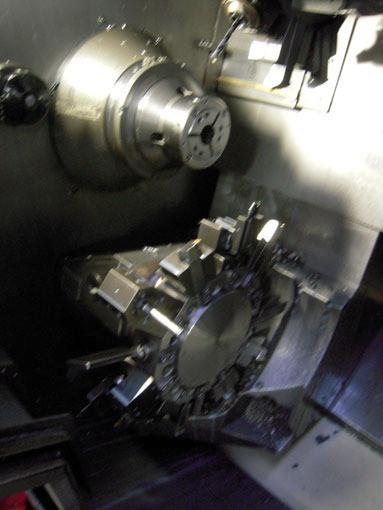

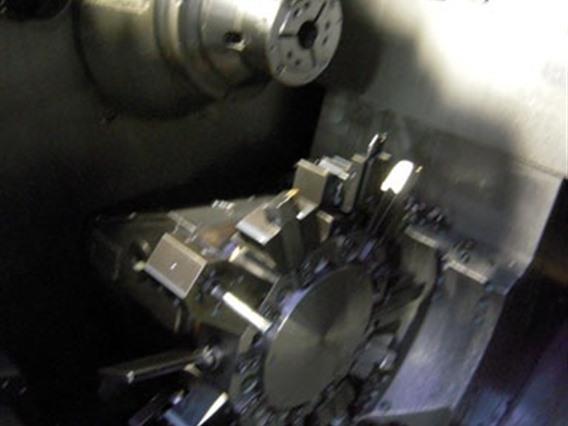

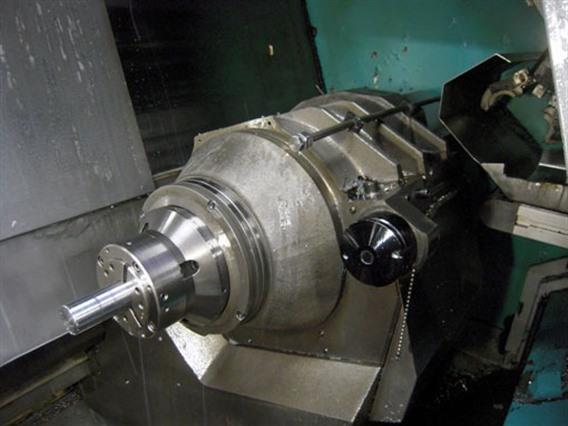

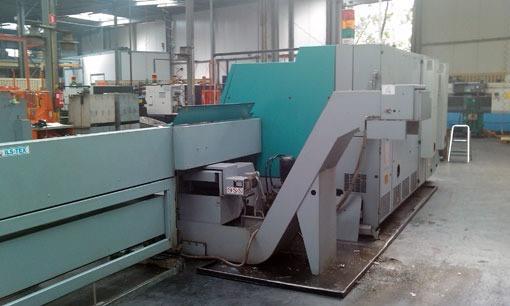

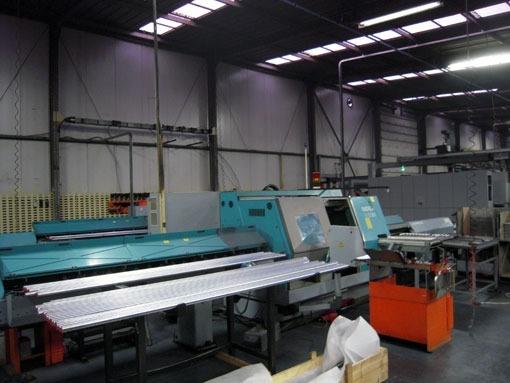

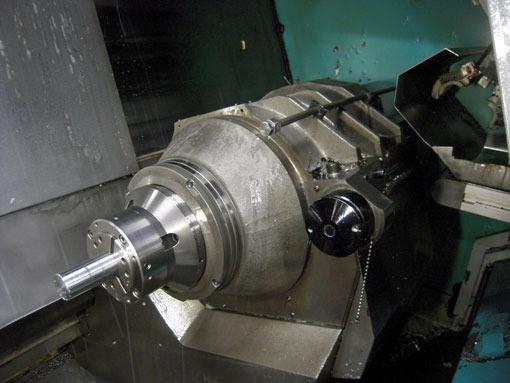

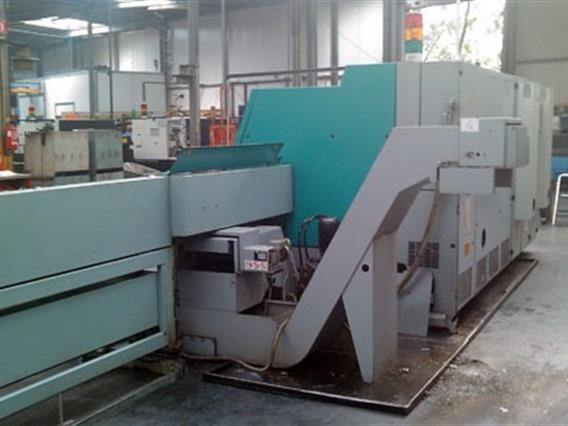

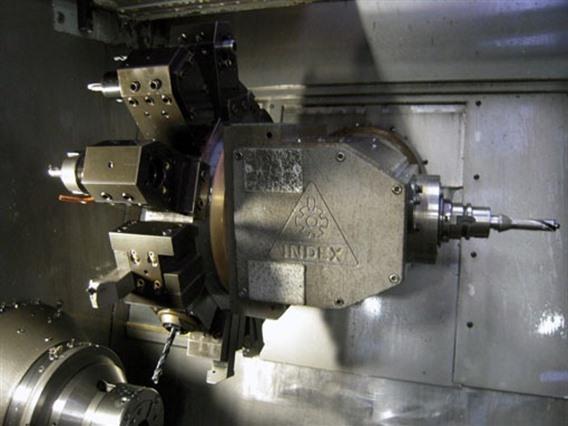

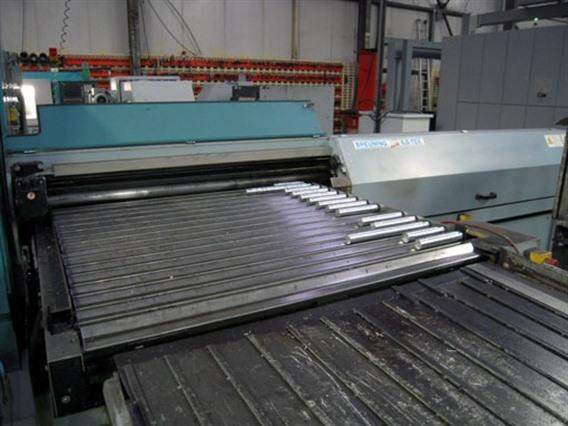

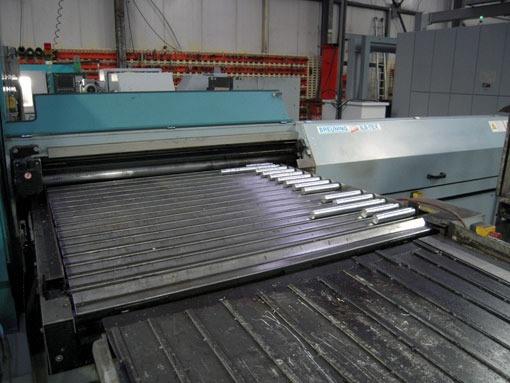

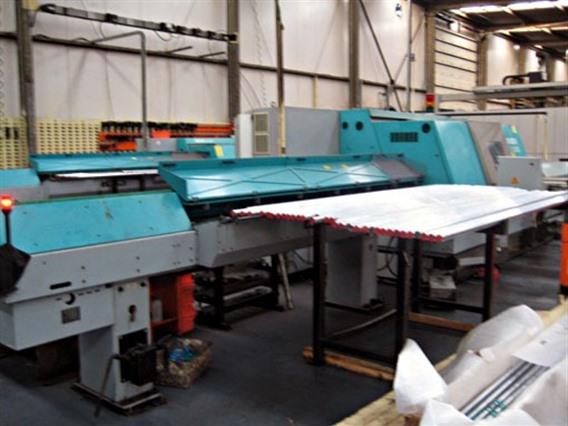

- Subspindle: Ø 65 mm spindle bore 40 kW Max 5000 rpm Revolverhead 1 - 360° continously positioning 12 positions (driven tools) 1 x milling head (driven-9.5kw-max 6000rpm-HSK50) Revolverhead 2 12 positions (driven tools) Full automatic barfeeder 3500 mm (bars max Ø 65 mm) Full automatic workpiece evacuation, with pusher C-axis on mainspindle & subspindle Measuring arm: Renishaw Workpiece evacuation Robot (portal) with evacuation system Irco 1200 mm
- Type/Model: G300 Ratioline
- Stocknumber: A.07 4972
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Index
