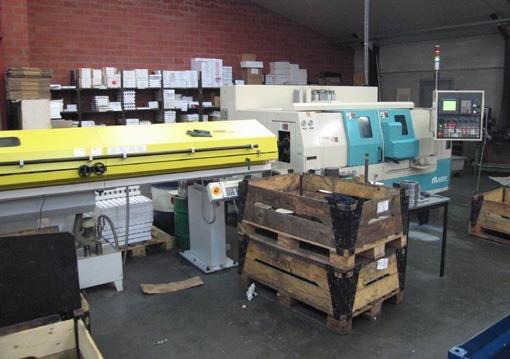

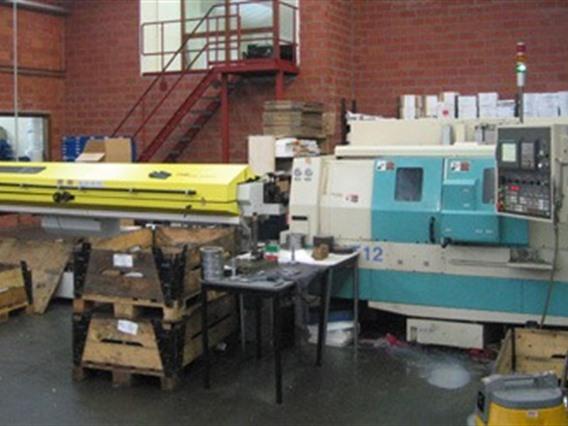

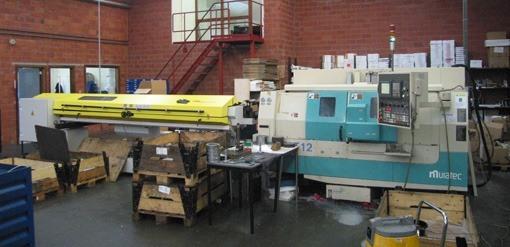

CNC lathes Muratec MT 12 twin spindle cnc
Technical information
- Swing over cross-slide240 mm
- Dia of spindle boredia 51 mm
- Power on the spindle7.5 kW
- Number of speeds4500 rpm
- CommandFanuc

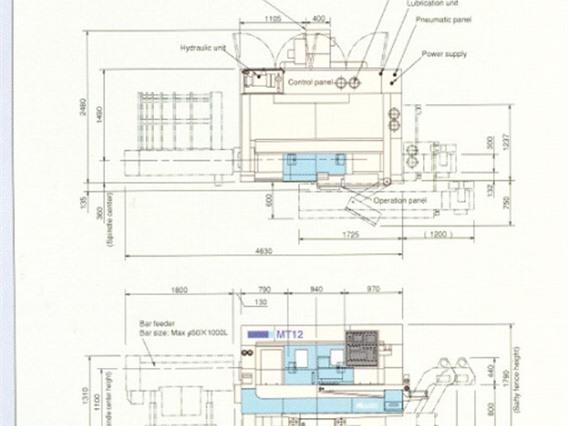

- Length5000 mm
- Width2500 mm
- Height1900 mm
- Weight5 700 kg
- ACCESORIES+ bar lader FMB
- Chuckdia 160
- Hydraulic +
- Sliding ring +
- Toolchanger 2
- Number of tools15 x 2
Additional info
- in use 2001
turning hours: 4300

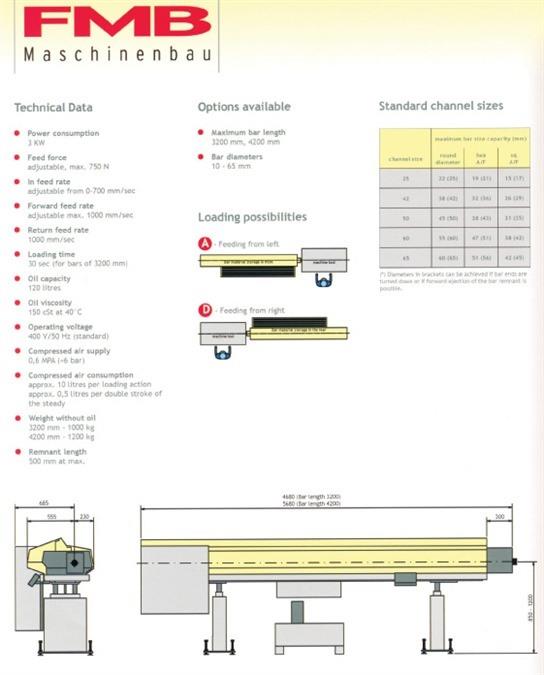

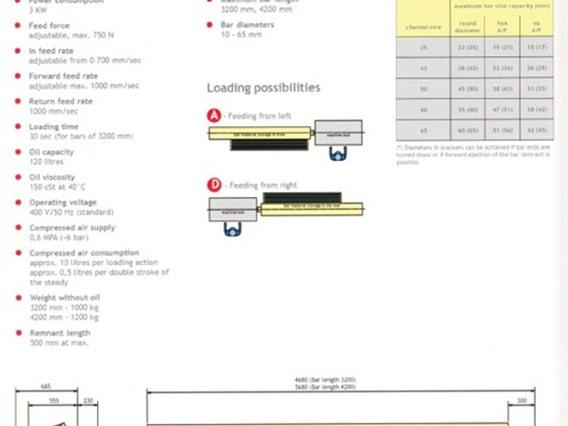

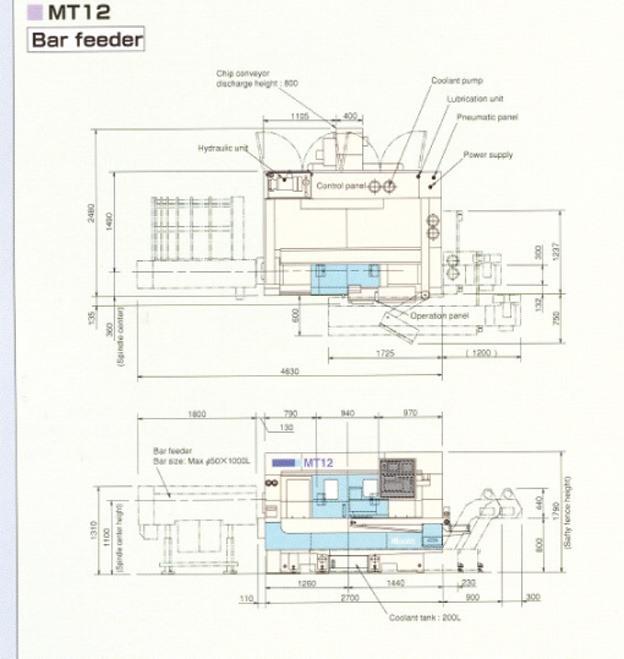

Bar feeder FMB turbo 10-65 xT /3200/1 (sr 20- 1400 232)
(for processing bars in the dia range of 10 - 65 mm and length up to 3200 or 4200 mm on machine tools)

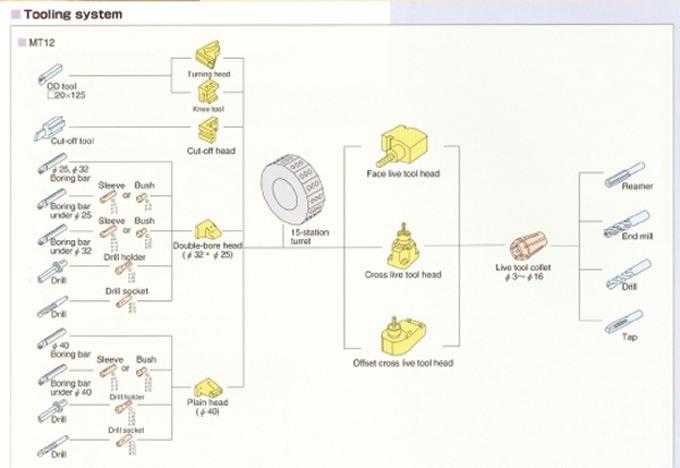

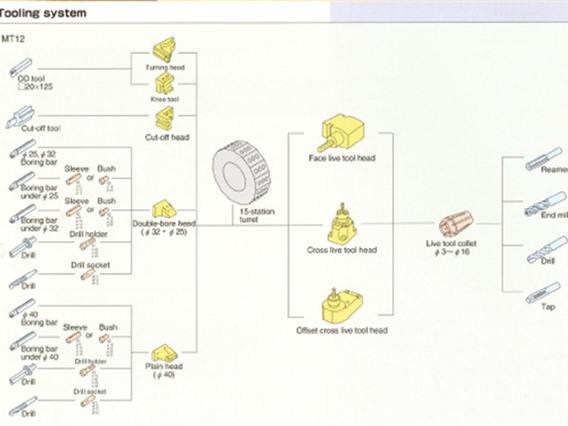

15-station turret on both sides

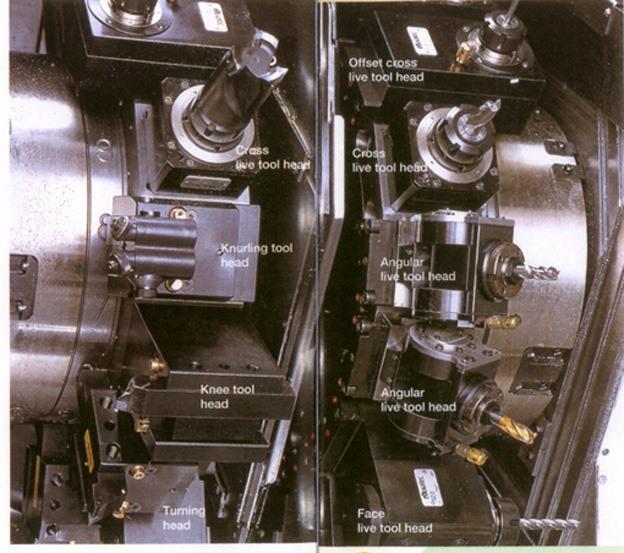

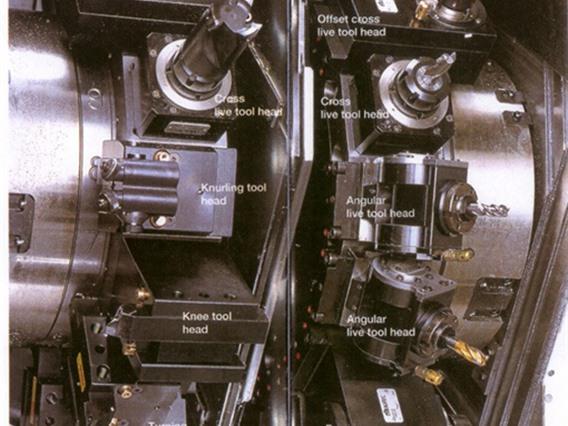

Live tool position available on all 30 turret stations
C-axis control on both spindles

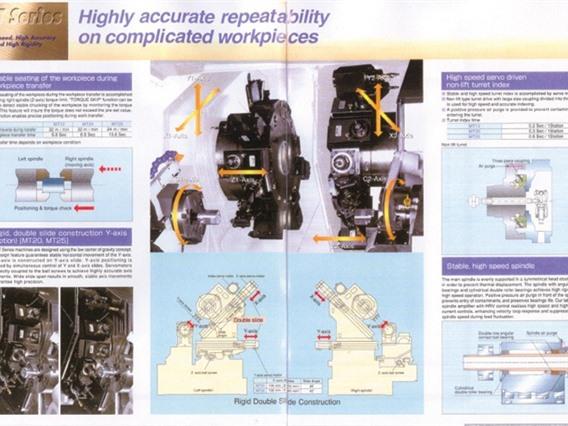

High precision spindle synchronization work transfer
Compact design – Floor area 5.0 m2

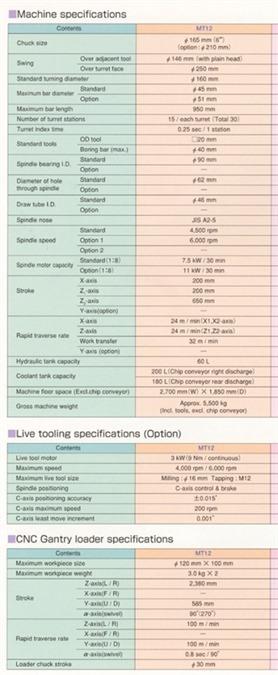

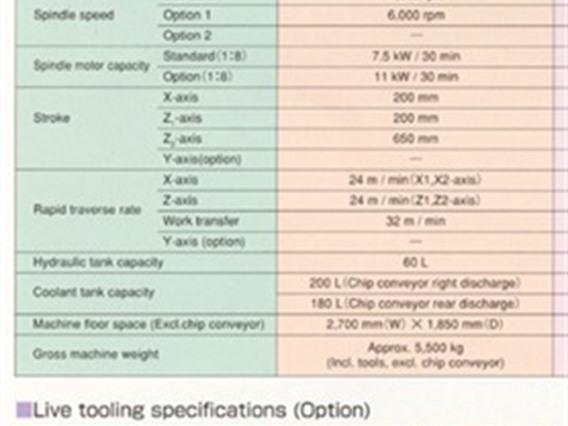

Brief Specifications
Chuck size: Standard: Dia. 165 mm
Option: Dia. 210 mm
Maximum turning diameter 240 mm
Maximum bar diameter: 51 mm
Number of turret stations: 15 x 2
Spindle speed 4500 rpm

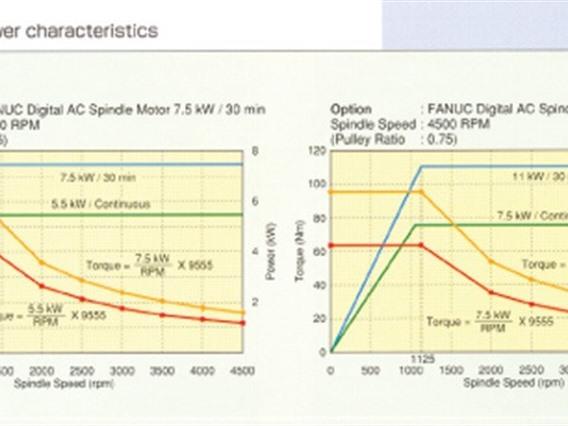

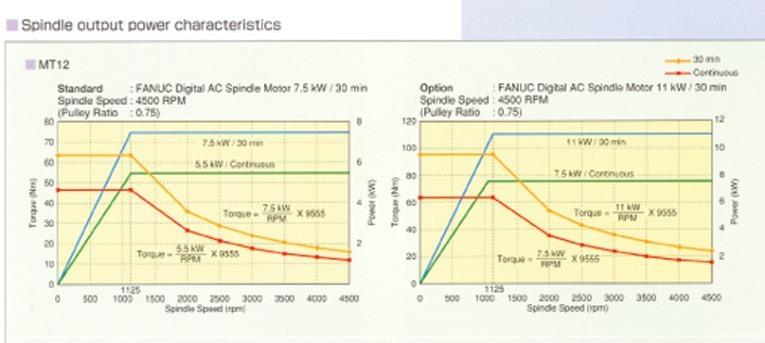

Spindle AC motor: Standard: 7.5 kW/30 min
Option: 11 kW/30 min

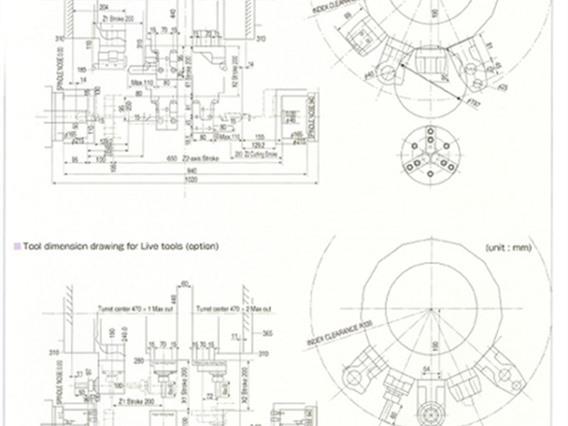

Live Tool Specifications (Option)
Live tool spindle motor 2.8 kW
Live tool speed 4000 rpm
Maximum live tool diameter: Milling - Dia. 16 mm
Tapping - M12
electric on: 12600
turning hours
- Type/Model: MT 12 twin spindle cnc
- Stocknumber: A.07 2838 *05
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Muratec
