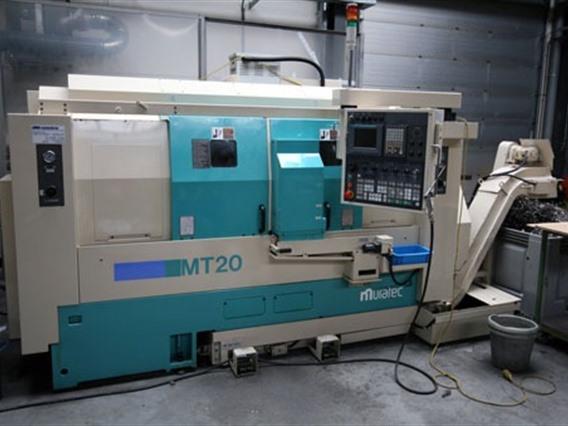

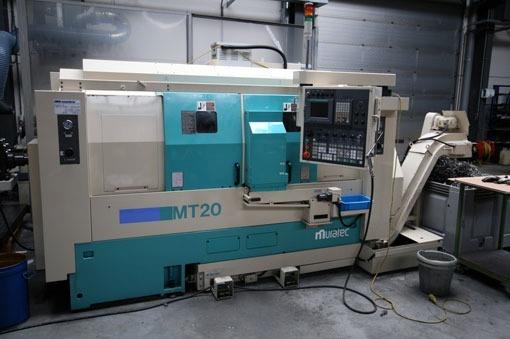

CNC lathes Muratec MT 20 CNC

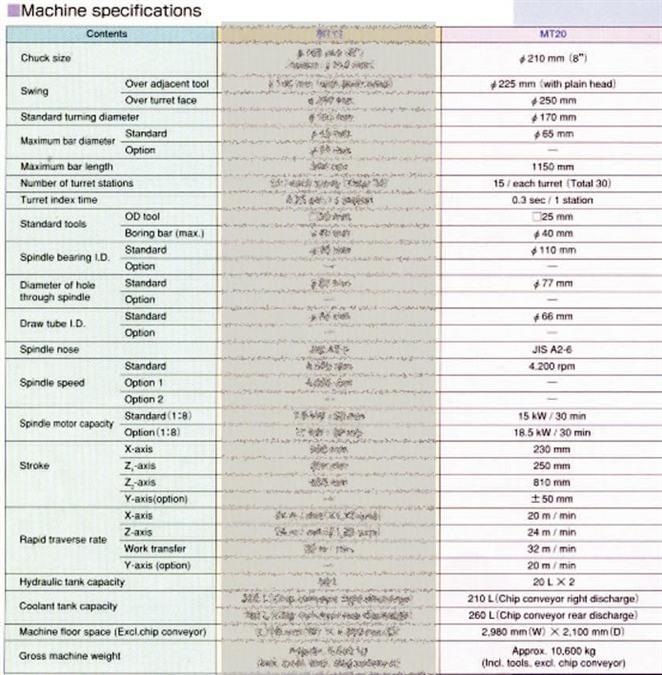

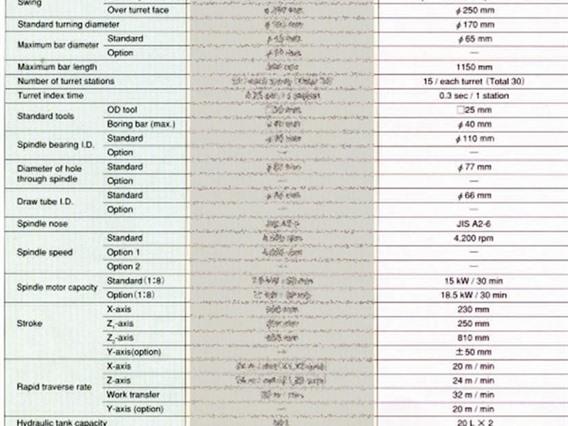

Technical information
- Swing over bedØ 250 mm
- Swing over cross-slideØ 170 mm
- Max longitudinal travel Z-axis250 mm
- Max cross travel X-axis230 mm
- Spindle coneA2-6
- Dia of spindle boreØ 65 mm
- Power on the spindle15 kW
- Number of speedsmax 2400 rpm

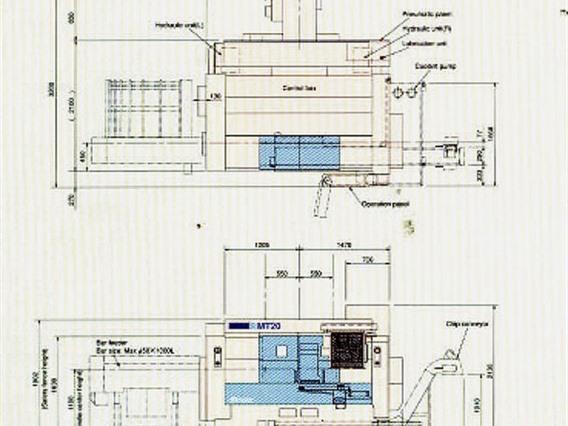

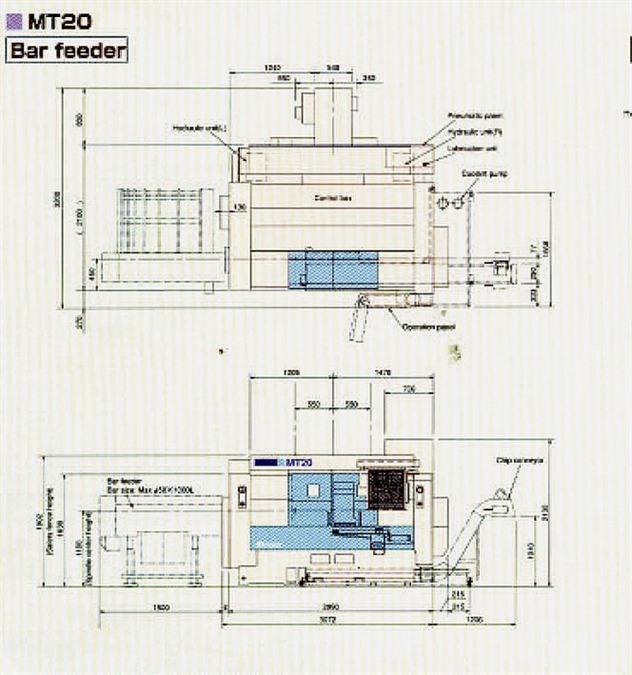

- Length2980 mm
- Width2100 mm
- Weight10600 kg
- Chuck203 mm
- Toolchangeryes
- Number of tools2 x 15
Additional info

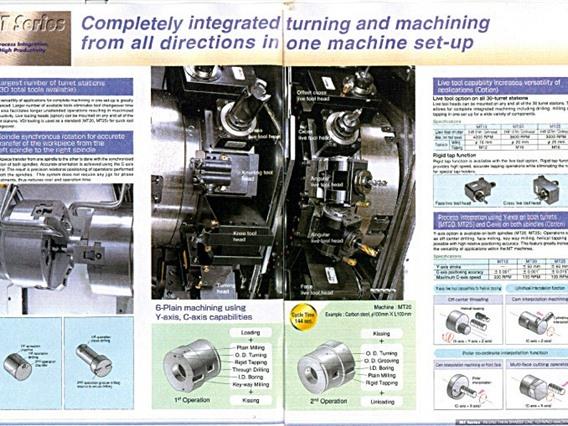

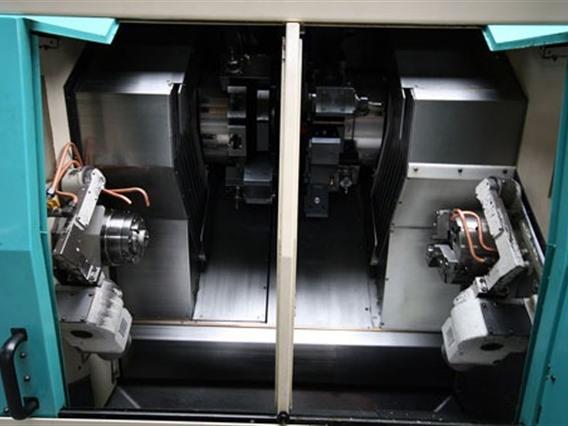

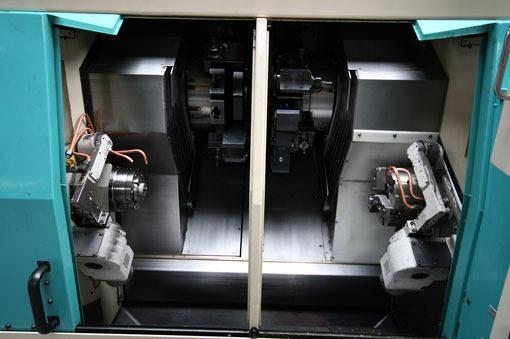

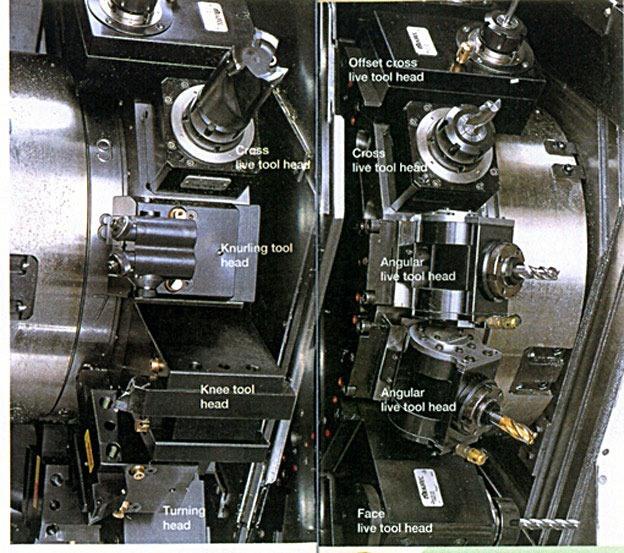

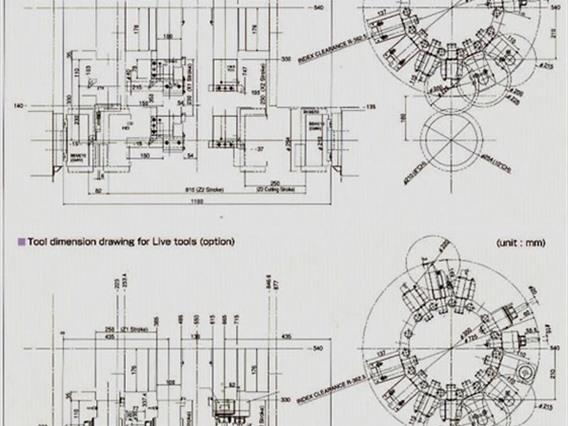

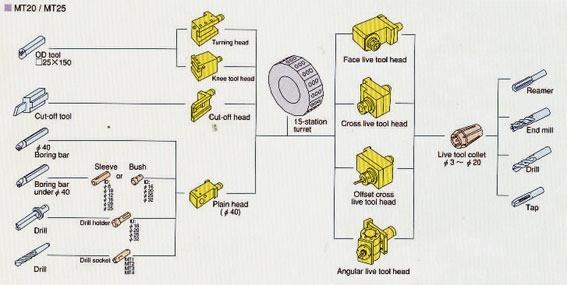

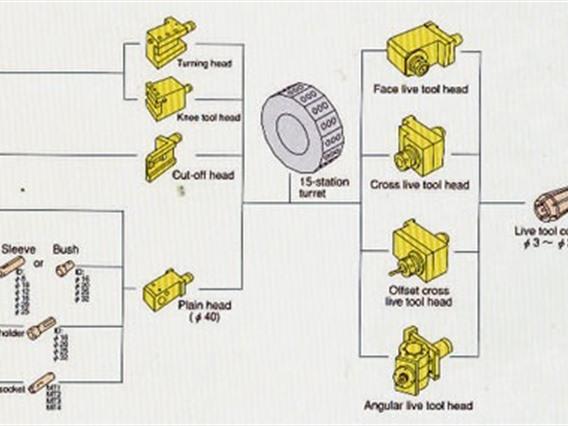

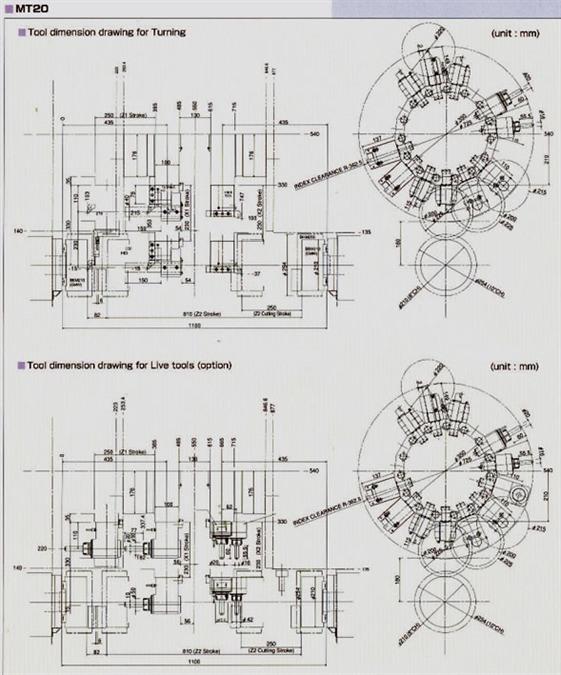

- 15-station turret on both sides , power-driven tool
Spindle left Ø 65 mm - right Ø 52 mm

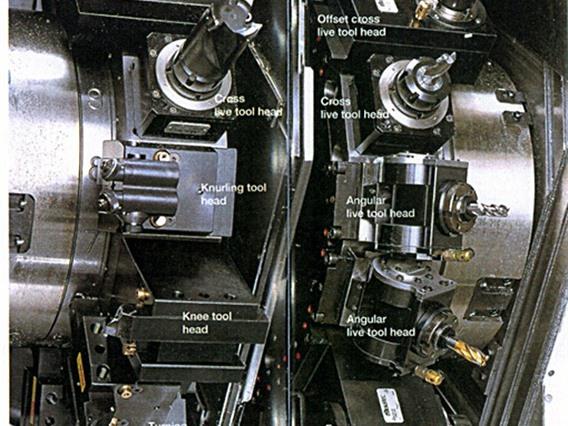

Live tool position available on all 30 turret stations
C-axis control on both spindles

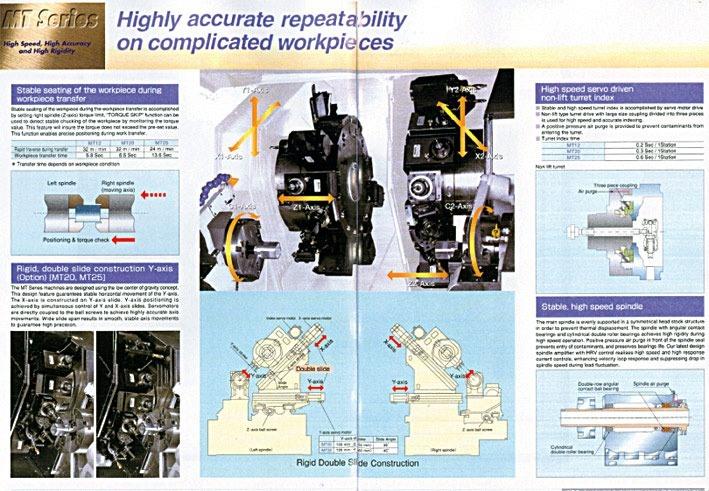

High precision spindle synchronization work transfer
- Type/Model: MT 20 CNC
- Stocknumber: A.07 5266 *09
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Muratec
