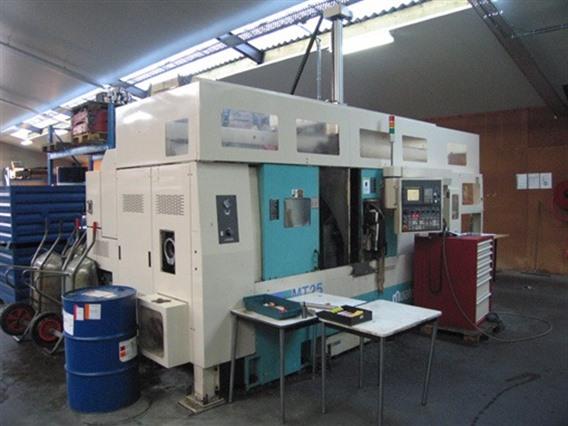

CNC lathes Muratec MT 25 twin spindle cnc
Technical information
- Distance centre tot centre250 mm
- Spindle cone75 mm
- Power on the spindle15 kW
- Number of speeds4200 rpm

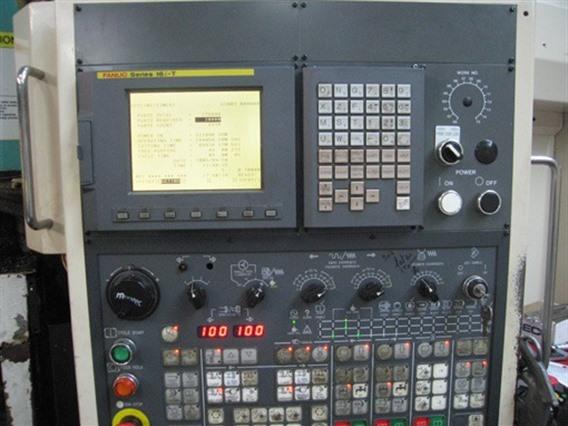

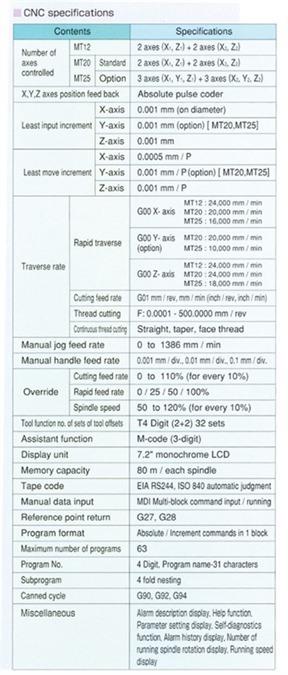

- CommandFanuc 16 IT
- ACCESORIESpower-driven tool C,Y ax
- Chuckdia 210
- Hydraulic +
- Sliding ring +
- Toolchanger 2 Quick change
- Number of tools 15 x 2
Additional info
- in use 2000

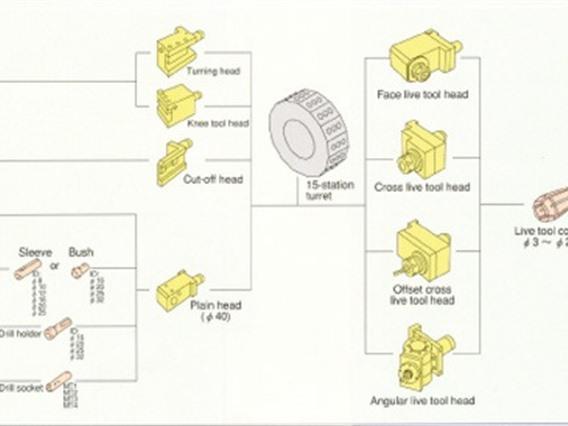

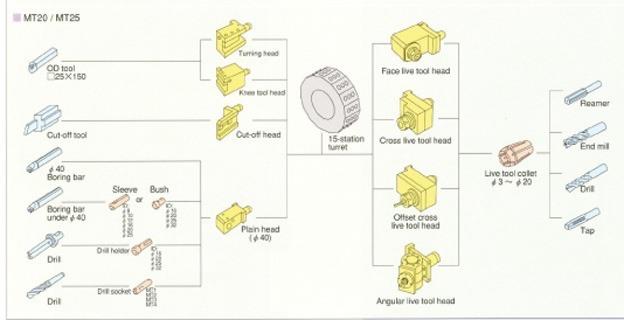

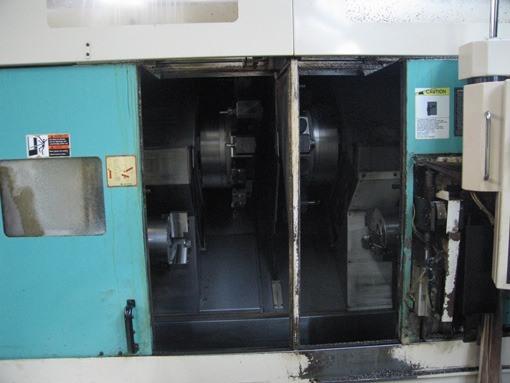

15-station turret on both sides

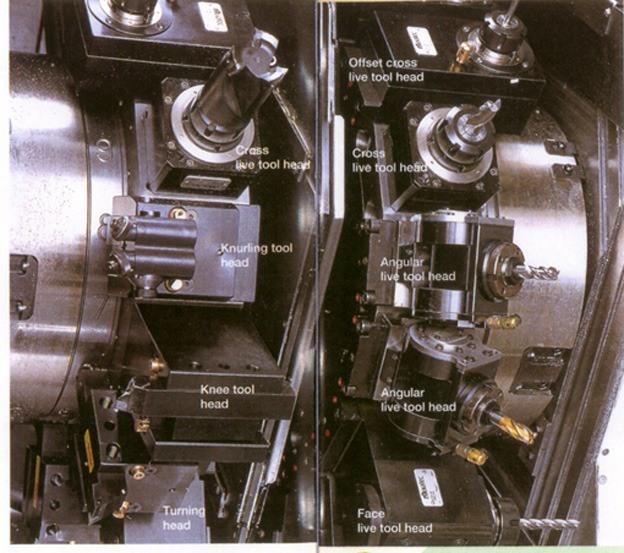

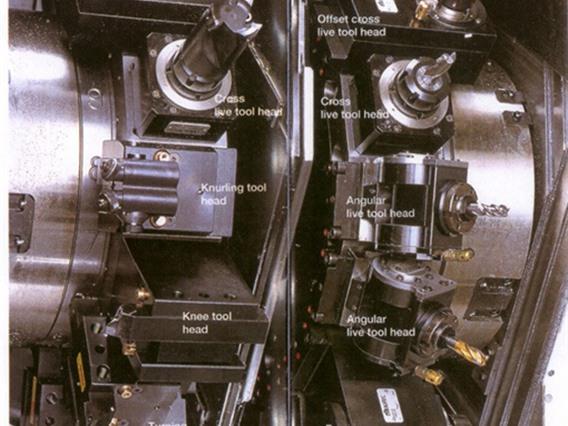

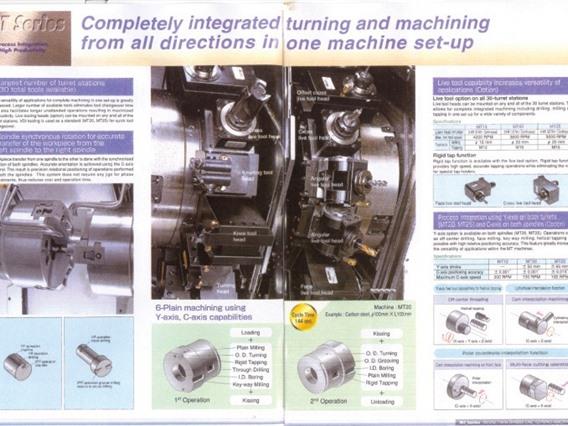

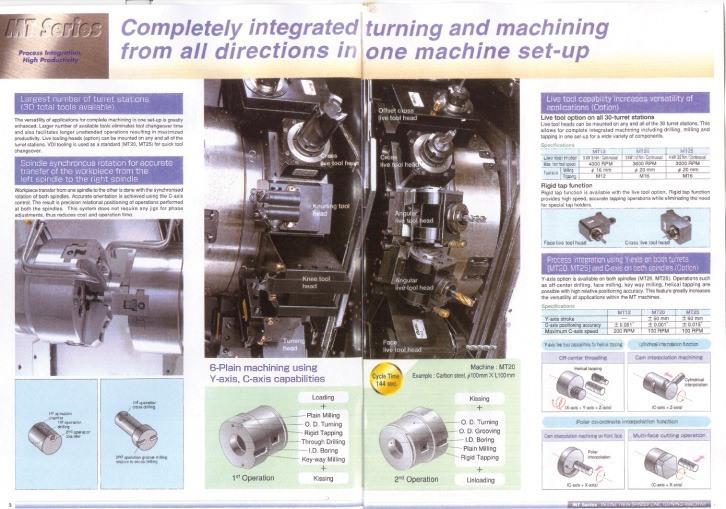

Live tool position available on all 30 turret stations
2 x C-axis control on both spindles
2 x Y-axis option available on both turrets
Y-axis stroke: +/- 60 mm

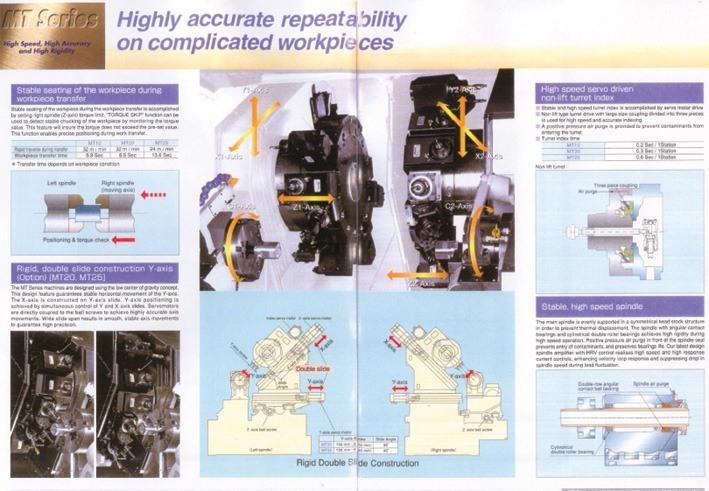

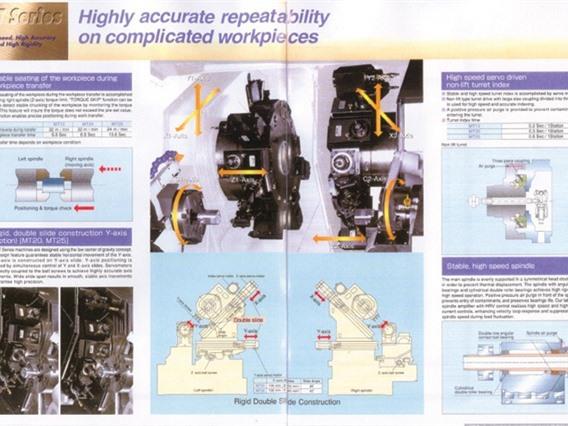

High precision spindle synchronization work transfer

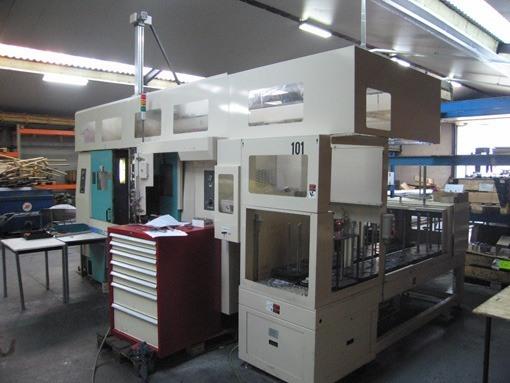

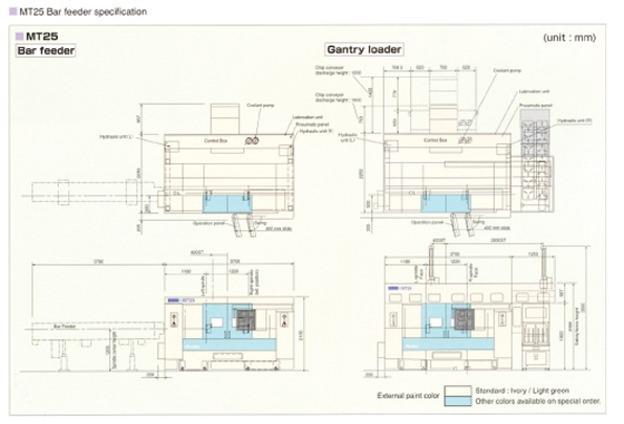

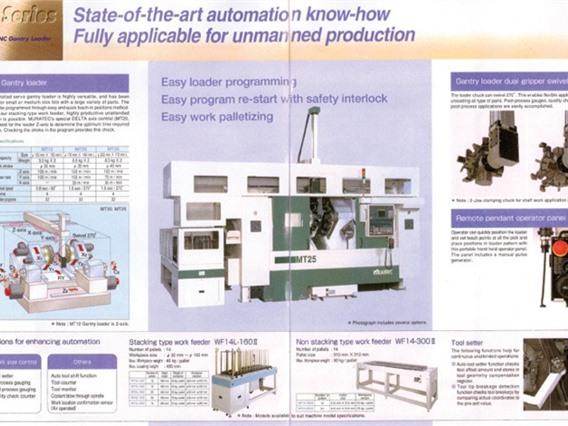

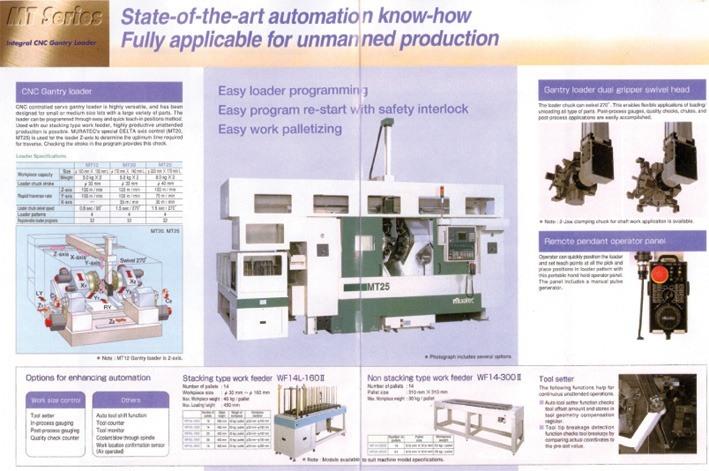

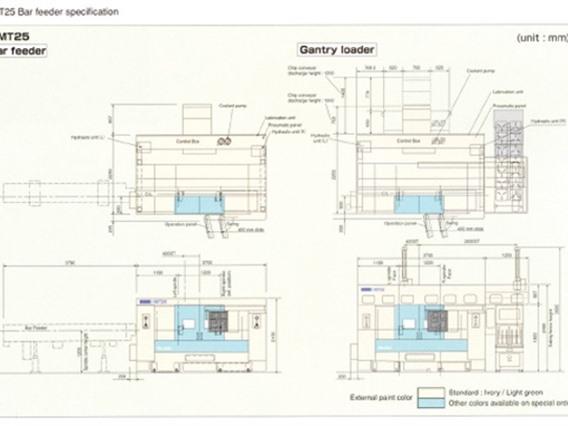

Gantry loader system for unattended production + 14 pallet stations
Quick change VDI tooling is used as a standard specification for easy and quick tool changeover

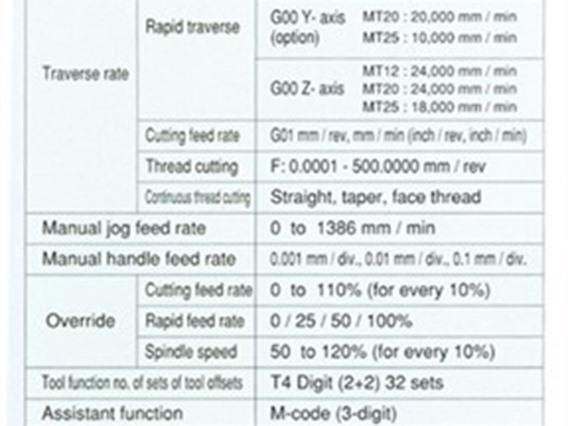

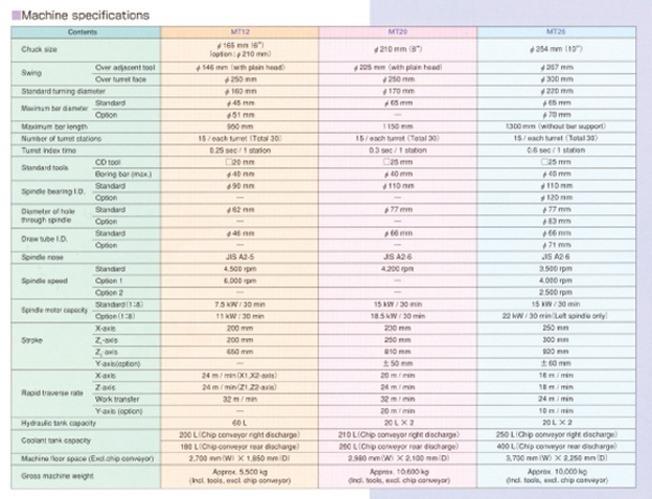

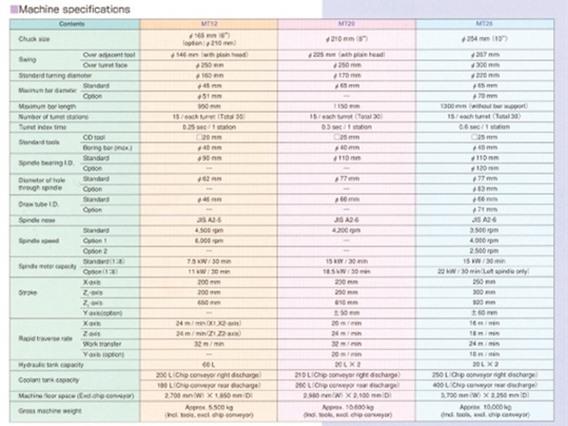

Specifications :
Chuck size Max. Dia. 254 mm (10")
Loader workpiece capacity Dia. 220 mm x L 170 mm, 8 kg
Maximum bar diameter Dia. 65 mm (Option: 70 mm)
Number of turret stations 15 x 2
Spindle speed 4200 rpm

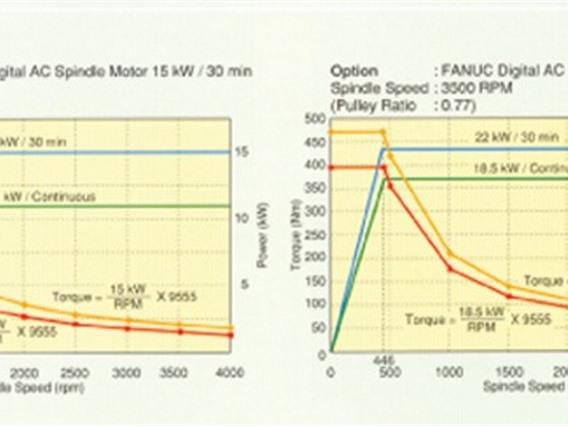

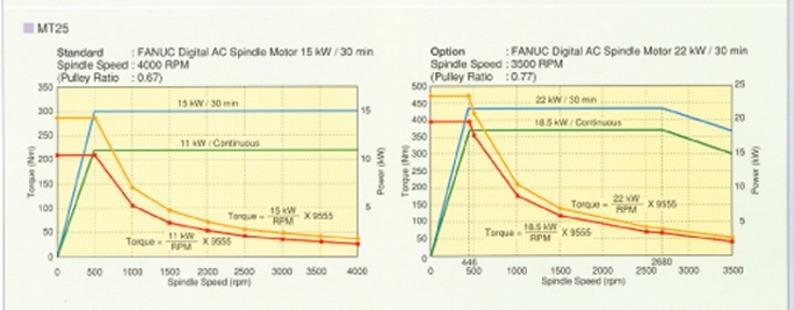

Spindle AC motor capacity 15 kW/ 30 min x 2
(Option: 22 kW/ 30 min x 2)

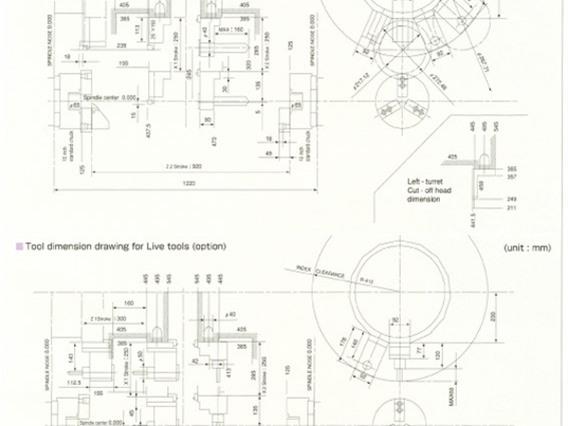

Live Tool Specifications (Option) :
Live tool motor 4.4 kW
Live tool speed 3000 rpm, 6000 rpm
Maximum live tool size Milling - Dia. 20 mm
Tapping - M16
Extra : robotically -
- Type/Model: MT 25 twin spindle cnc
- Stocknumber: A.07 2844 *05
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Muratec
