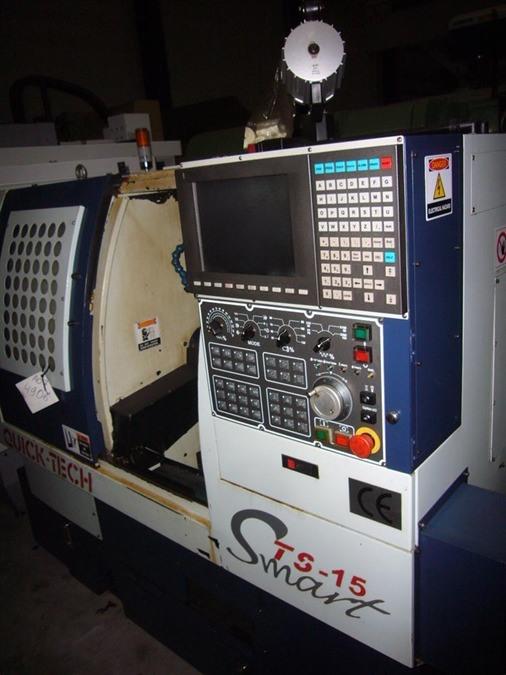

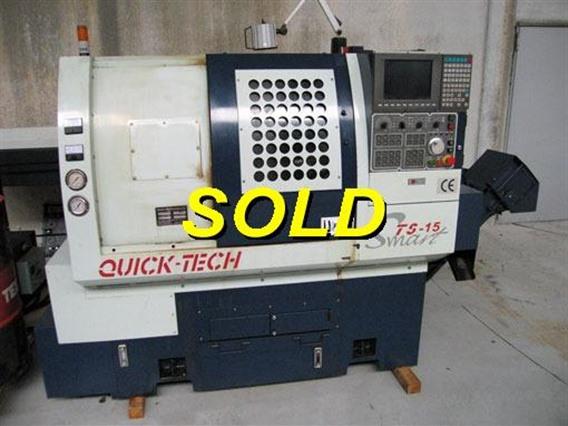

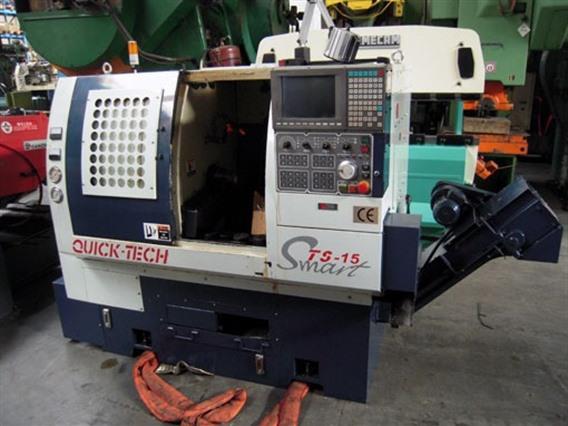

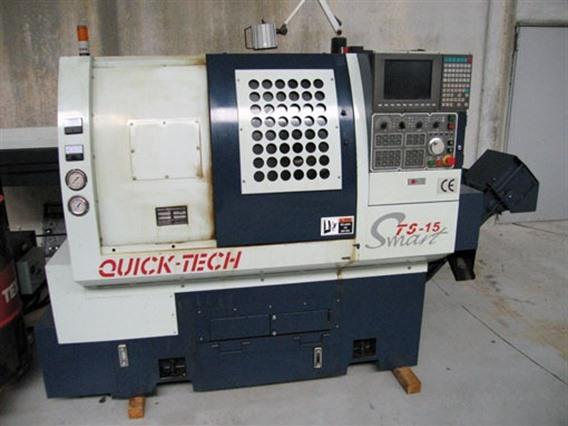

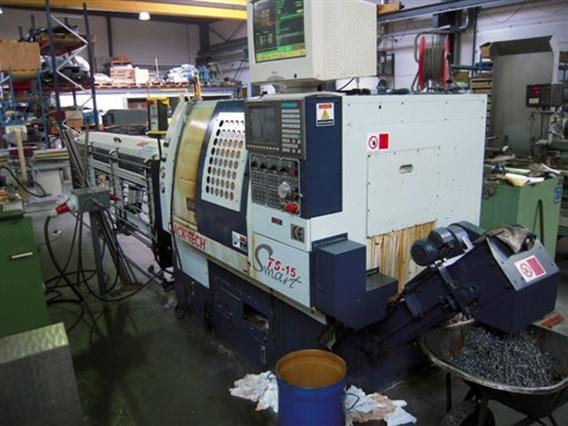

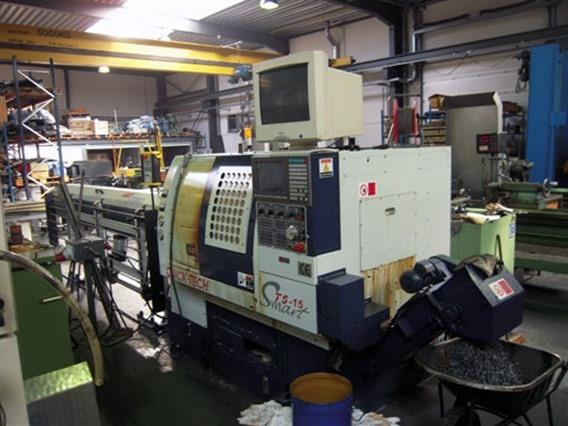

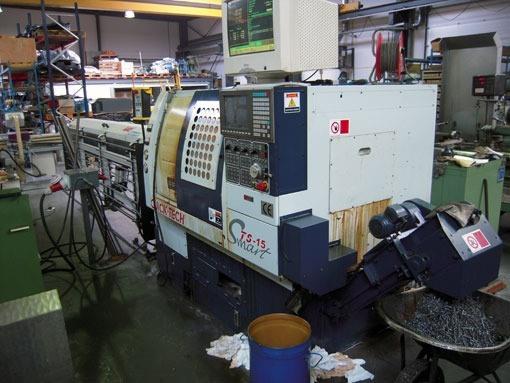

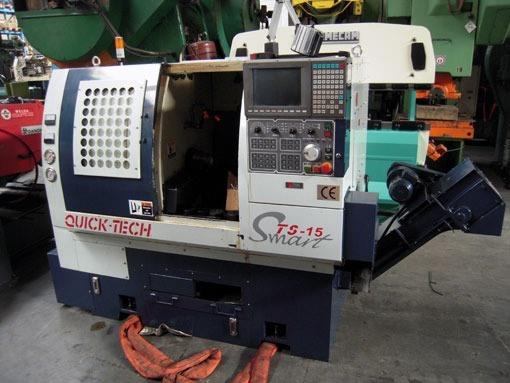

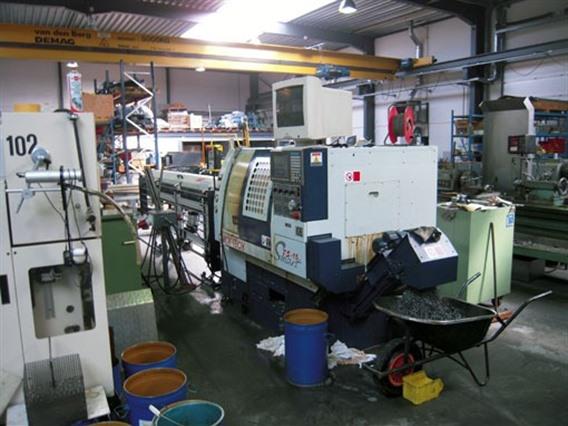

CNC lathes Quick Tech Smart TS-15 Ø 150 x 155 mm

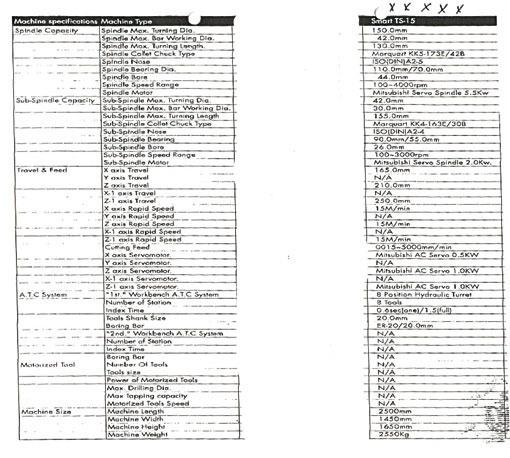

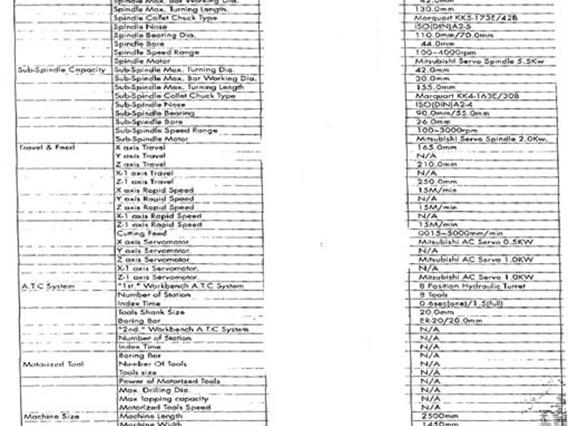

Technical information
- Swing over bed150 mm
- Distance centre tot centre155 mm
- Max longitudinal travel Z-axis210 mm
- Max cross travel X-axis165 mm
- Spindle coneISO A2-5
- Dia of spindle bore44 mm
- Power on the spindle5.5kW
- Number of speeds100 - 4000 rpm

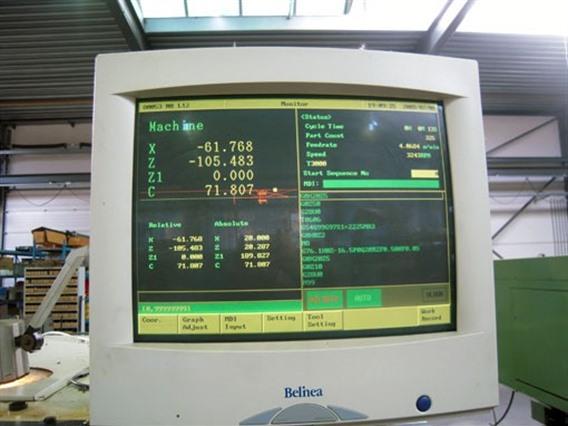

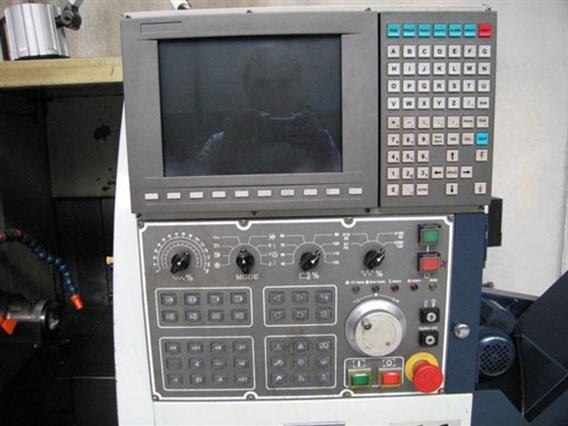

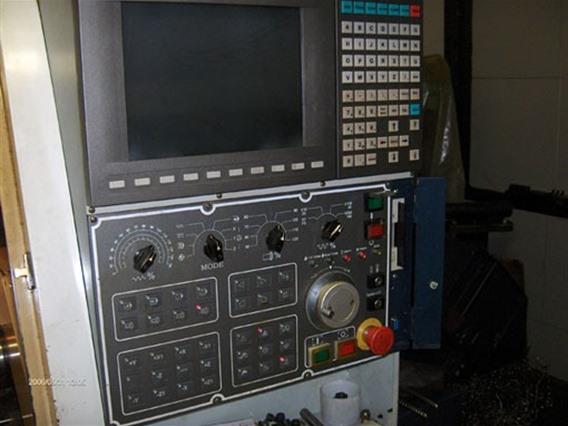

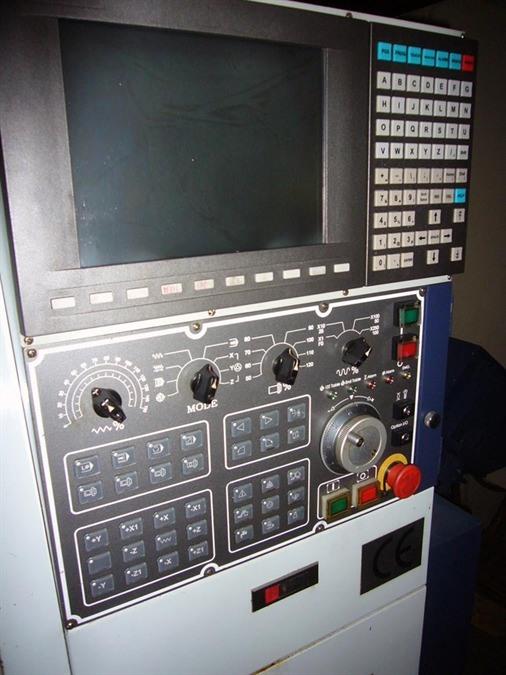

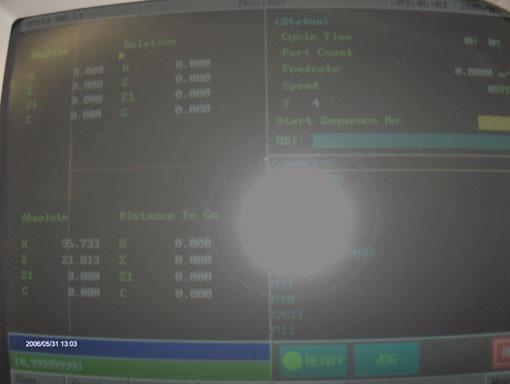

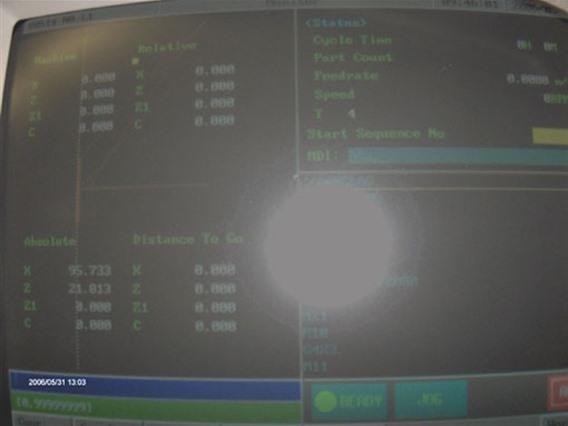

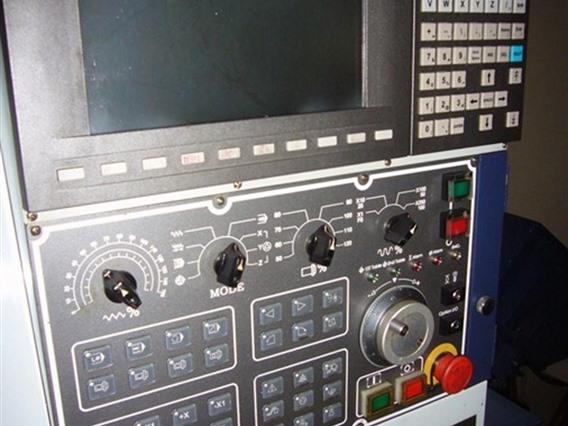

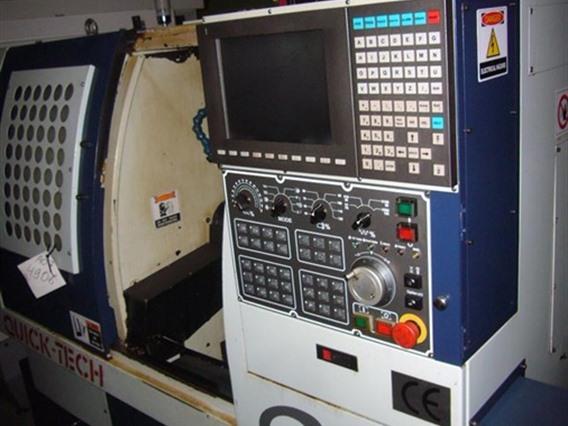

- CommandMitsubishi(=fanuc system)
- Length2500 mm
- Width1450 mm
- Height1650 mm
- Weight2550 kg

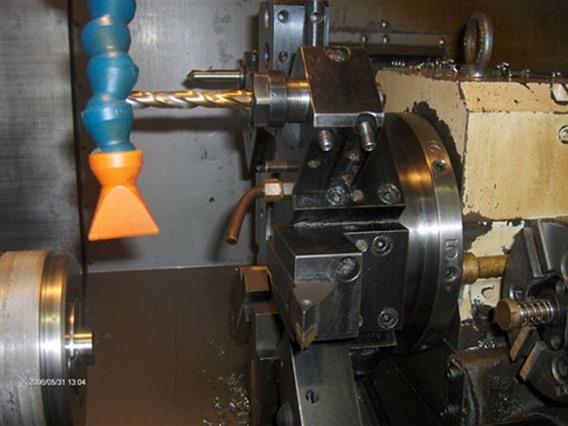

- Toolchangeryes
- Number of tools8 Tools
Additional info

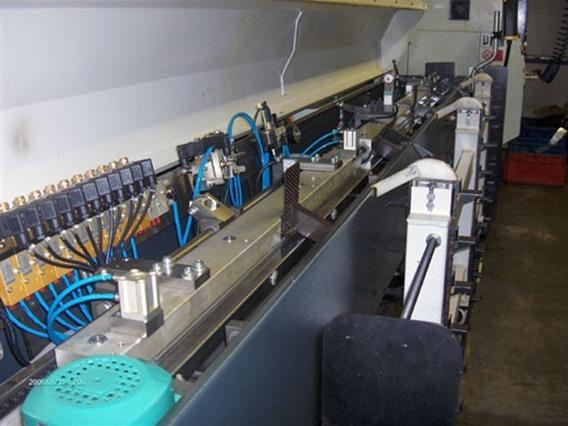

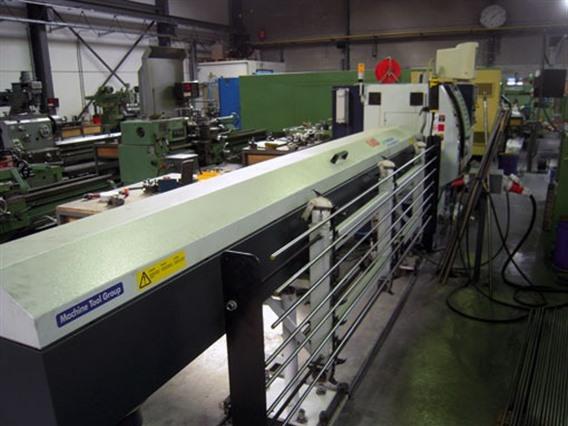

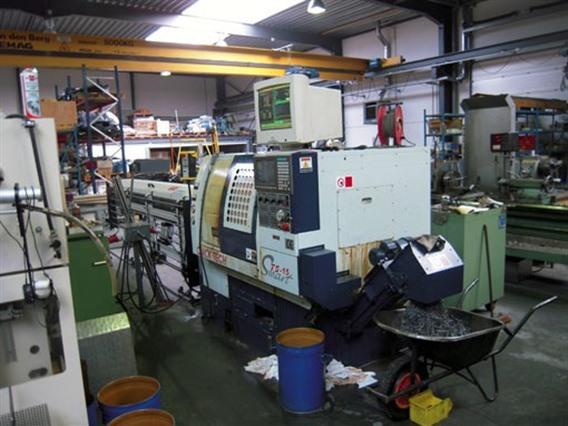

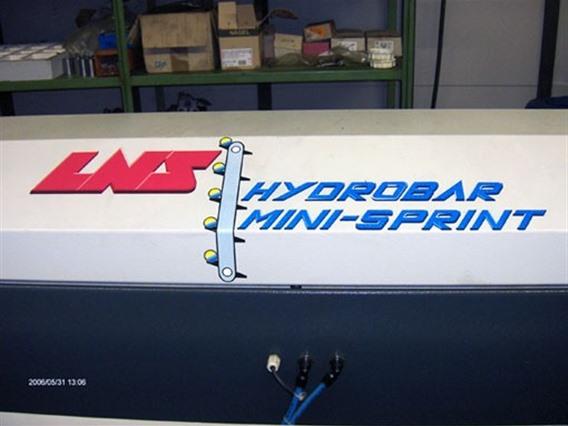

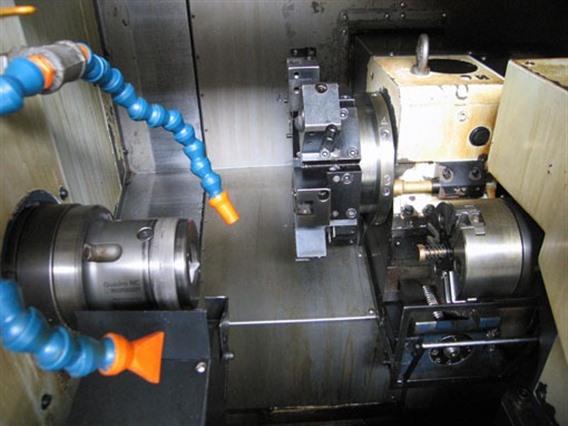

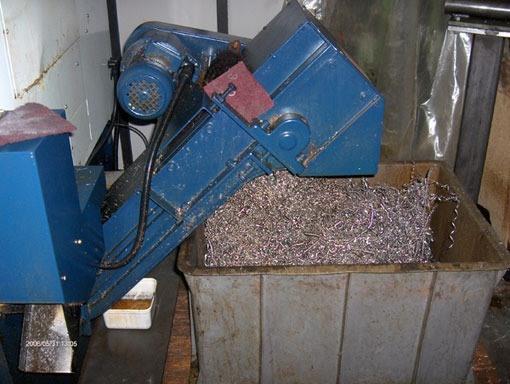

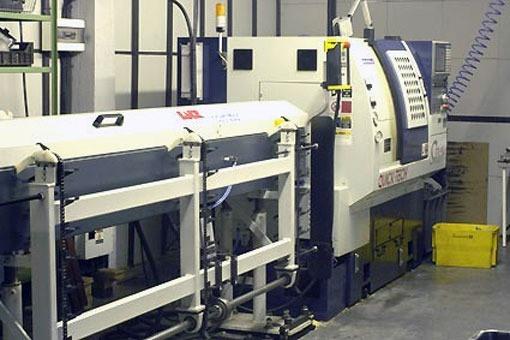

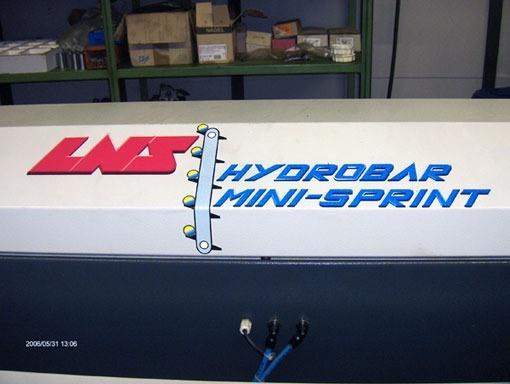

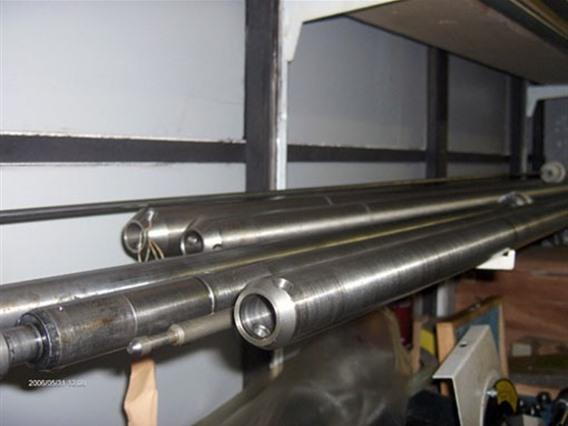

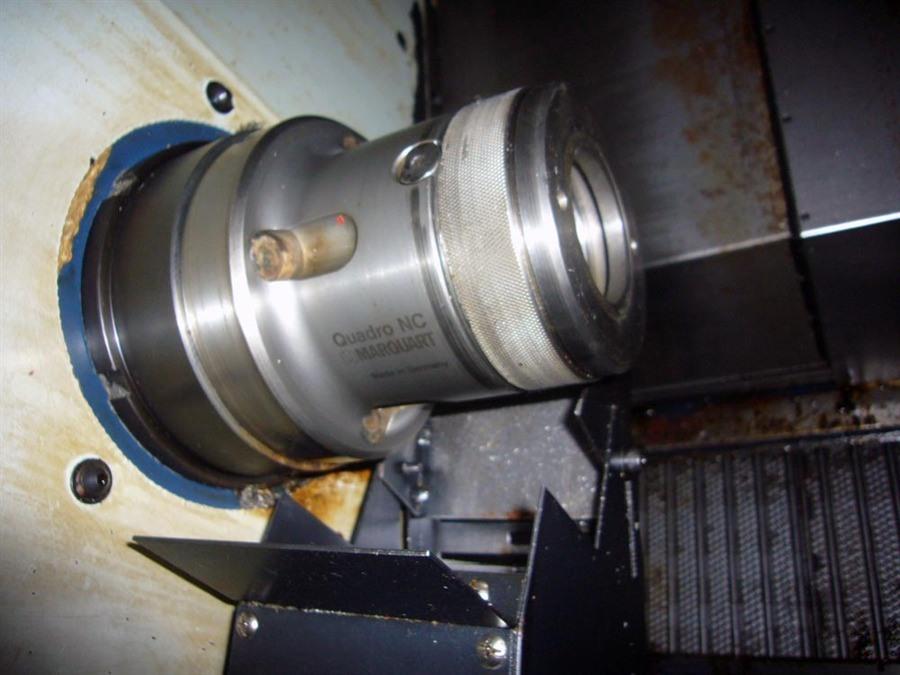

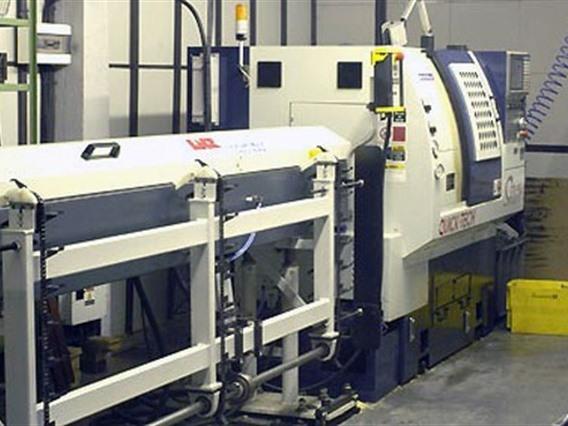

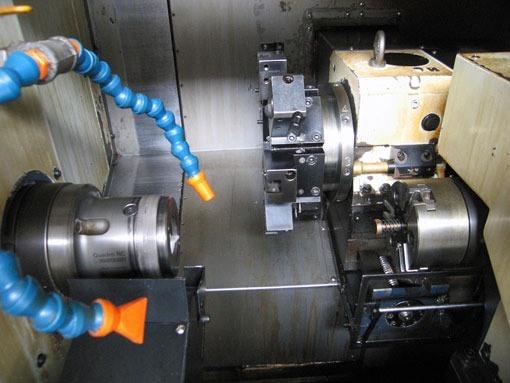

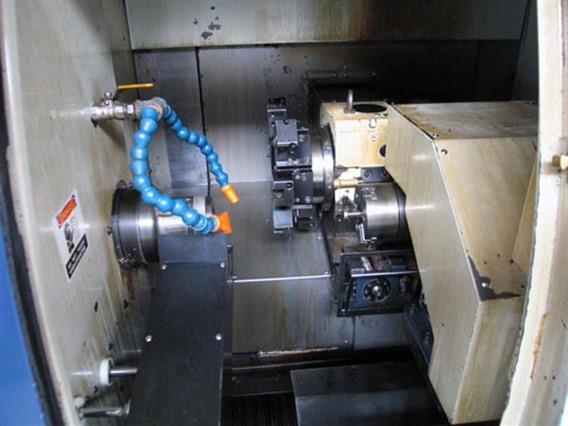

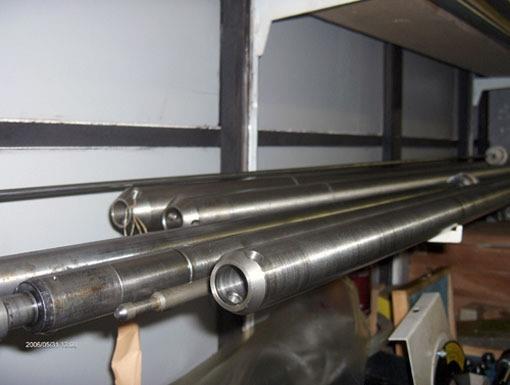

- Complete with LNS Cycle barfeeder & part belt Subspindle 2 kW - speed range: 100 - 3000rpm Subspindle bearing: 90 mm/ 55 mm subspindle turning dia: max 42 mm subspindle working dia: max 13 mm subspindle turning lenght: max 155 mm subspindle motor;Mitsubishi 2.0kW Including much tools LNS Barfeeder mini-sprint S2; Auto Load loads 9 bars Bars 6 to 45 mm (round) Lenght of bars: 3270 mm Measurements of Mini Sprint: L 4060mm x W 550 mm x H 1150 mm Weight; 1370kg
- Type/Model: Smart TS-15 Ø 150 x 155 mm
- Stocknumber: A.07 4906
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Quick Tech
