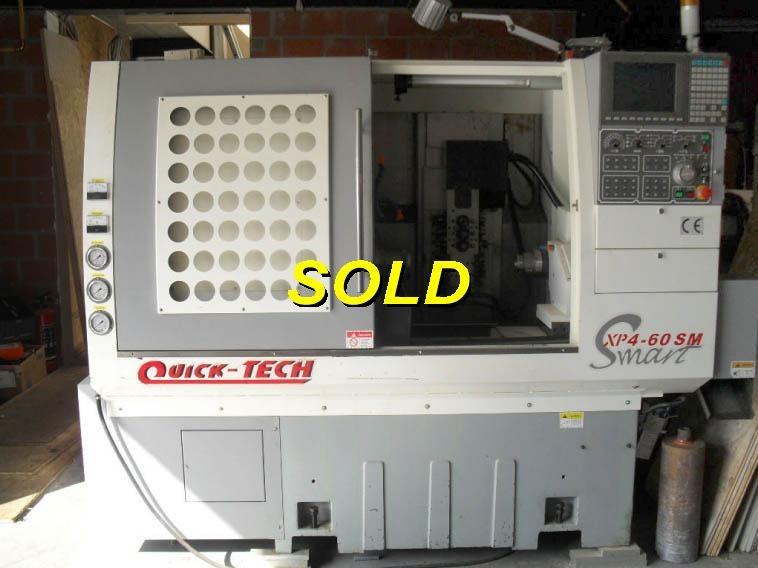

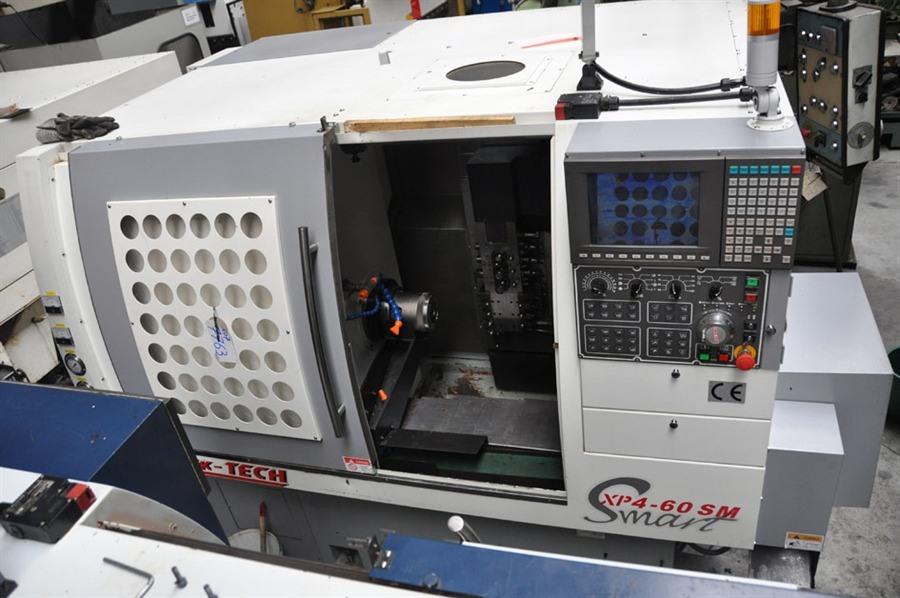

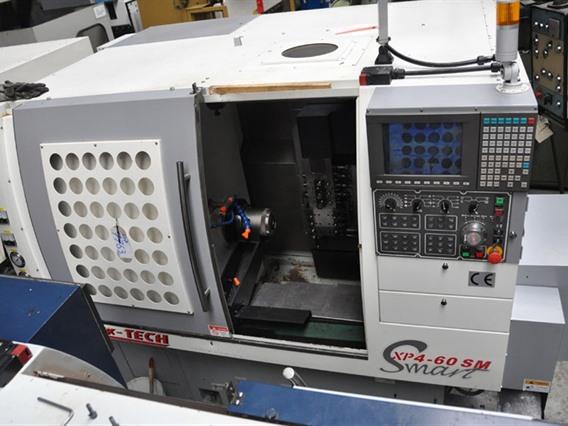

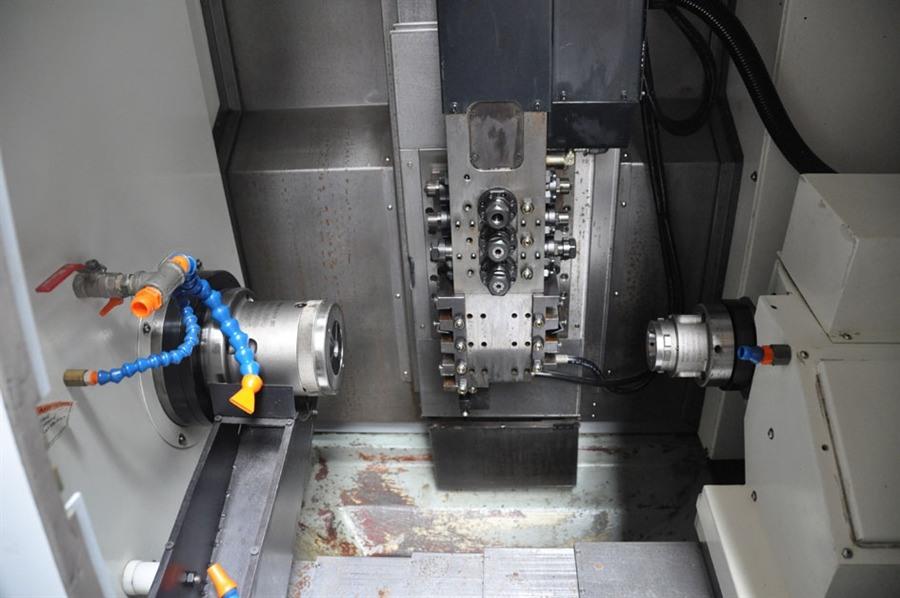

CNC lathes Quick Tech XP4-60SM + barfeeder

Technical information

Swing over bed100 mm
Max longitudinal travel Z-axis330 mm
Max cross travel X-axis165 mm

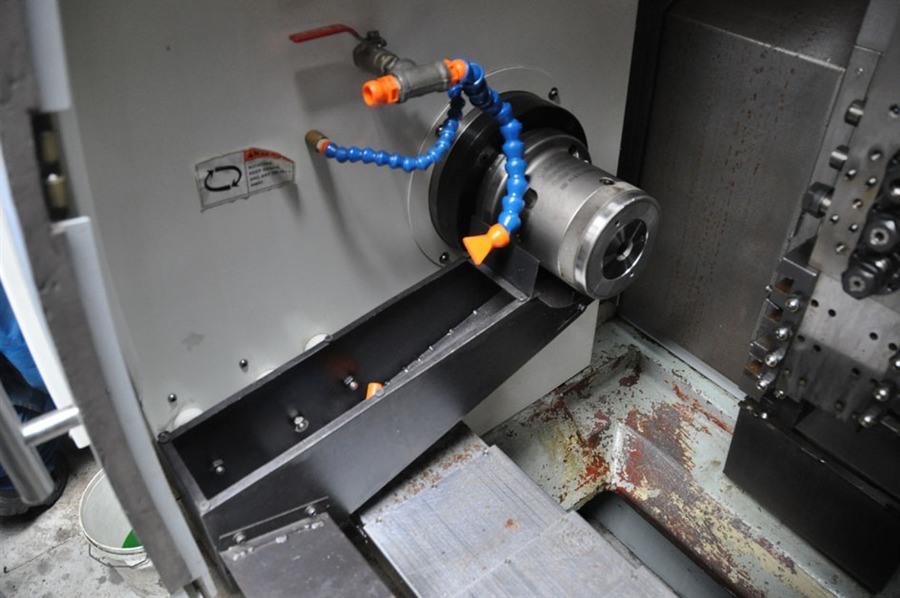

Spindle coneISO A2-5
Dia of spindle bore60 mm
Power on the spindle7,5 kW
Number of speeds100 - 4000 rpm

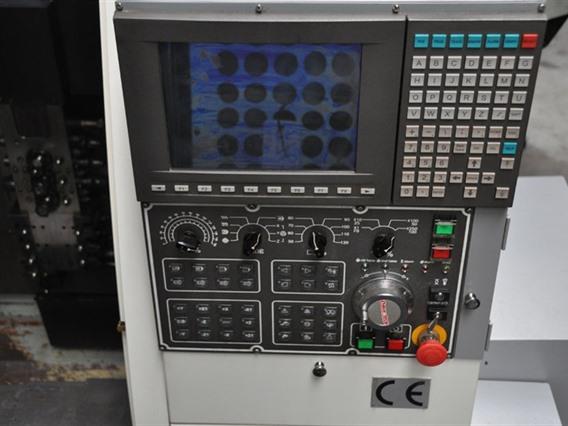

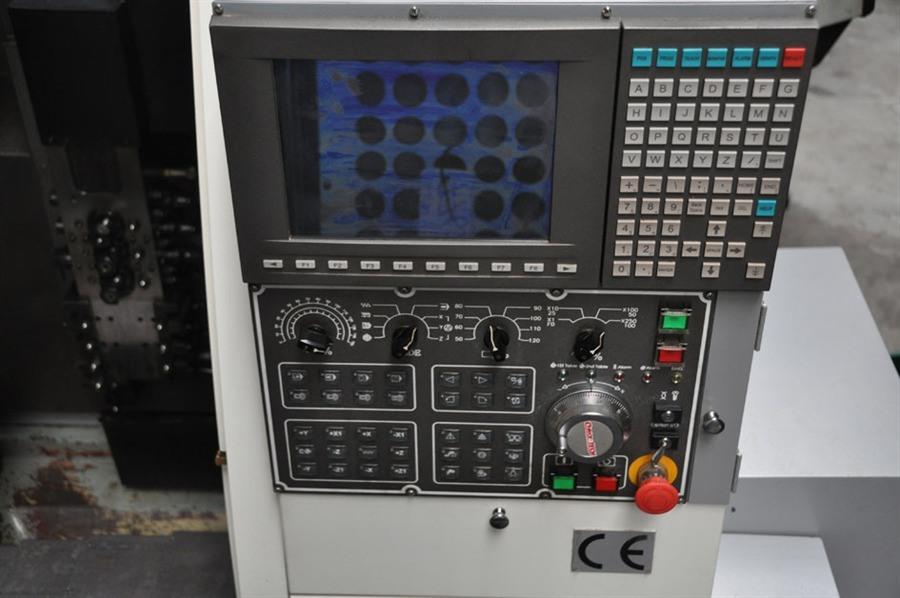

CommandMitsubishi + dialog (Fanuc)
Length3100 mm
Width1870 mm
Height2200 mm
Weight3200 kg
Toolchangeryes

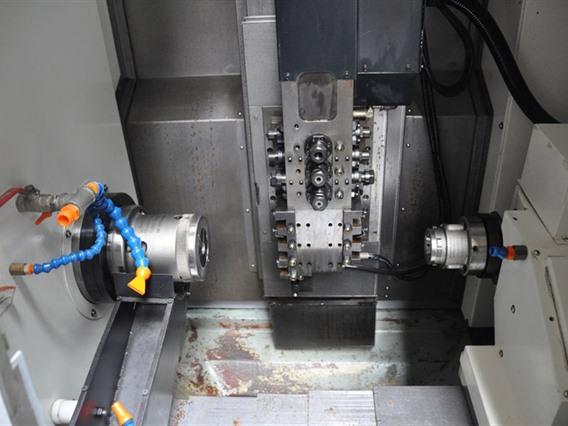

Number of tools27 tools (9 driven)

Additional info

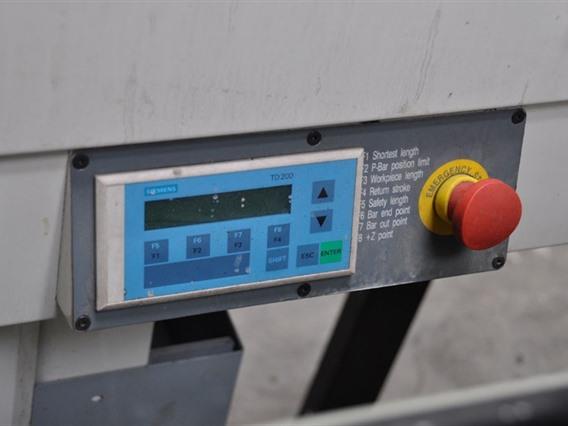

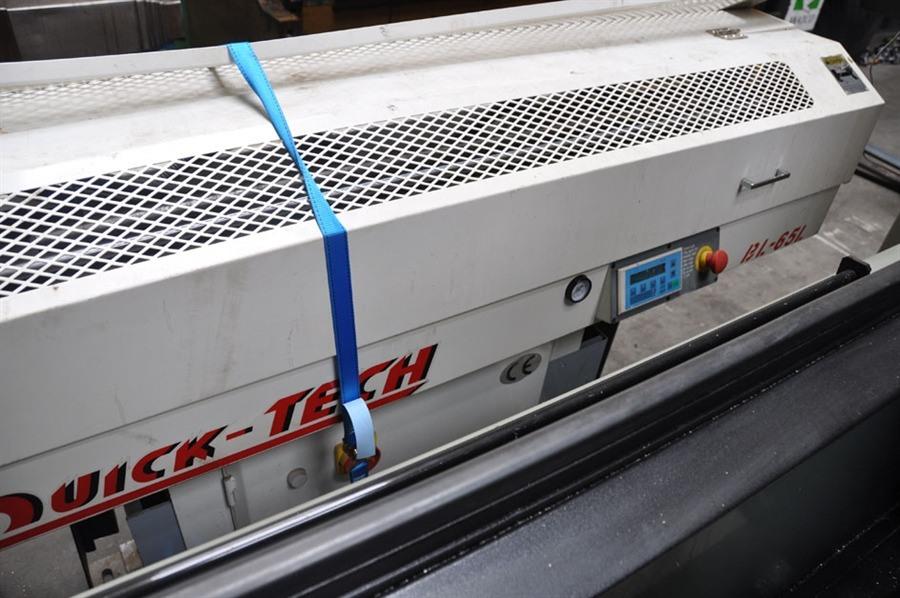

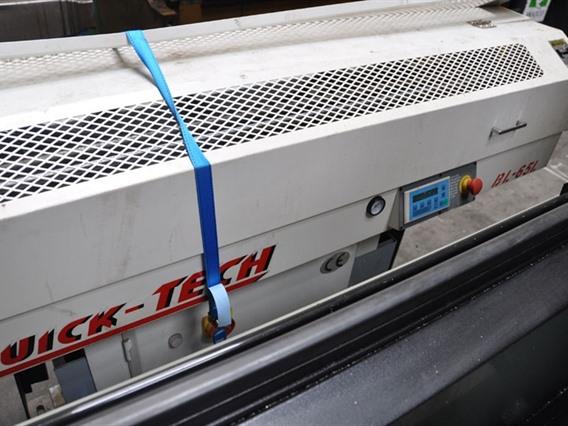

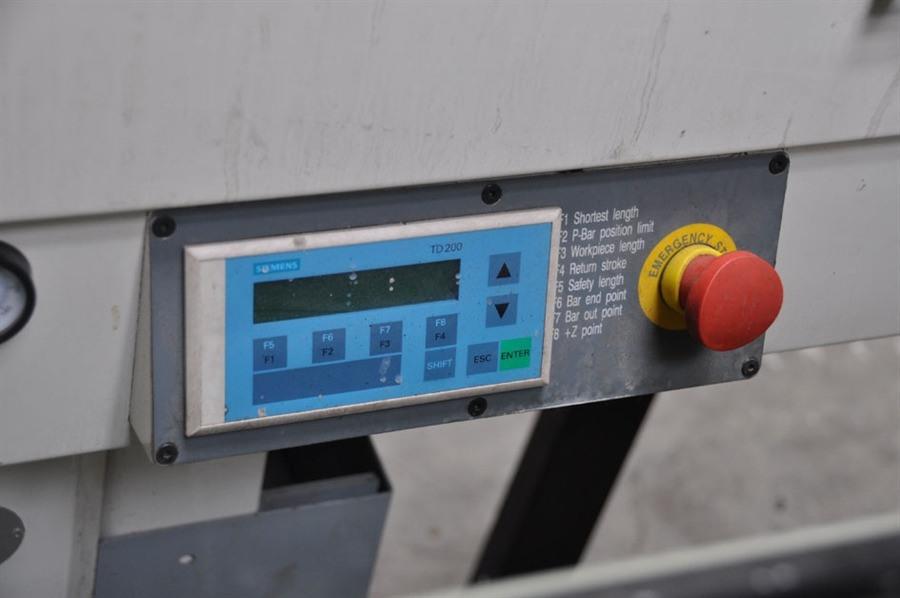

Quick Tech BL-65L barfeeder 1500 mm
2000 x 550 x 1100 mm --- 500 kg

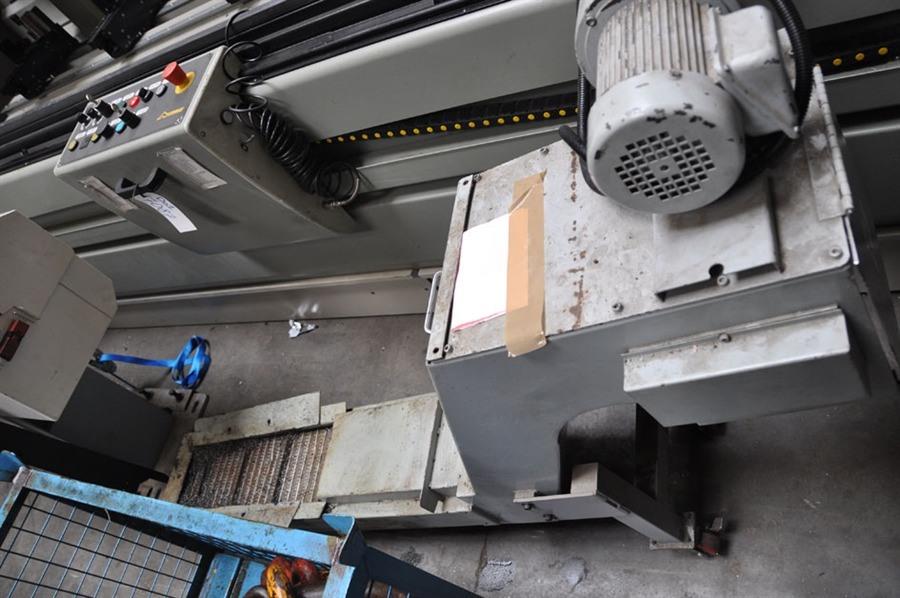

Chipconveyor:

2100 x 470 x 1130 mm --- 250 kg

Cooling:

1300 x 900 x 500 mm -- 100 kg

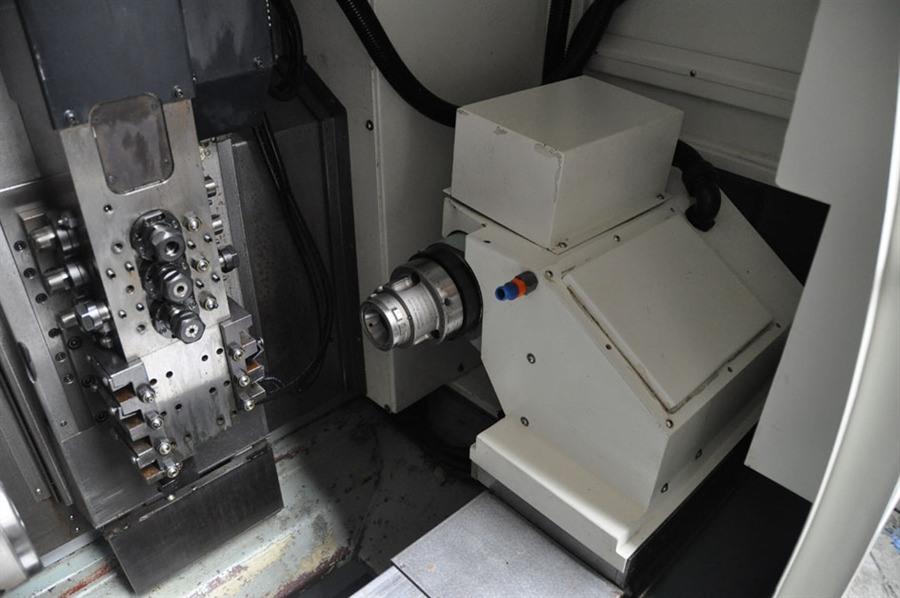

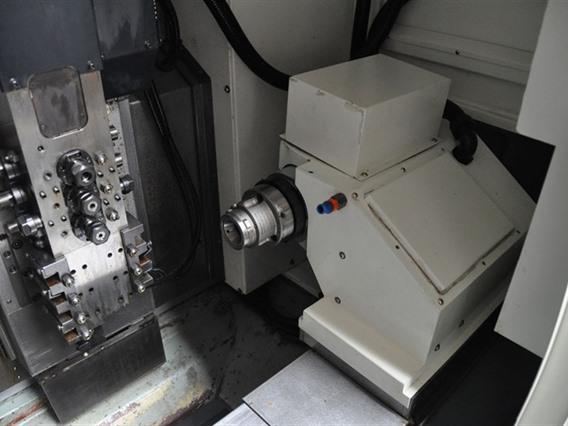

subspindle dia: max 30 mm

C & Y-axis
Type/Model: XP4-60SM + barfeeder
Stocknumber: A.07 7763
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Quick Tech

Stocknumber: A.07 7763
