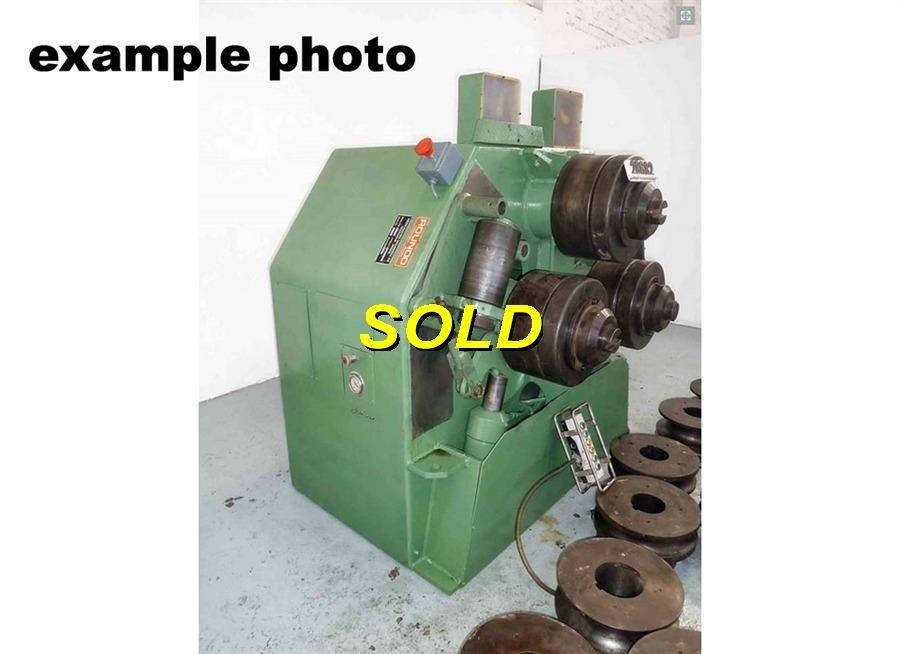

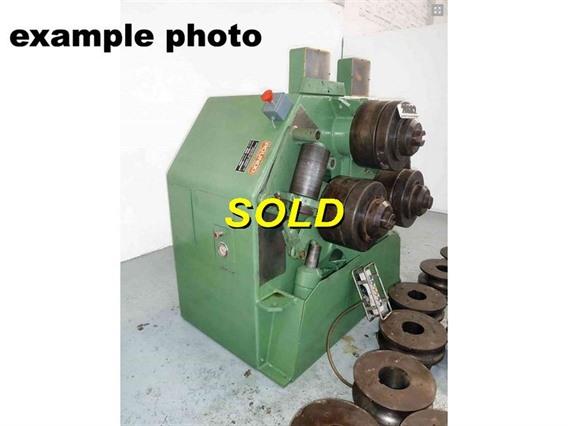

Hor+Vert profilemachines, section bending rolls & seam makingmachines Roundo R5 48 cm3

Technical information

Capacitydia 48 mm
Dia rolls360 mm

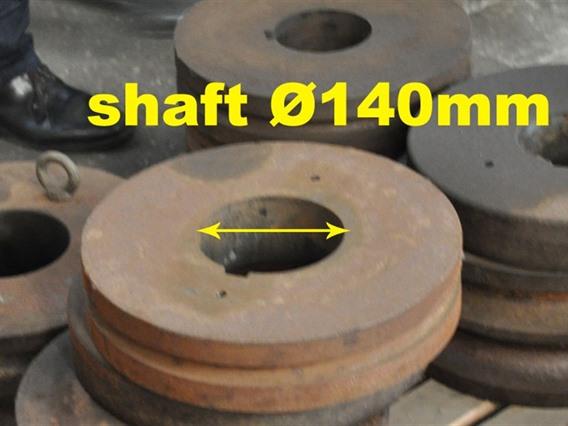

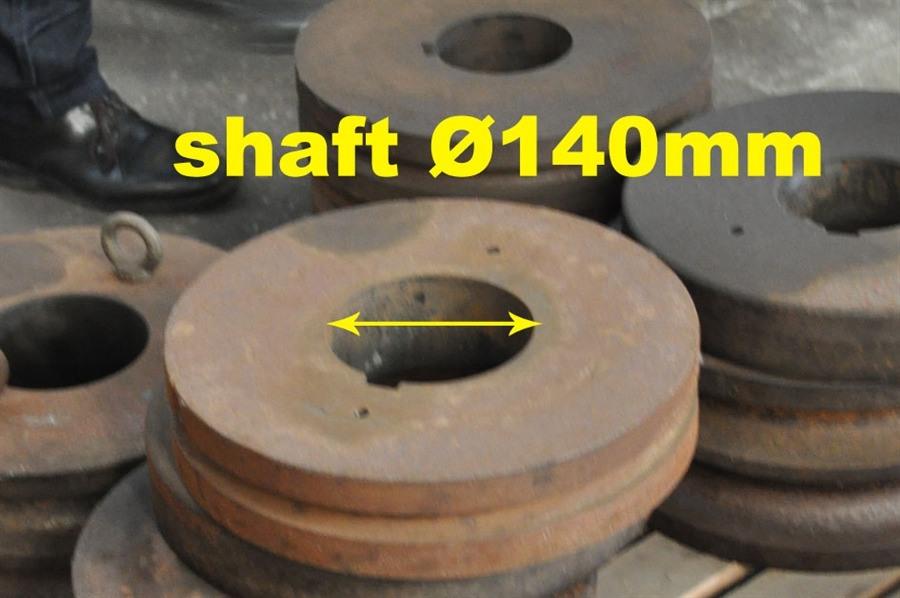

Dia of die mandrel140 mm
Motorpower7,5 kW
Length 1450 mm
Depth1500 mm
Weight3,6 ton

Additional info

can work horizontal and vertical

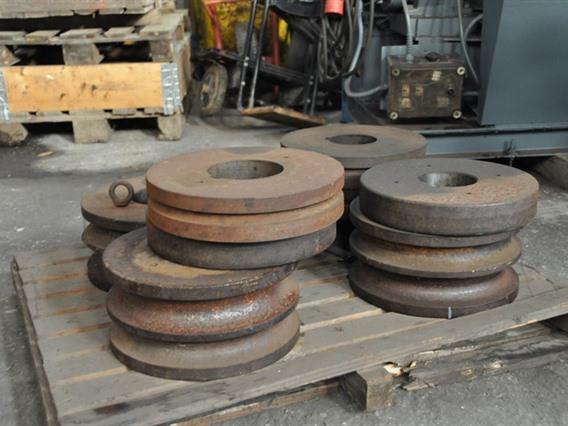

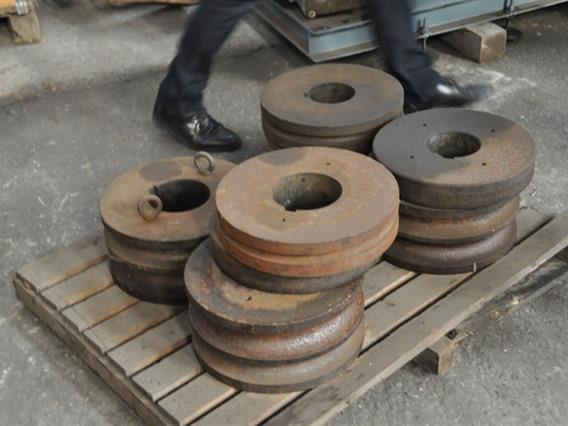

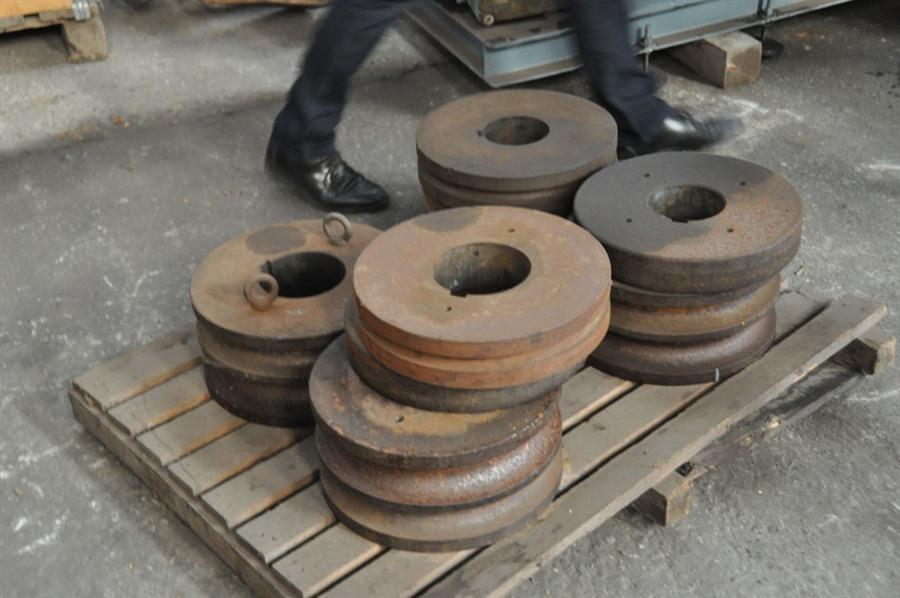

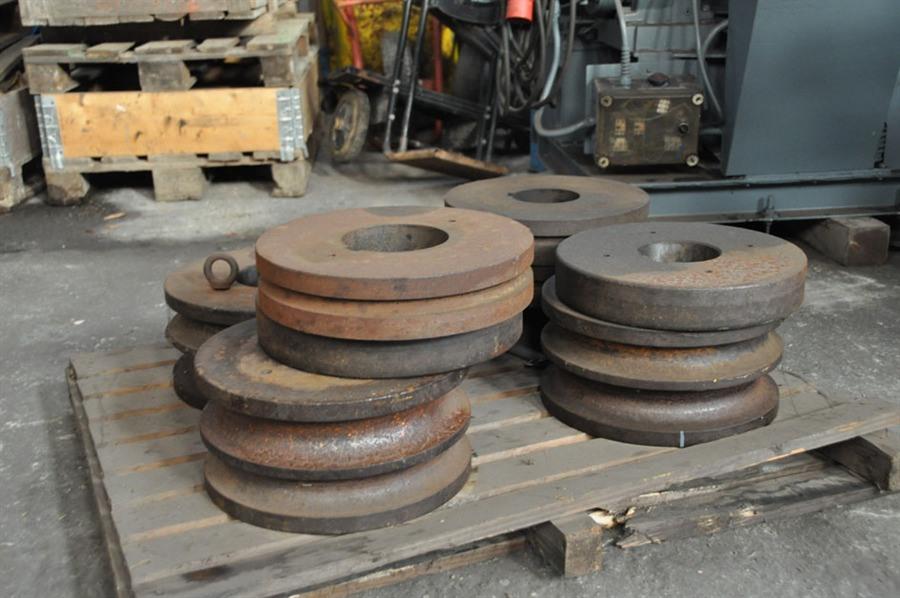

with tooling

3 driven rolls - hydraulic machine

a few bending examples:
angle iron in: 114 x 114 x 3,8 mm
flat iron, on flat: 32 x 203 mm

T iron, leg out: WT4 x 736 mm

Square bar: 64 mm

Round bar: 70 mm

I beam: 203 mm

Pipe: 102 mm
Type/Model: 48 cm3
Stocknumber: S.05 8679
Main category: [S] Hammers & Profile bendingrolls, Knuring (bordeling) & seaming machines
Sub category: [S.05] Hor+Vert profilemachines, section bending rolls & seam makingmachines
Brand: Roundo R5

Stocknumber: S.05 8679

Sold
Sold
Sold
Sold
