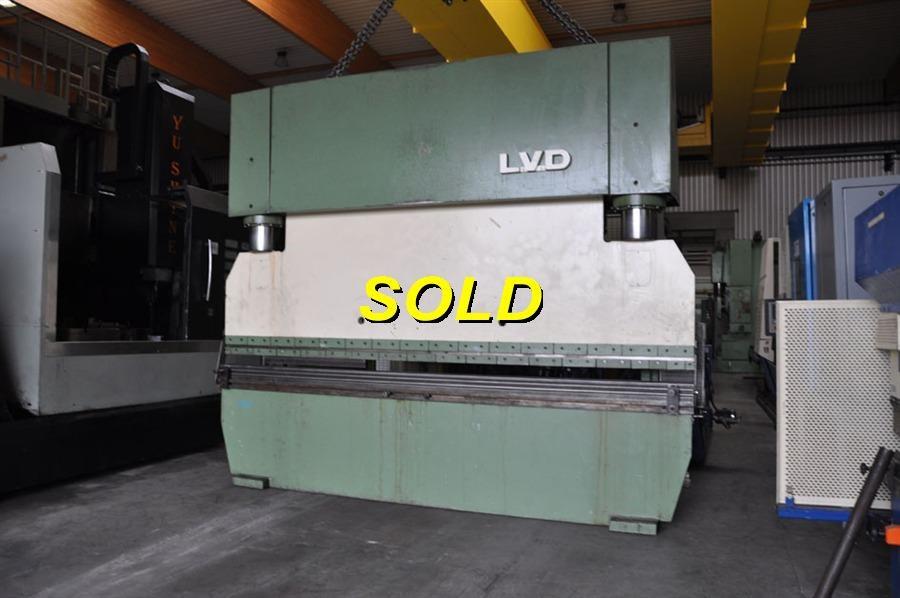

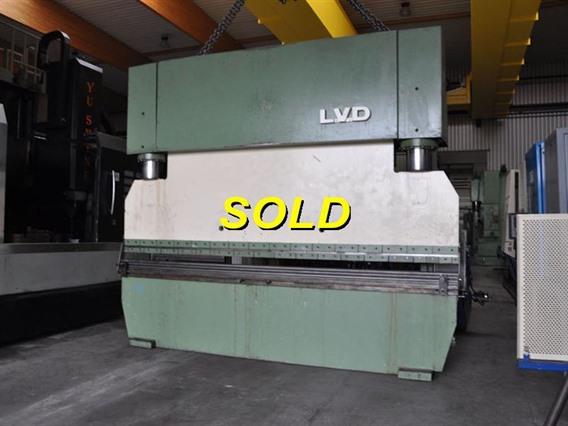

Hydraulic pressbrakes LVD PPC 300 ton x 4100 mm

Technical information

Capacity300 ton x 4100 mm

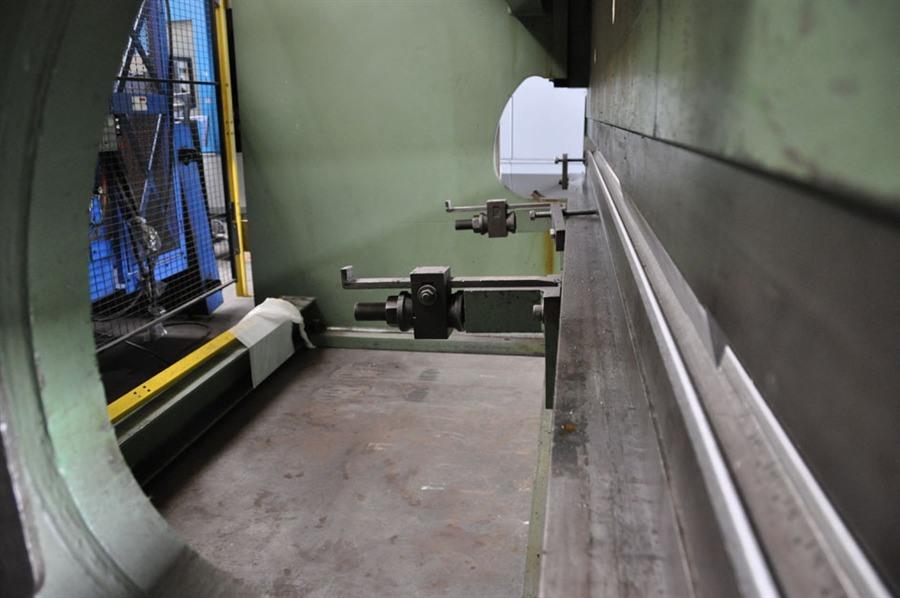

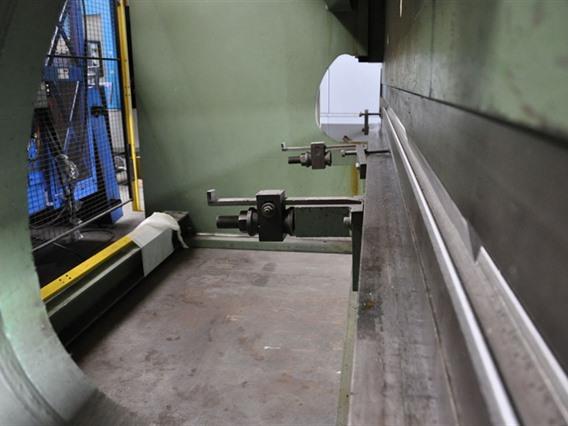

Backgaugemanual
Passage between uprights3150 mm
Max stroke250 mm
Max distance between table -- ram510 mm
Depth of throat500 mm
Table width250 mm
Locking speed80 mm/sec
Working speed8,8 mm/sec
Returning speed96 mm/sec
Electric motor (power)22 kW
Length4150 mm
Depth2250 mm
Height3460 mm
Weight22,5 ton
ACCESSORIESyes

Additional info

Enlarged depth of throat: 500 mm
--------------------------------------------------------

Увеличенная глубина зева: 500 мм
Type/Model: 300 ton x 4100 mm
Stocknumber: O.01 8542
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.01] Hydraulic pressbrakes
Brand: LVD PPC

Stocknumber: O.01 8542

Sold
Sold
Sold
