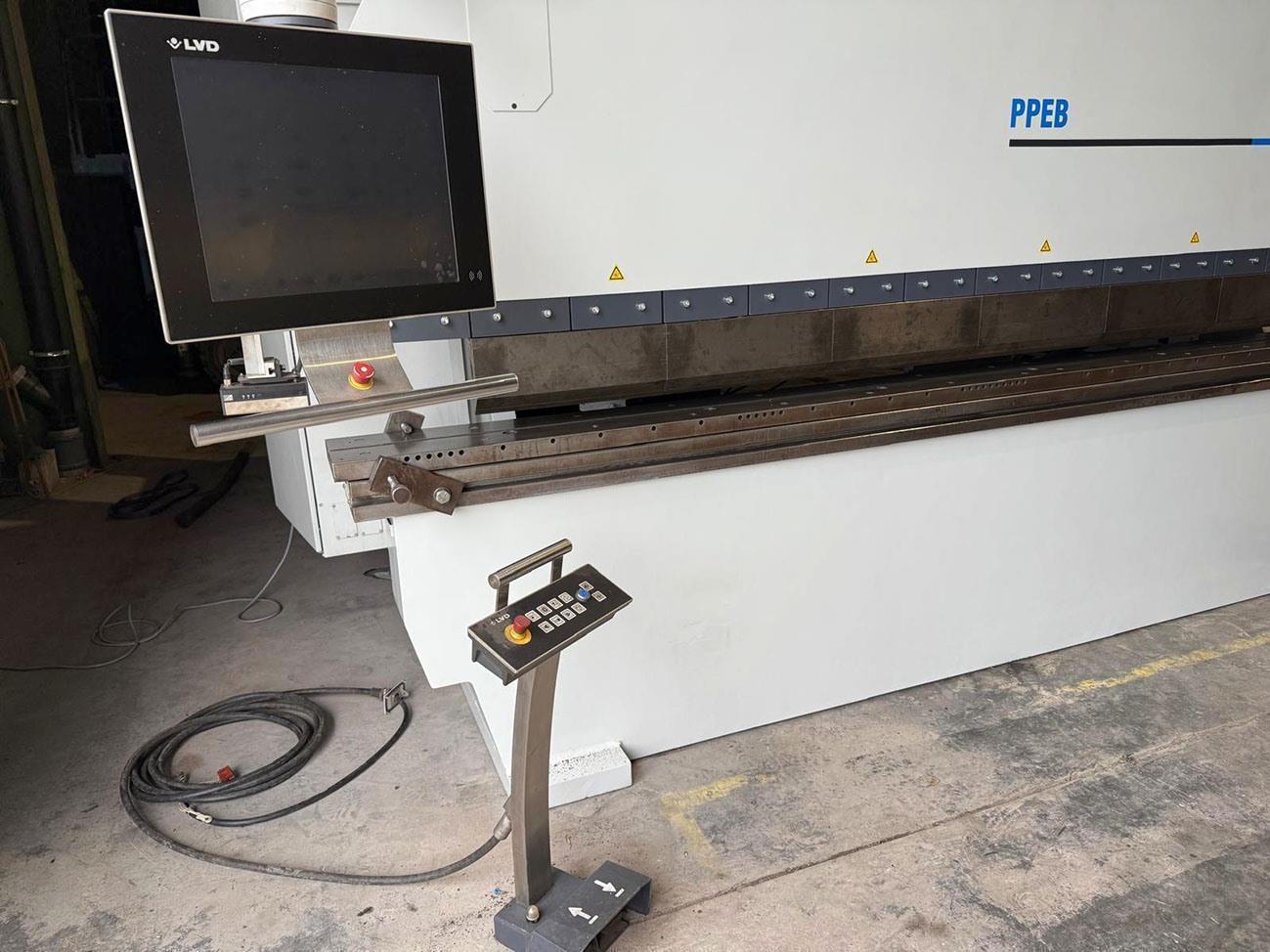

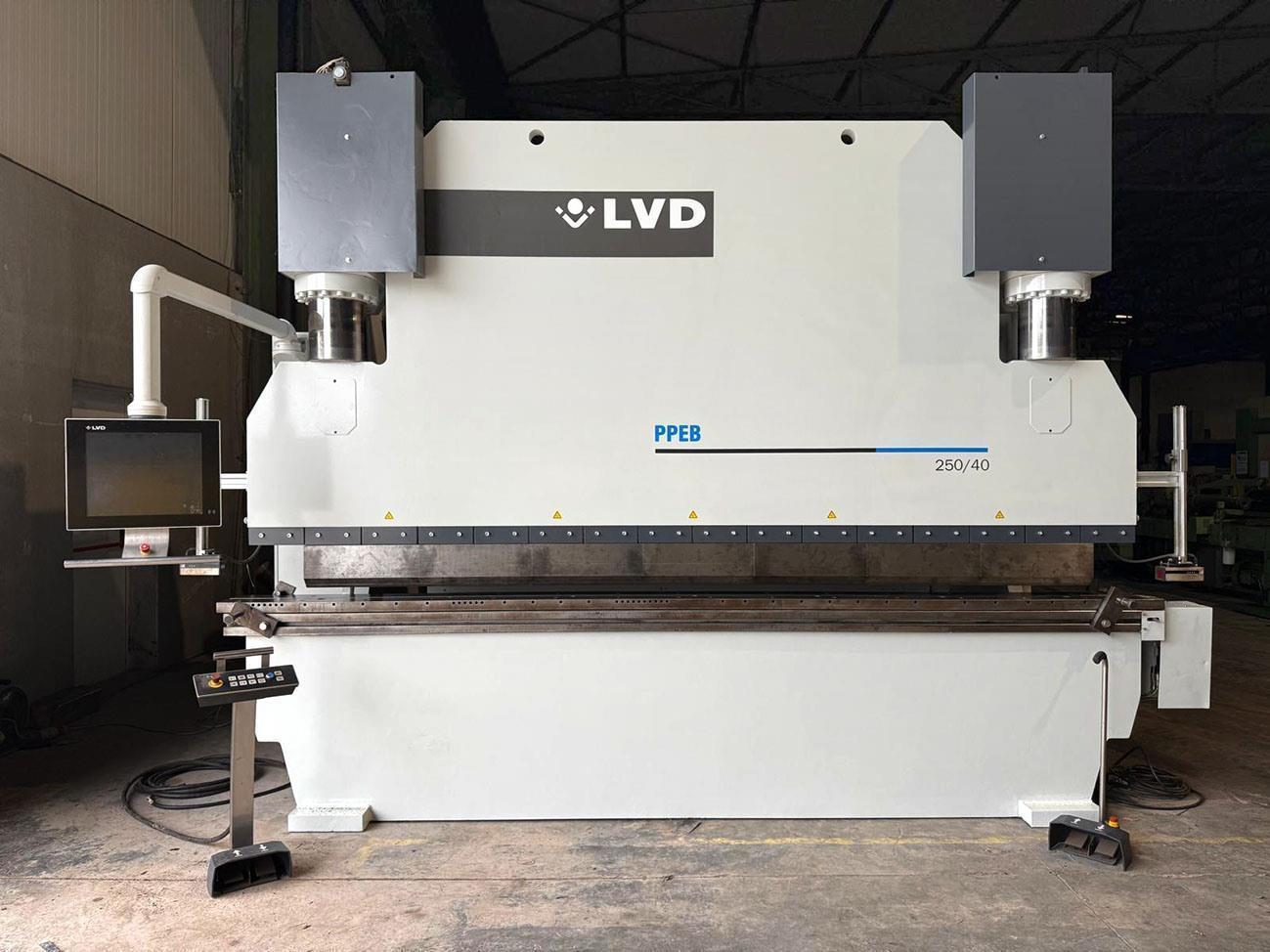

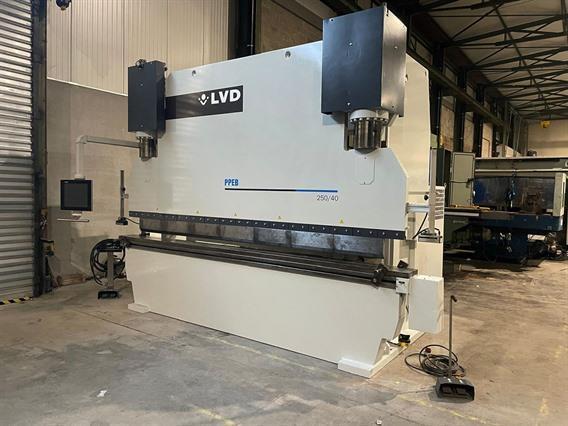

Hydraulic press brakes LVD PPEB 250 ton x 4100 mm CNC

Name: LVD PPEB 250 ton x 4100 mm CNC
Brand: LVD PPEB
SKU: O.01 16142

Product added to your favorites

» Request a personalised quote

Technical information

Capacity250 ton x 4100 mm
BackgaugeCNC

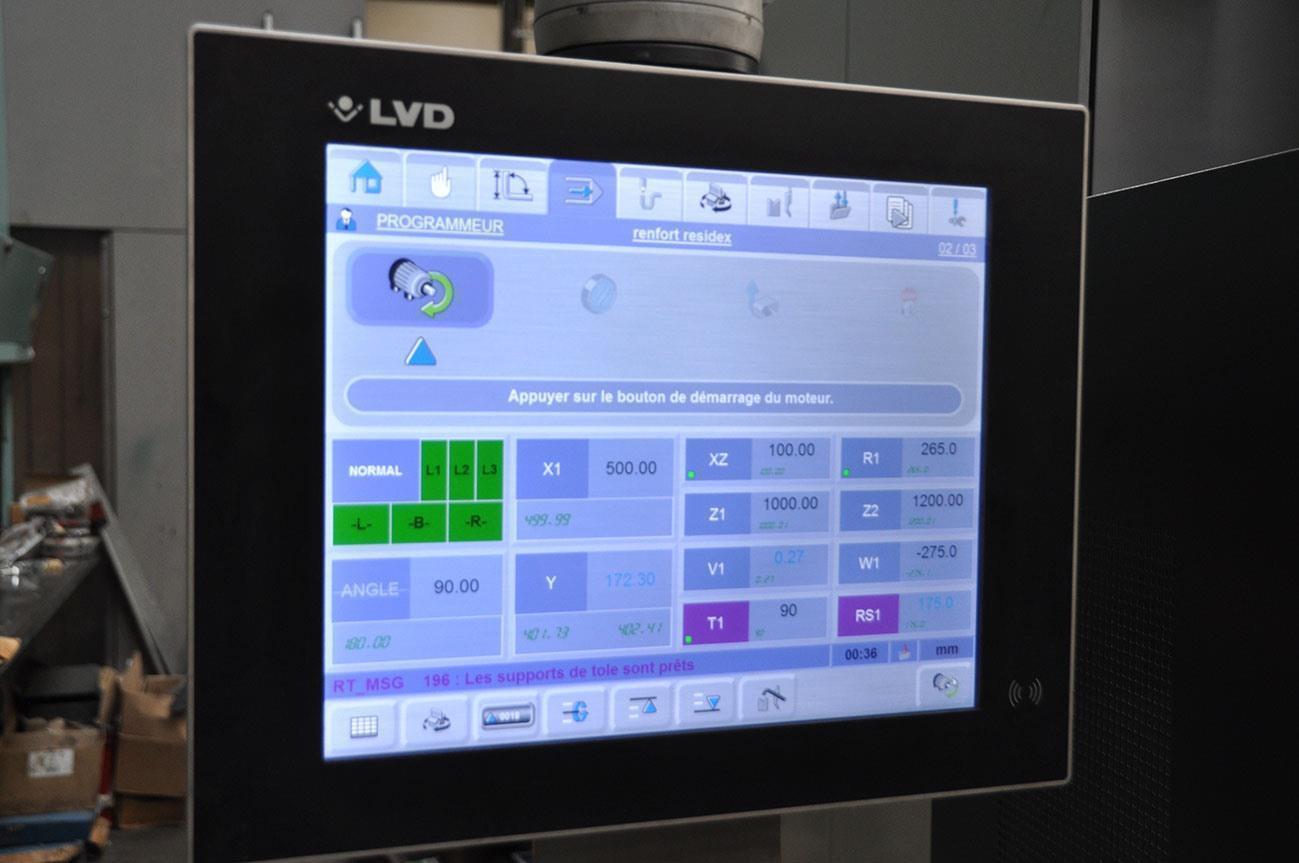

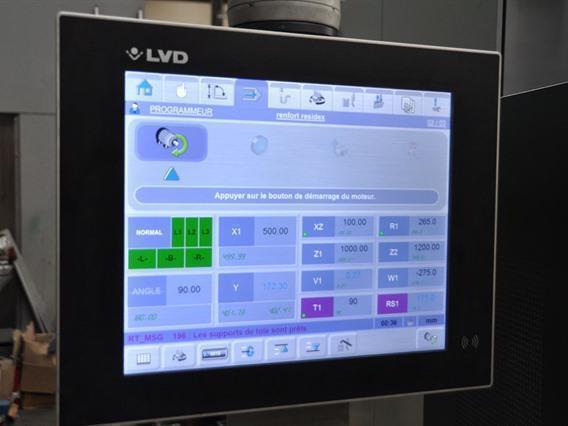

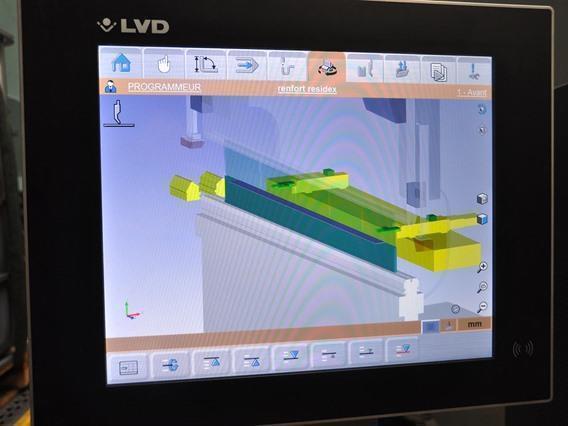

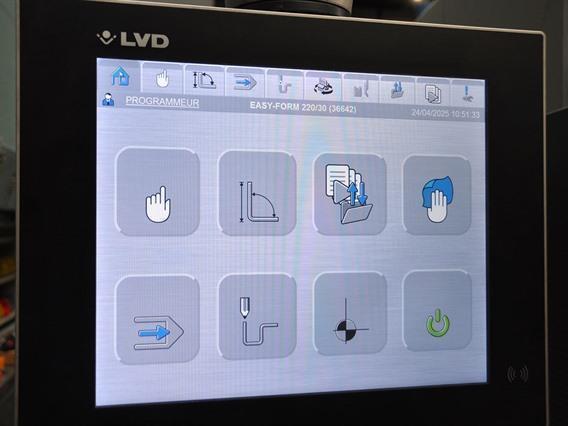

ControlCadman Touch-B
Passage between uprights3150 mm
Max stroke250 mm
Max distance between table -- ram500 mm
Depth of throat350 mm
Table width250 mm
Locking speed80 mm/sec
Working speed10 mm/sec
Returning speed80 mm/sec
Electric motor (power)30 kW
Length4700 mm
Depth2120 mm
Height3360 mm
Weight23 ton
Capacity250 ton
Bending length4100 mm

Additional info

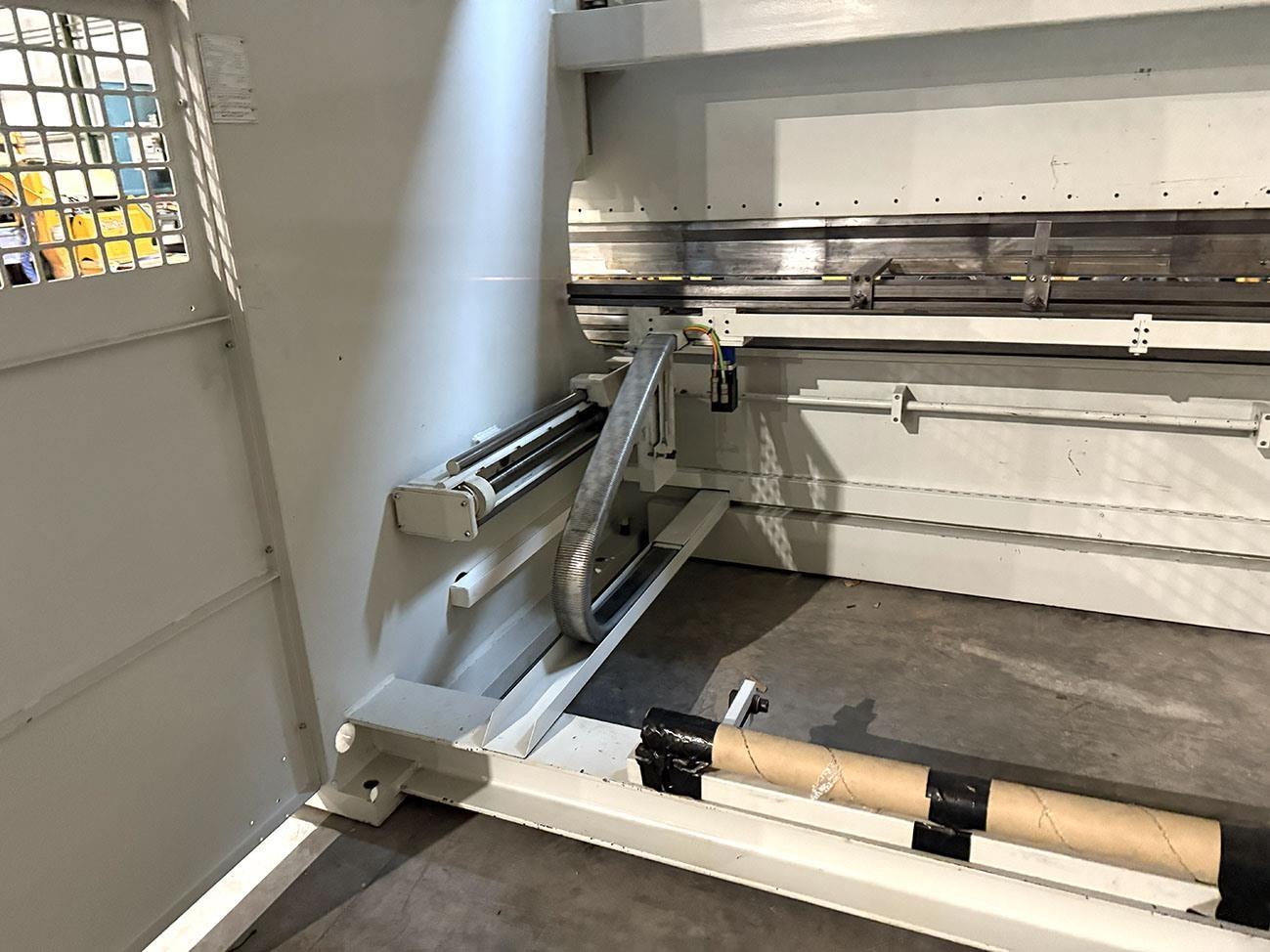

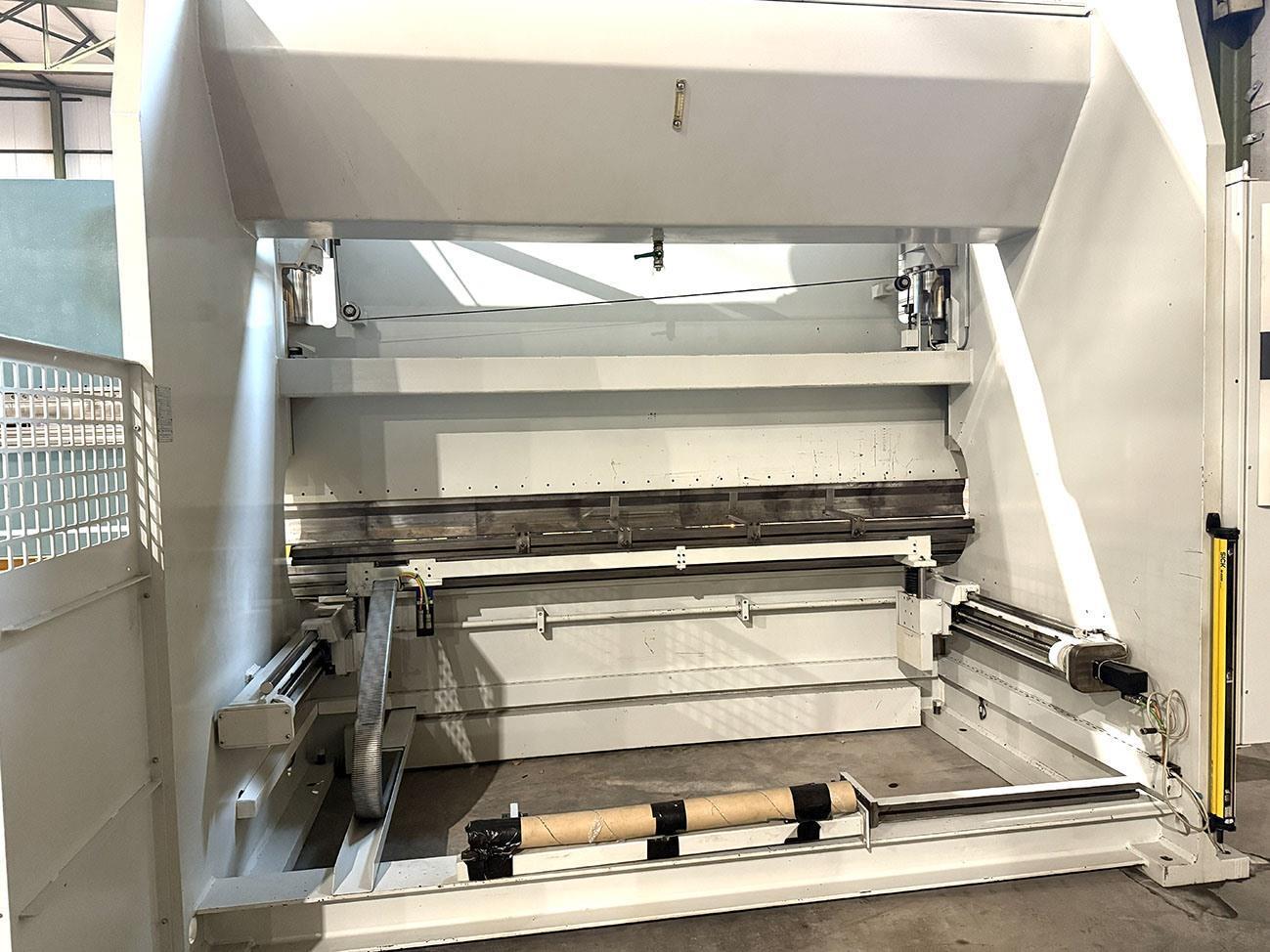

5 axes: Y1 / Y2 / X / R / V

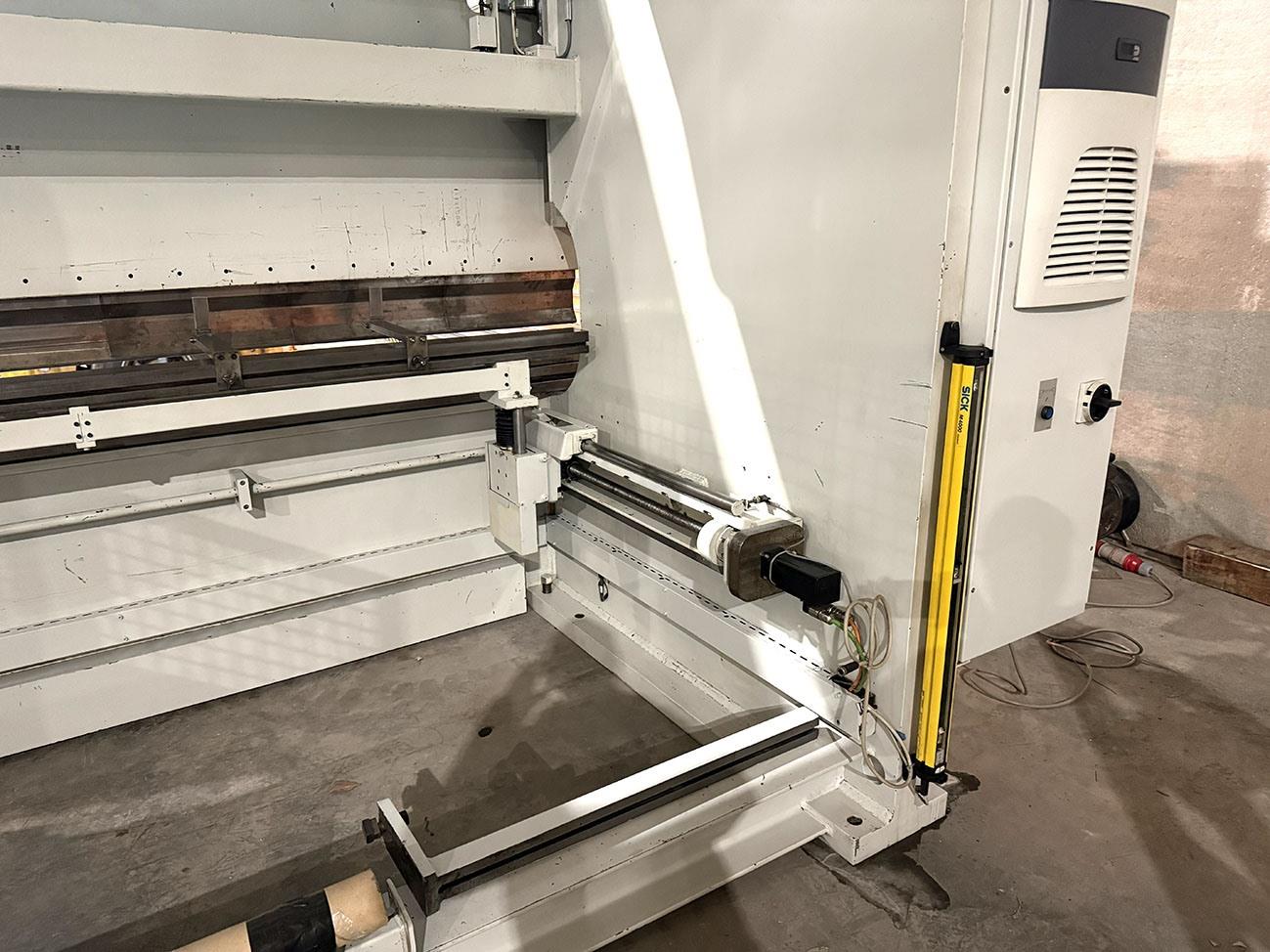

Laser safe security front & back
CNC crowning

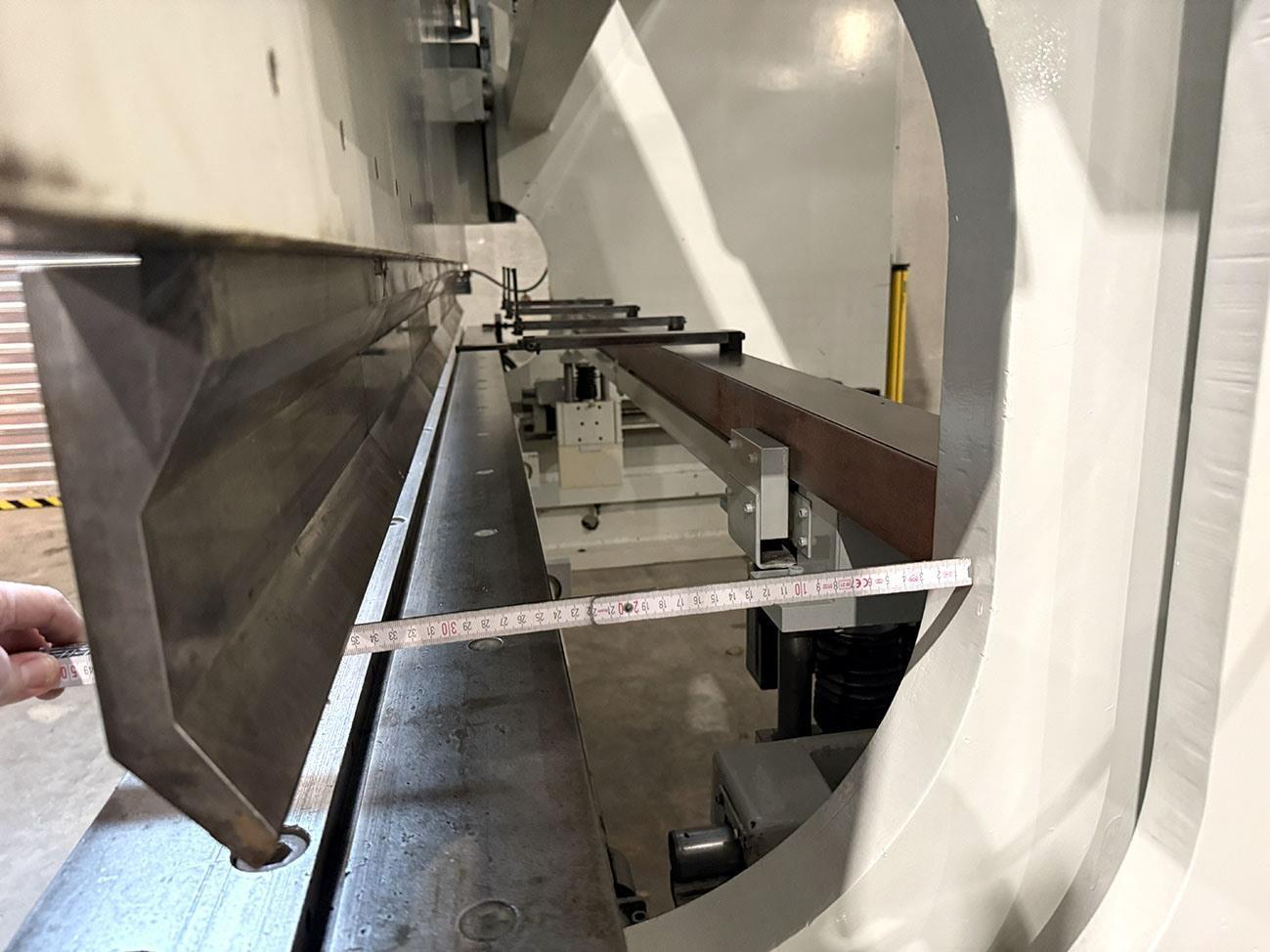

upper & lower LVD tooling
bending knife 88° included

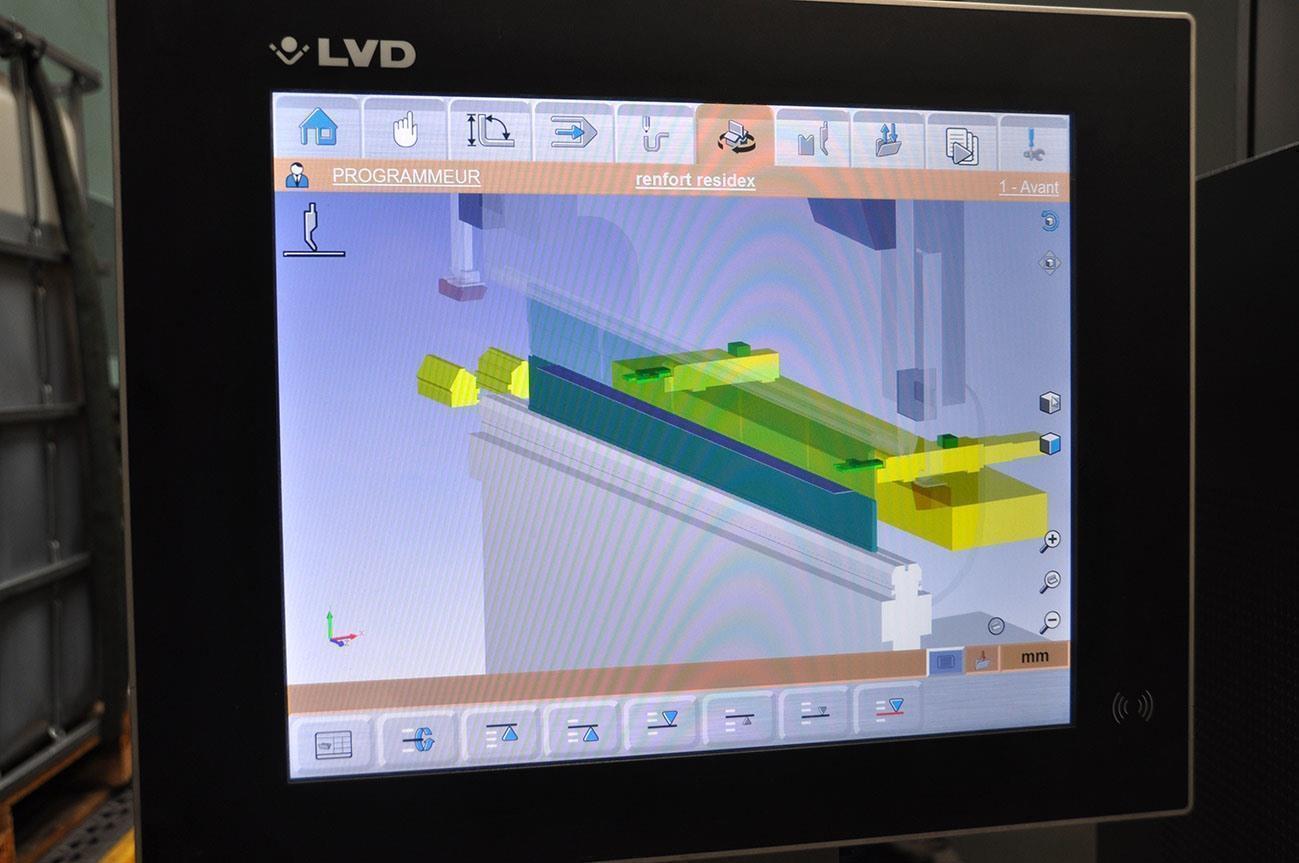

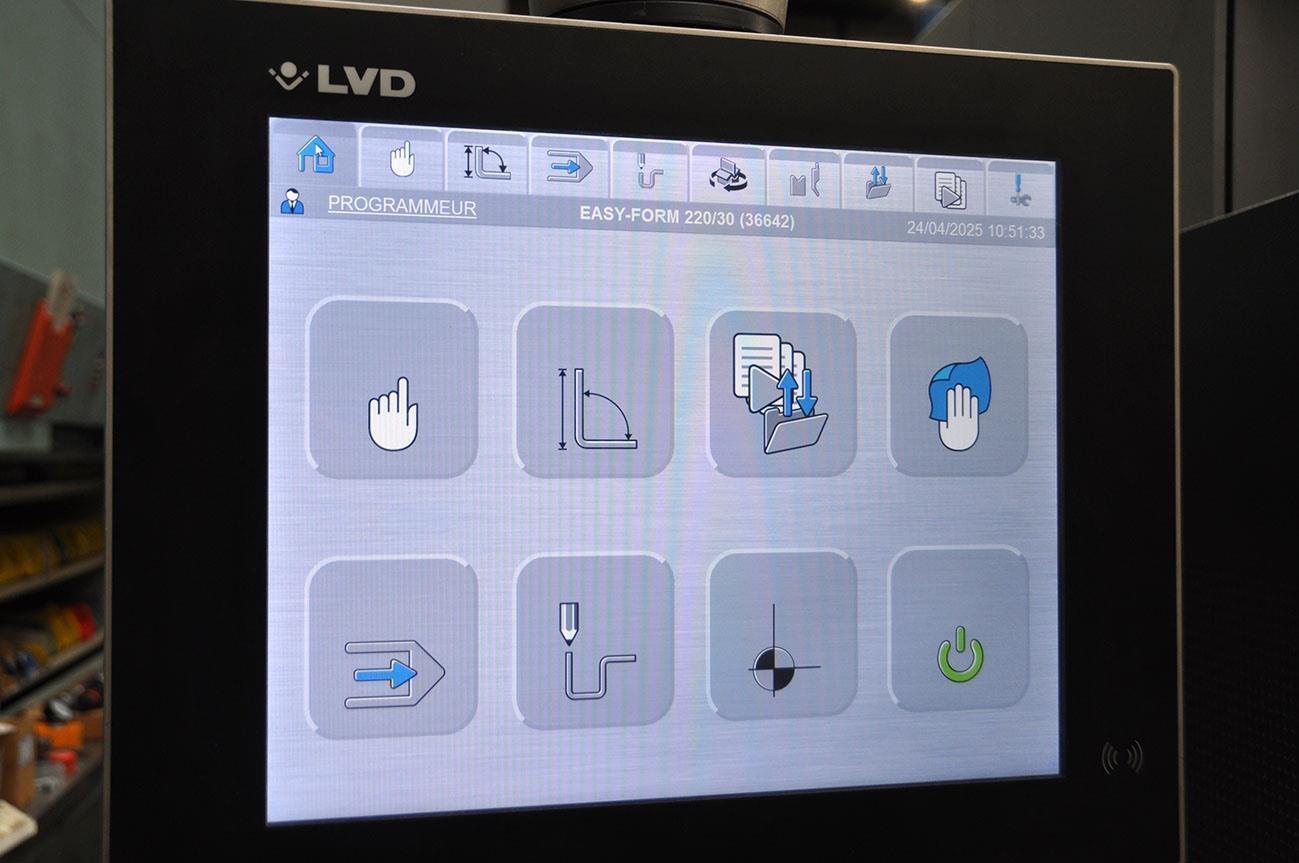

Cadman Touch new 2023
Type/Model: 250 ton x 4100 mm CNC
Stocknumber: O.01 16142
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.01] Hydraulic press brakes
Brand: LVD PPEB

» Request a personalised quote

Stocknumber: O.01 16142

Watch video of working machinery

Download all pictures in ZIP
