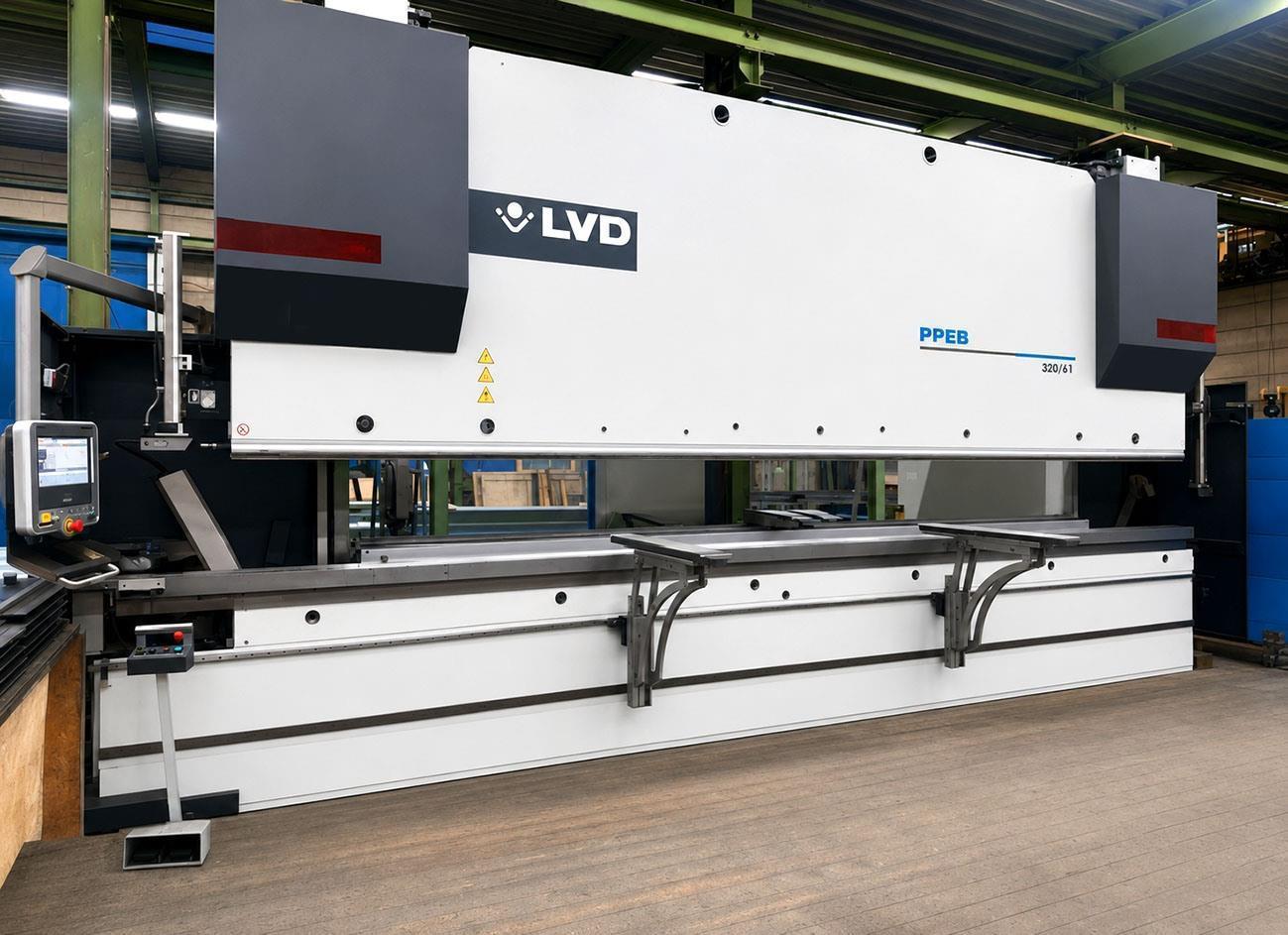

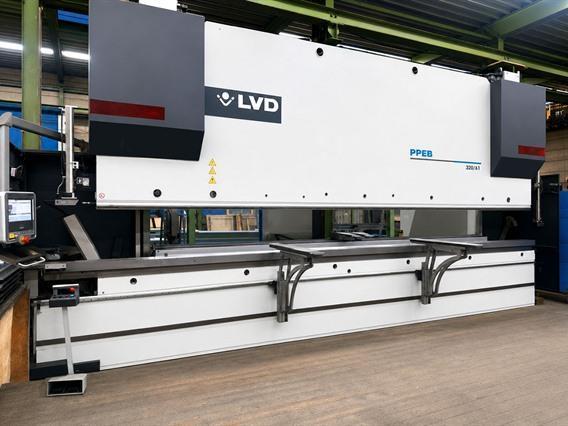

Hydraulic press brakes LVD PPEB 320 ton x 6100 mm CNC

Name: LVD PPEB 320 ton x 6100 mm CNC
Brand: LVD PPEB
SKU: O.01 16519

Product added to your favorites

» Request a personalised quote

Technical information

Capacity320 ton x 6100 mm
BackgaugeCNC

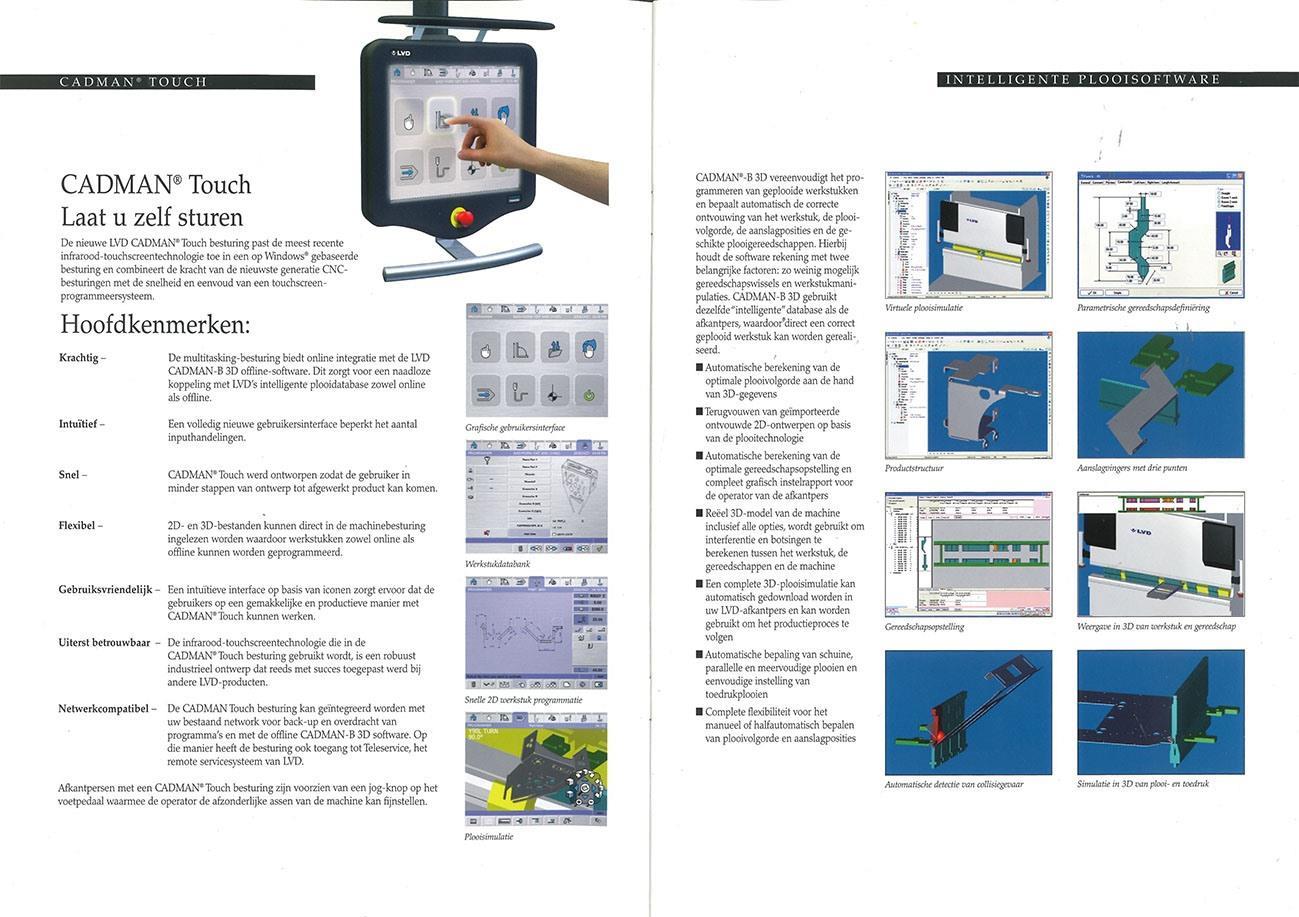

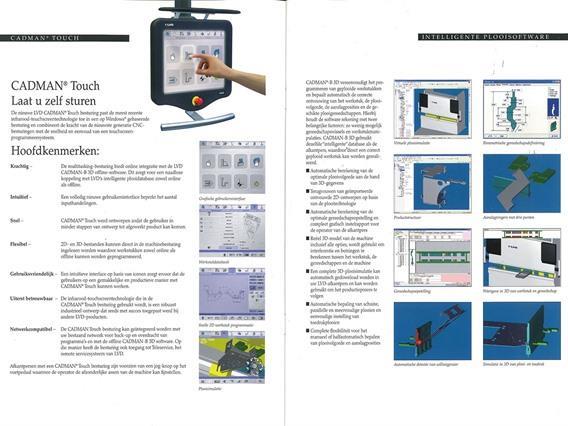

ControlCadman B Touch
Passage between uprights5050 mm
Max stroke300 mm
Max distance between table -- ram570 mm
Depth of throat400 mm
Table width200 mm
Locking speed120 mm/sec
Working speed14 mm/sec
Returning speed130 mm/sec
Electric motor (power)42 kW
Length8000 mm
Depth3200 mm
Height3775 mm
Weight36 ton
Capacity320 ton
Bending length6100 mm

Additional info

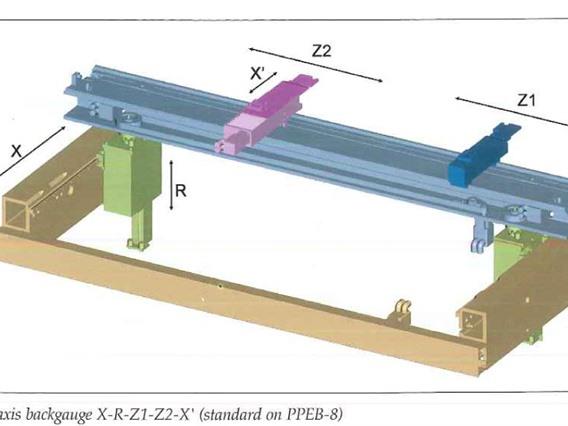

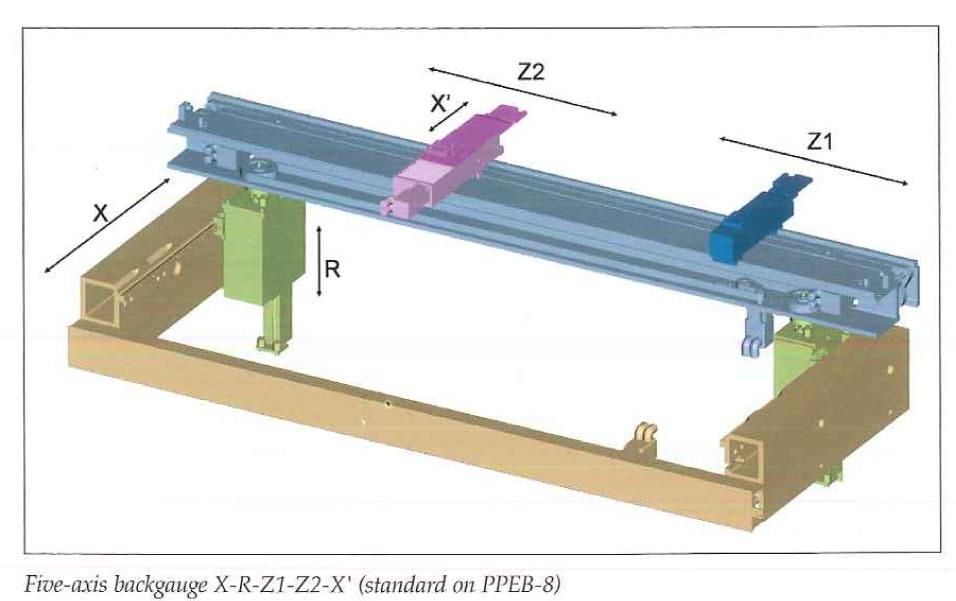

7 axes: Y1 / Y2 / R / X / X' / Z1 / Z2
upper hydraulic clamping
Type/Model: 320 ton x 6100 mm CNC
Stocknumber: O.01 16519
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.01] Hydraulic press brakes
Brand: LVD PPEB
