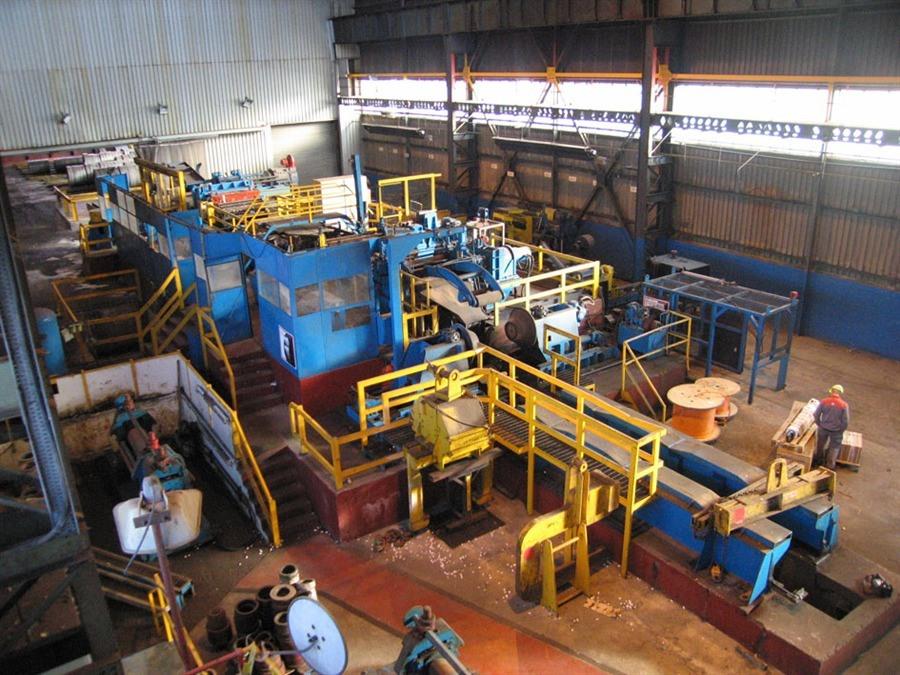

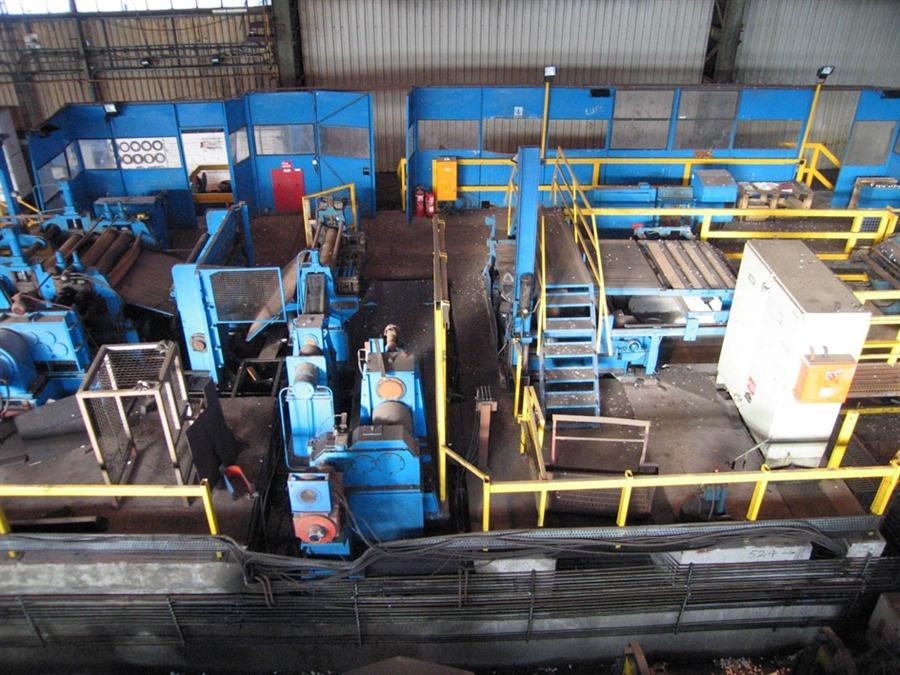

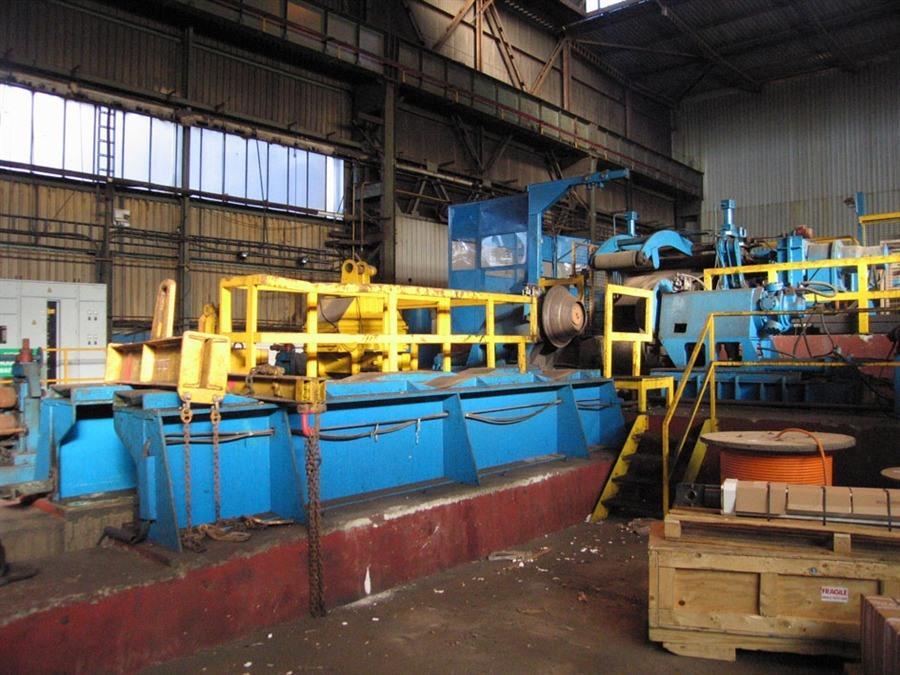

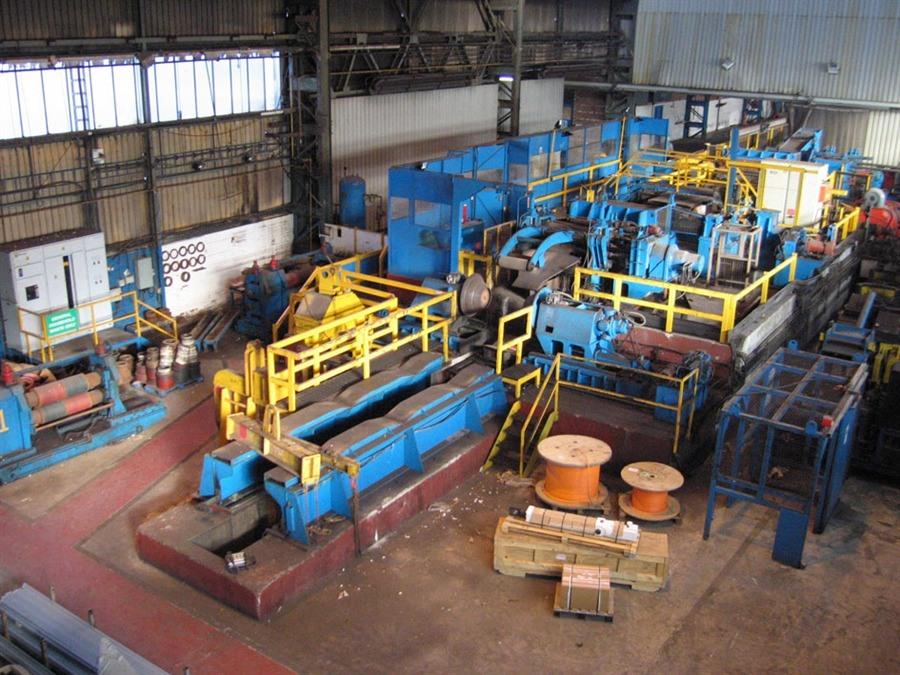

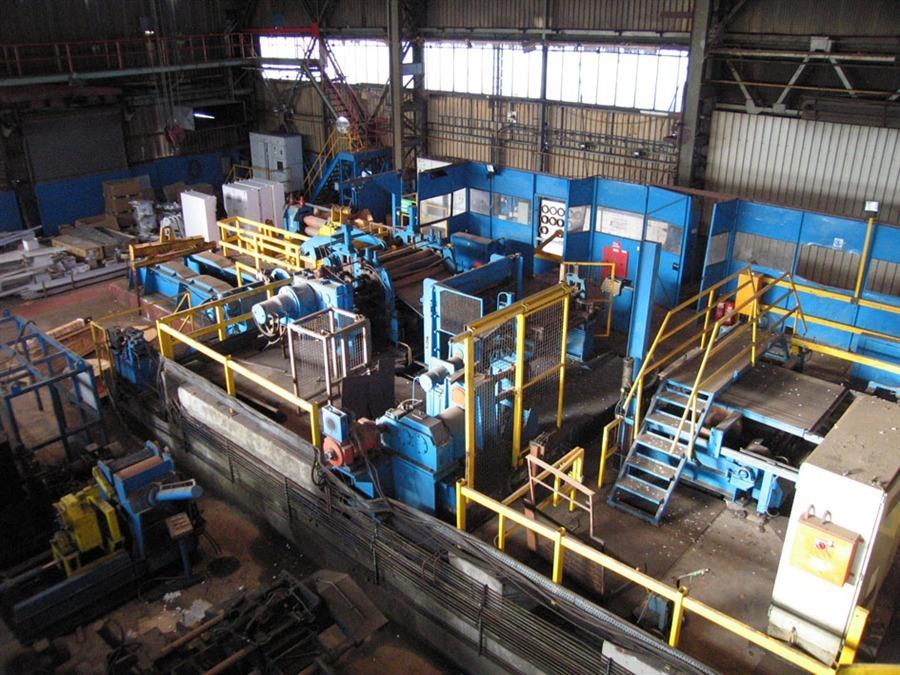

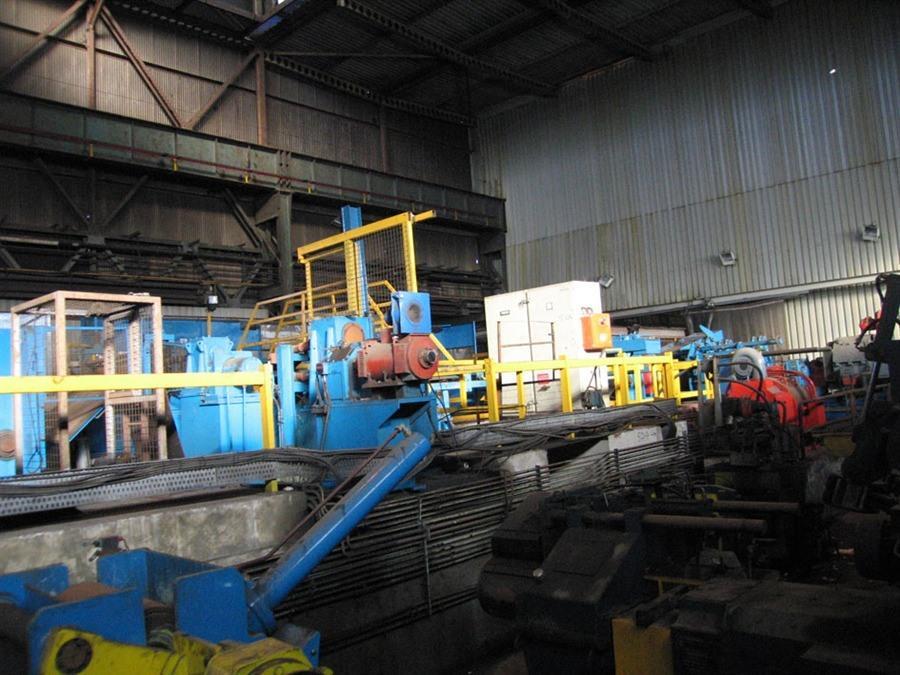

Slittingline Durmech Heavy Duty Cold strip slitting line

Technical information

  • Max sheetwidth1500 mm
  • Sheetstrip thickness 10 mm (St 37)
  • Max weight coil25 Ton
  • Inner dia coilØ 500 mm
  • Min stripwidth60 mm
  • Speed (variable)75m/min
  • Total rated power150 HP (Recoiler)

Additional info

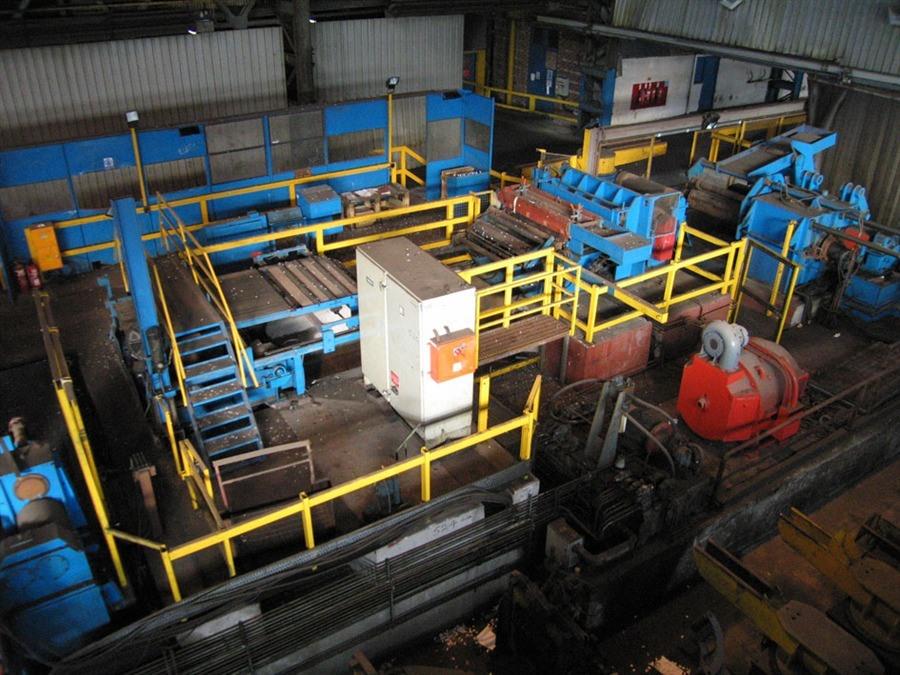

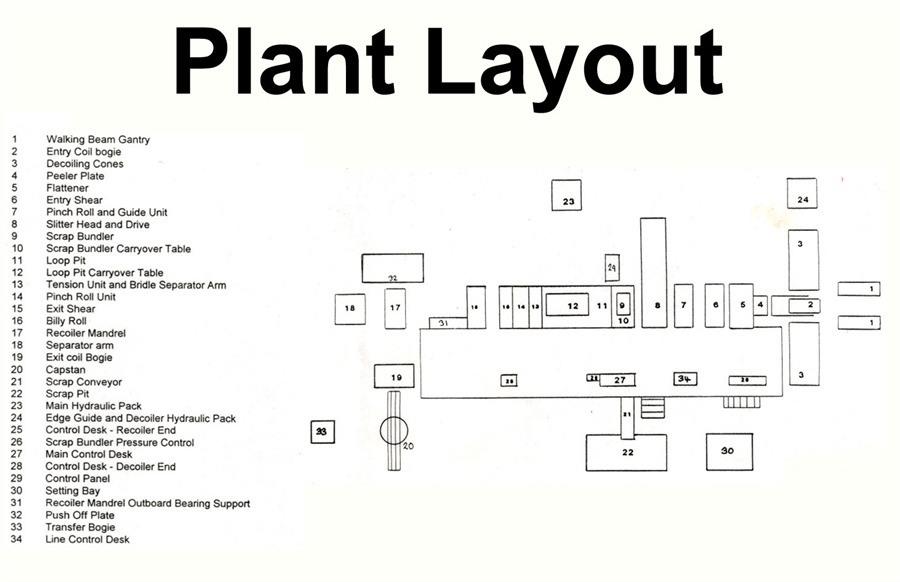

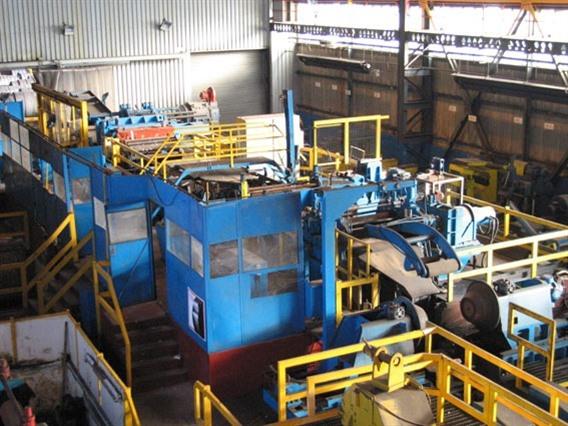

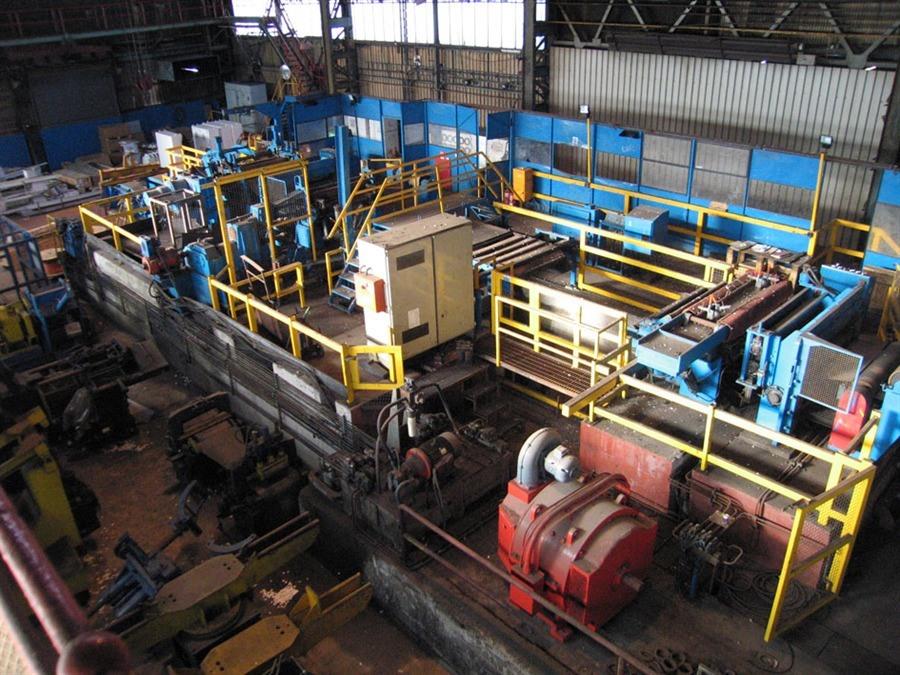

  • Cold strip slitting machine - Installed 1997

    > 1500 mm x 10 mm max comprising (St 37)

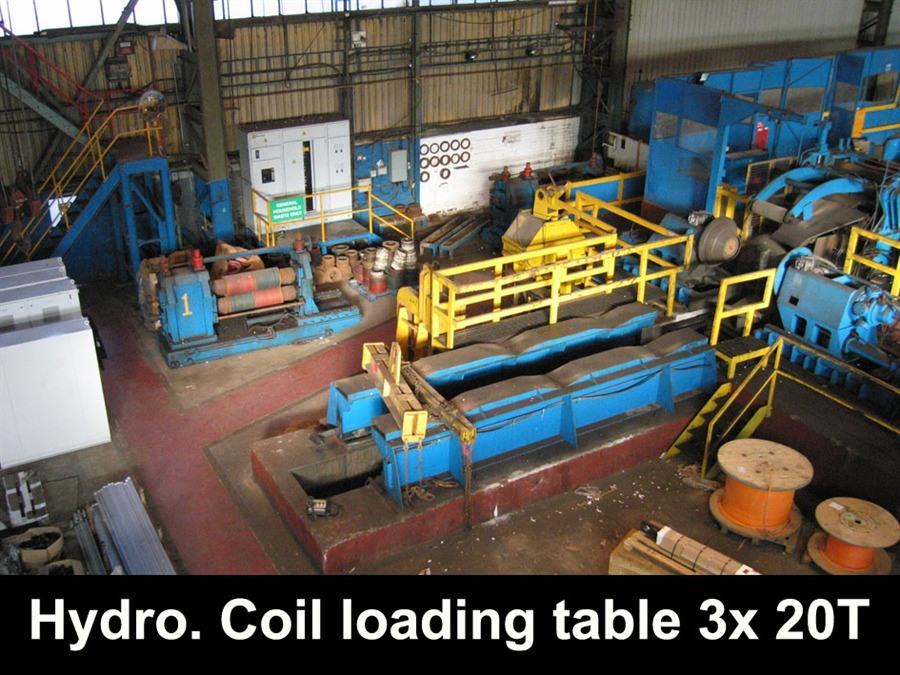

    > 3 position coil loading table with hydraulic coil transfer car

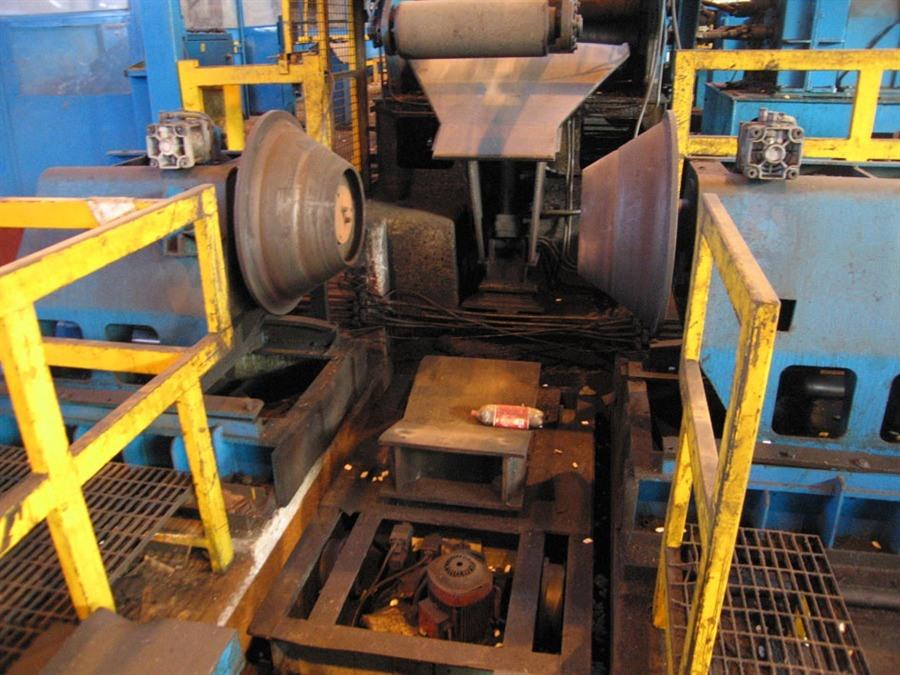

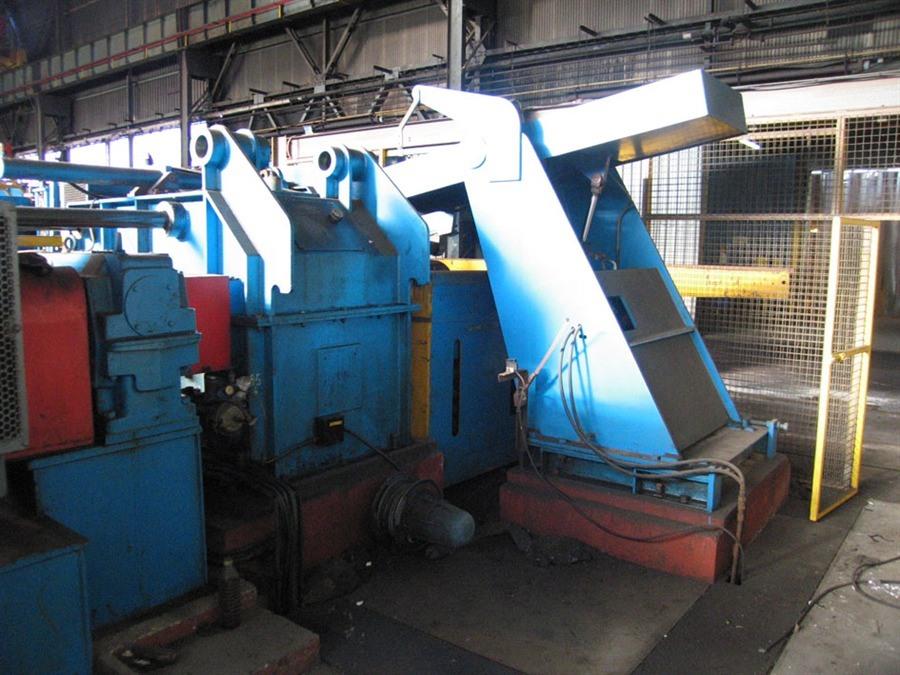

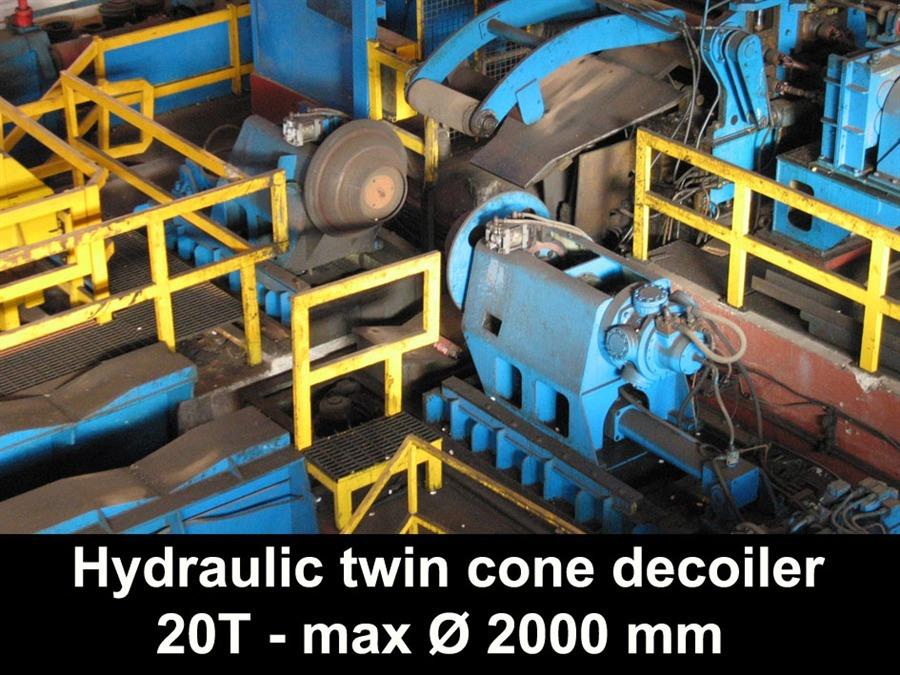

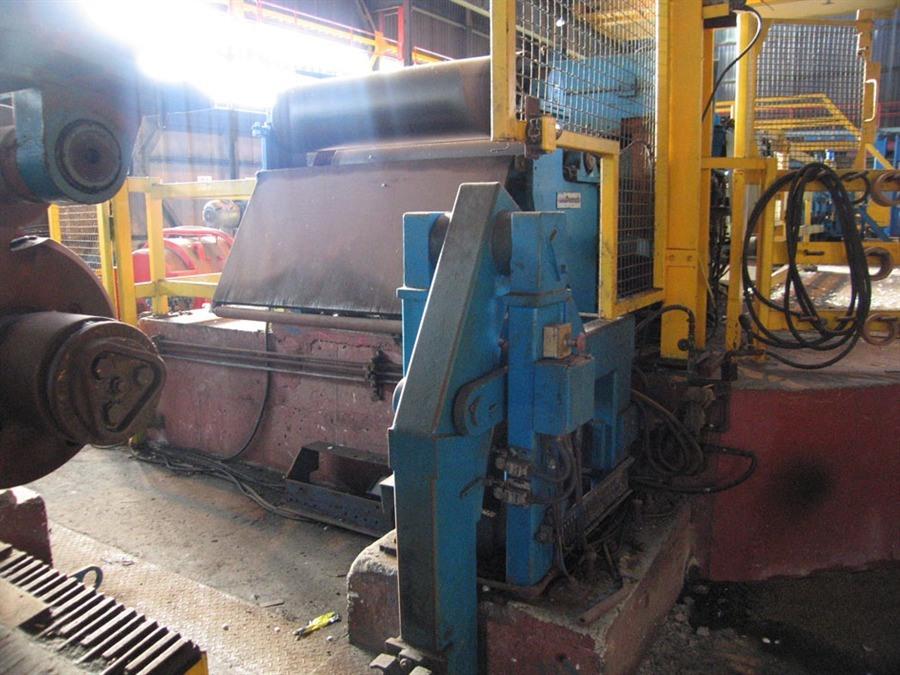

    > Hydraulic twin cone decoiler with peeler and snubber roll
    max coil weight 25 tonnes - dia: 2000 mm max

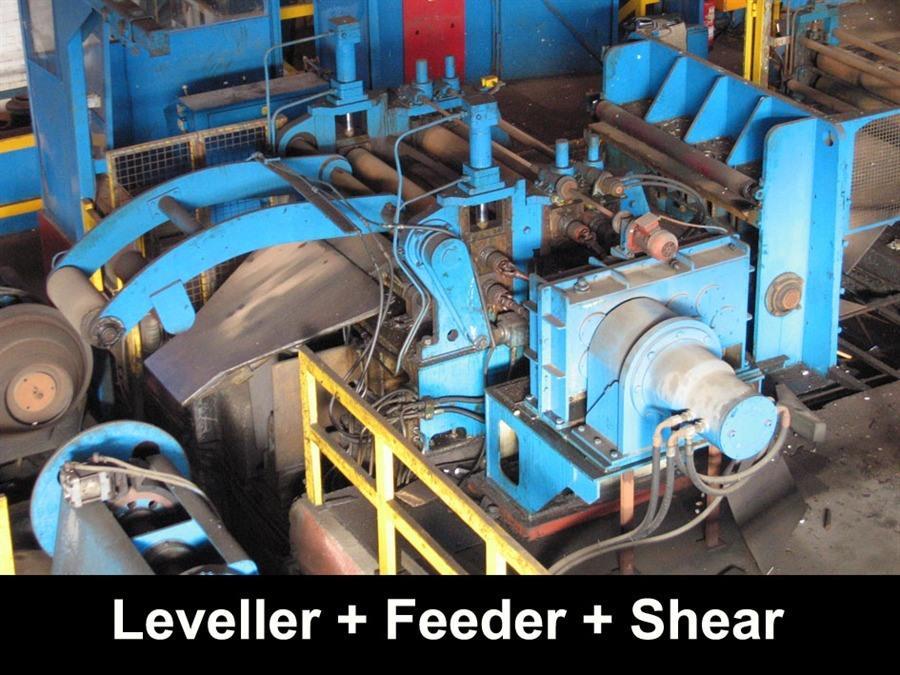

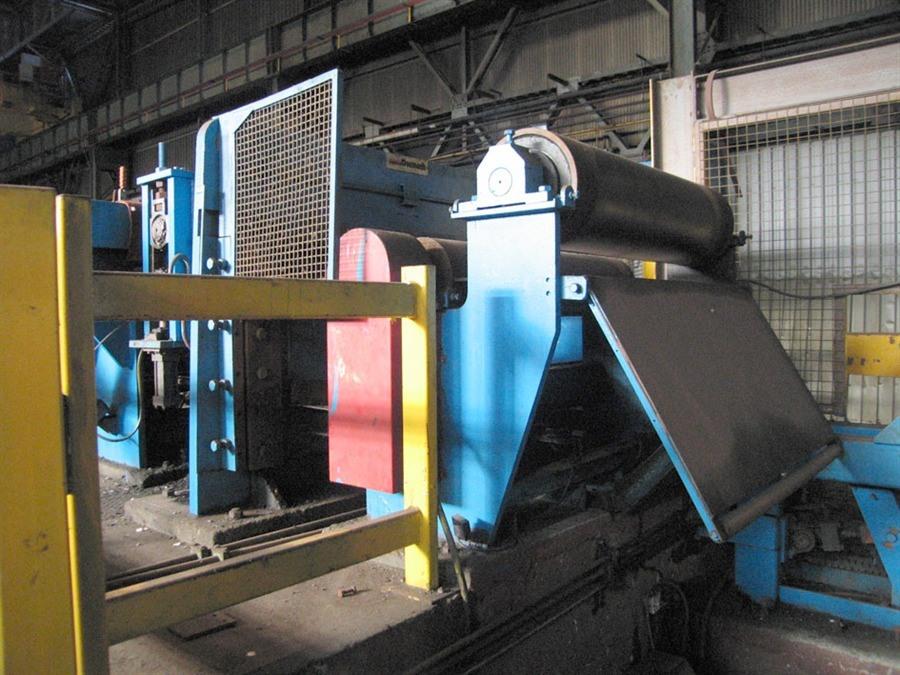

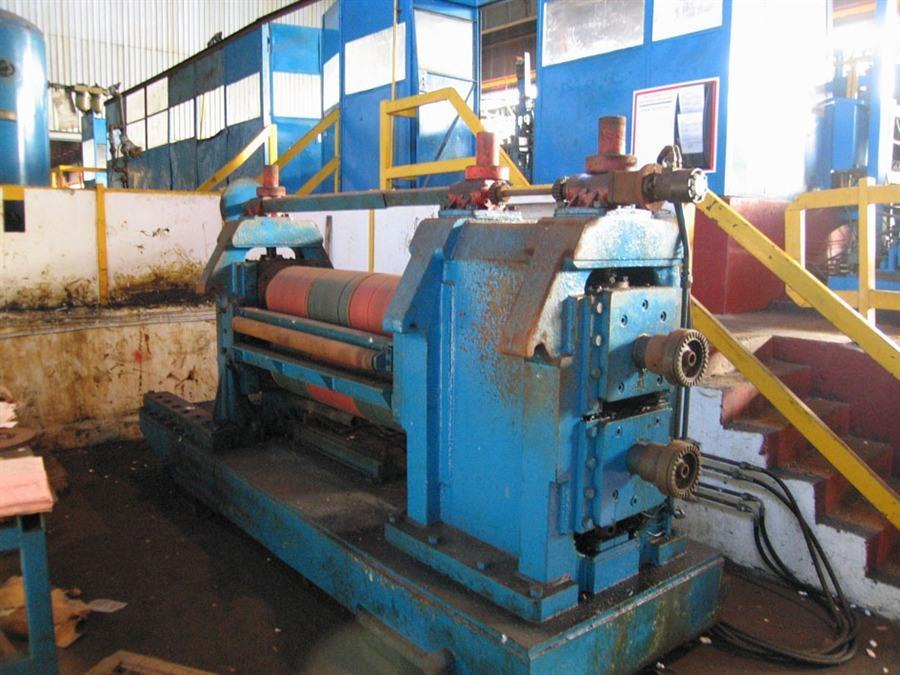

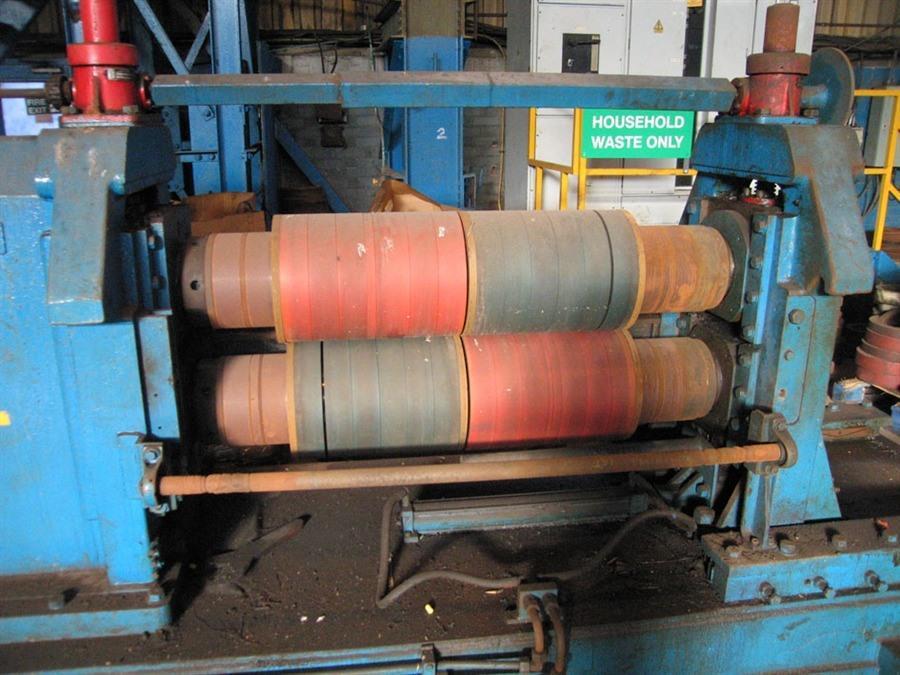

    > O.D. Feed and levelling roll stand (5 rolls Ø 200mm)
    > DAC hydraulic shear (10 mm max)

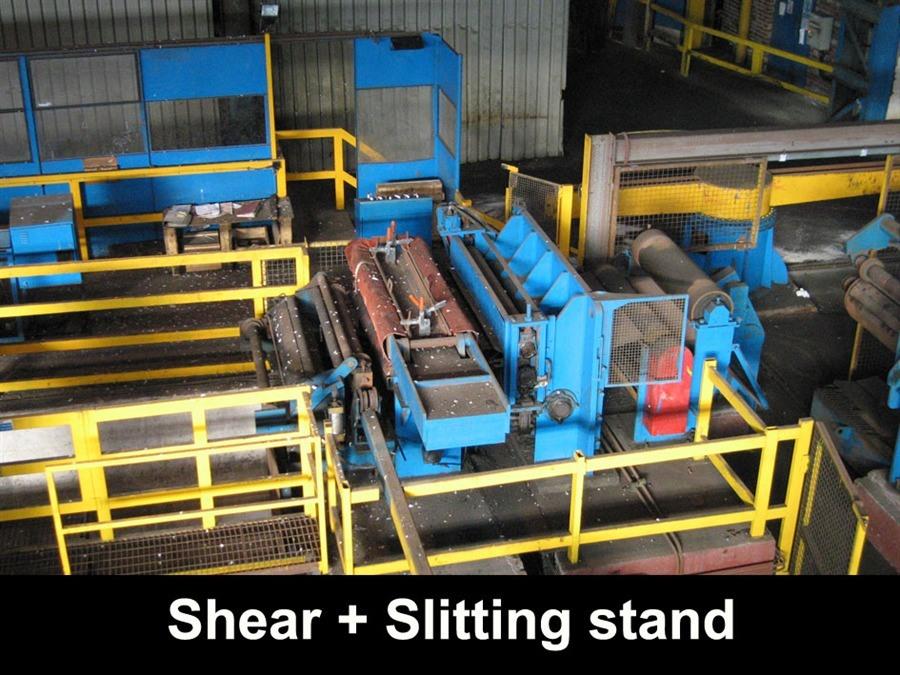

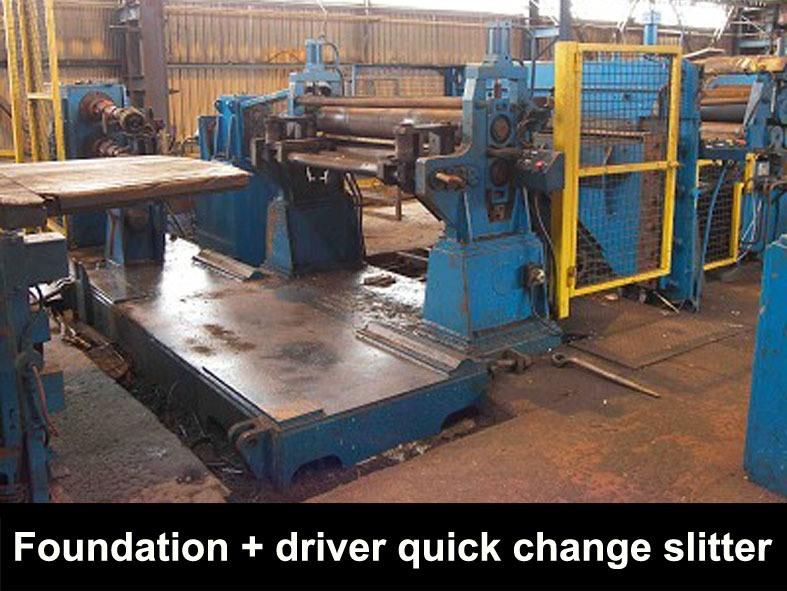

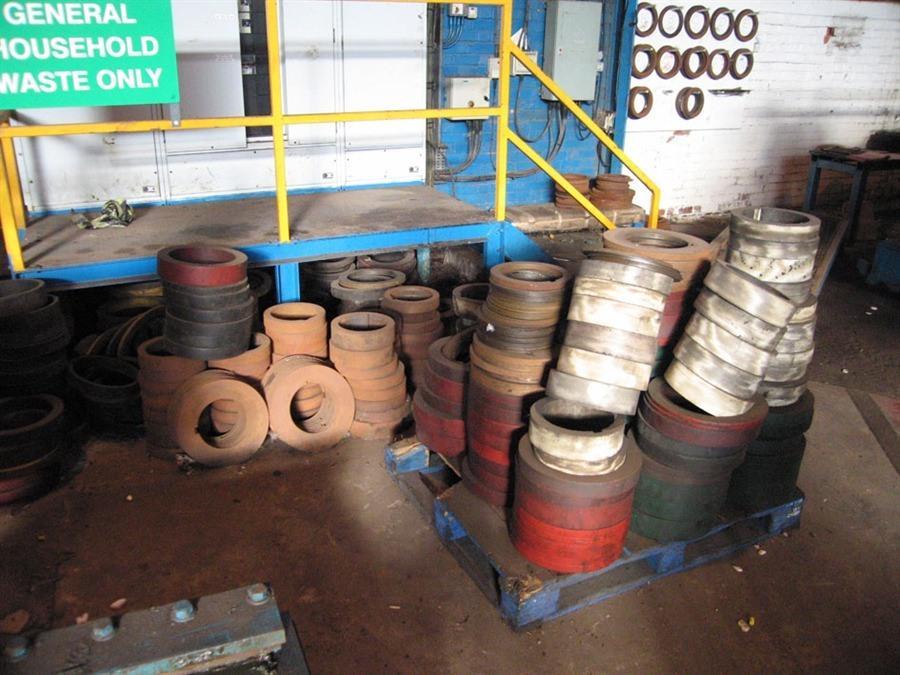

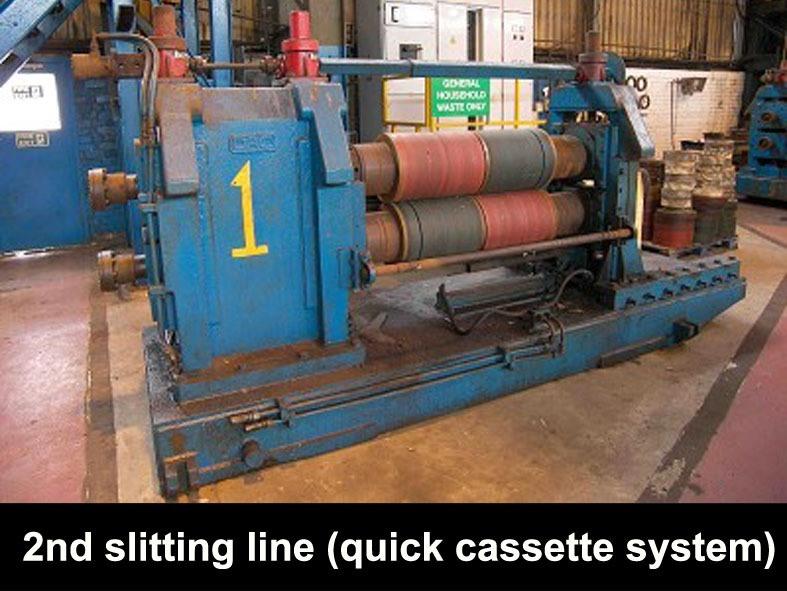

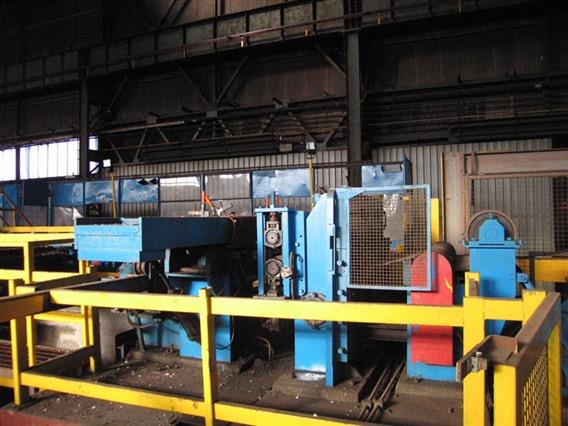

    > Slitting stand with feed rolls and slitter guides, 2 removable slitting stands (quick change) with driven arbors, shimless tooling system for 15 mm to 12.5 mm wide tools
    > Max slitting speed 75m/min
    > 2 scrap balers with twin cone coilers and scrap discharge conveyor (hydraulic opening)

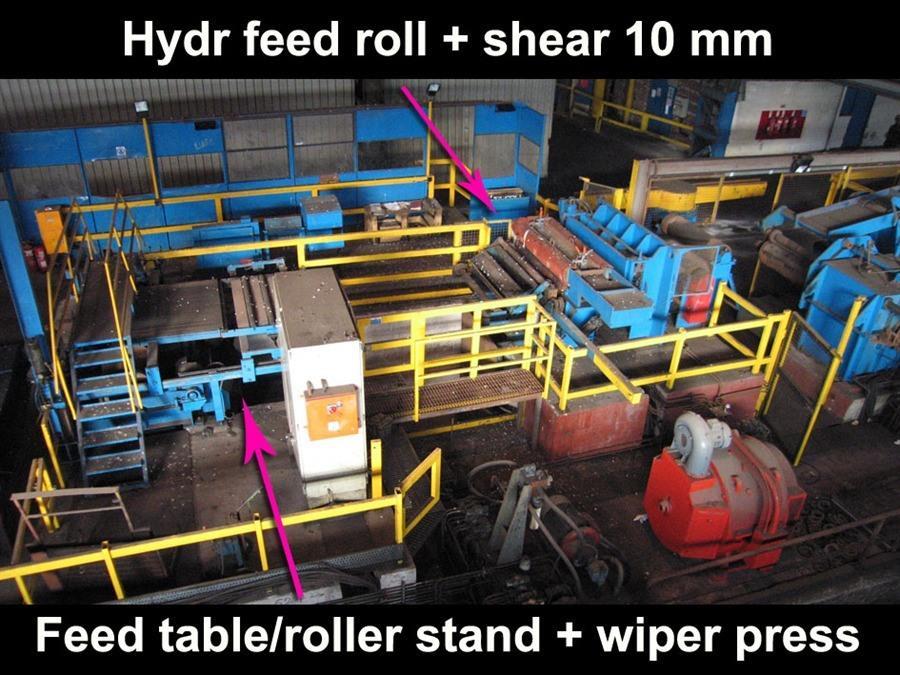

    > Loop pit or feed table, feed roller stand with cutting shear > Hydraulic feed rolls and shear (10 mm)

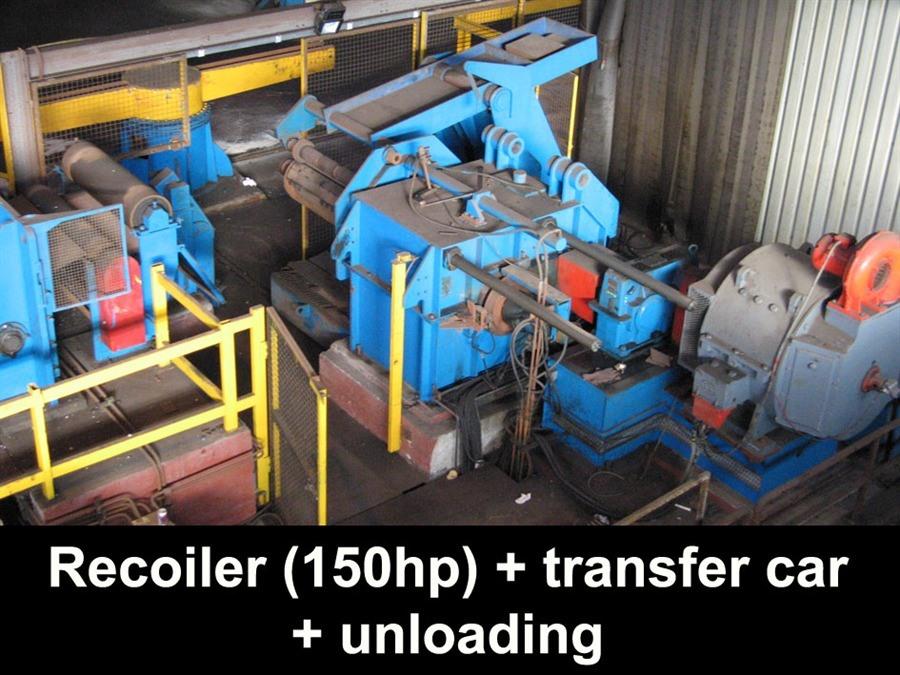

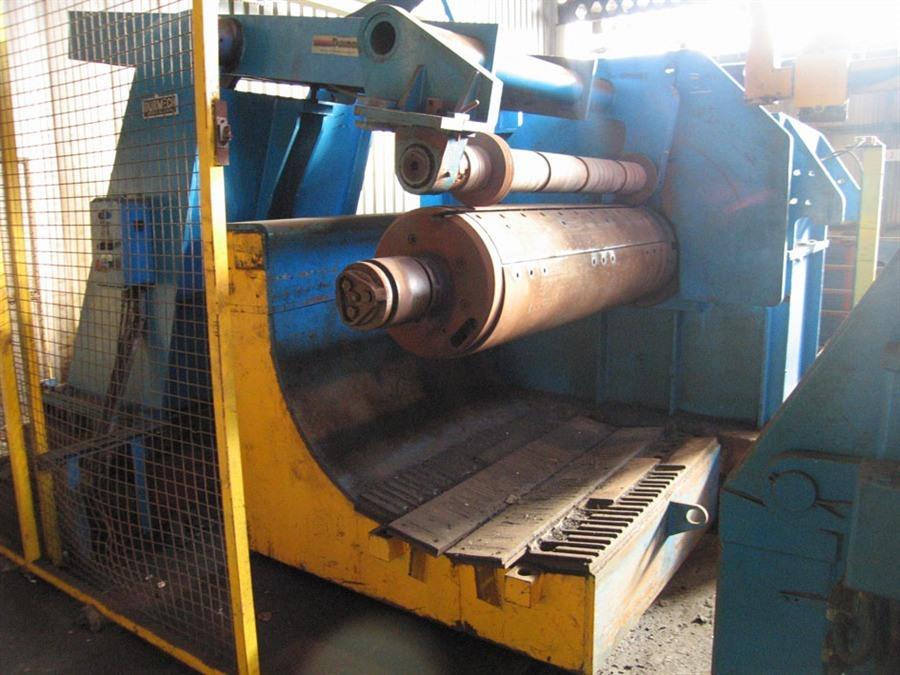

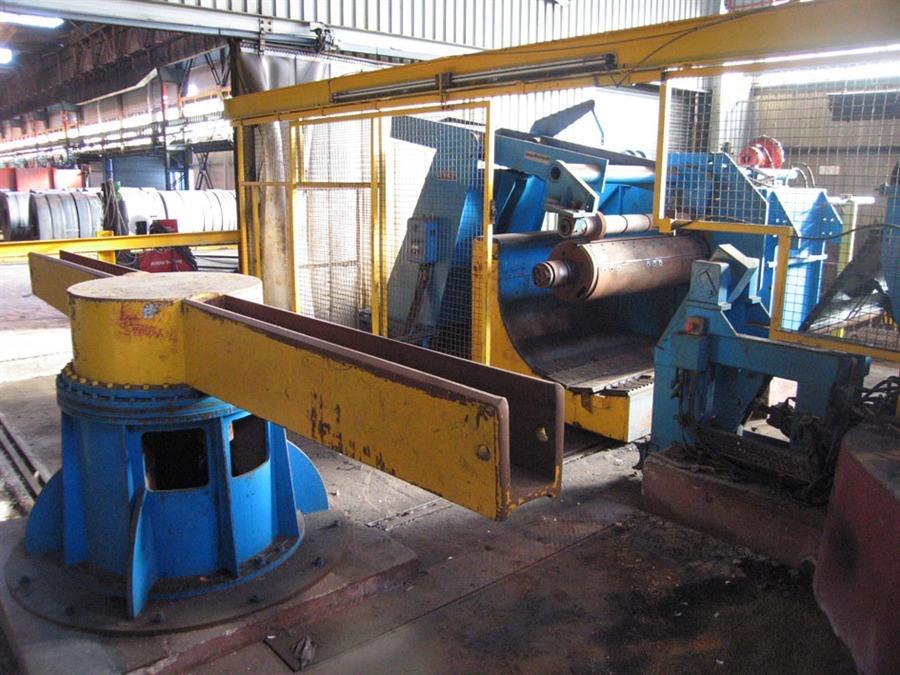

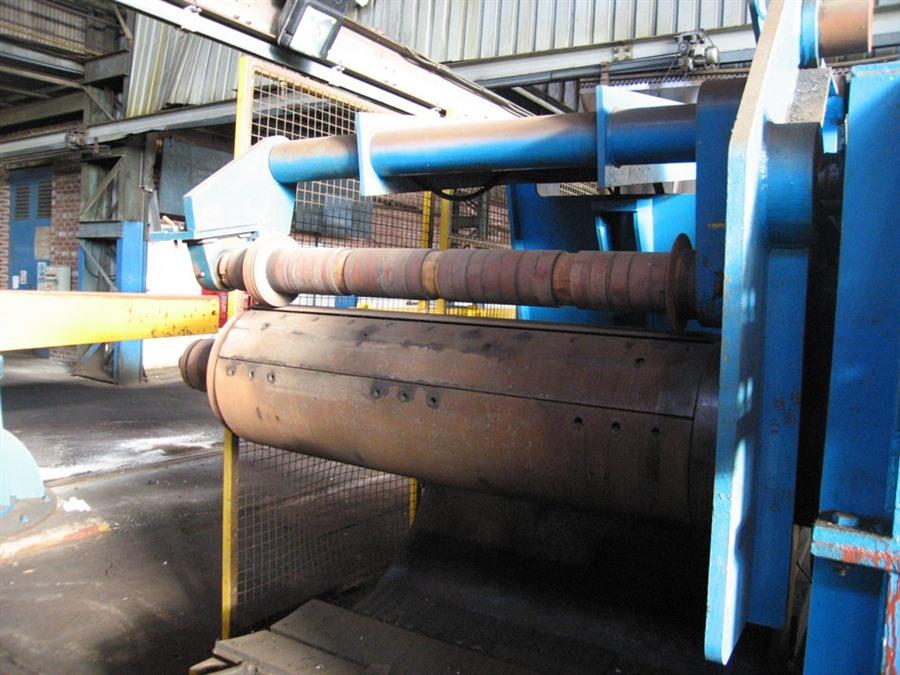

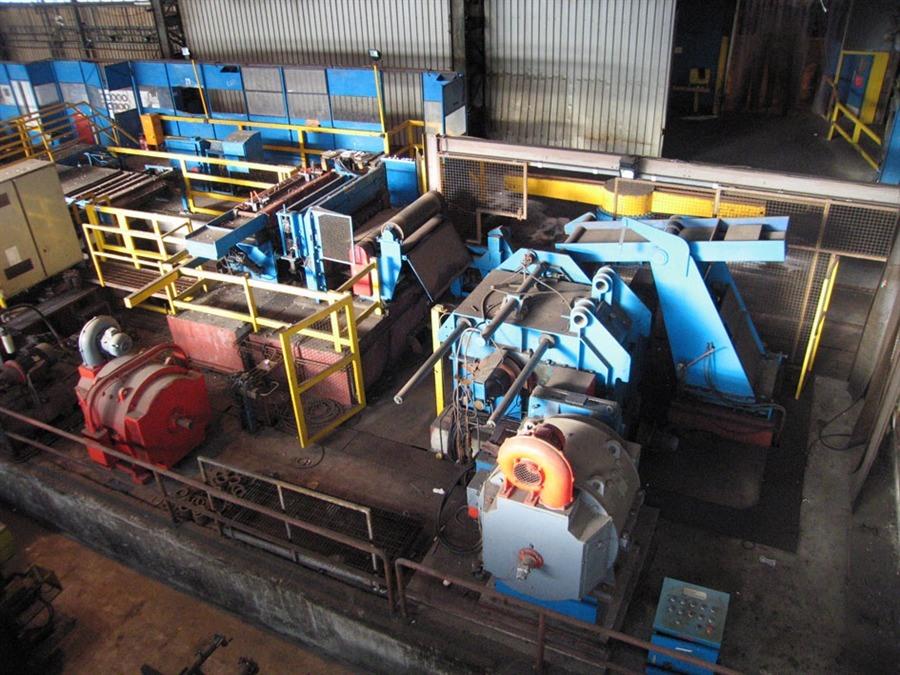

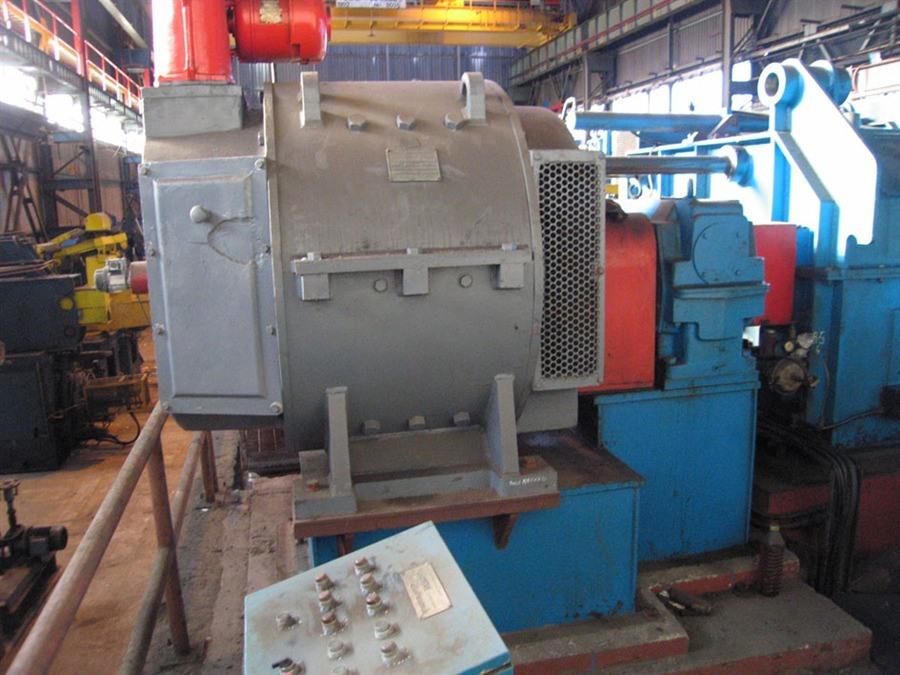

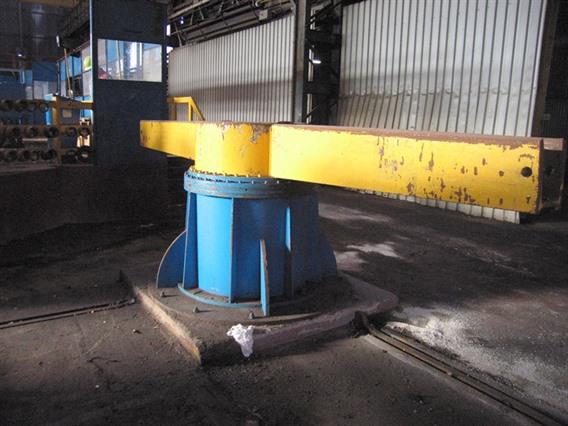

    > Two roll feed and hydraulic positioning table 20" recoiling mandrel with 150 HP drive (and spare motor), push off unit transfer car and unloading Capstan
    > Hydraulic power pack Slithead: 30 kW (400V) Decoiler + Straightener ( hydraulic Driven): 50 kW (400V)


  • Type/Model: Cold strip slitting line
  • Stocknumber: P.14 7604
  • Main category: [P] Shears, Universal Punching machines, Cutting-to-length machines & Slitting lines, Lockformers & Metal band sawing machines
  • Sub category: [P.14] Slittingline
  • Brand: Durmech Heavy Duty

Stocknumber: P.14 7604
