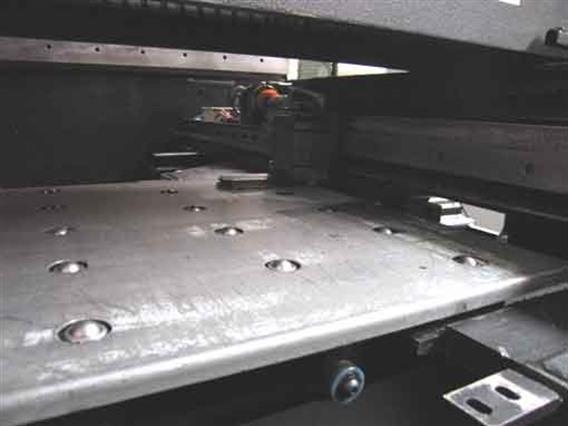

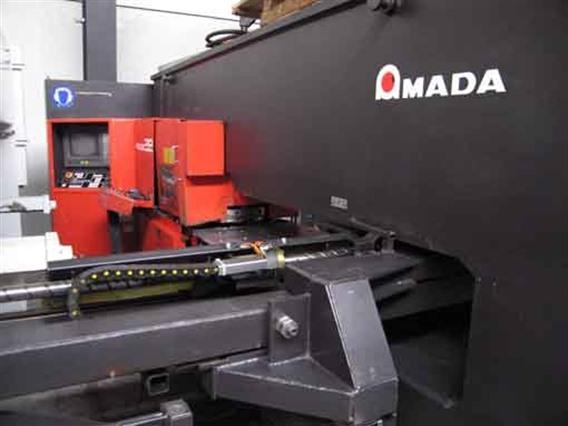

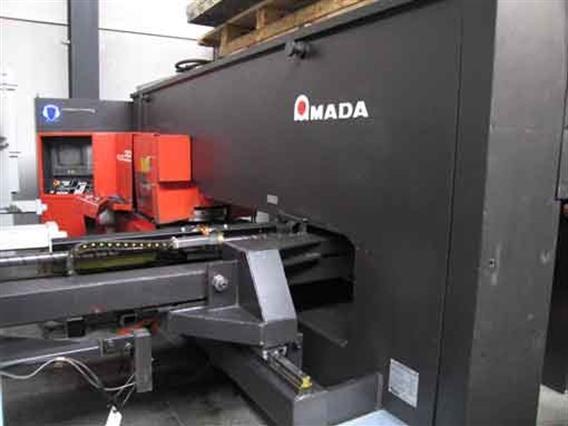

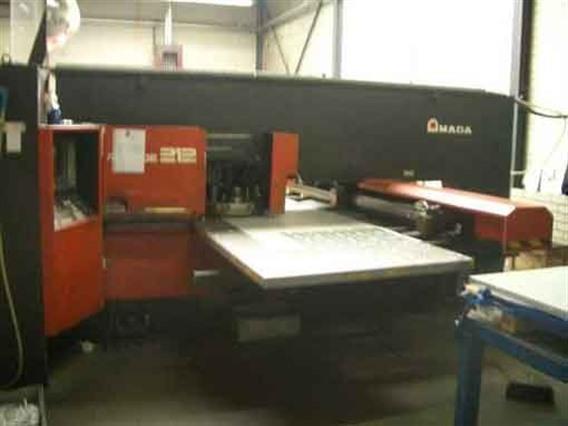

Stamping & punching press thin metalsheet Amada Arcade 212

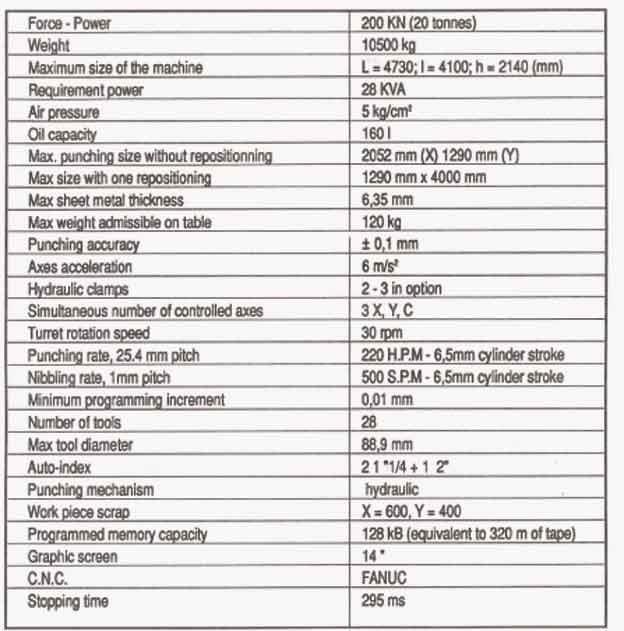

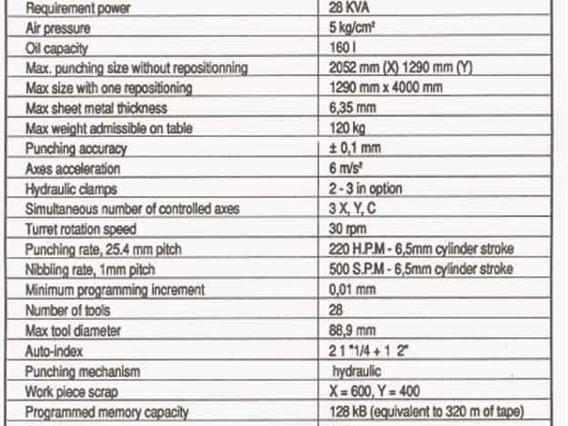

Technical information

Punching pressure20 T
Max sheet thickness by punching + nibbling6,35 mm
Max weight workpiece120 kg
Working range on cross-side (X-axes)1290 mm
Working range along (Y-axes)2030 mm

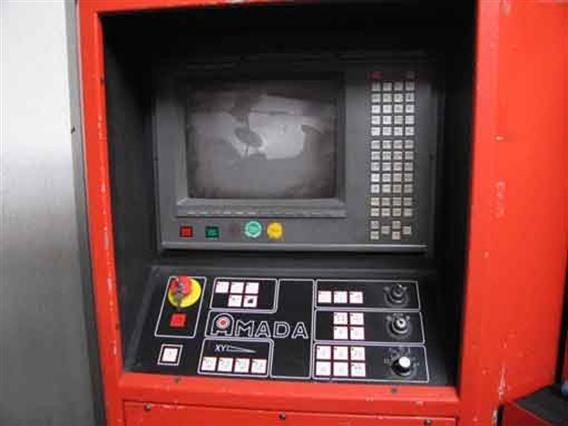

ControlFanuc 16P
Number of toolpositioners28x3xauto index rotation
Power needed28 kVa

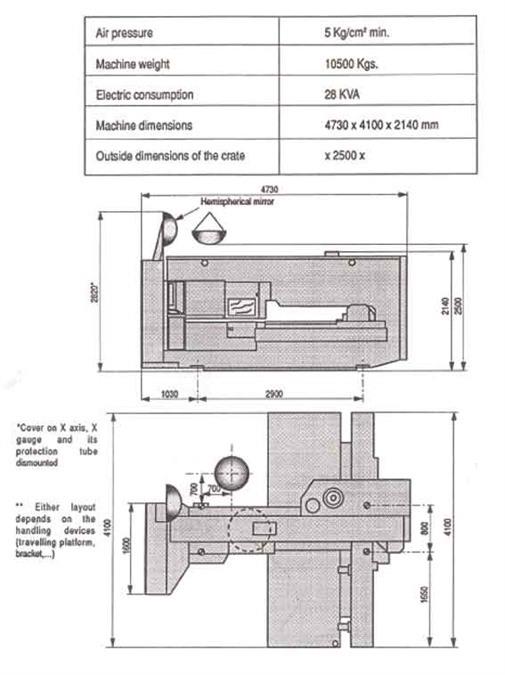

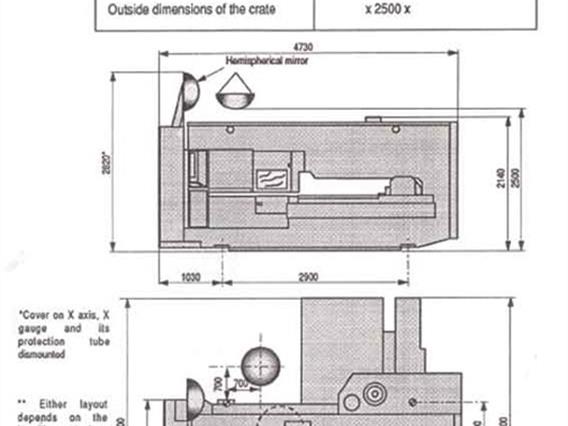

Length4730 mm
Depth4100 mm
Height2140 mm
Weight10 500 kg

Additional info

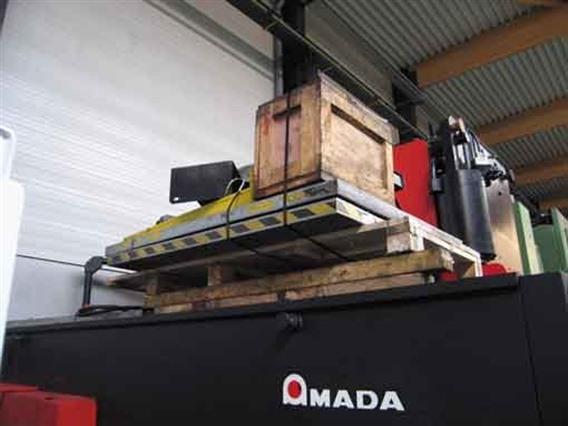

- extra tools - extra: grinding wheel attachment. More information see below.
Type/Model: Arcade 212
Stocknumber: O.19 3320 *06
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.19] Stamping & punching press thin metalsheet
Brand: Amada

Stocknumber: O.19 3320 *06
