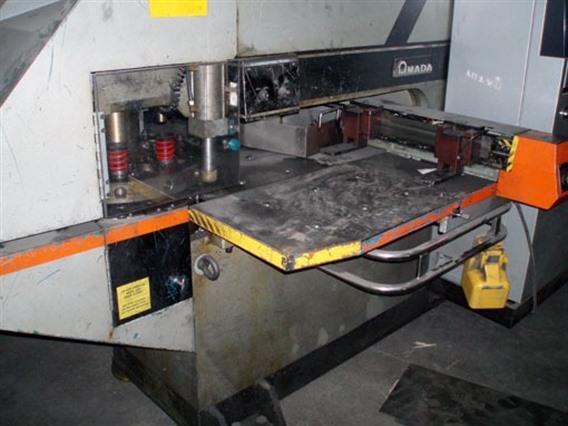

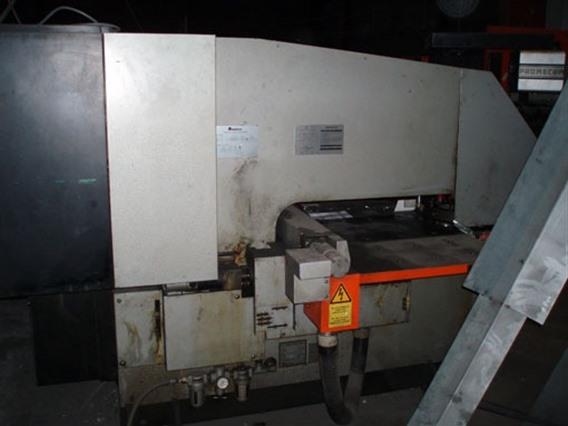

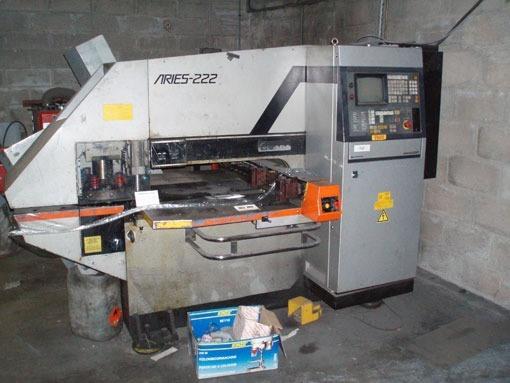

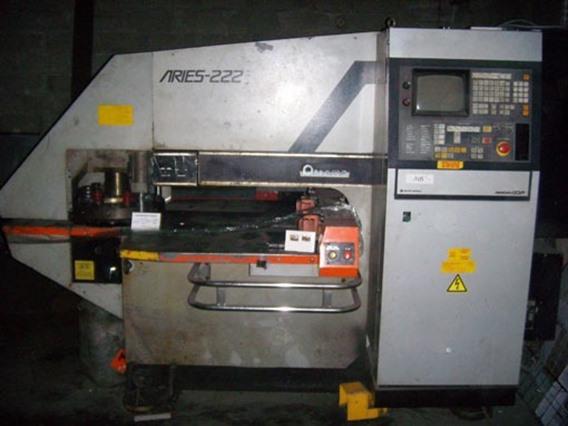

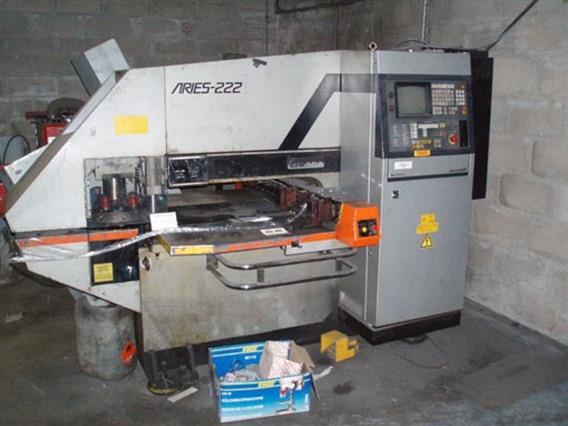

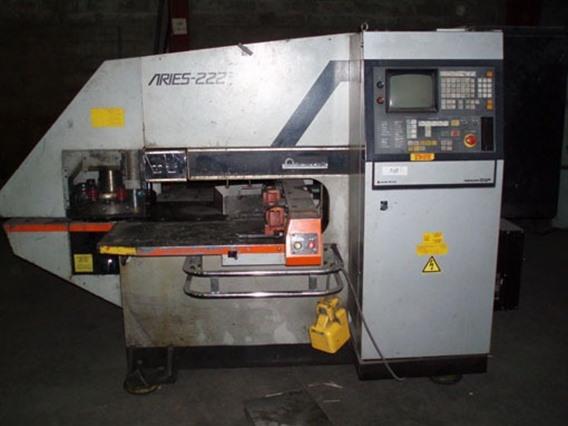

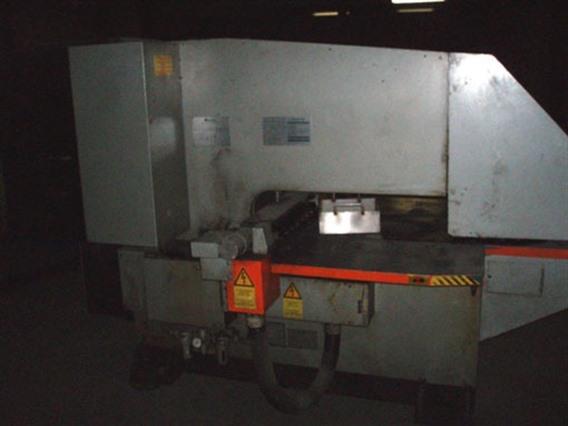

Stamping & punching press thin metalsheet Amada Aries 222 CNC

Technical information

Punching pressure20 Ton
Max sheet thickness by punching + nibbling6 mm
Max weight workpiece25 kg
Working range on cross-side (X-axes)600 mm
Working range along (Y-axes)600 mm
Positioning speed along X-axes36m/min
Positioning speed along Y-axes36m/min
ControlAmada OC3P
ToolchangerYes
Number of toolpositioners10 positions
Length2850 mm
Depth1660 mm
Height1750 mm
Weight4100 kg

Additional info

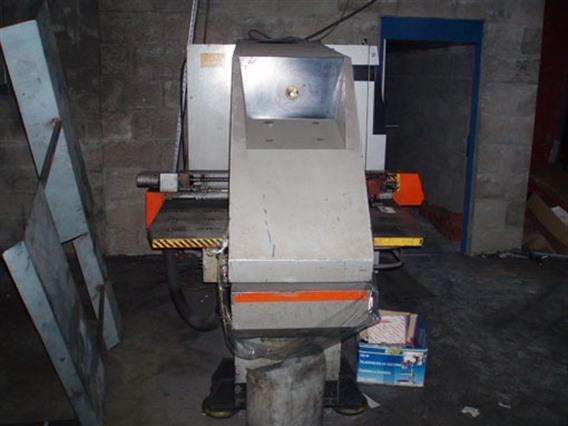

Axis stroke: 600 x 600 mm with 1 repositioning: 600 x 1200 mm with 1 repositioning and 1 reversal: 1200 x 1200 mm Max Sheetsize: 1200 x 600 mm Punching speed: 150 / min Nibbling speed: 250 / min Turret speed: 10 rpm Stroke: 32 mm Max Punch Dia: 88.9mm +Grinding unit
Type/Model: Aries 222 CNC
Stocknumber: O.19 4442
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.19] Stamping & punching press thin metalsheet
Brand: Amada

Stocknumber: O.19 4442
