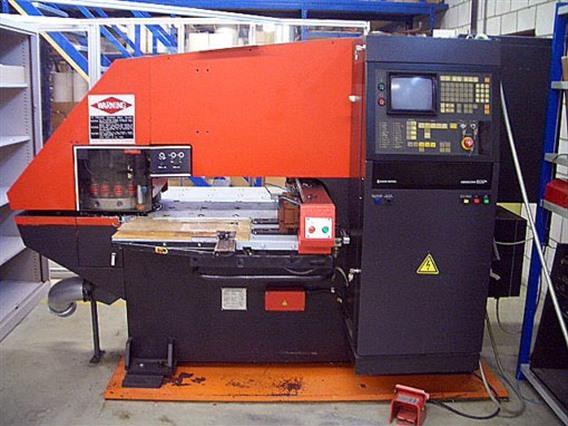

Stock number: O.19 3588 *09

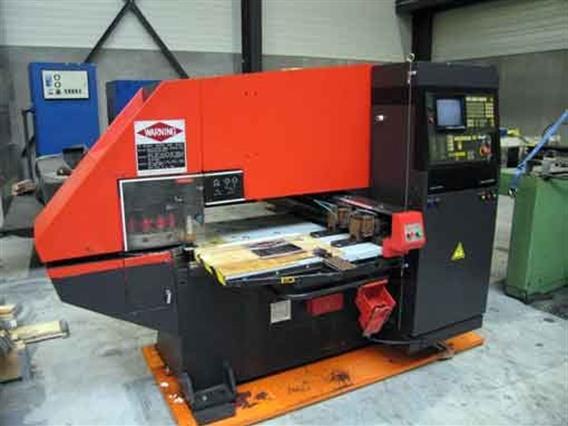

https://www.aptint.com/en/used-second-hand-machinery/stamping-punching-press-thin-metalsheet/amada-aries-222_3804
1 / 21
Sold

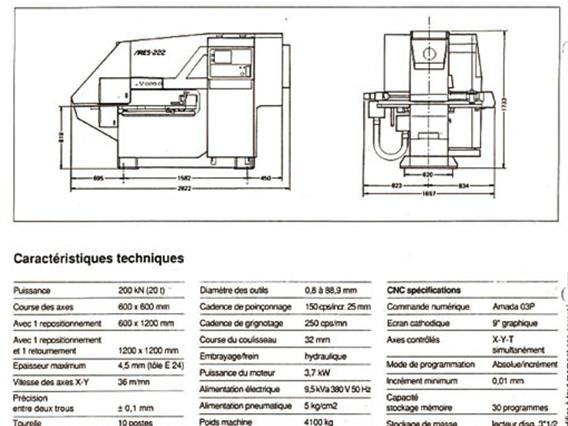

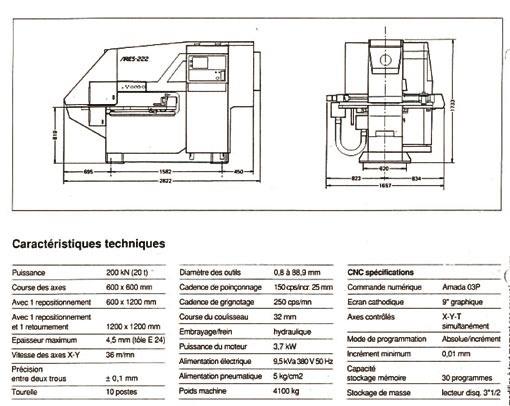

| Punching pressure | 20 T |
|---|---|
| Max sheet thickness by punching + nibbling | 6 mm |
| Max punching dia | 88.9 mm |
| Max weight workpiece | 25 kg |
| Working range on cross-side (X-axes) | 600 mm |
| Working range along (Y-axes) | 600 mm |
| Positioning speed along X-axes | 36m/min |
| Positioning speed along Y-axes | 36m/min |

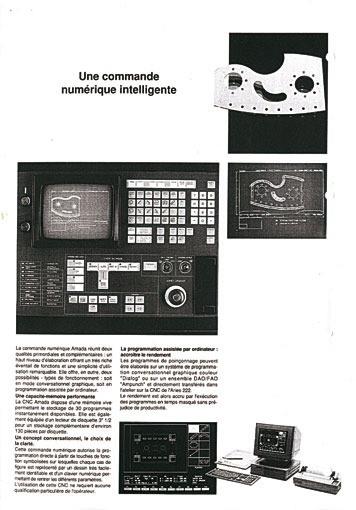

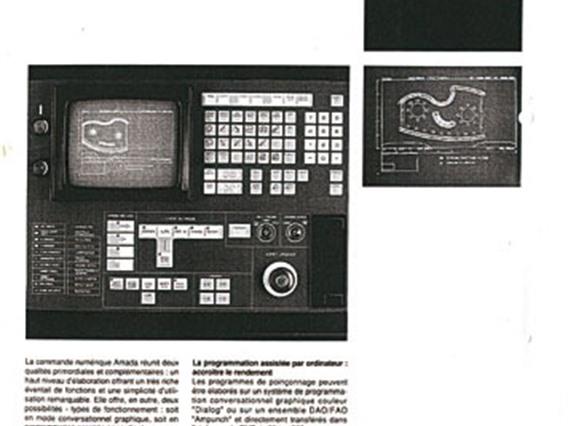

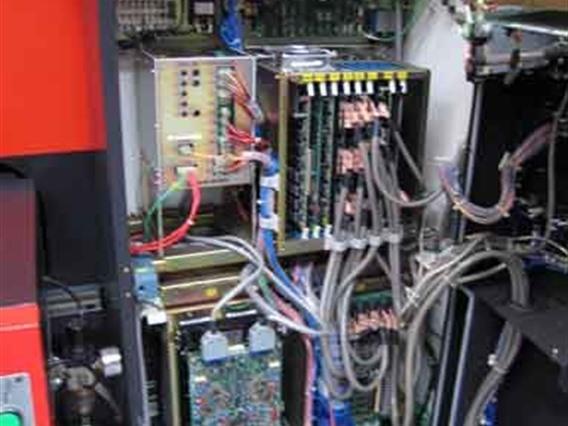

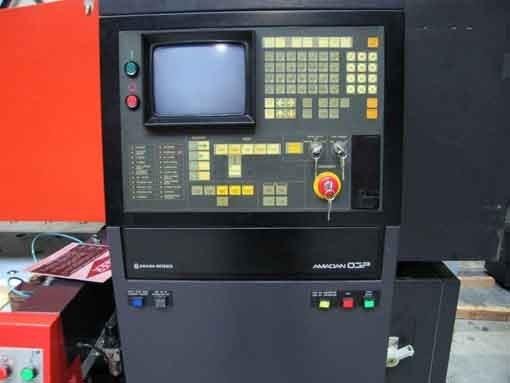

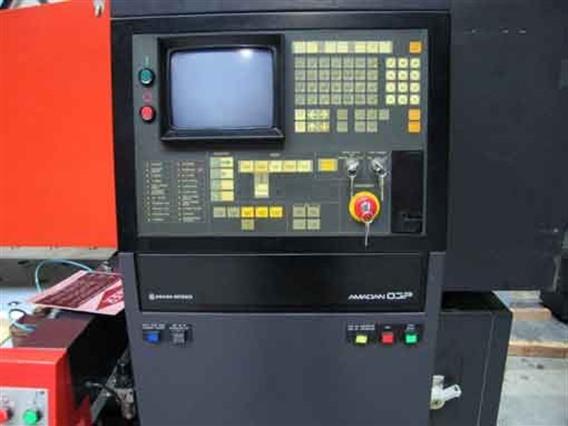

| Control | Amada OC3P |
| Toolchanger | Yes |

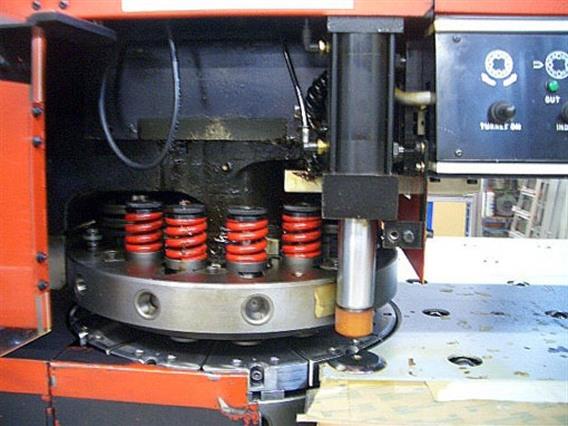

| Number of toolpositioners | 10 stations |
| Length | 2850 mm |
| Depth | 1660 mm |
| Height | 1750 mm |
| Weight | 4100 kg |
Description

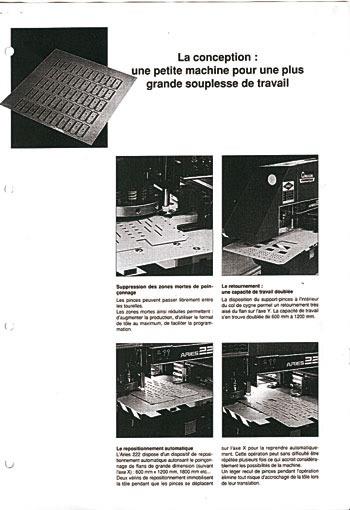

Axis stroke: 600 x 600 mm
with 1 repositioning: 600 x 1200 mm
with 1 repositiong and 1 reversal: 1200 x 1200 mm
Max Sheetsize: 1200 x 600 mm
Punching speed: 150 / min
Nibbling speed: 250 / min
Turret speed: 10 rpm
Stroke: 32 mm
Max Punch Dia: 88.9mm

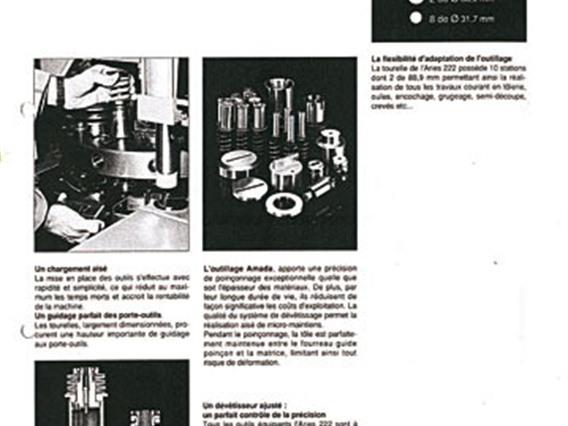

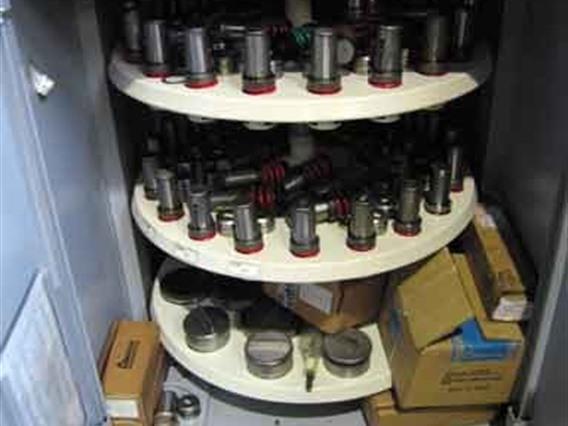

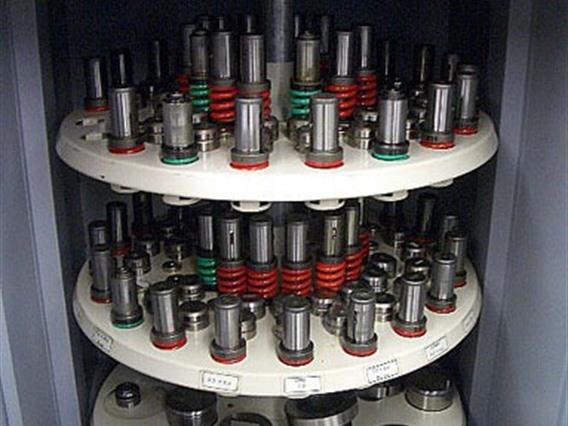

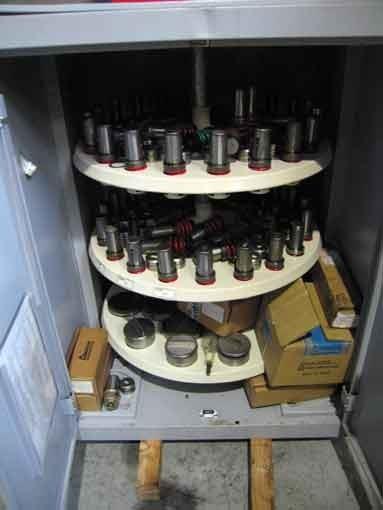

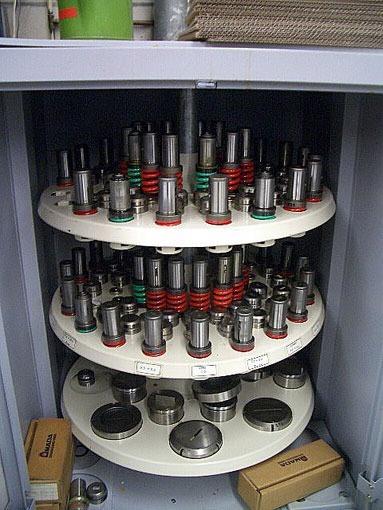

Including a lot of tools

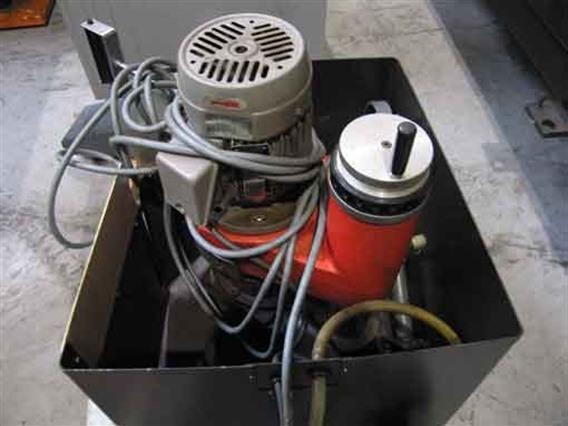

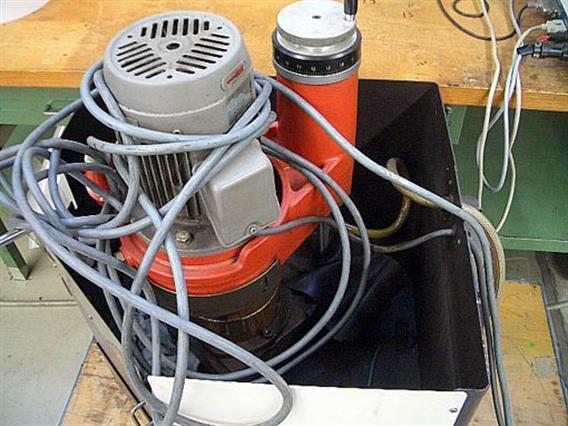

+Grinding unit
