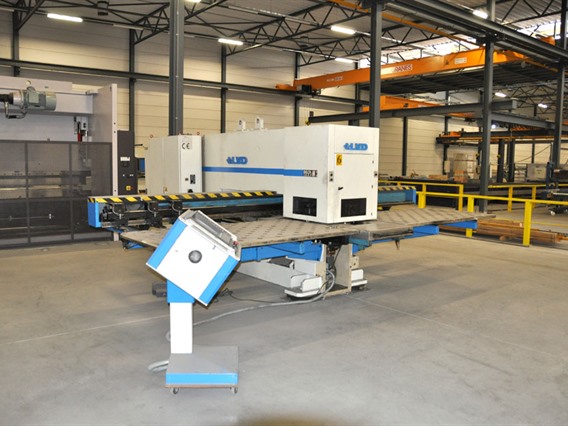

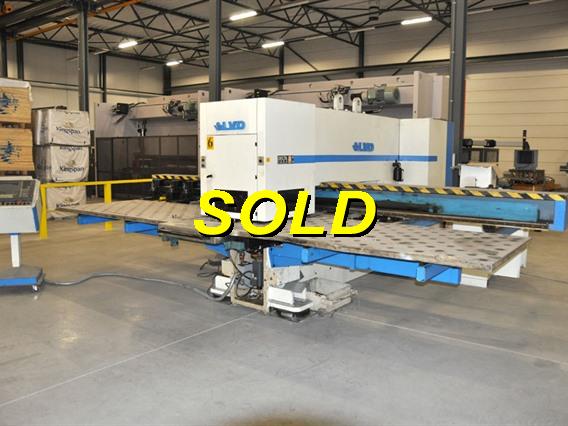

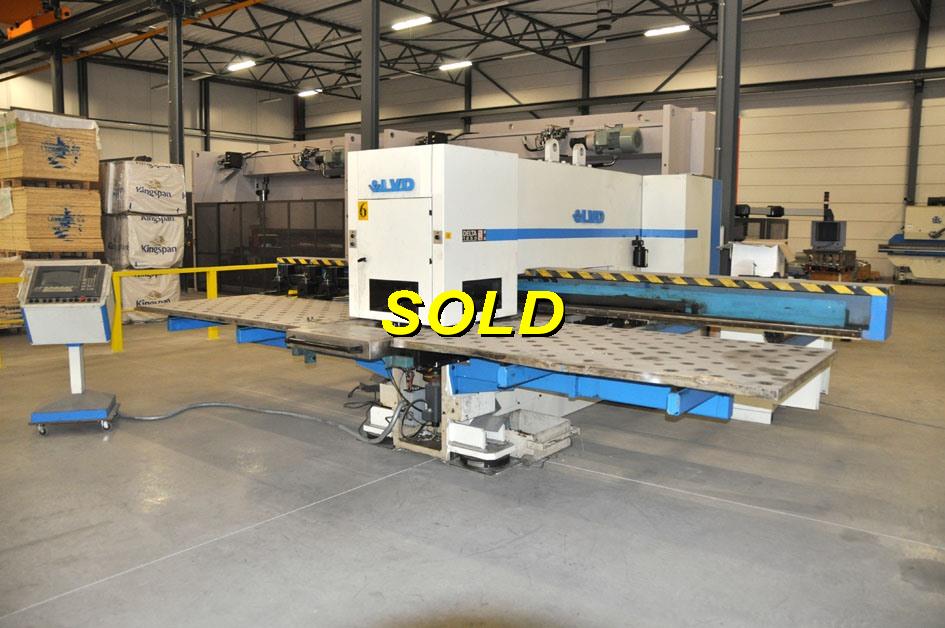

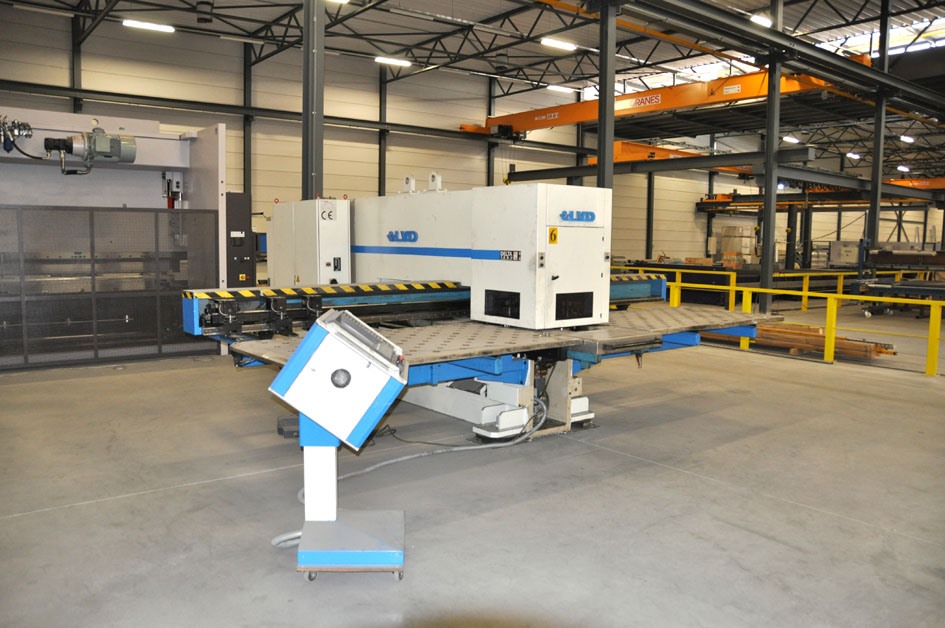

Stamping & punching press thin metalsheet LVD Delta 1250 LB-TK

Technical information

Punching pressure20 ton
Max sheet thickness by punching + nibbling6,4 mm
Max weight workpiece150 kg
Working range on cross-side (X-axes)2525 mm
Working range along (Y-axes)1275 mm
Positioning speed along X-axes80 m/sec
Positioning speed along Y-axes75 m/sec
Toolchangerthick turret
Number of toolpositioners22 tools
Power needed13 kW
Length5100 mm
Depth5475 mm
Height2340 mm
Weight17,8 ton

Additional info

with repositionning 5050 x 2550 mm
Long Beam
3 hydraulic CNC controlled plateclamps
Type/Model: Delta 1250 LB-TK
Stocknumber: O.19 10546
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.19] Stamping & punching press thin metalsheet
Brand: LVD

Stocknumber: O.19 10546

Sold
Sold
