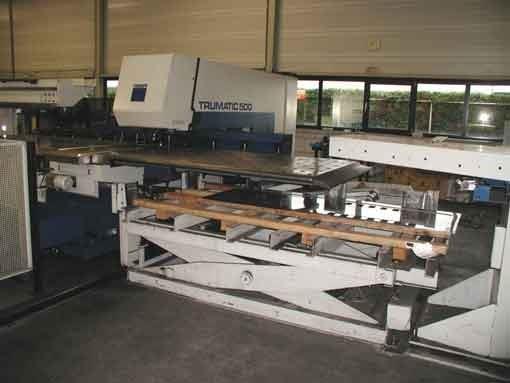

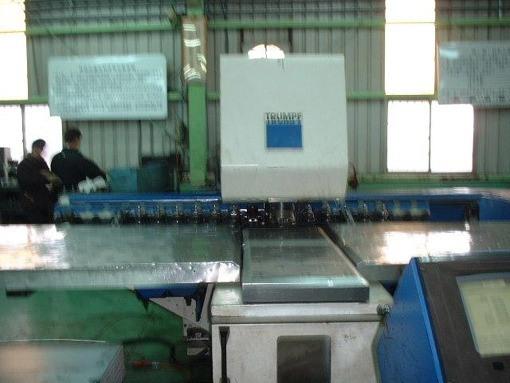

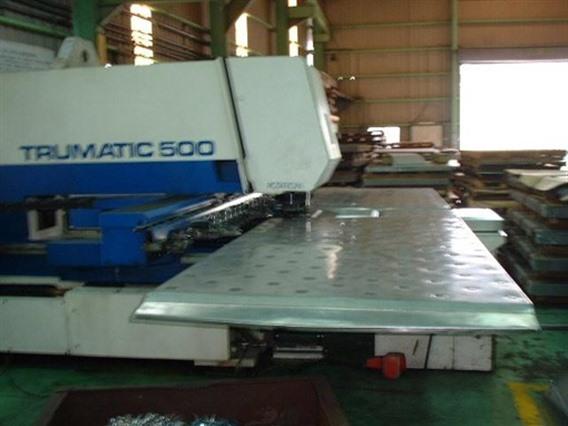

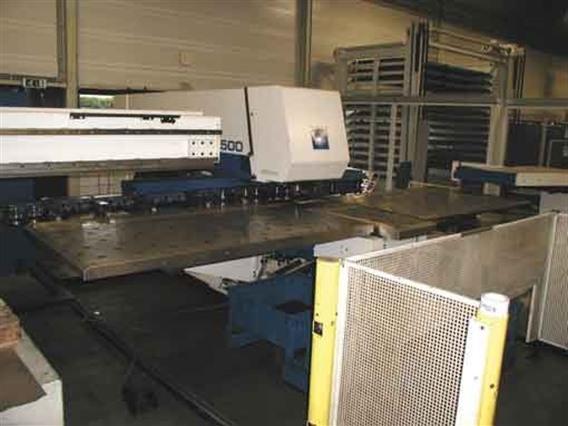

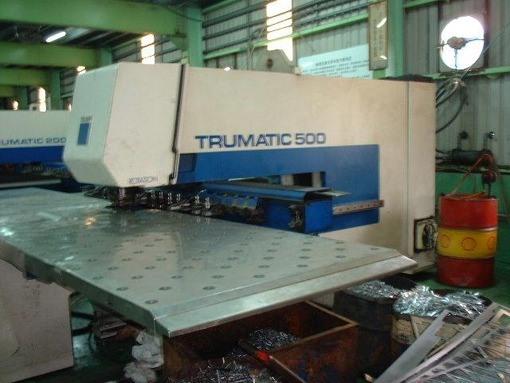

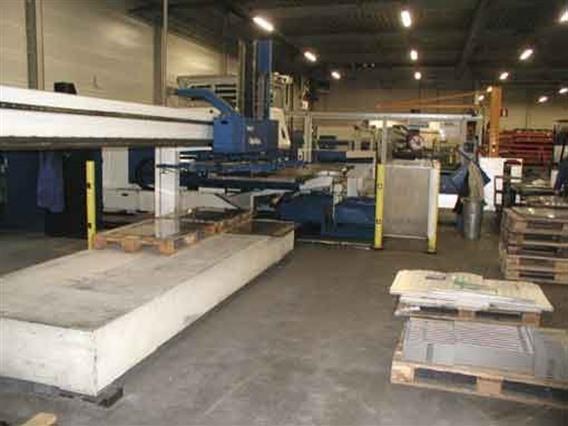

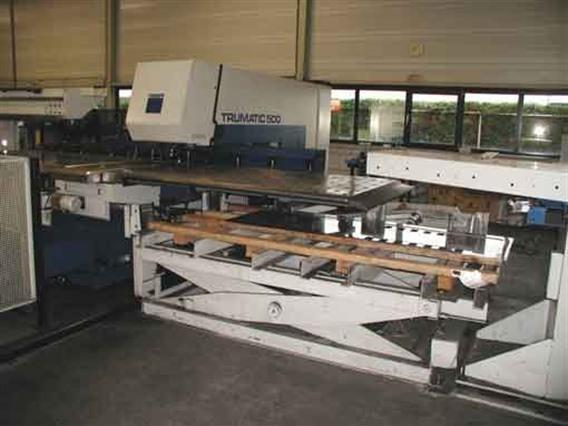

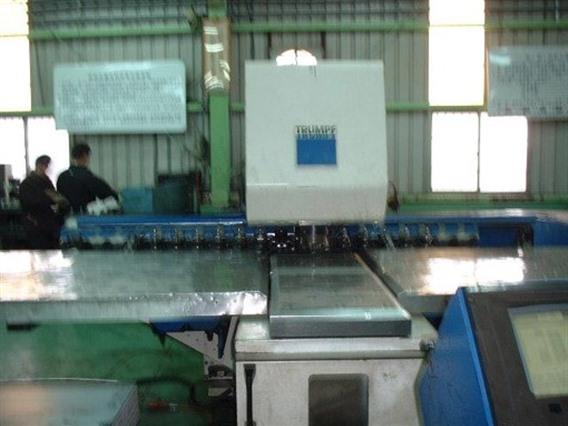

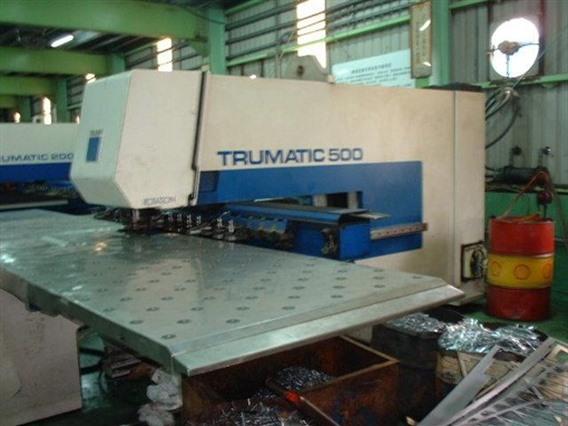

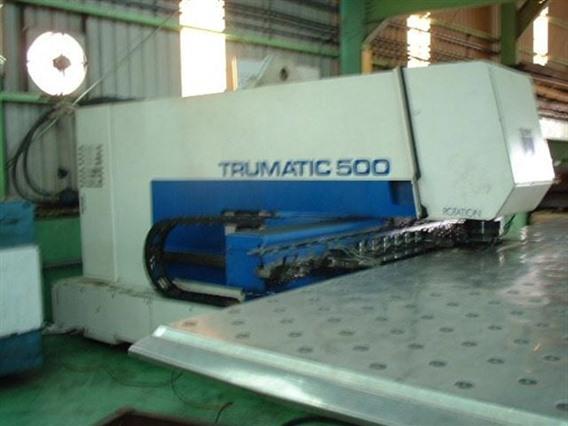

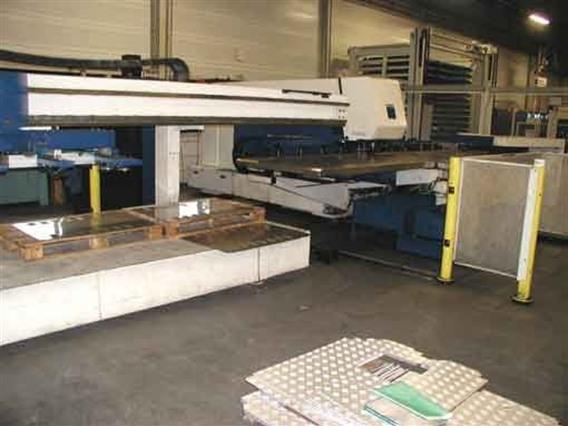

Stamping & punching press thin metalsheet Trumpf trumatic 500 R - 1300

Technical information

Punching pressure250
Max sheet thickness by punching + nibbling8 mm
Max punching dia76,2 mm
Max weight workpiece150 kg
Working range on cross-side (X-axes)2540 mm
Working range along (Y-axes)1270 mm
Positioning speed along X-axes90 m/min*
Positioning speed along Y-axes60 m/min*

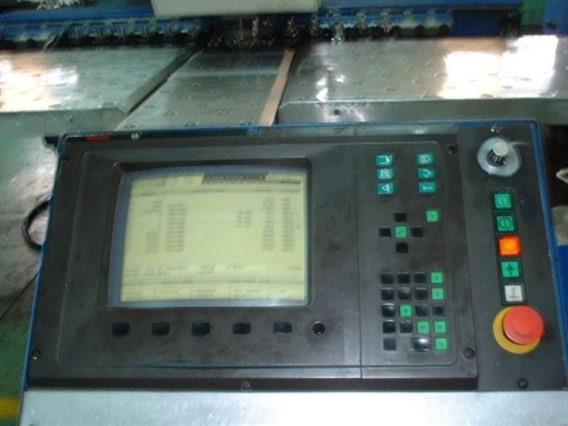

ControlBosch CNC
Number of toolpositioners18
Length14000 mm
Depth7890 mm

Additional info

Middenformaat -- rotatie-as 360° continue *Simultaansnelheid 108 m/min Uitlading 1300 mm Max sl/min op 25 bewegingen : 300 Max sl/min op omtrek : 600 Rechtlijnige tafelsnelheid 109220 mm/min Lineare gereedschapwisselaar op X -as rail Programeerbare gereedschaprotatie Multitool en hoge snelheidindicatie (5) toolcartridges 7 terugtrekbare klemmen + sheetmaster Lichtbeveiliging Machine onderhouden met onderhoudskontrakt
Type/Model: 500 R - 1300
Stocknumber: O.19 2335 *05
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.19] Stamping & punching press thin metalsheet
Brand: Trumpf trumatic

Stocknumber: O.19 2335 *05
