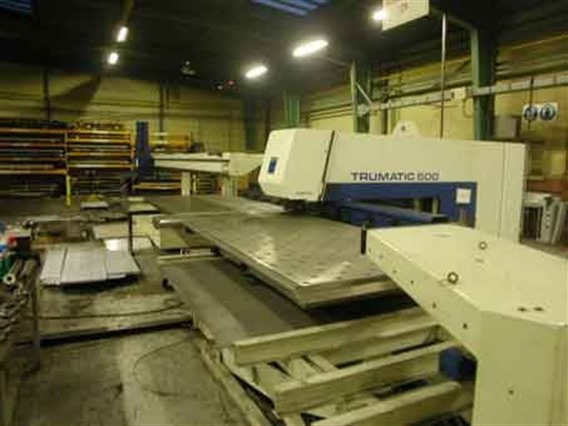

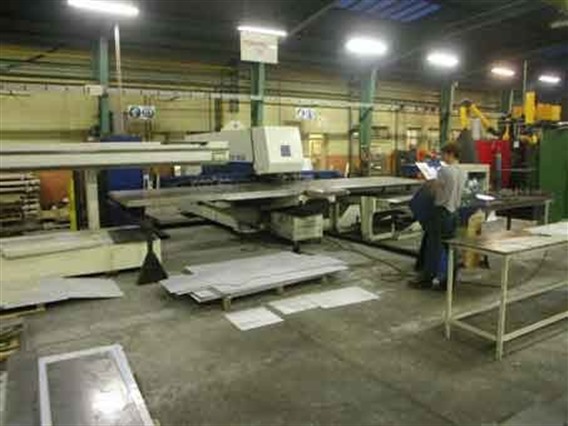

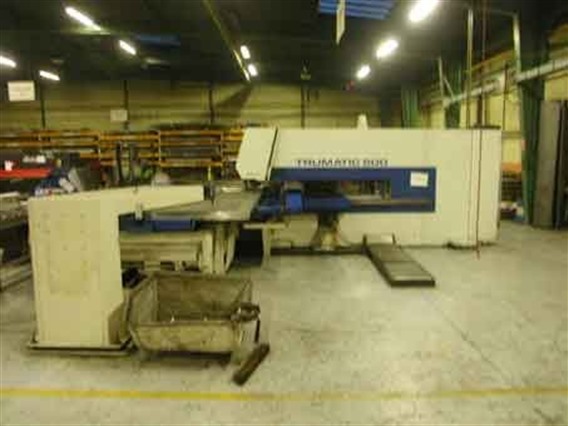

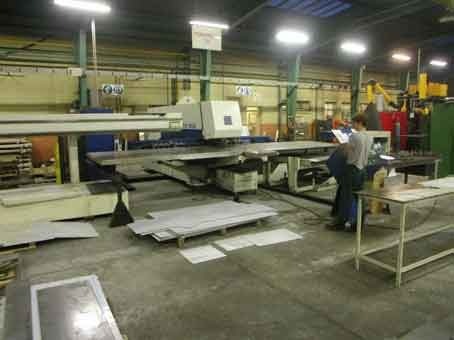

Stamping & punching press thin metalsheet Trumph 500 R-1600 tru

Technical information

Punching pressure220 kN
Max sheet thickness by punching + nibbling8 mm
Max punching dia76,2 mm
Max weight workpiece230 kg
Working range on cross-side (X-axes)3085 mm
Working range along (Y-axes)1650 mm
Positioning speed along X-axes90 m/min
Positioning speed along Y-axes60 m/min

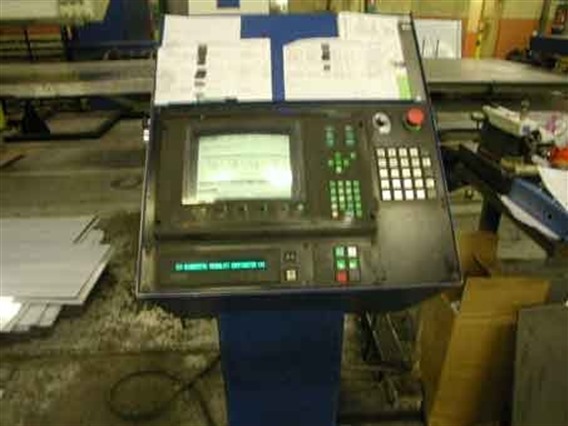

ControlTrumag.CC220S

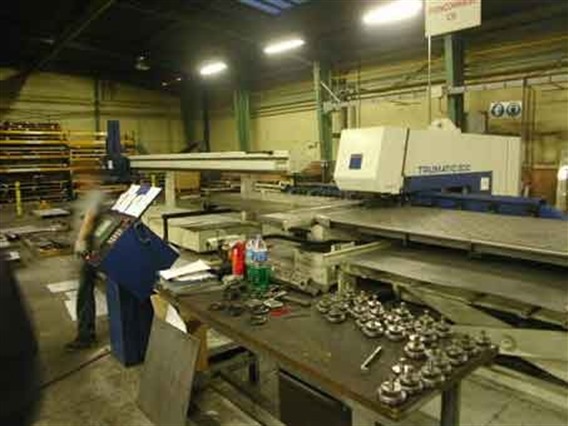

ToolchangerAutomatic
Number of toolpositioners18
Changingtime1,5 -- 5 sec

Additional info

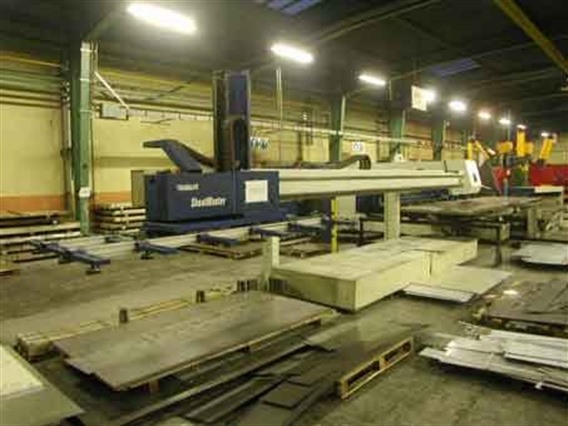

First time use : 1996 -- Rotation axle 360° continue -- Motor axes X,Y & C without maintenance -- punching axle : hydraulic + TRUMALIFT sheetmaster : automatical loading & unloading + TRUMAGRIP 500 :
Type/Model: 500 R-1600 tru
Stocknumber: O.19 1003 *03
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.19] Stamping & punching press thin metalsheet
Brand: Trumph

Stocknumber: O.19 1003 *03
