Vertical machining centers Breton Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC
Technical information
- X-axis800 mm
- Y-axis900 mm
- Z-axis600 mm
- Table dimensionsdia 700 mm
- Max weight on the table700 kg
- Admission in spindle (ISO)HSK-63/KM63
- Power on the spindle40 kW
- Drilling-capacityyes
- Tapping-capacityyes
- Control Siemens 840D Solution Line
- Number of axes5
- Toolchangeryes
- Number of toolholders150 positions
- Number of rotations18 000 rpm
- Length4655 mm
- Depth5890 mm
- Height3415 mm
- Weight17 ton
- Cooling-systemyes
Additional info
Type: Ultrix 800 RT

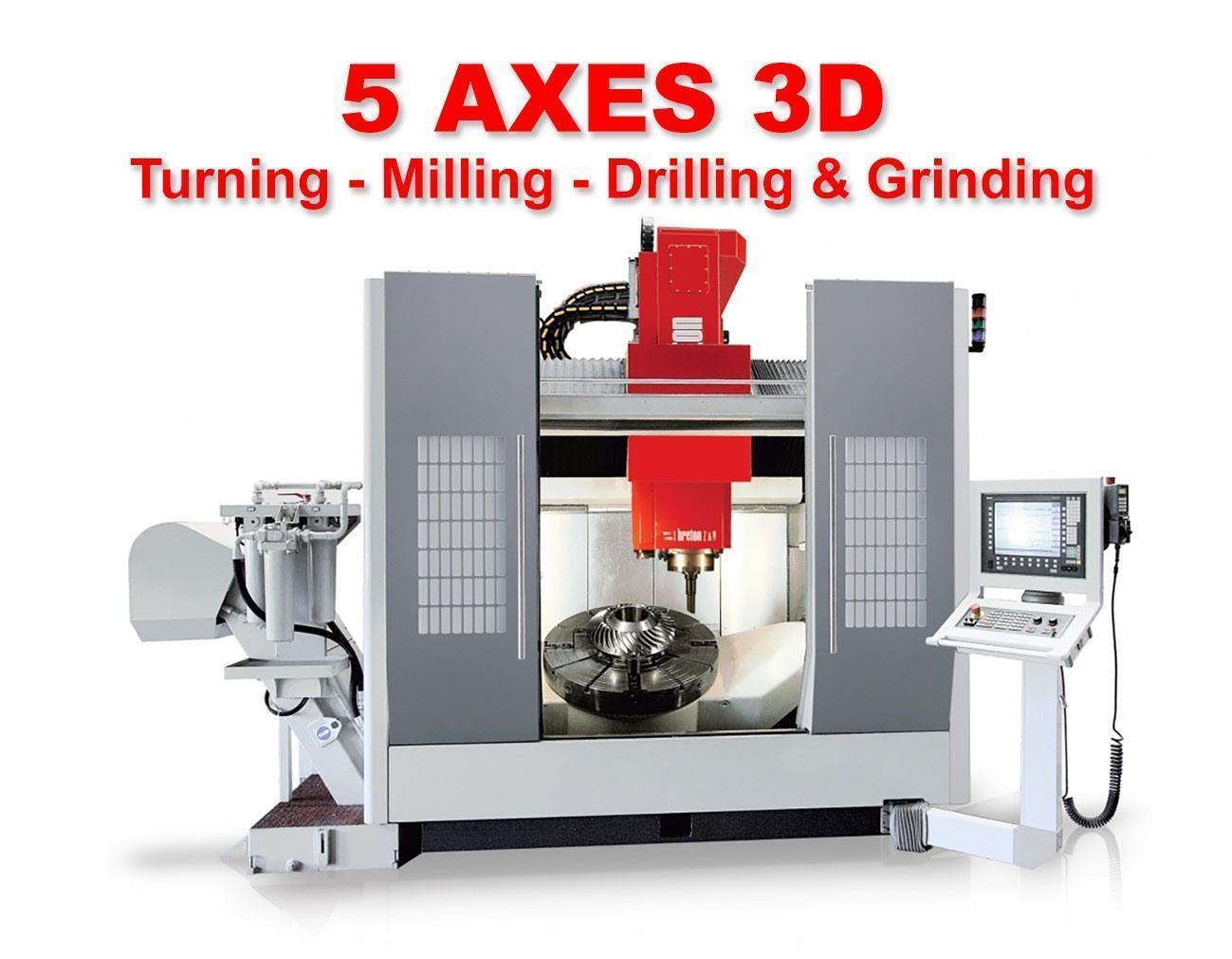

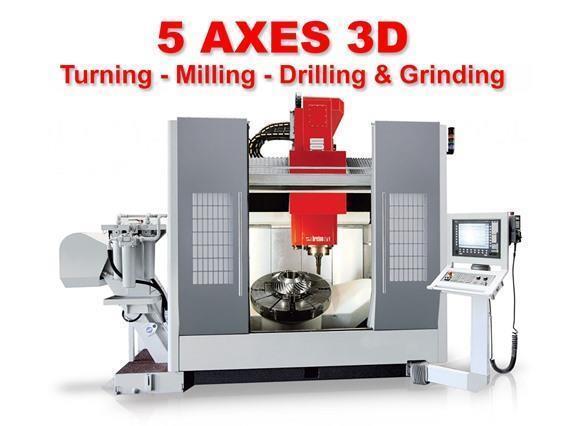

The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a moving gantry design for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring and roughing of complex parts.

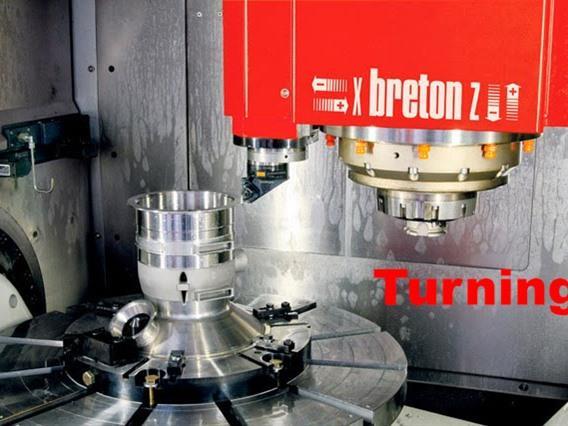

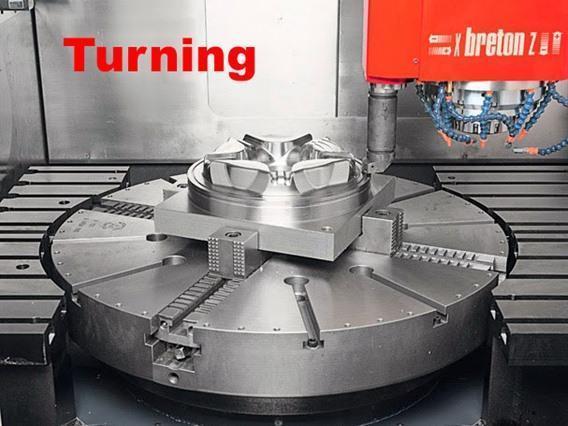

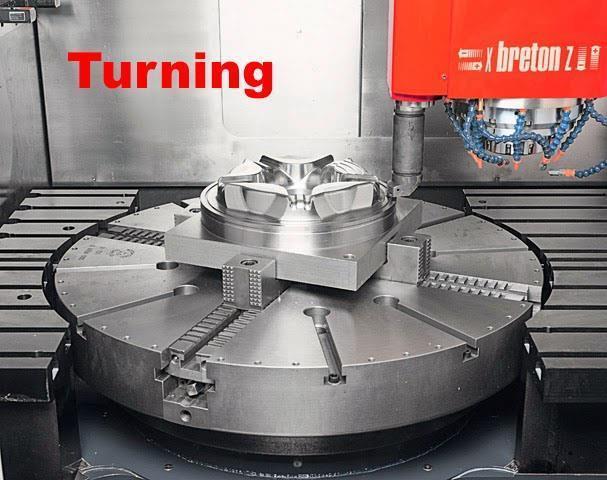

When used for turning > vertical lathe:
- Swivel range: 1100 mm
- maximum weight of the workpiece: 700 kg
- 40/30 kW on the table
- maximum torque on the table: 1500 Nm
- Maximum speed of the table: 1000 rpm!!
- hydraulic clamping on table
- tool taper for turning: KM63
- Tool changer with 150 positions, of which 24 for turning.

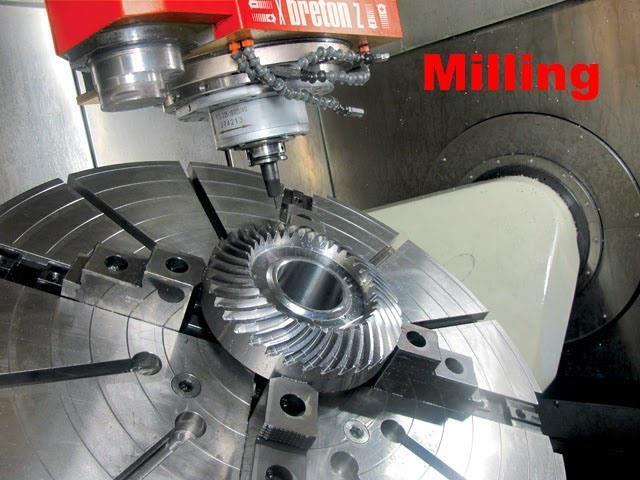

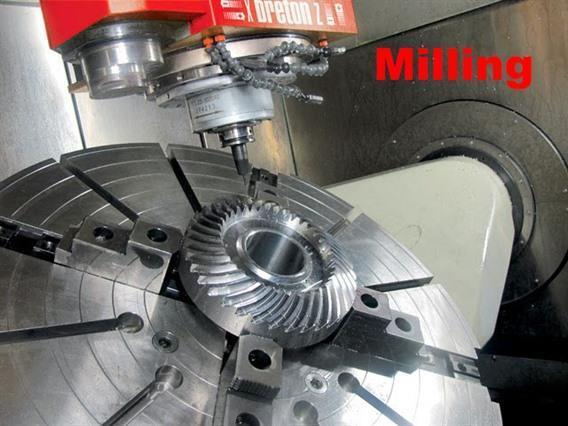

When used for milling, grinding, drilling, ... > machining center:
- X-axis: 800 mm
- Y-axis: 900 mm
- Z-axis: 600 mm
- A-axis: -30° / 110°
- C-axis: continuous
- maximum weight of the workpiece: 700 kg
- 55/40 kW on the spindle
- maximum torque on the spindle: 137/100 Nm
- maximum 18,000 revolutions per minute
- tool taper for milling: HSK-63
- Tool changer with 150 positions and 126 tool positions for milling, grinding and drilling
List of options mounted on the machine:
1 - table diameter 700 mm with hydraulic clamping
2- Tool changer with 150 positions
3 - chip conveyor belt
4 - cooling system with recovery
5 - Coolant temperature control
6 - high pressure cooling (40 to 70 bar) through spindle
7 - smoke extraction system
8 - Chip collection box
9 - Presetting System and Tool Integrity: Laser and Mechanical Probe for Measuring Instruments
10 - Renishaw probe
- Type/Model: Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC
- Stocknumber: D.01 15968
- Main category: [D] Machining centres
- Sub category: [D.01] Vertical machining centers
- Brand: Breton
Stocknumber: D.01 15968
