Stock number: D.01 3797 https://www.aptint.com/en/used-second-hand-machinery/vertical-machining-centers/huron-high-precision-exc-30-5-axes-simultaneous_4057

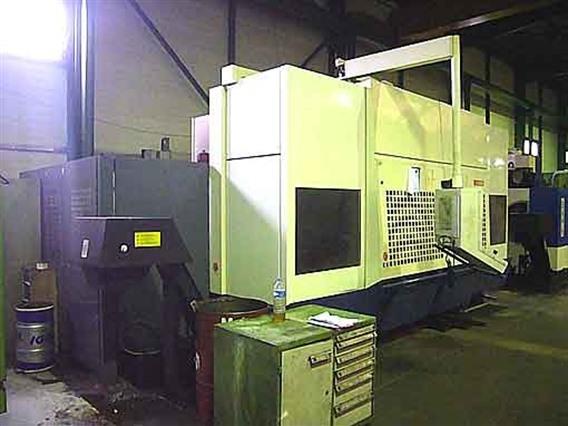

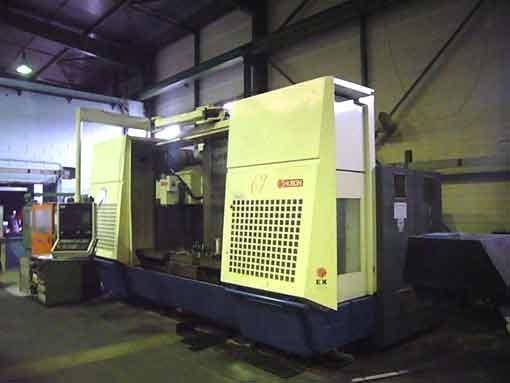

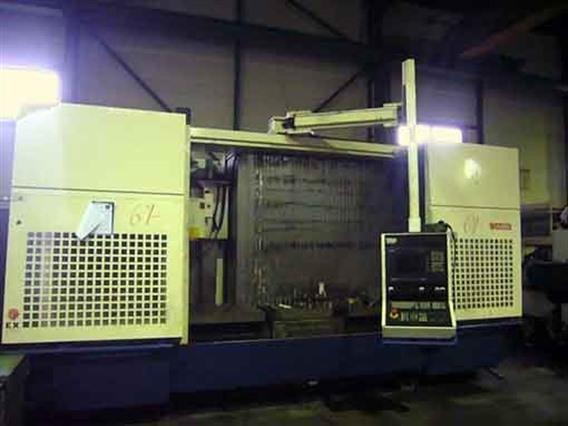

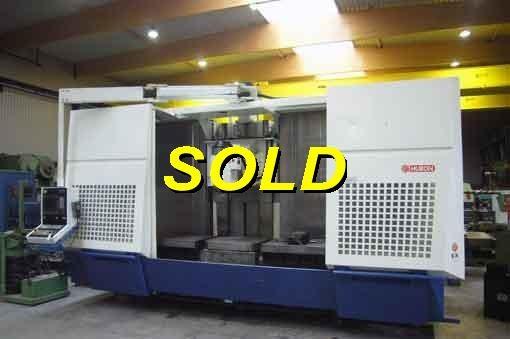

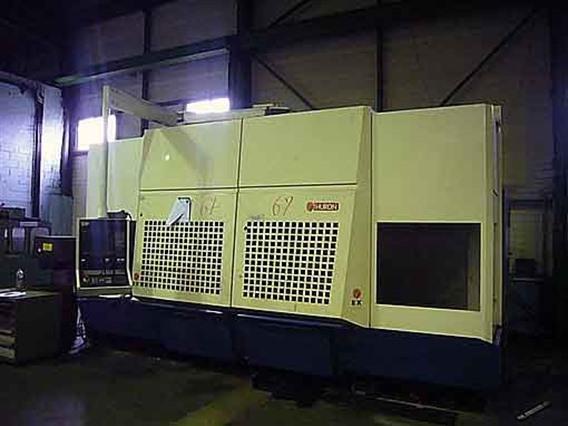

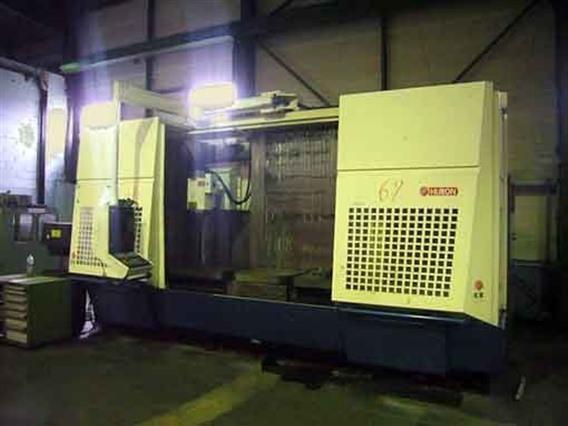

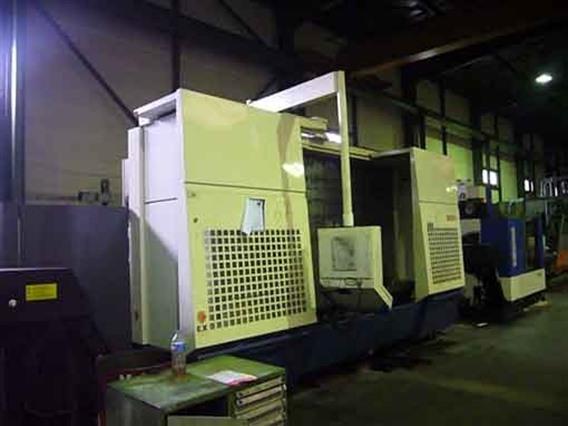

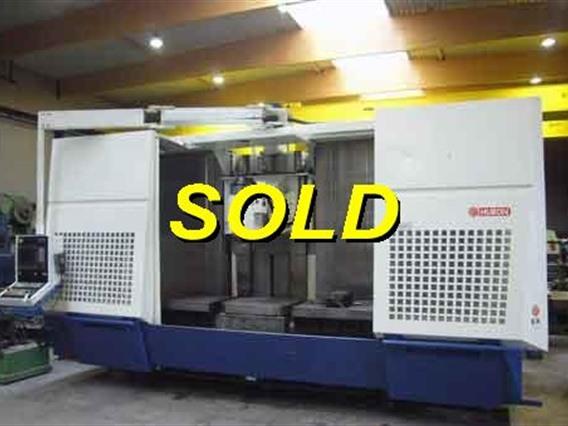

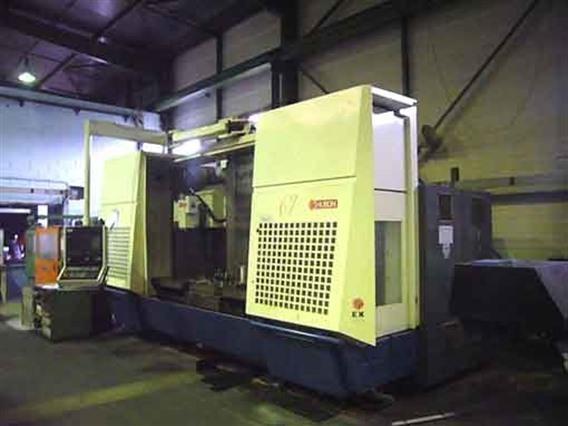

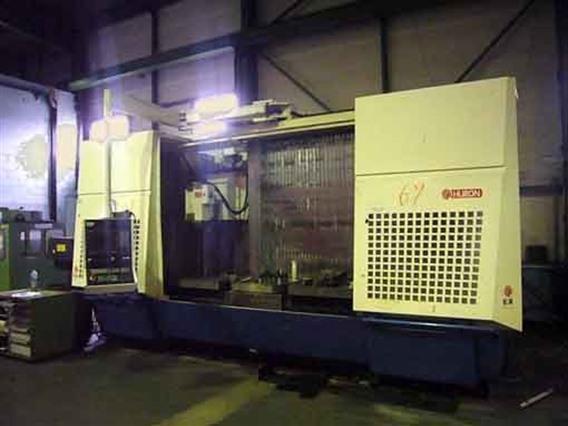

Huron High Precision EXC 30 (5 axes simultaneous)
1 / 41
PDF datasheet

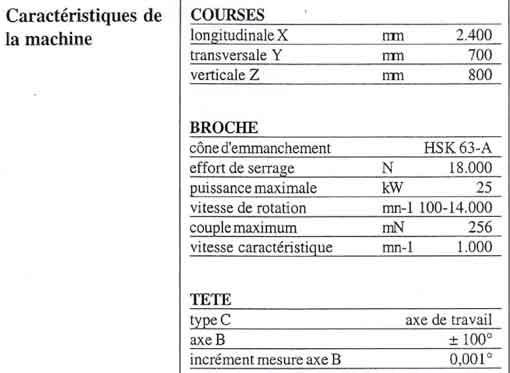

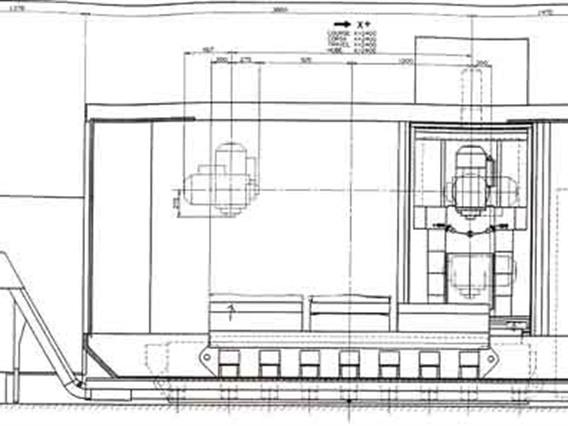

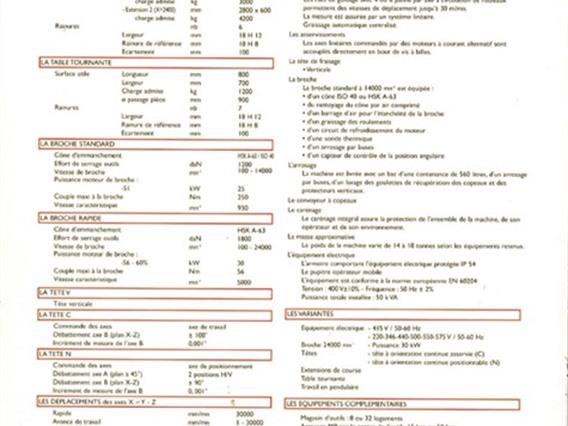

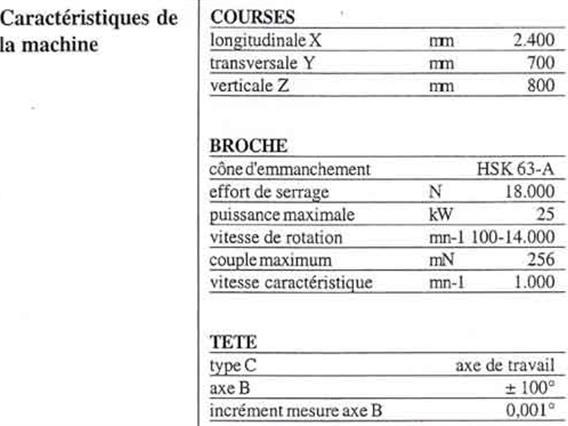

X-axis 2400 mm
Y-axis 700 mm
Z-axis 800 mm
Table dimensions 2800 x 700 mm

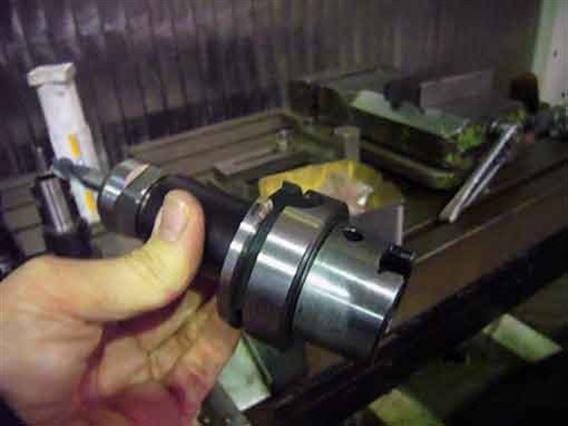

Admission in spindle (ISO) HSK63 - 250 Nm

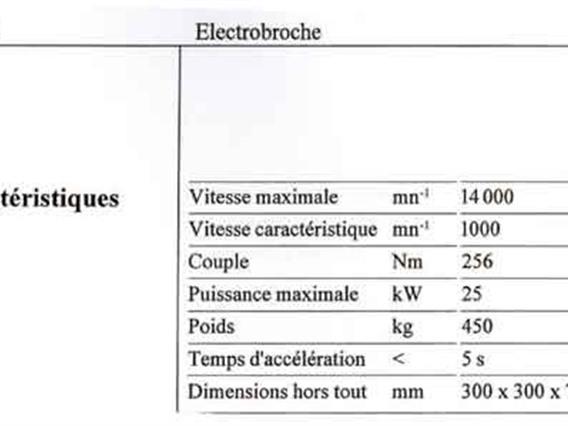

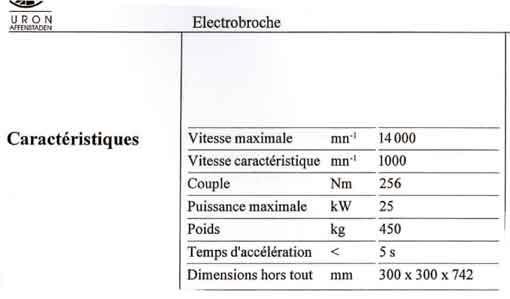

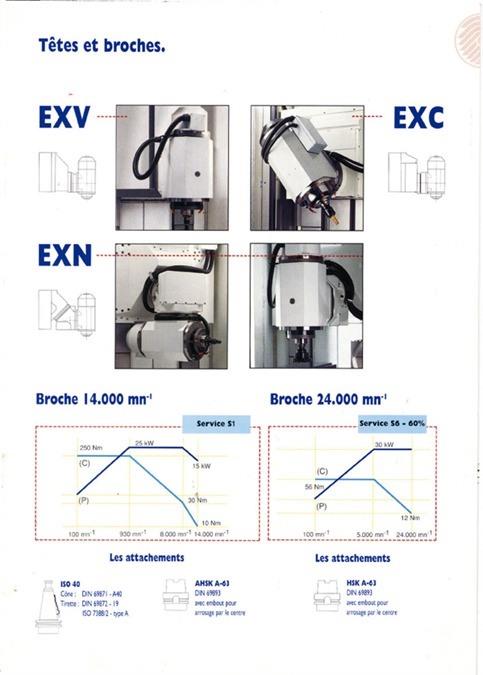

Power on the spindle 25 kW (High frequency)

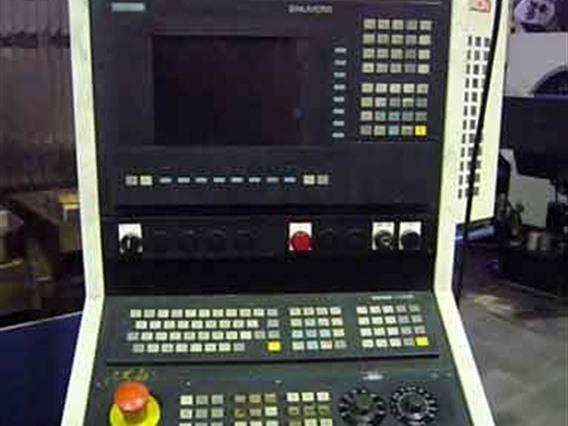

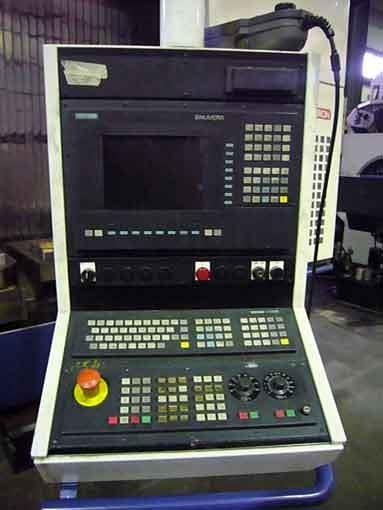

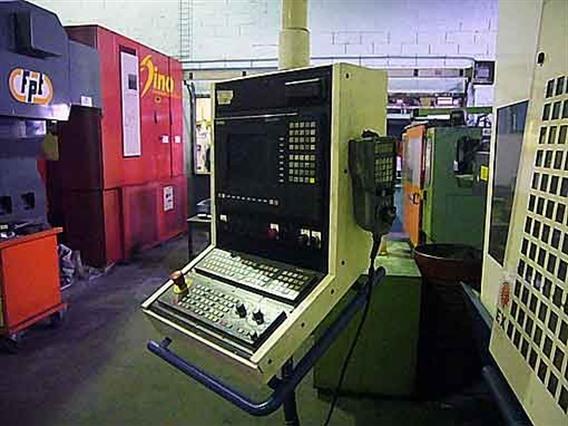

Control Siemens sinumerik 840D
Number of toolholders 32 tools
Number of rotations 100->14000rpm

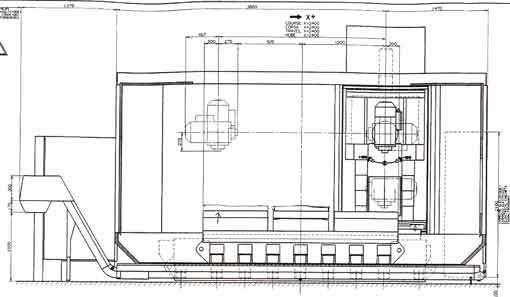

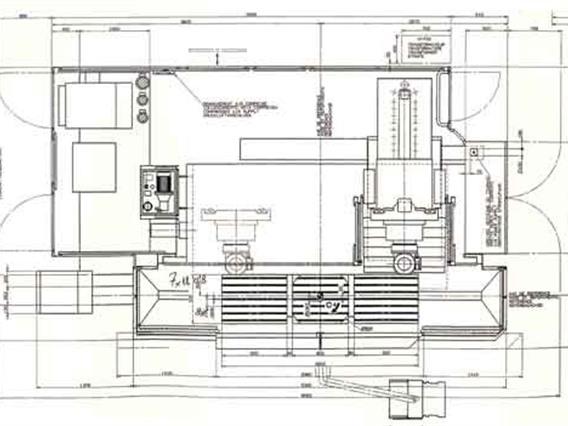

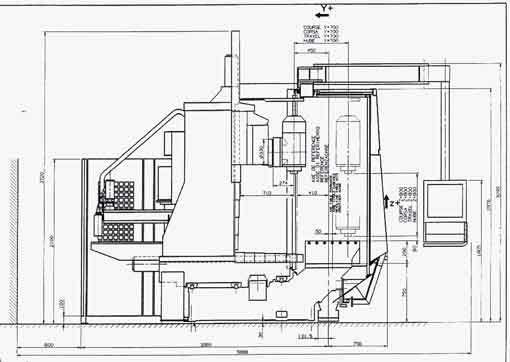

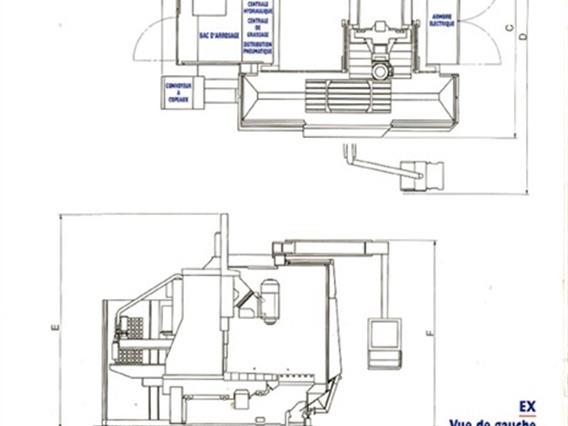

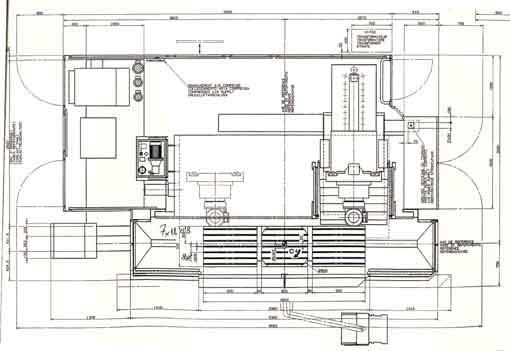

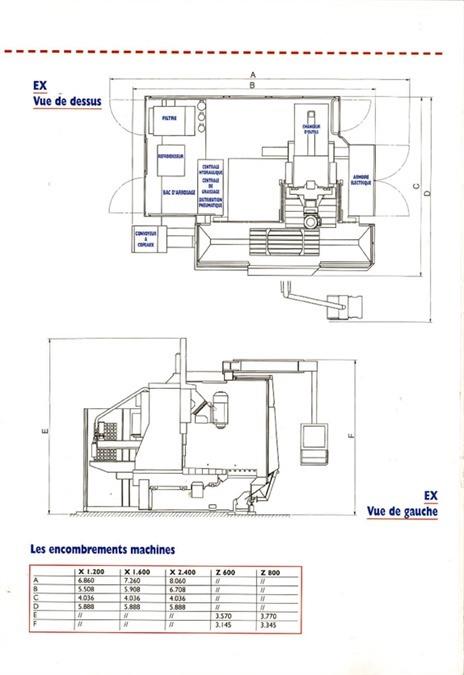

Length 5350 mm
Depth 3600 mm
Height 3700 mm
Weight 21000 kg

Description

With a rapid and powerfull spindle, the machine has a swarf removal higher than 800 cm³/minute in a steel at 700MPa.

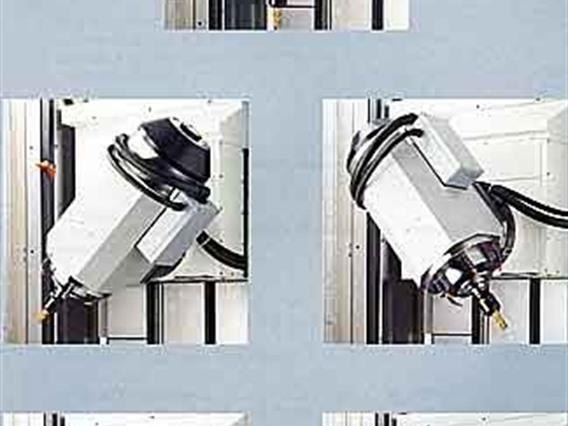

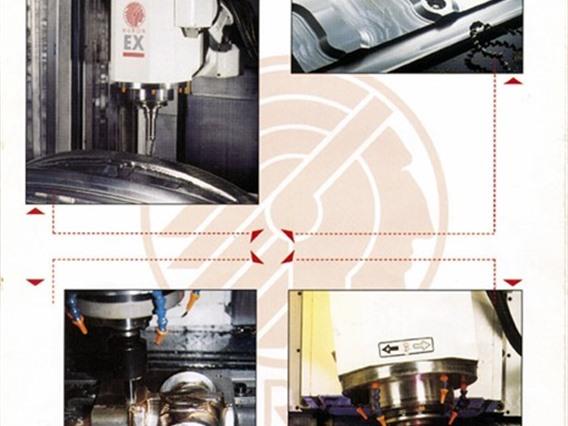

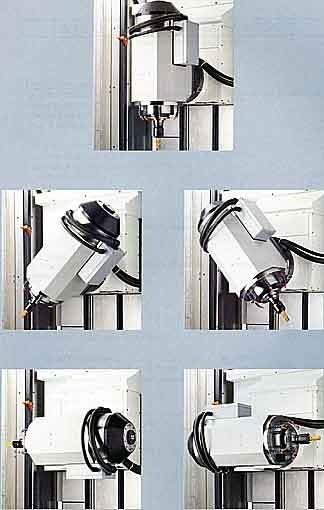

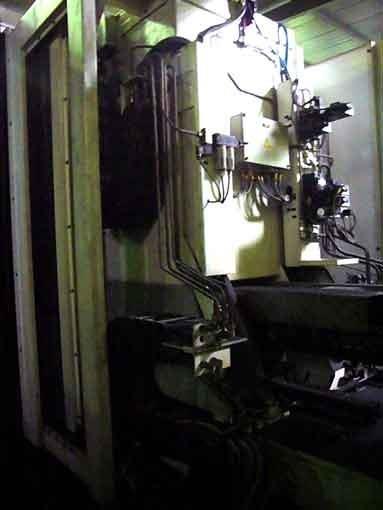

The controlled head is simultaneously interpoled with the other axes to ensure 5 axis machining when the head is associated with a rotary table.

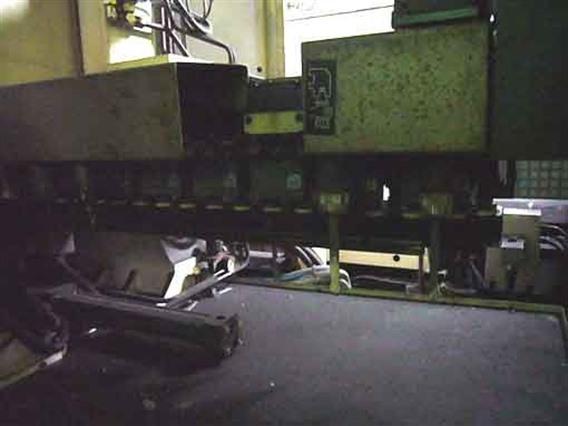

The machine is equipped with an automatic tool changer with 32 housings which ensure a large autonomy.

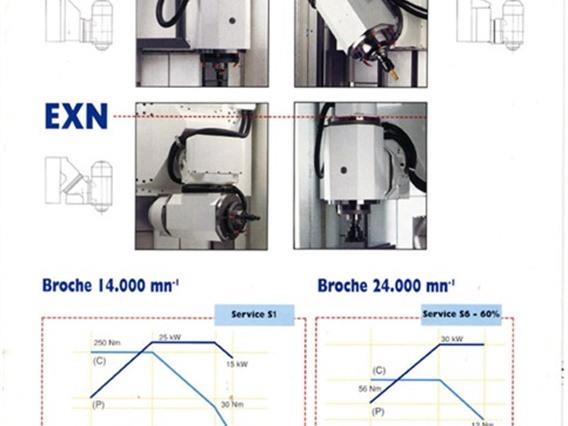

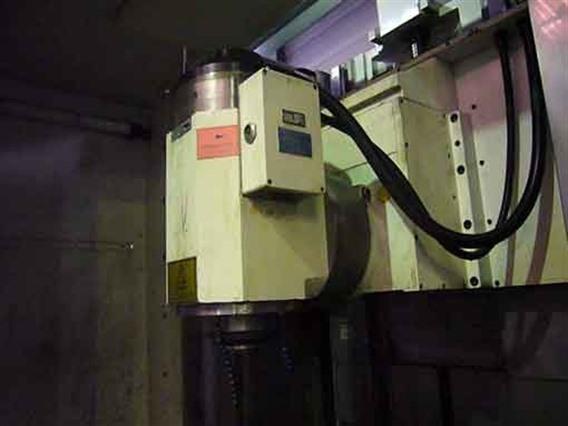

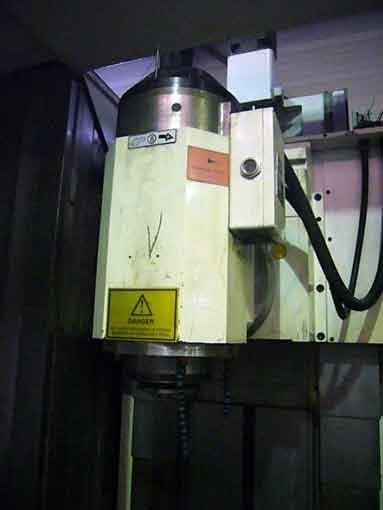

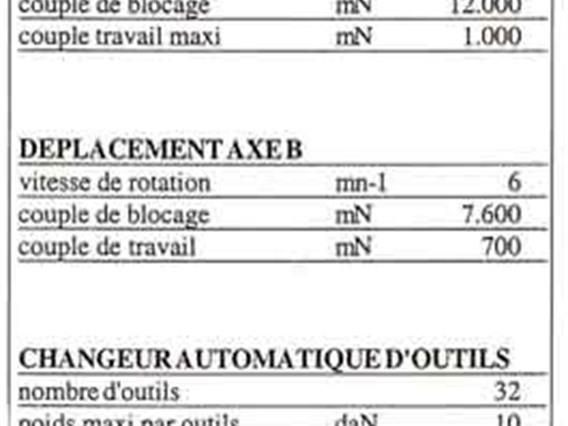

B-axis movement (milling head): +/- 100° continu
C-axis movement (Rotation table): 360° continu
Rapid traverse: 30 m/min

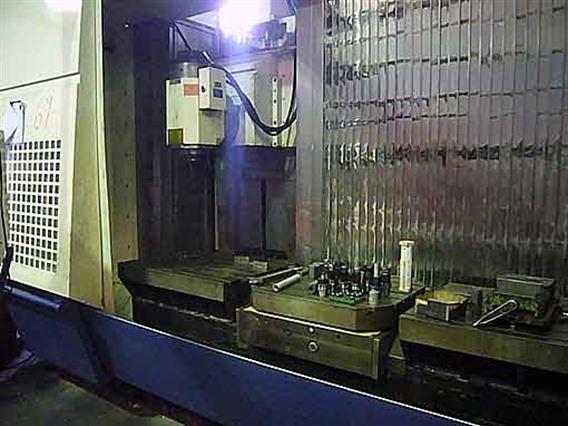

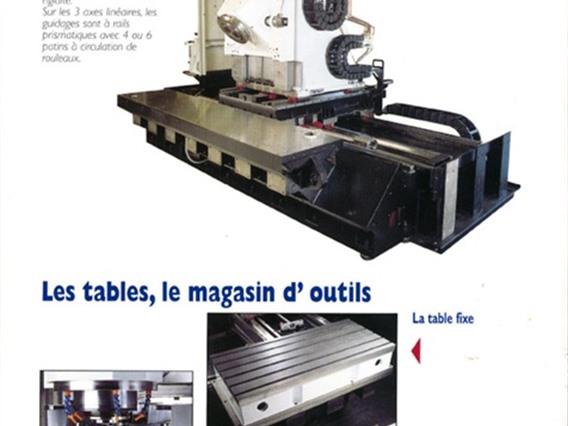

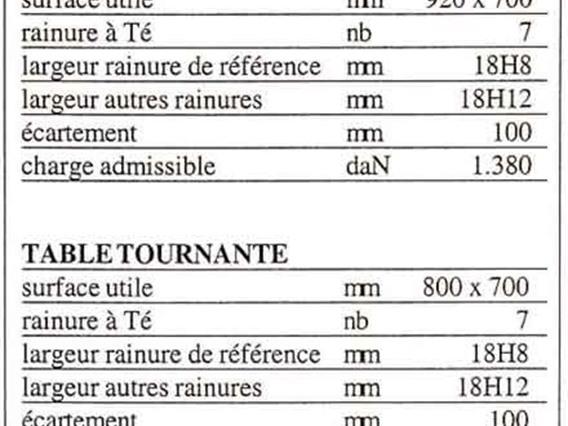

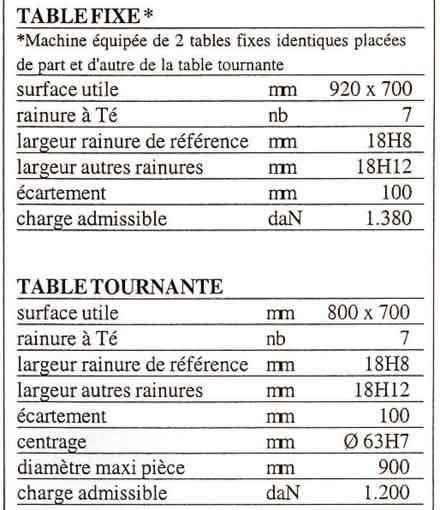

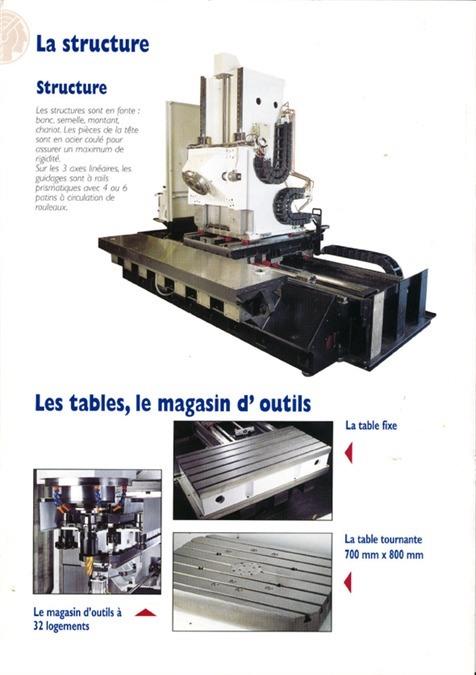

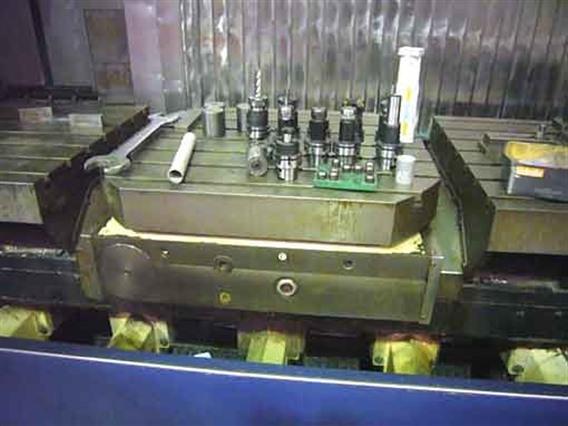

Table dim: 2800 x 600 mm (divided in 2 fixed & 1 rotation (360°)table)
Max weight on table: 5000 kg Tool storage: 32 Tools
