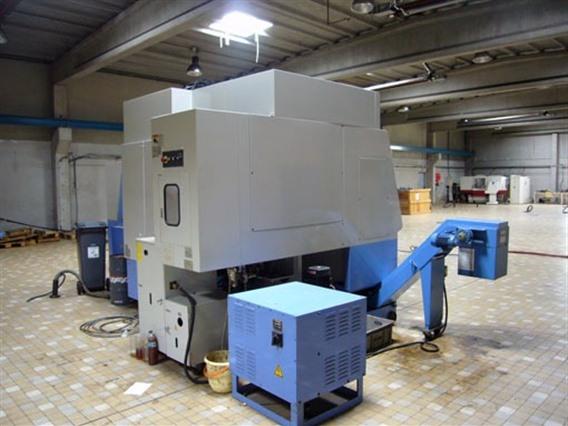

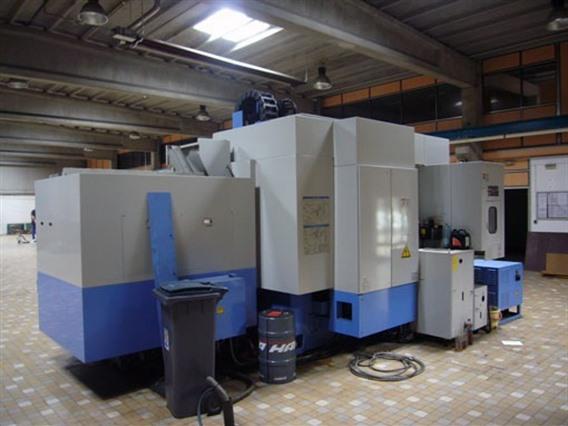

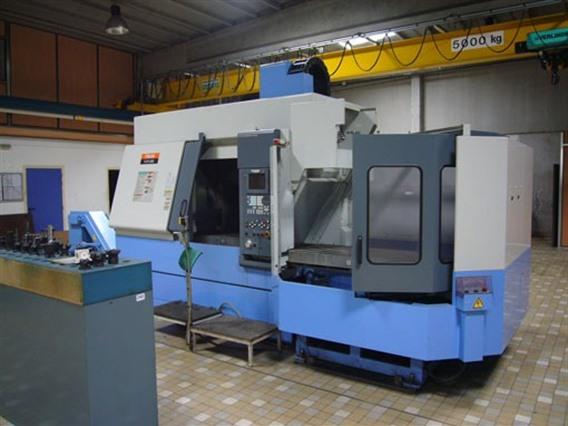

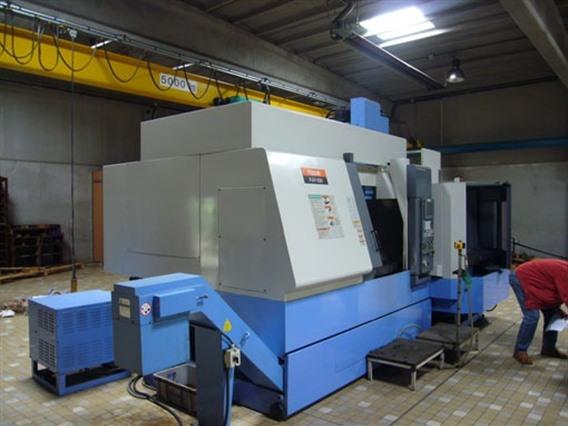

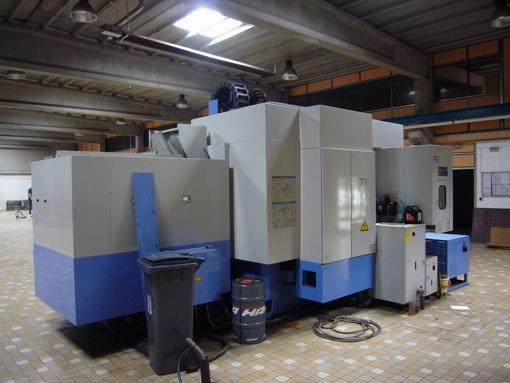

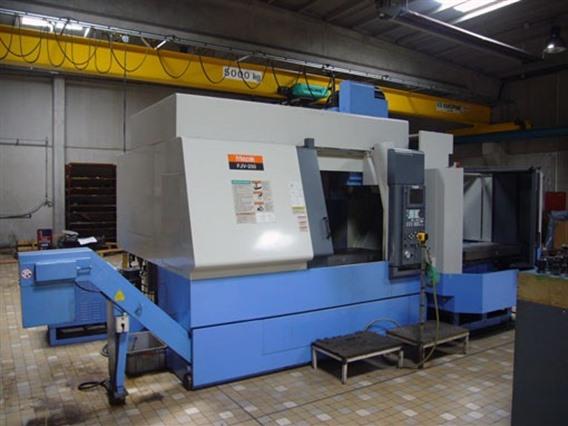

Vertical machining centers Mazak FJV250+2paletchanger
Technical information

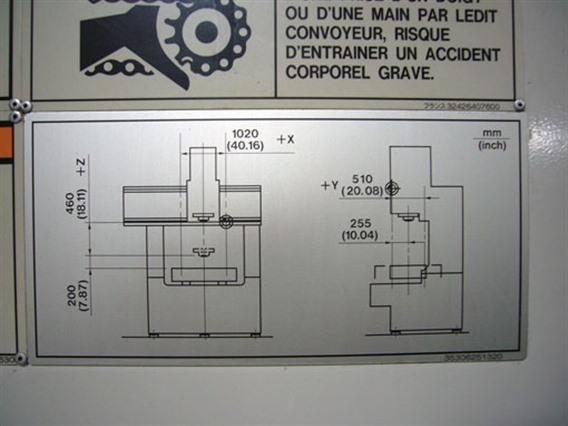

- X-axis1020 mm
- Y-axis510 mm
- Z-axis460 mm

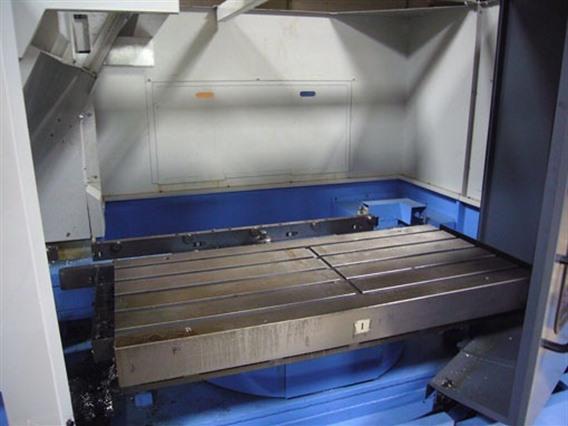

- Table dimensions1200 x 550 mm
- Max weight on the table1200 kg
- Passage between uprights1380 mm
- Power on the spindle15kW

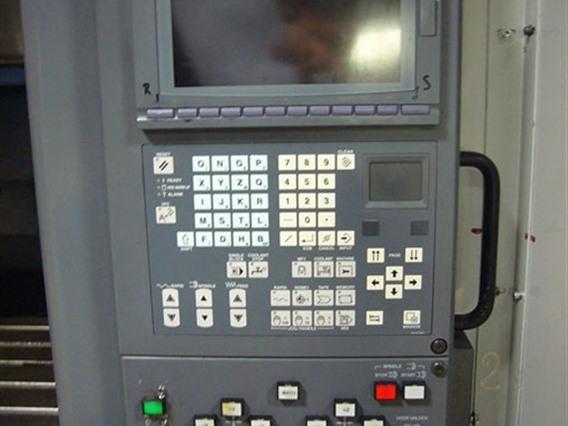

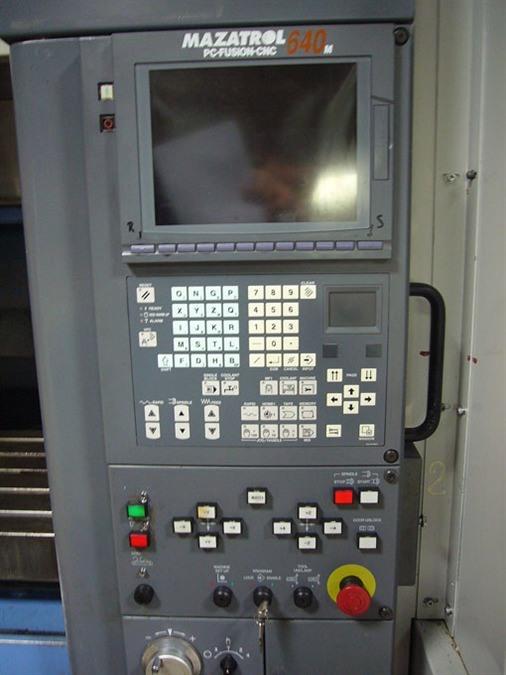

- Control PC Fusion
- Number of axes3

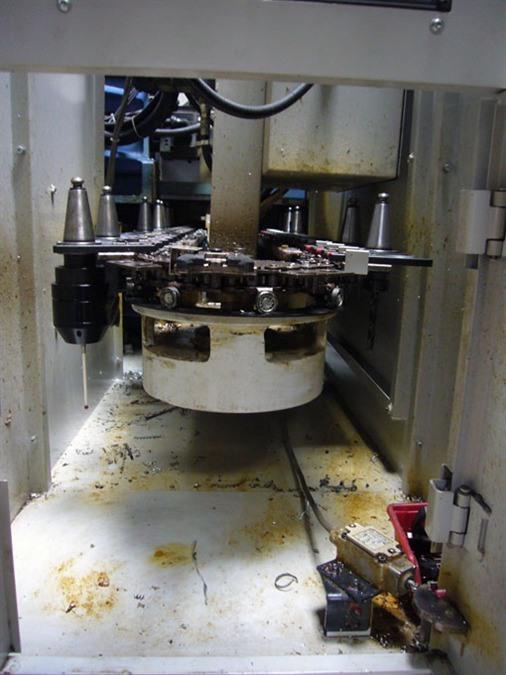

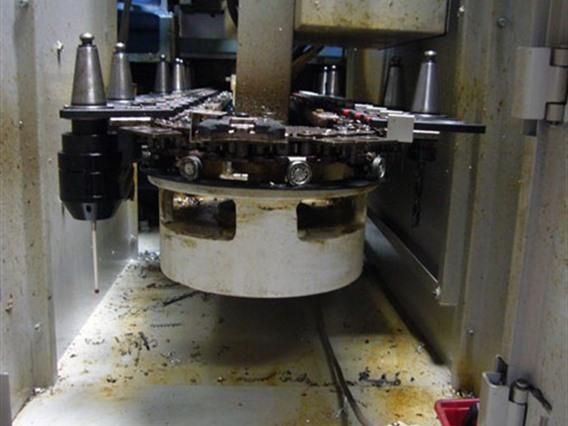

- Toolchanger*
- Number of toolholders40
- Number of rotations12000 rpm
- Number of pallets2
- Power principal motor 30 HP
- Length2995 mm
- Depth2340 mm
- Height2898 mm
- Weight6000 kg
- Cooling-system*
Additional info
- Options Included;

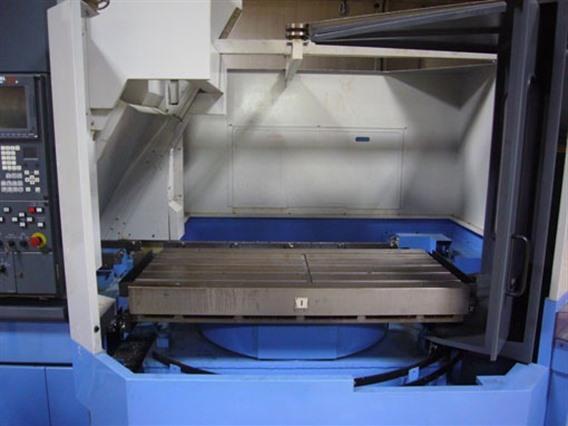

2 pallet changer
15 bars liquid cooling on spindle
enlarged Tool capacity (from 30 to 40 pcs)
chip conveyor
Renishaw measuring system
Performance pack (MAZATROL & EIA ISO)

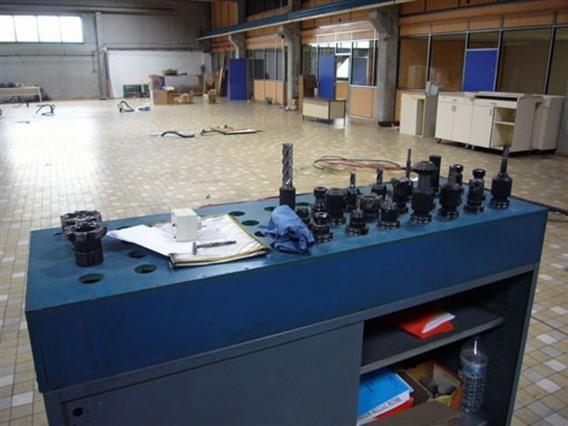

Extra Tools
only 1,5 year in production service = as good as new machine!!!
- Type/Model: FJV250+2paletchanger
- Stocknumber: D.01 3432 *06
- Main category: [D] Machining centres
- Sub category: [D.01] Vertical machining centers
- Brand: Mazak
