Vertical machining centers Staubli RX170 HSM Drilling / Milling robot

Name: Staubli RX170 HSM Drilling / Milling robot
Brand: Staubli
SKU: D.01 16021

Product added to your favorites

» Request a personalised quote

Technical information

Max weight on the table300 kg
Admission in spindle (ISO)HSK E 32
Power on the spindle8 kW
Drilling-capacity80 mm
Tapping-capacity80 mm
Control Staubli
Number of axes6
Toolchangeryes
Number of rotations500 - 20 000 rpm
Power principal motor 5 kW

Additional info

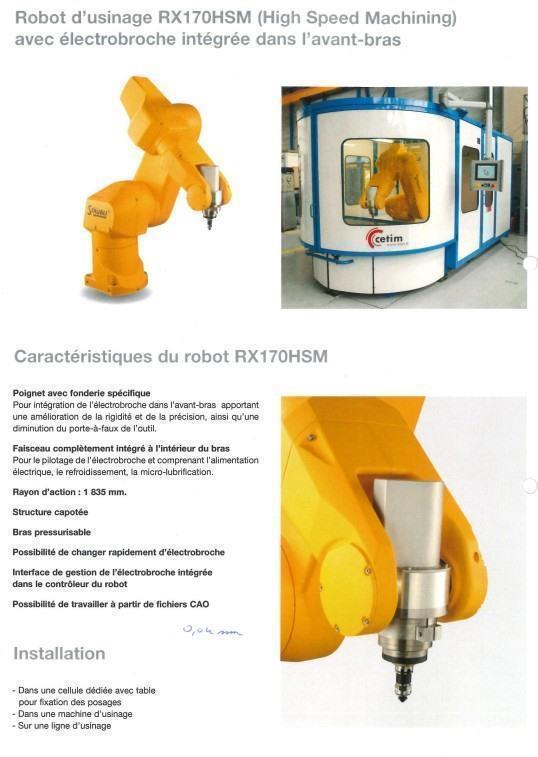

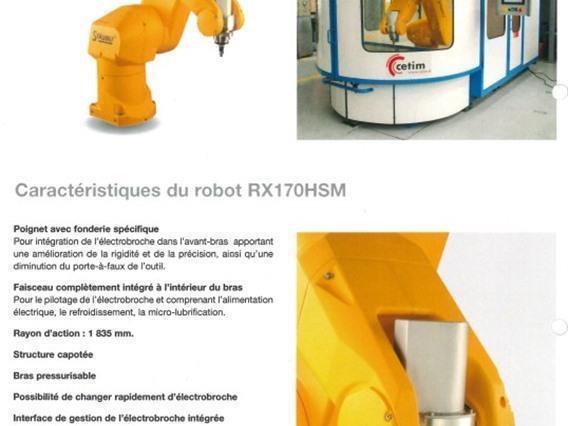

Staubli RX170HM milling robot
This robot is equipped with holes for milling tire molds, but this is also possible in other applications.
Cooling is provided by the spindle and the cooling milk is air-cooled.
Lubrication was done with grease.
spindle taper: HSK E 32
Operating radius: 1835 mm

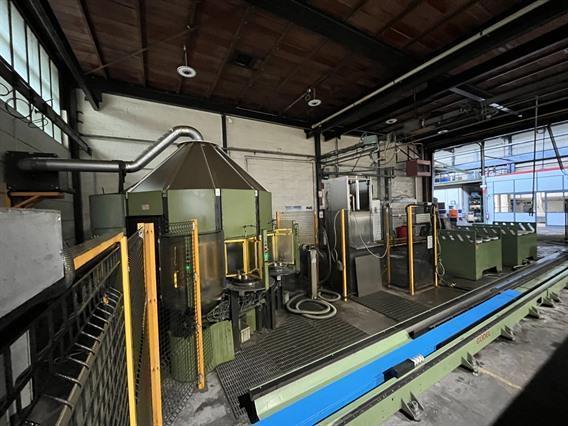

Was used in the Mecamold Herstal Tire Mold factory.

Toolchanger is included
Type/Model: RX170 HSM Drilling / Milling robot
Stocknumber: D.01 16021
Main category: [D] Machining centres
Sub category: [D.01] Vertical machining centers
Brand: Staubli

» Request a personalised quote

Stocknumber: D.01 16021

Watch video of working machinery

Staubli RX170 HSM Drilling / Milling robot

Download all pictures in ZIP
