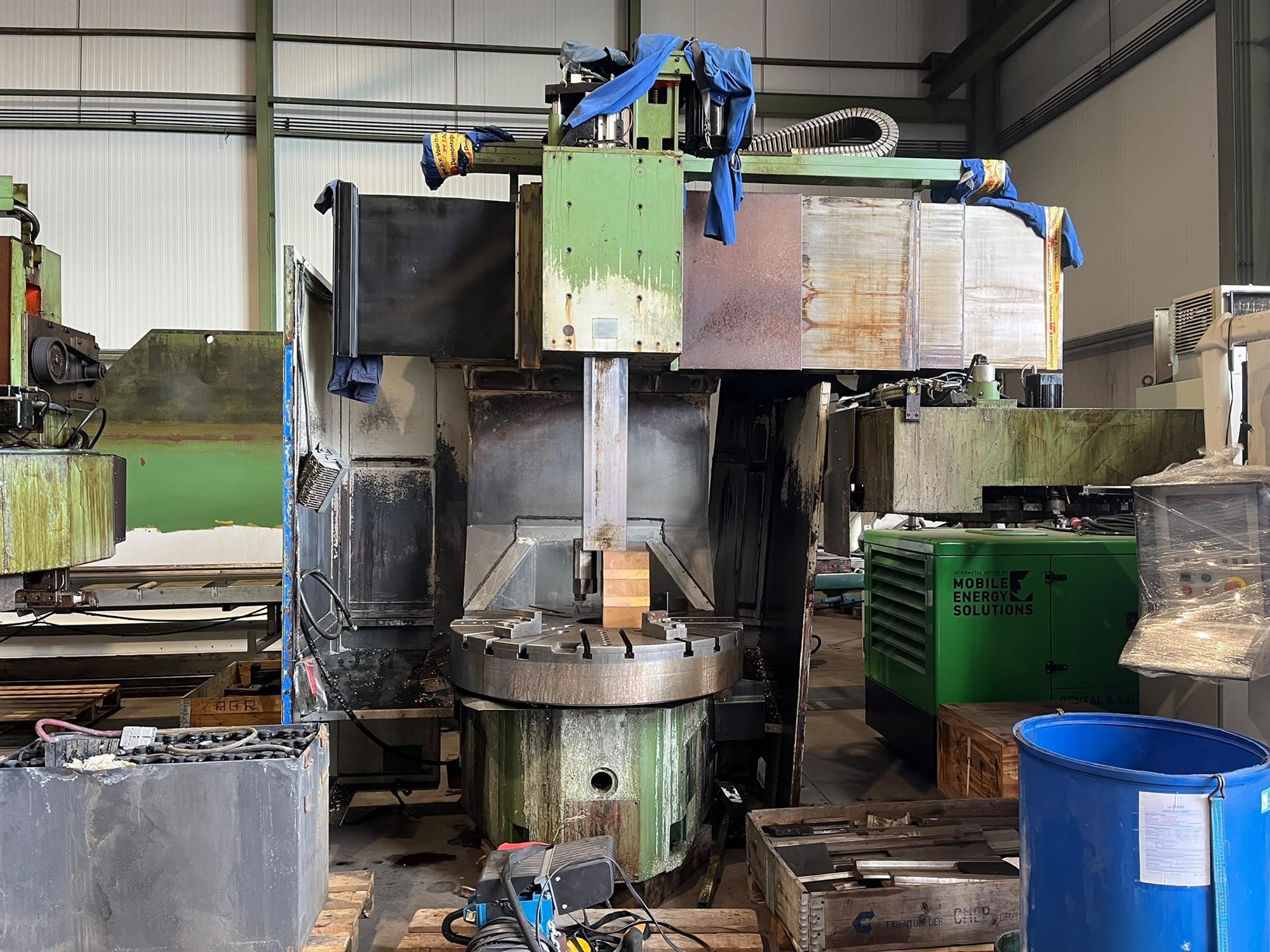

Vertical turning machines conventional & CNC Mario Carnaghi TGF 5 1300 - Ø1400 mm CNC

Name: Mario Carnaghi TGF 5 1300 - Ø1400 mm CNC
Brand: Mario Carnaghi
SKU: A.12 16000

Product added to your favorites

» Request a personalised quote

Technical information

Chuck dia.1200 mm
Max turningdia -- passage1400 mm
Power on the spindle60 kW
Max longitudinal travel X-axis2700 mm
Max hight of workpiece Z-axis750 mm
CommandE.C.S CNC 1402
Number of speeds2-430 rpm - max 450 Nm
Power needed3 x 380 V
Weight17 ton
TOOLINGyes
Turretyes
Qty Tools24
Coolant pumpyes
Lightyes

Additional info

Type/Model: TGF 5 1300 - Ø1400 mm CNC
Stocknumber: A.12 16000
Main category: [A] Lathes
Sub category: [A.12] Vertical turning machines conventional & CNC
Brand: Mario Carnaghi

» Request a personalised quote

Stocknumber: A.12 16000

Watch video of working machinery

Mario Carnaghi TGF 5 1300 - Ø1400 mm CNC

Download all pictures in ZIP
