Vertical machining centers Breton Xceeder 900 X: 900 - Y: 900 - Z: 600 mm CNC
Technical information
- X-axis900 mm
- Y-axis900 mm
- Z-axis600 mm
- Table dimensionsdia 700 mm
- Max weight on the table1000 kg
- Admission in spindle (ISO)HSK-E40
- Power on the spindle40 kW
- Control Siemens Sinumerik 840D SL
- Number of axes5 AXIS simultaneous
- Toolchangeryes
- Number of toolholders150 positions
- Number of rotations40 000 rpm
- Length4655 mm
- Depth5890 mm
- Height3415 mm
- Weight16 500 kg
Additional info
Type: XCEEDER 900/RT

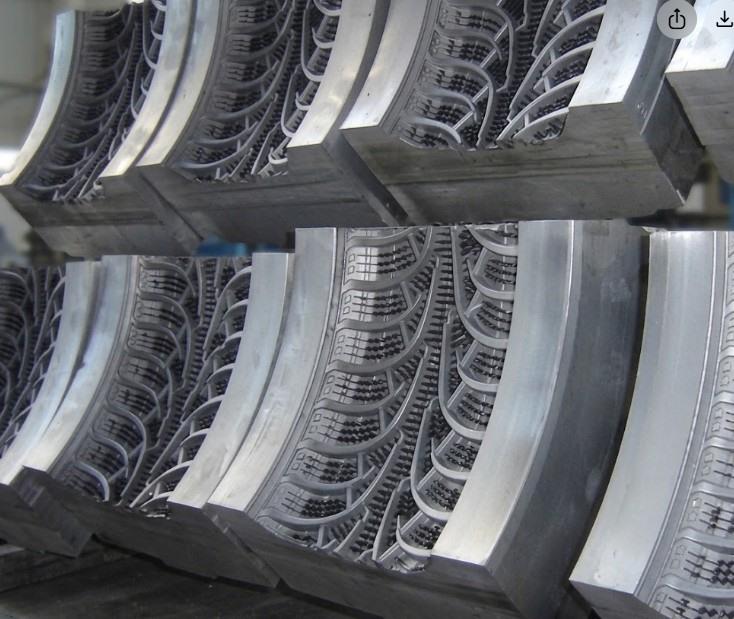

XCEEDER is a 5-axis interpolated moving machining center for high-speed milling. Specifically designed for applications ranging from complex gears and impellers to molds, dies, and tools, for projects in the aerospace, automotive, and power generation industries.
- Maximum workpiece diameter: 900 mm
- Maximum distance between spindle and table: 700 mm
- Hydraulic clamping on table
- A-axis: -30° / 110°
- C-axis: continuous
- max. torque on the spindle: 22 Nm
- Tool changer with 150 positions
Options fitted to this machine:
1 - 40,000 rpm high-speed spindle
2 - table dia 700 mm with hydraulic clamping
Tool changer with 3-150 positions
4 - chip conveyor belt
5 - cooling system with recovery
6 - Coolant temperature control
7 - high pressure cooling (40 to 70 bar) by spindle
8 - smoke extraction system
9 - chip collection box
10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools
11 - Renishaw measuring head
Many of the XCEEDER 's advantages stem from the core of its structure. From there, through the cast iron gantry, it benefits from all the vibration-damping properties of "Metalquartz," Breton's patented material. This material provides thermal inertia and withstands machining operations over the years, resulting in highly precise and rigid responses to the machining process.
- Type/Model: Xceeder 900 X: 900 - Y: 900 - Z: 600 mm CNC
- Stocknumber: D.01 16005
- Main category: [D] Machining centres
- Sub category: [D.01] Vertical machining centers
- Brand: Breton
Stocknumber: D.01 16005
Watch video of working machinery
